Introduction
Liver transplantation (LT) represents a convergence of medical innovation and complex surgical expertise, offering a lifeline to patients with end-stage liver diseases. Despite substantial progress in immunosuppressive therapies that has markedly improved LT success rates and long-term outcomes, immune rejection remains a significant clinical challenge. Current immunosuppressive regimens, although indispensable, are associated with adverse effects such as infections, malignancies, hypertension, and nephrotoxicity.1–3 Post-transplantation shifts in immune cell homeostasis and microenvironmental composition critically influence the development of immune rejection or tolerance, driven by intricate interactions among immune cell populations.4–7 The ability to direct immune cell differentiation and modulate their functional properties holds considerable promise for precisely regulating immune responses. Such advancements may transform immunomodulation strategies and unlock new therapeutic opportunities. Therefore, investigating these dynamics and their underlying mechanisms is essential for improving clinical outcomes and deepening scientific understanding.
Myeloid-derived suppressor cells (MDSCs), a heterogeneous population of immature myeloid precursors, proliferate and accumulate in response to various pathological stimuli.8 These cells are classified into monocytic MDSCs (M-MDSCs) and granulocytic MDSCs (G-MDSCs) subsets based on their myeloid lineage origins, and exhibit potent immunosuppressive properties, rendering them central to disease progression and immune regulation.9 MDSCs suppress T cell function through multiple metabolic pathways, cytokine secretion, and signaling mechanisms in conditions such as cancer, autoimmune diseases, and infections.10–12 Although the roles of MDSCs have been explored in several types of organ transplantation, there is a notable lack of research specifically focused on LT, particularly with respect to immune responses.13,14 In our previous study, LDLR+ MDSCs were found to expand in LT rejection tissues, as identified by single-cell RNA sequencing (scRNA-seq), and were suggested to interact with T cells via the NECTIN2–TIGIT pathway to attenuate rejection.15 Given their immunosuppressive potential, further investigation into the role of MDSCs in LT is warranted.
Therefore, by employing an integrated multi-omics strategy in conjunction with biological experiments, we aimed to delineate the heterogeneity and dynamic alterations of MDSCs within the context of liver transplant rejection. This comprehensive approach sought to advance the understanding of the immune microenvironment and critically assess the potential of MDSCs to promote immune tolerance.
Methods
Study subjects
This study included LT patients treated at the Organ Transplantation Center of Qingdao University Affiliated Hospital between November 2020 and November 2023. Post-transplant liver biopsies were obtained, incorporating data from a previous cohort.16 All grafts were obtained from either donation after cardiac death or living donors, with approval from the hospital’s Ethics Committee (IRB: QYFYWZLL29370).
Animals
Male C57BL/6J mice (8–10 weeks old, 23 ± 2 g; donors) and C3H/He mice (recipients) were purchased from Beijing Charles River and HFK Bioscience. LDL receptor–deficient (LDLR−/−) C57BL/6J mice (8 weeks old, 20 ± 2 g) were obtained from GemPharmatech. All animals were housed under specific pathogen–free conditions. Orthotopic liver transplantation (OLT) was performed under isoflurane anesthesia in accordance with established protocols and was approved by the Animal Welfare and Ethics Committee of Qingdao University (Approval No. 20221205C57C3H19220251205159).
Establishment of the mouse OLT model
The detailed surgical procedure17 is provided in the Supplementary Method (Establishment of the Mouse Orthotopic Liver Transplantation Model).
Tissue dissection and cell suspension
Human liver biopsies, obtained immediately after transplantation, were preserved in a dedicated storage solution and processed using standard tissue dissociation techniques.16 Samples were minced into 0.5 mm3 fragments in RPMI-1640 medium (Invitrogen) supplemented with 1% penicillin–streptomycin, followed by enzymatic digestion at 37 °C for 30–45 min with constant agitation. The digestion cocktail included 0.05% trypsin (Invitrogen, Cat# 25200056), 0.4% collagenase IV (Invitrogen, Cat# 17104-019), 0.25% collagenase I (Sigma, Cat# C0130-1G), 0.13% collagenase II (BBI, Cat# A004174-0001), and 0.1% elastase (Worthington, Cat# LS002292). Resulting cell suspensions were sequentially filtered through 70 µm and 40 µm strainers (BD), centrifuged at 300 g for 10 min, treated with red blood cell lysis buffer (Thermo Fisher) on ice for 3 min, washed twice with PBS (Invitrogen), and resuspended in PBS containing 0.04% bovine serum albumin for downstream applications.
Mouse liver tissue was processed using the Liver Dissociation Kit (Miltenyi Biotec).18 A dissociation mix was prepared in a gentleMACS™ C Tube by combining 4.7 mL DMEM with 200 µL Enzyme D, 100 µL Enzyme R, and 20 µL Enzyme A. Following a DMEM rinse, livers were transferred into the prepared C Tube, sealed, inverted, and processed using the gentleMACS Dissociator with program 37C_m_LIDK_1. The resulting cell suspension was filtered through a MACS® SmartStrainer (100 µm), rinsed with 5 mL DMEM containing stable glutamine, and centrifuged at 300 g for 10 min to remove the supernatant.
The procedures for preparing PBMCs from patients and mice, as well as the dissociation of multiple mouse tissues, are detailed in the Supplementary Method.19–22
Single-cell gene expression quantification and subcluster delineation
scRNA-seq data were processed using Seurat (v4.3.0)23 following protocols established in our previous studies.24–26 After importing the raw data, stringent quality control was performed to exclude cells with fewer than 501 detected genes or more than 25% mitochondrial transcripts. The remaining cells were normalized and scaled using Seurat’s default parameters. Highly variable genes were identified using the FindVariableFeatures function and were employed for principal component analysis on the scaled data matrix. Dimensionality reduction and clustering were conducted using FindNeighbors (dims = 1:10) and FindClusters (resolution = 0.5). The transcriptional landscape was visualized using Uniform Manifold Approximation and Projection (hereinafter referred to as UMAP).
Cell type determination
Differentially expressed genes among clusters were identified using Seurat’s FindMarkers and FindAllMarkers functions. Cell type annotation was guided by canonical marker genes from the CellMarker database (http://bio-bigdata.hrbmu.edu.cn/CellMarker/ )27 and corroborated with published studies. To improve classification accuracy, the SingleR package (v2.0.0)28 was applied to match scRNA-seq profiles with reference datasets for robust cell identity assignment.
Functional enrichment analysis
Following cell type annotation, functional enrichment analysis of differentially expressed genes among clusters was conducted using Gene Ontology terms and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways. These analyses were carried out with the clusterProfiler package (v3.17.0)28 in conjunction with the org.Hs.eg.db annotation database (v3.11.4). A P-value threshold of 0.05 was applied for both Gene Ontology and KEGG analyses. Enrichment results were visualized using bar plots or dot plots to summarize the key biological processes and pathways associated with each cell type.
MDSC scores
MDSC scores were calculated in Seurat using the AddModuleScore function and a set of marker genes associated with MDSCs.29 Gene sets were curated based on published studies and publicly available datasets. For each cell, scores were derived from the aggregated expression levels of genes within the specified set, allowing assessment of expression patterns at the single-cell level.
Cell-cell communication analysis
Intercellular communication was examined using the CellChat package (v1.6.1),30 which incorporates ligand–receptor interactions from the KEGG signaling pathway database and recent experimental findings. The analysis workflow comprised three main steps: identification of differentially expressed signaling genes, computation of ensemble average expression across cell types, and estimation of communication probabilities. This approach facilitated the mapping of signaling networks and interaction patterns among distinct cell populations.
Bulk RNA sequencing analysis
To validate the findings, transcriptomic data were retrieved from the NCBI Gene Expression Omnibus. The GSE145780 dataset,31 which comprises microarray-based liver transplant biopsy profiles from both rejection and non-rejection cases, was analyzed to evaluate gene expression differences associated with transplant outcomes.
Histological staining
Fresh liver tissue was fixed in 4% paraformaldehyde, embedded in paraffin, and sectioned at a thickness of 4 µm. Morphological evaluation was conducted using hematoxylin and eosin (H&E) staining.32
Immunohistochemistry (IHC) and multiplex immunohistochemistry (mIHC) staining analysis
For IHC, tissue sections were deparaffinized, rehydrated, and subjected to antigen retrieval, then blocked and incubated sequentially with primary and secondary antibodies.33 Color development and counterstaining were then performed. For mIHC, prepared slides underwent microwave heating, blocking, and antibody incubation, with signal amplification. These steps, microwave heating, blocking, and antibody incubation, were repeated as necessary, followed by DAPI counterstaining and mounting.34 Stained slides were scanned using a Pannoramic MIDI scanner (3DHISTECH, Hungary), and images were analyzed with the HALO 2.0 Area Quantification algorithm (Indica Labs, Corrales, NM) at Nanjing Freethinking Biotechnology Co., Ltd. (China).
Flow cytometry
For flow cytometric analysis, cells were stained using multiple panels of fluorochrome-conjugated antibodies, including anti-CD45, anti-HLA-DR, anti-CD11b, anti-CD33, anti-CD14, anti-CD15, anti-Ly6C, anti-Ly6G, anti-LDLR, anti-NECTIN2, anti-PDL1, anti-Arg-1, anti-iNOS, anti-CD8A, anti-TIGIT, anti-CTLA-4, anti-PD1, anti-GZMB, anti-IFN-γ, and anti-IL-2. All antibodies were obtained from BioLegend and Invitrogen.
For cell surface staining, cells were adjusted to 5–10 × 106/mL in 100 µL of 1× PBS containing 5% bovine serum albumin and blocked in the dark for 15 min. Primary antibodies were then added and incubated for 15–20 min, followed by two washes and resuspension for flow cytometric analysis.35
For intracellular staining, cells were first blocked and incubated with primary surface antibodies as described above, then washed and fixed with 100 µL of fixation buffer (Invitrogen) for 30 min. Following permeabilization (Invitrogen), cells were incubated with primary intracellular antibodies for 20 min, washed twice, and resuspended for analysis.35 Samples were acquired using a flow cytometer (CytoFLEX S, USA) and analyzed with FlowJo software (v10.8.1) to quantify cell populations based on fluorescence intensity and antibody binding.
Co-culture experiment
Bone marrow cells were harvested from the tibias and femurs of wild-type and Ldlr−/− C57BL/6J mice by flushing with 1× PBS. Red blood cells were lysed using ACK lysis buffer, and the remaining cells were plated in 25 cm2 culture flasks (Corning, USA). For M-MDSC induction, bone marrow cells (1 × 106/mL) were cultured in DMEM (HyCyte, China) supplemented with 40 ng/mL GM-CSF and IL-6 at 37 °C in 5% CO2 for four days.36 M-MDSCs were then isolated using magnetic microbeads (Miltenyi Biotec).37
Single-cell suspensions prepared from lymph nodes were used to isolate CD8+ T cells with CD8a microbeads (Miltenyi Biotec).38 For co-culture assays, 1 × 106 CD8+ T cells were cultured with M-MDSCs in 2 mL RPMI 1640 medium (HyCyte, China) in 6-well round-bottom plates for three days, followed by flow cytometric analysis.
Statistical analysis
Statistical analyses and data visualization were performed using R (v4.3.0) and GraphPad Prism (v8.0.2). Data are presented as mean ± standard error of the mean. Differences between two groups were assessed using an unpaired Student’s t-test, whereas comparisons among multiple groups were evaluated using the Kruskal–Wallis H test. Statistical significance is denoted as *P < 0.05, ** P < 0.01, and *** P < 0.001.
Results
scRNA-seq analysis highlights myeloid cells in patients after LT

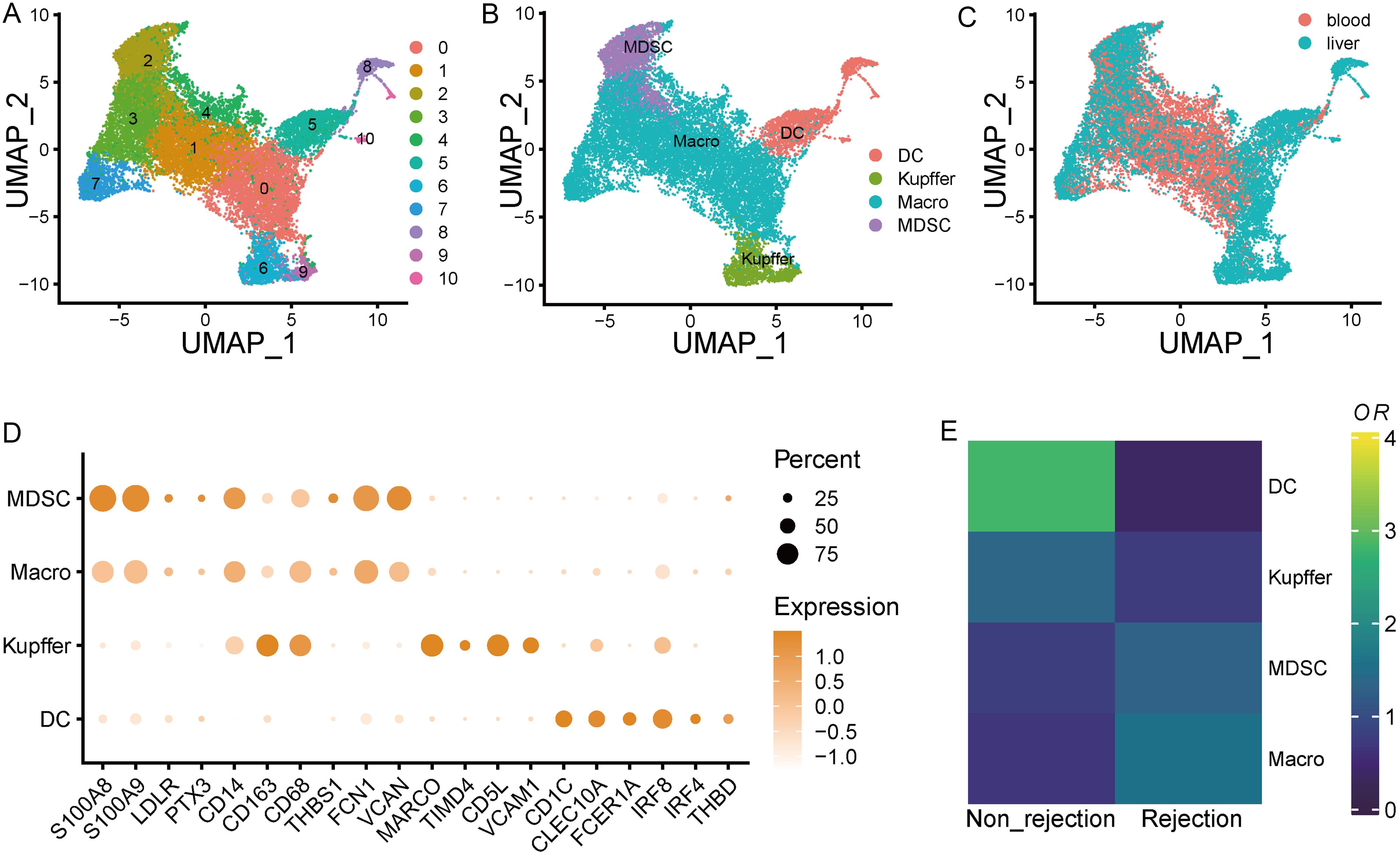

As an initial step, the myeloid immune cell repertoire of patients following LT (post-LT) was characterized using scRNA-seq profiling. Unsupervised clustering identified 11 distinct clusters among 18,148 myeloid cells. Canonical marker genes (Supplementary Table 1) were analyzed to annotate specific cell types (Fig. 1A), including dendritic cells, Kupffer cells, macrophages, and MDSCs (Fig. 1B). Tissue distribution analysis revealed a predominance of macrophages in liver samples (20.3%, 16.2%, 52%, and 11.5%), whereas peripheral blood samples were overwhelmingly enriched in macrophages (4.0%, 1.1%, 78.2%, and 16.8%) (Fig. 1C). Macrophages (clusters C0, C1, C3, C4, and C7), characterized by the expression of S100A9, CD68, and FCN1 (Fig. 1D), were significantly enriched in rejection tissues (Fig. 1E), indicating a potential key role in immune regulation following LT. In contrast, dendritic cells (C5, C8, C10), defined by the expression of CD1C, CLEC10A, FCER1A, and IRF8, and Kupffer cells (C6, C9) were reduced in rejection samples. MDSCs (C2), identified by S100A8, S100A9, FCN1, and VCAN, were predominantly liver-derived and showed elevated abundance in rejection tissues.
IHC staining of liver biopsies from patients with mild and severe acute rejection revealed pronounced immune cell infiltration in the portal areas (Supplementary Fig. 1A). CD4+ and CD8+ T cells, along with CD68+ macrophages, were markedly increased, suggesting their involvement in the immunopathology of acute rejection.

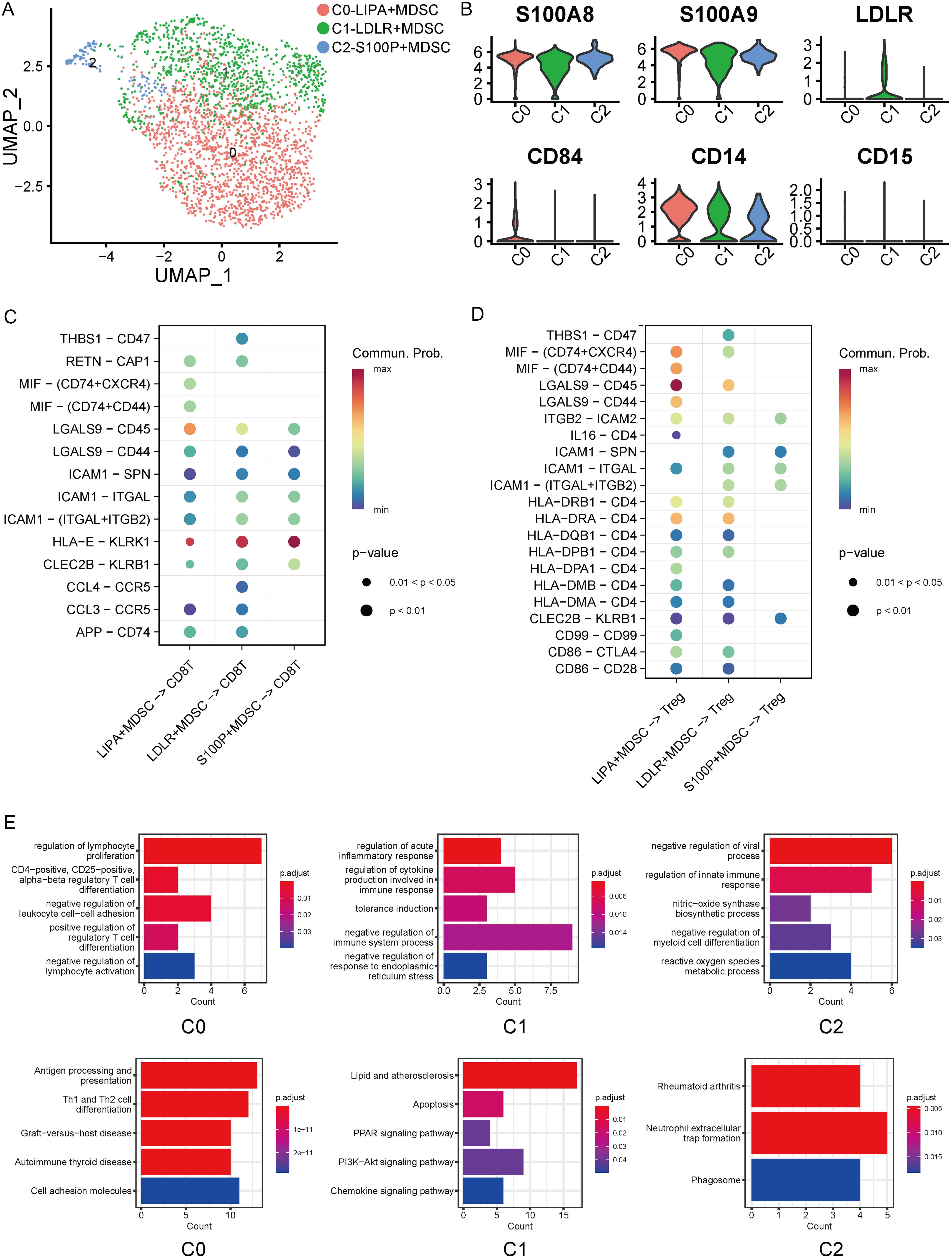

scRNA-seq analysis unveils functionally distinct subsets of MDSCs
The aforementioned cells represent key components of the immune response following LT. However, the present study focuses specifically on MDSCs. Further analysis revealed three distinct MDSC subsets: C0-LIPA+ MDSC, C1-LDLR+ MDSC, and C2-S100P+ MDSC (Fig. 2A). Violin plots demonstrated that all subsets expressed characteristic MDSC markers, including S100A8 and S100A9 (Fig. 2B). Notably, the C1-LDLR+ MDSC subset exhibited significantly higher expression levels of these markers. Given the established association between S100A8 and S100A9 and MDSC proliferation, these findings suggest that C1-LDLR+ MDSCs may possess enhanced immunosuppressive capacity compared with the other subsets.
All clusters exhibited high CD14 expression and relatively low CD15 expression. Immunohistochemical analysis further confirmed that MDSCs in liver tissues with varying degrees of rejection predominantly displayed monocytic characteristics (Supplementary Fig. 2).
A total of 227 differentially expressed genes were identified across the three clusters (Supplementary Table 2). The C0-LIPA+ MDSC subset expressed genes associated with lysosomal function, including LIPA and PLD3. Compared with the other subsets, C0-LIPA+ MDSCs showed greater enrichment for genes involved in mitochondrial function (such as MT-ND1, MT-ATP6, MT-CO1, and MT-CO3). These genes encode key enzymes that are integral components of the mitochondrial electron transport chain, which plays a critical role in cellular respiration and energy production. The C1-LDLR+ MDSC subset exhibited a distinct metabolic profile characterized by elevated expression of lipid metabolism markers (LDLR, PLIN2, OLR1) and glucose metabolism–related genes (GK, TYMP). This profile suggests metabolic reprogramming potentially linked to immune regulation in the context of metabolic disorders. The C2-S100P+ MDSC subset preferentially expressed genes involved in cellular signaling, including TLR4, PTPRE, and TRIB1, suggesting a role in modulating immune regulatory networks.
Distinct differences in the expression of immune function–related genes were observed across the three MDSC subsets. The C0-LIPA+ MDSC subset favored antigen presentation and immune cell recognition, with significant expression of genes encoding MHC class II molecules, including HLA-DPA1, HLA-DQA1, and HLA-DRA. These genes are critical in antigen-presenting cells for initiating antigen-specific immune responses. Functional enrichment analysis revealed significant involvement in regulating lymphocyte proliferation and the negative regulation of leukocyte cell–cell adhesion (Fig. 2E and Supplementary Table 3). The C1-LDLR+ MDSC subset expressed genes directly associated with inflammatory response regulation, including chemokines (CXCL2, CXCL3, CXCL8), interleukin-related genes (IL1β and IL6R), and NLRP3, a key component of the inflammasome complex. These genes are essential for immune cell recruitment, activation, and signal transduction. Functional enrichment analysis highlighted roles in modulating acute inflammatory responses and promoting immune tolerance, with potential implications for the regulation of liver transplant rejection. The C2-S100P+ MDSC subset exhibited elevated expression of genes associated with antiviral defense, such as IFIT1, IFITM3, and RSAD2, suggesting a specialized role in antiviral immunity. Functional enrichment further supported involvement in the negative regulation of viral processes and modulation of innate immune responses.
We further mapped the intercellular communication network. The dot plot illustrated predicted ligand–receptor interactions among MDSCs, CD8+ T cells, and regulatory T cells (Tregs) (Fig. 2C and D). The analysis suggests potential interactions mediated by HLA-E/KLRK1 and LGALS9/CD45 ligand–receptor pairs (Supplementary Table 4).
LDLR+ MDSCs participate in rejection after LT

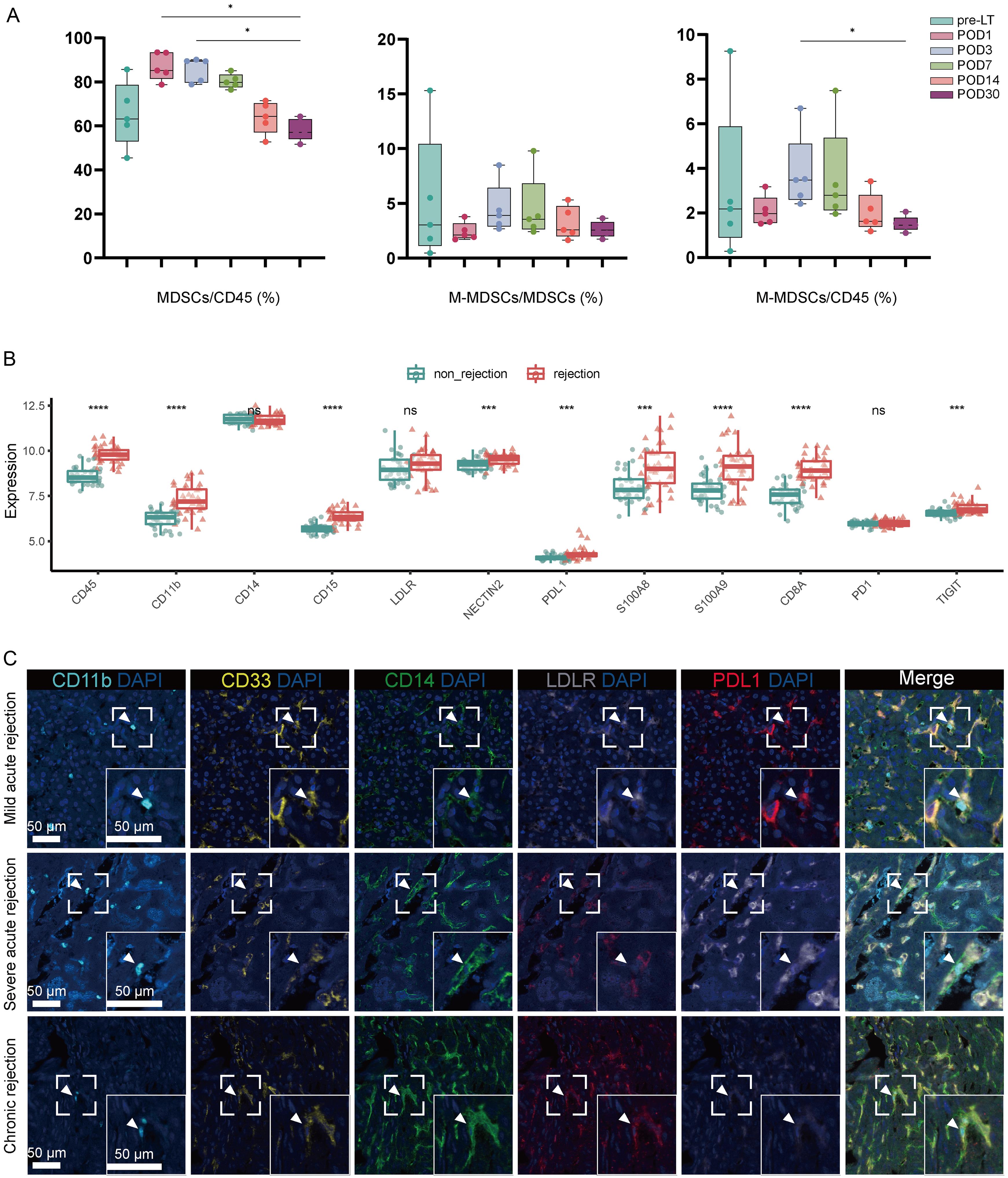

To validate the scRNA-seq findings, flow cytometry was performed on peripheral blood samples collected from post-LT patients (Fig. 3A). The gating strategy for MDSCs is provided in Supplementary Figure 3A. Following LT, the proportion of MDSCs among immune cells increased rapidly, remained elevated during the acute phase (up to seven days), and subsequently declined to preoperative levels. Within the MDSC compartment, the proportion of M-MDSCs increased progressively throughout the acute phase, peaking on POD7, and then gradually decreased. Moreover, similar temporal trends were observed in the proportion of M-MDSCs relative to the total immune cell population.
In the bulk RNA sequencing analysis (Fig. 3B), a significant elevation in the expression of the myeloid cell marker CD11b was observed in rejection samples. Markers associated with MDSCs, including S100A8 and S100A9, were also significantly upregulated in the rejection group. Although LDLR expression was increased in rejection samples, the difference did not reach statistical significance. Additionally, a significant upregulation of immune checkpoint molecules—NECTIN2, PDL1, and TIGIT—was observed, consistent with our previous findings. mIHC performed on transplanted liver samples exhibiting varying degrees of rejection (mild and severe acute rejection, as well as chronic rejection) confirmed the presence of LDLR+ M-MDSCs and LDLR+ G-MDSCs (Fig. 3C and Supplementary Fig. 3B).
scRNA-seq analysis identifies specific subsets of MDSCs within mouse OLT models

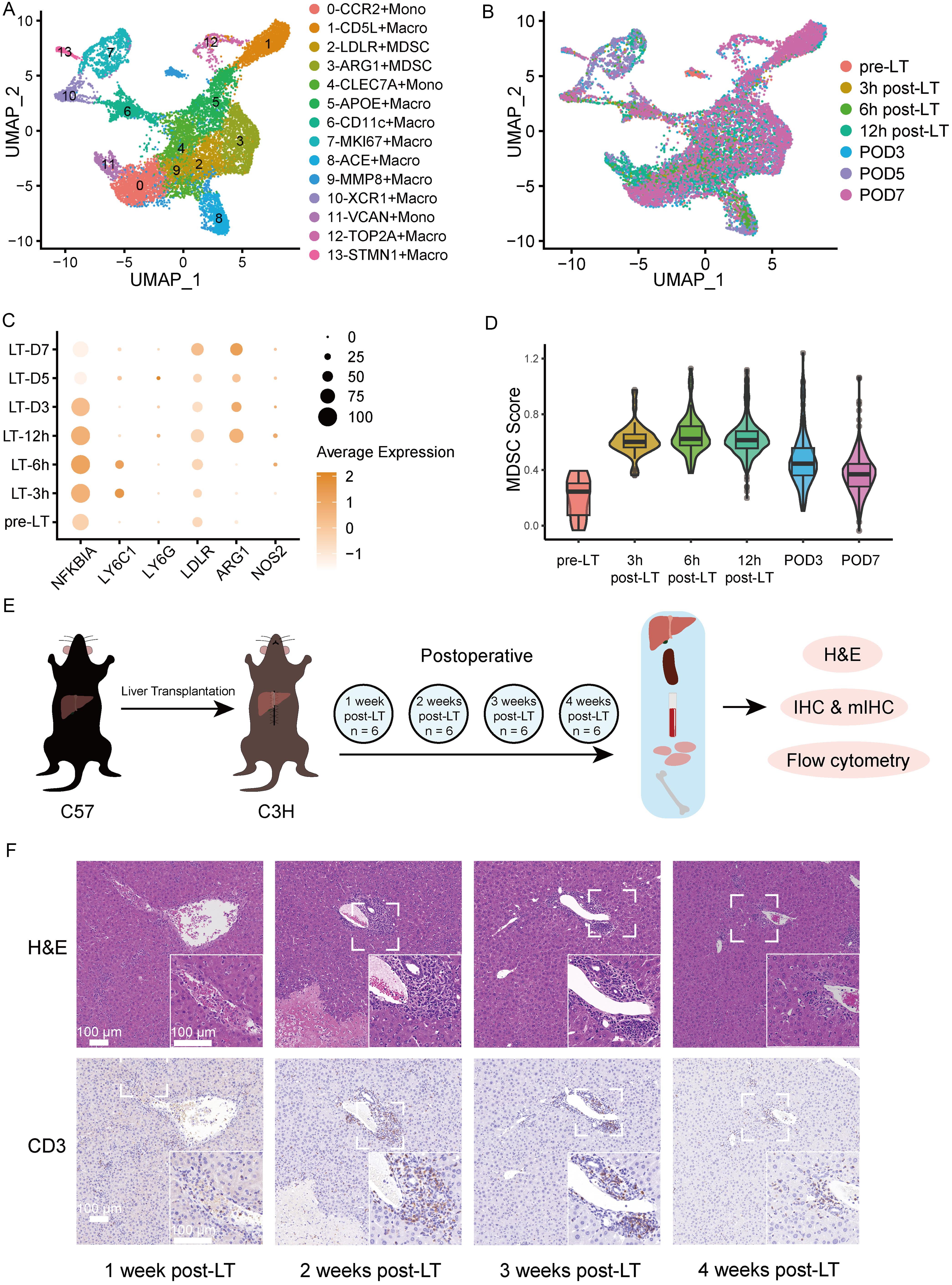

To further substantiate the role of LDLR+ MDSCs in graft rejection, scRNA-seq analysis was performed using a mouse OLT model (C57BL/6J to C57BL/6J) across seven time points: preoperative LT (pre-LT), 3 h post-LT, 6 h post-LT, 12 h post-LT, POD3, POD5, and POD7.39 This dataset generated a comprehensive myeloid cell atlas comprising 14,372 cells. The analysis identified 14 distinct clusters, visualized using UMAP plots that illustrated their distribution across the dynamic time course (Fig. 4A, B, and Supplementary Table 5). Among them, nine macrophage clusters, three monocyte clusters, and two MDSC clusters were identified.
Consistent with the human scRNA-seq findings, cluster C2 was annotated as LDLR+ MDSC. This subset exhibited elevated expression of lipid metabolism–related genes, including LDLR and OLR1. Source analysis of C2-LDLR+ MDSCs revealed that the majority of cells originated from the 12 h post-LT time point (59%). Within the datasets corresponding to the first 12 h after transplantation, NFKBIA expression levels were notably elevated (Fig. 4C). Longitudinal gene expression analysis demonstrated a significant increase in ARG1 expression from POD3 to POD7, whereas NOS2 expression remained relatively unchanged. Using the MDSC gene signature, gene-scoring analysis was performed across the identified clusters (Fig. 4D). The analysis revealed a substantial increase in MDSC-associated scores within the first 24 h following LT, with peaks at 3, 6, and 12 h post-LT. Scores subsequently declined by POD3 and POD7, indicating a temporal pattern of MDSC activation.
To simulate immune-state transitions following transplantation, four mouse OLT rejection models (C57BL/6J to C3H/He) were established. Liver tissues were collected at sequential time points—one, two, three, and four weeks post-LT—and analyzed using H&E staining, IHC, mIHC, and flow cytometry to evaluate tissue damage and immune cell infiltration during the transition from acute rejection to immune tolerance (Fig. 4E). H&E staining revealed pronounced immune cell infiltration in the portal areas, accompanied by pathological features such as hepatocyte necrosis, bile duct injury, and sinusoidal congestion, which were particularly prominent compared with normal liver tissue (Fig. 4F and Supplementary Fig. 4C). Immune infiltration peaked at two and three weeks post-LT, with a marked reduction by four weeks. IHC staining for CD3, CD4, CD8, and FOXP3 confirmed the presence of the corresponding lymphocyte subsets (Fig. 4F and Supplementary Fig. 4A).
Specifically, CD8+ T cell infiltration peaked at two weeks post-LT, as illustrated in the bar graph (Supplementary Fig. 4B). Overall, lymphocyte infiltration increased sharply at one and two weeks post-LT and then gradually declined at three and four weeks post-LT.

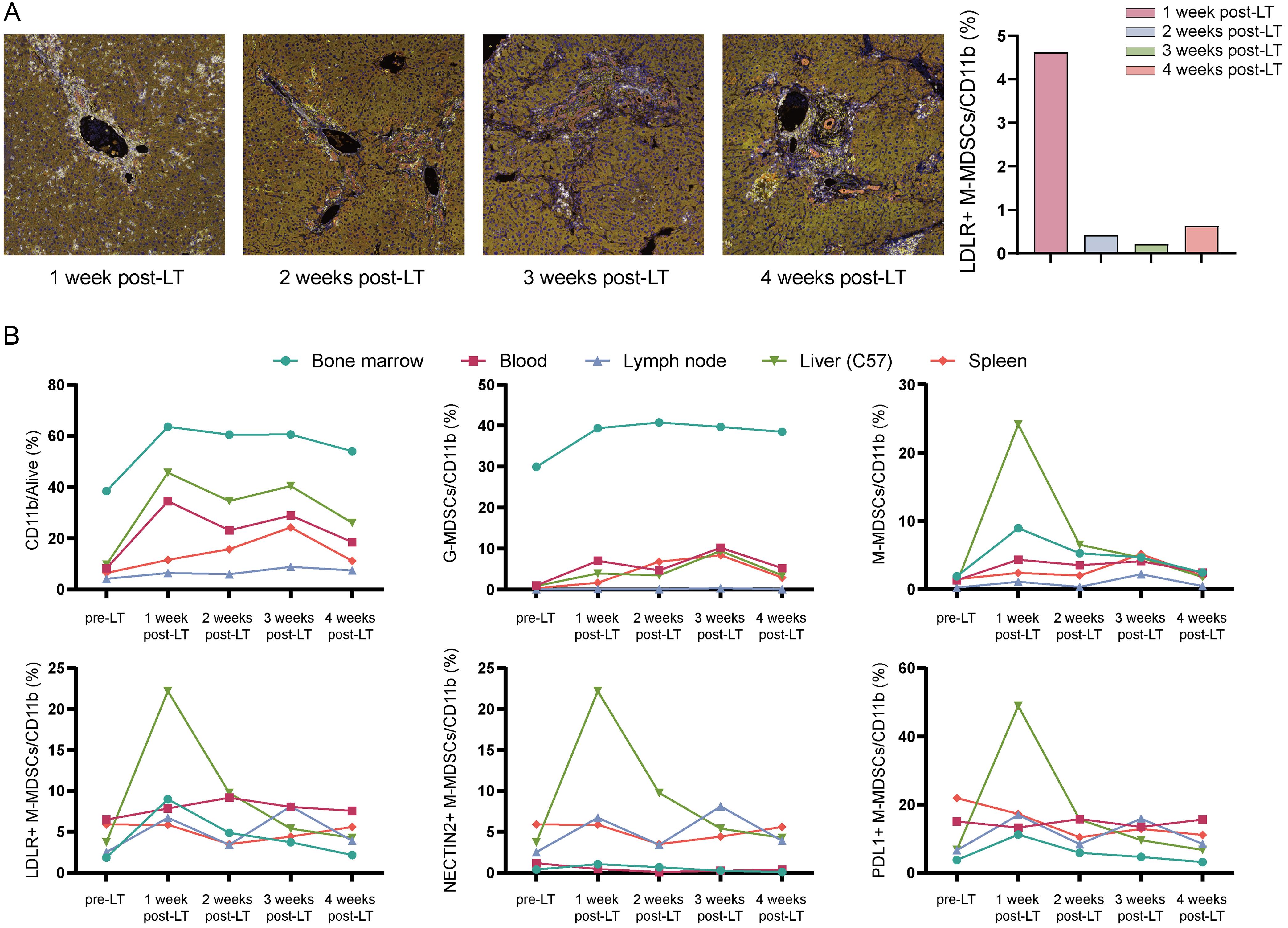

Dynamic, multi-tissue changes of LDLR+ M-MDSCs in mouse OLT models

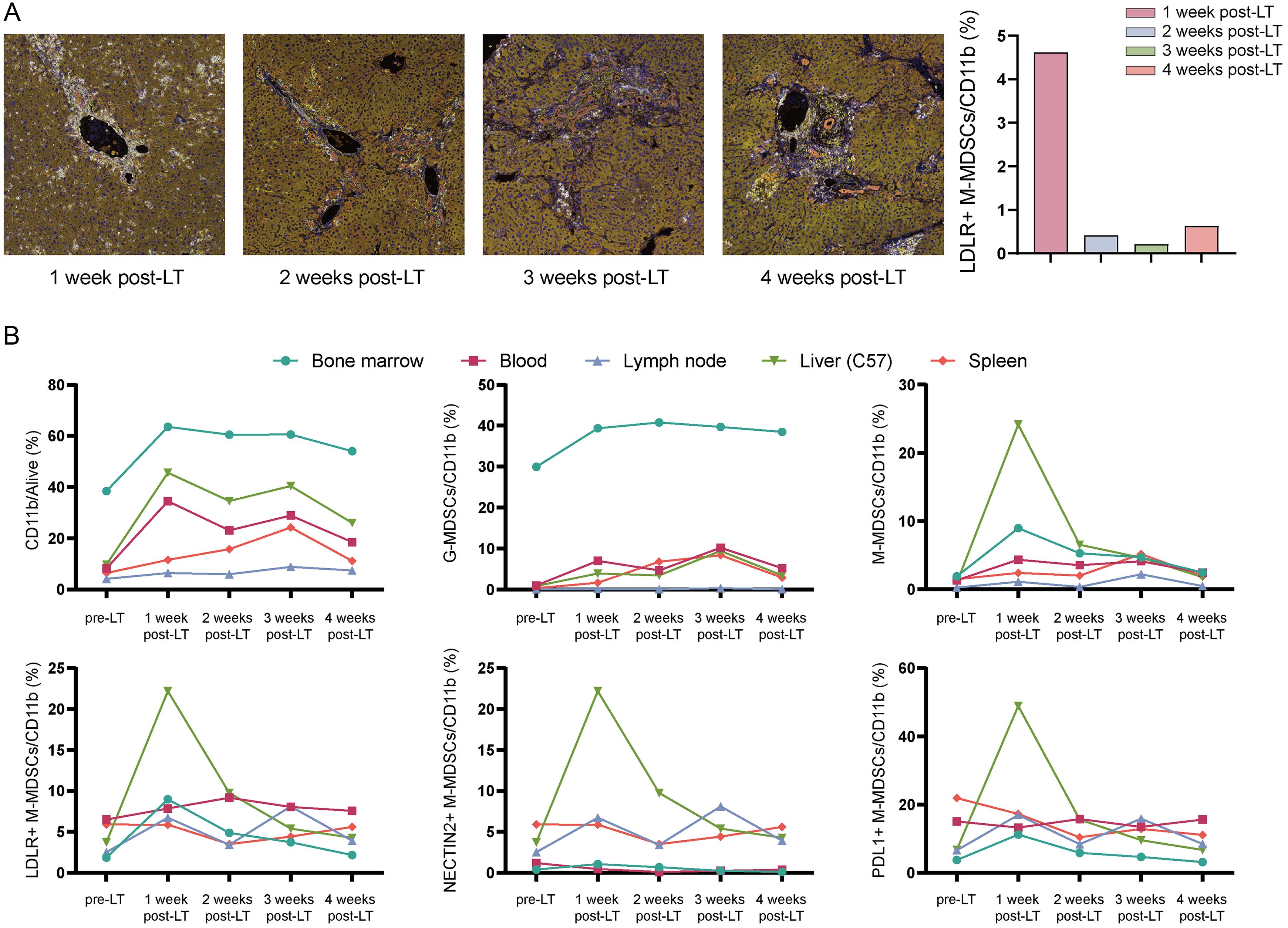

To comprehensively assess the dynamics of MDSCs in mouse OLT models (C57BL/6J to C3H/He), tissues including liver, spleen, peripheral blood, lymph nodes, and bone marrow were collected across the post-LT timeline (one, two, three, and four weeks post-LT) for mIHC and flow cytometry analysis, with quantification expressed as n/CD11b%. mIHC revealed variable infiltration of LDLR+ M-MDSCs in the portal areas of transplanted livers, peaking at one week post-LT (Fig. 5A). Flow cytometry, using gating strategies to distinguish G-MDSCs (CD11b+Ly6ClowLy6G+) and M-MDSCs (CD11b+Ly6ChighLy6G−) (Supplementary Fig. 5), revealed distinct temporal distributions across different tissues (Fig. 5B).
The results demonstrated that the proportions of various cell populations in the bone marrow increased at one week post-LT. Following this initial rise, the proportions of myeloid cells (CD11b/Alive) and G-MDSCs stabilized, whereas the proportions of M-MDSCs and their subsets gradually declined over time. A similar trend was observed in the liver, where myeloid cell proportions increased at one week post-LT, followed by a fluctuating decrease; however, levels at four weeks post-LT remained elevated compared with pre-LT values. The proportion of G-MDSCs showed an upward trend throughout the observation period. Notably, M-MDSCs and their subsets displayed a sharp increase at one week post-LT, representing the most pronounced change among all tissues, followed by a gradual decline.
In the spleen, a distinct pattern was observed: the proportions of myeloid cells, G-MDSCs, and M-MDSCs gradually increased over the first three weeks post-LT and then declined. In contrast, the proportions of M-MDSC subsets decreased modestly within the first two weeks post-LT and then gradually returned to pre-LT levels. In peripheral blood, the proportion of LDLR+ M-MDSCs increased slowly, peaking at two weeks post-LT, and then declined, while the proportions of other cell types fluctuated throughout the observation period. In the lymph nodes, the proportion of myeloid cells remained relatively stable, and the proportion of G-MDSCs was nearly undetectable. Meanwhile, the proportions of M-MDSCs and their subsets demonstrated variable, fluctuating patterns over time.

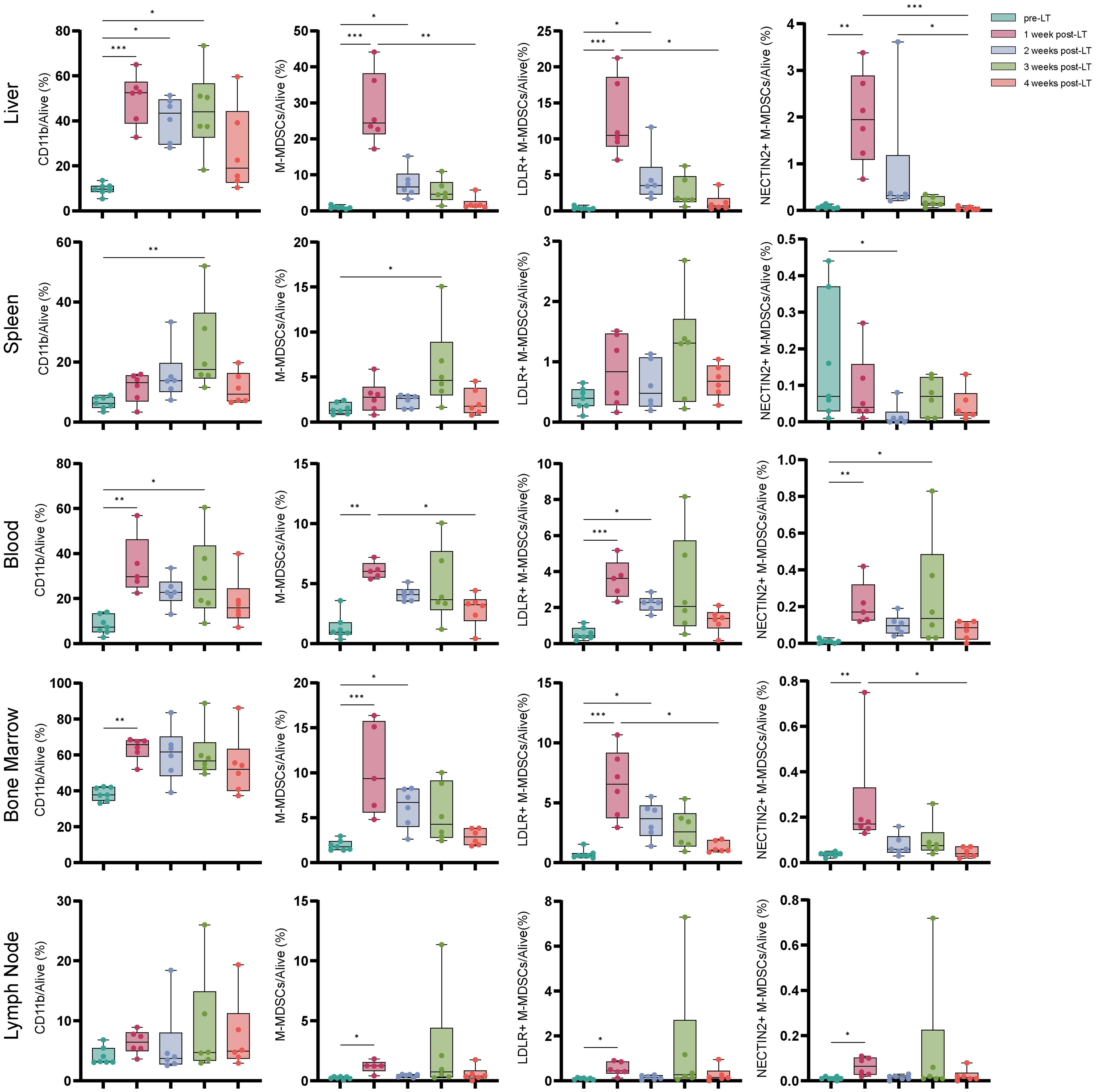

Detailed statistical analyses of M-MDSCs and their subsets (n/Alive%) across different tissues revealed significant differences, particularly at one week post-LT (Fig. 6 and Supplementary Fig. 6). In both the liver and bone marrow, the previously described trend—an initial increase followed by a gradual decrease—was consistently validated. By three weeks post-LT, increased variability in the spleen and peripheral blood made it challenging to achieve statistical significance, although the overall trends in M-MDSC subsets remained evident. In the lymph nodes, aside from the statistically significant increase observed at one week post-LT, the proportions of M-MDSCs and their subsets remained consistently low across the remaining time points.
LDLR+ M-MDSCs induced exhaustion of CD8+ T cells

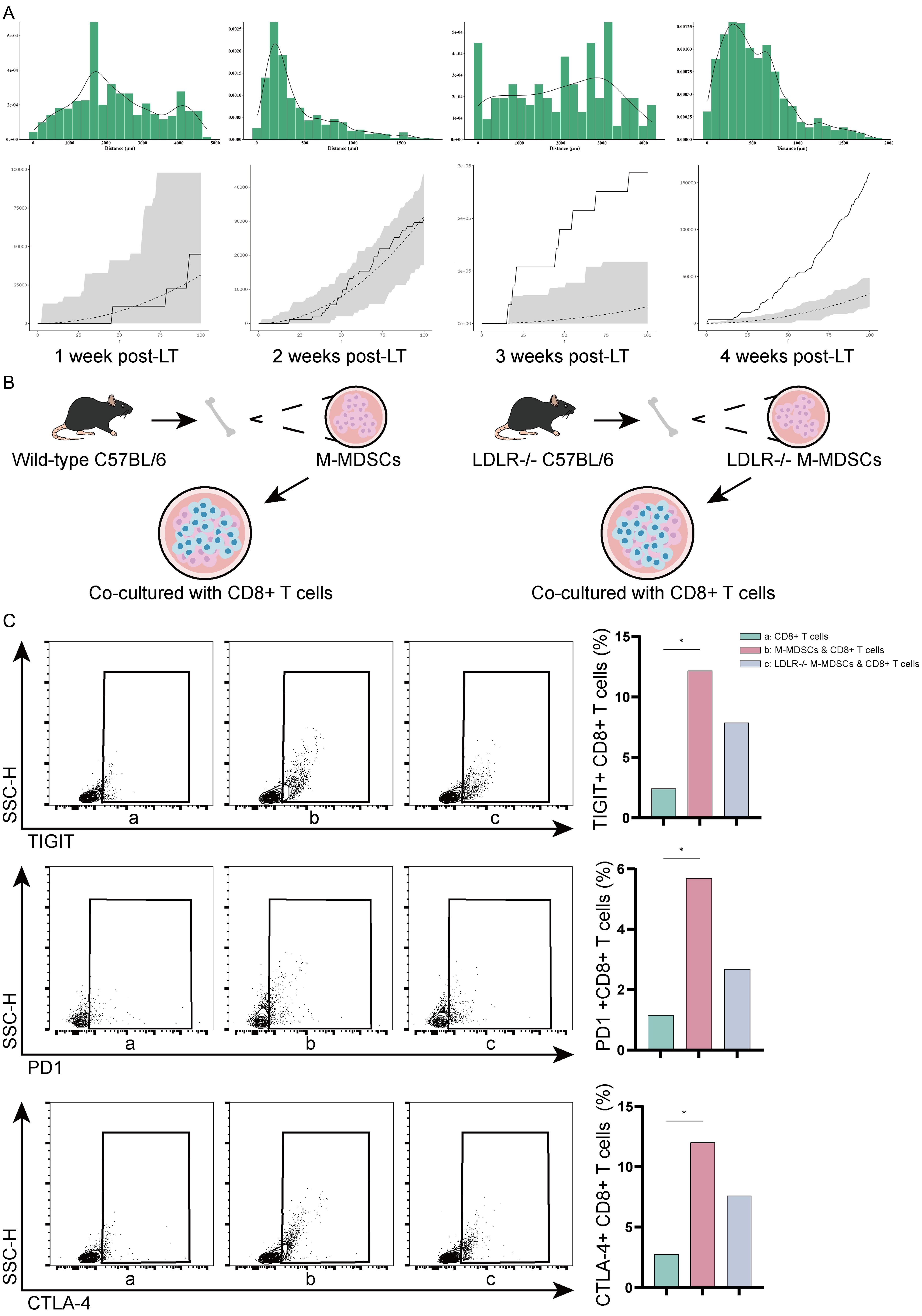

mIHC was employed to map the spatial distribution of LDLR+ M-MDSCs and TIGIT+ CD8+ T cells across the post-LT timeline (Supplementary Fig. 7A). Proximity analysis using Ripley’s K-function revealed a significantly enhanced spatial clustering between these cell populations at four weeks post-LT (Fig. 7A). Co-culture experiments were conducted to verify whether LDLR+ M-MDSCs possessed stronger immunosuppressive capabilities. Microbeads were used to isolate M-MDSCs and LDLR−/− M-MDSCs from bone marrow cells induced in vitro, which were then co-cultured with CD8+ T cells (Fig. 7B). Supplementary Figure 7B shows the flow cytometric analysis of M-MDSCs purified by microbeads (CD11b+Ly6C+). Flow cytometry assessed changes in exhaustion markers (TIGIT, PD1, and CTLA-4), functional markers of CD8+ T cells (GZMB, IFN-γ, and IL-2), and functional markers of MDSCs (Arg-1 and iNOS). The gating strategy is shown in Supplementary Figures 7C–E. The results demonstrated that wild-type M-MDSCs significantly increased the levels of exhaustion markers and decreased the expression of functional markers, whereas the capacity of LDLR−/− M-MDSCs was comparatively weaker (Figs. 7C and 8C).

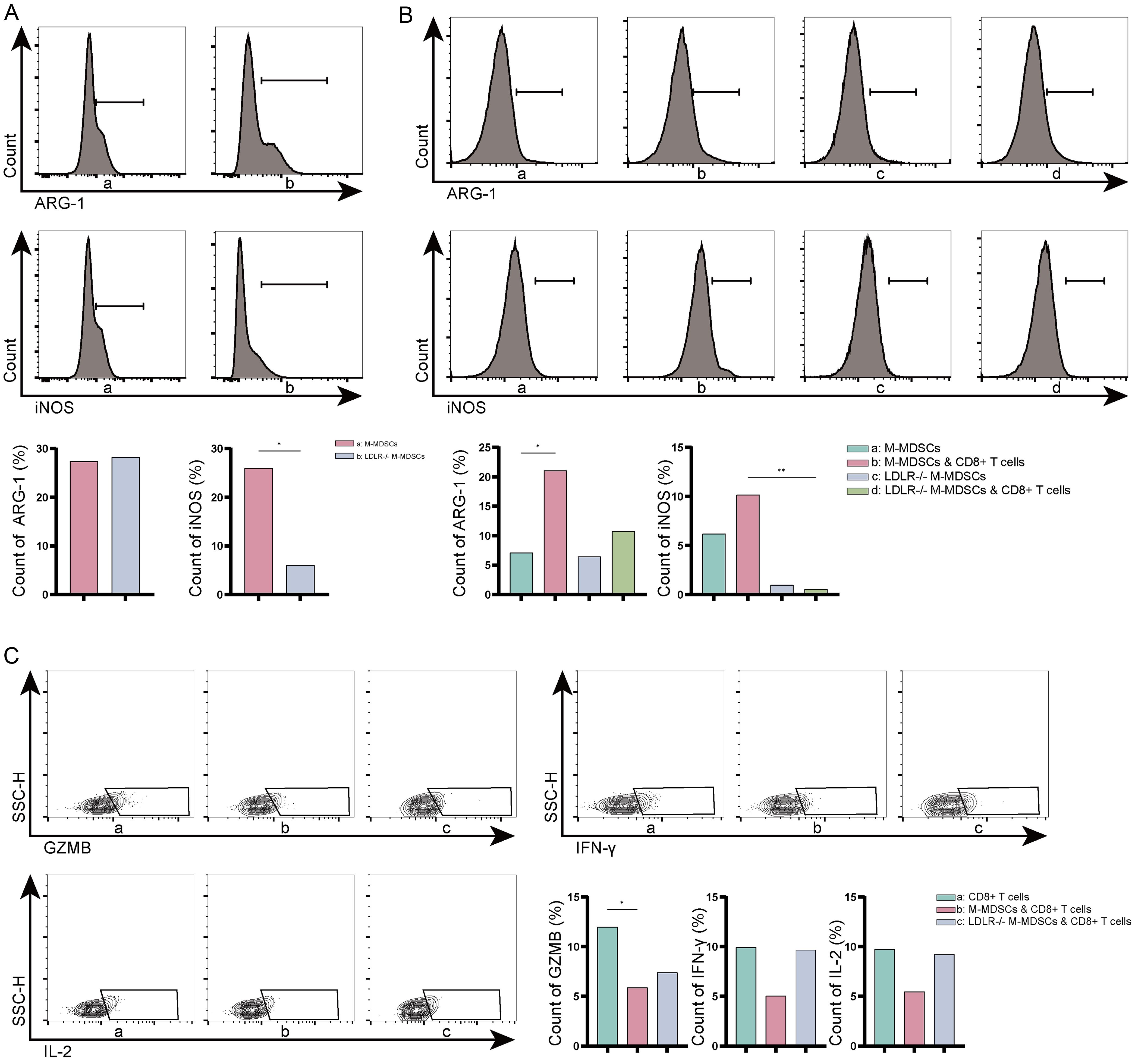

Following microbead-based sorting of M-MDSCs, flow cytometry was immediately performed to assess the expression of functional markers. The analysis revealed that wild-type M-MDSCs exhibited significantly higher expression of iNOS compared with LDLR−/− M-MDSCs (Fig. 8A). Further examination of functional markers in co-cultured M-MDSCs showed elevated expression levels of both Arg-1 and iNOS, exceeding those observed in LDLR−/− M-MDSCs (Fig. 8B). Notably, LDLR−/− M-MDSCs did not show a significant change in iNOS expression relative to wild-type M-MDSCs.
Discussion
Achieving immune tolerance following organ transplantation is essential, particularly for patients at high risk of rejection or with a history of prior rejection episodes. Identifying safe and effective target cells or therapeutic agents remains a critical priority. MDSCs have emerged as key mediators due to their potent immunosuppressive functions, which operate through multiple mechanisms.40–42 In oncology, chemokines recruit MDSCs to tumor sites, where they contribute to immune dysfunction, resistance to immunotherapy, and tumor progression.43–46 In the context of infectious diseases, MDSCs suppress T cell activity primarily by increasing ROS production.47,48 Collectively, these findings highlight the role of inflammatory conditions in driving MDSC activation and expansion, positioning them as central components of the pathological immune microenvironment.49–51 In this study, we employed multi-omics approaches to conduct a comprehensive bioinformatic analysis of MDSCs in the context of liver transplant rejection. We elucidated their role in the rejection process, characterized the post-transplant dynamics of MDSC subsets, and validated their functional mechanisms through in vitro experiments.
Analysis of human scRNA-seq data revealed that MDSCs exhibit low heterogeneity and are predominantly liver-derived, likely reflecting the inflammatory microenvironment that promotes their recruitment and accumulation during transplant rejection. This recruitment process parallels the infiltration of MDSCs into the tumor microenvironment, which occurs through diverse chemokine-mediated pathways.52,53 We identified three M-MDSC clusters with distinct metabolic profiles that may contribute to their immunosuppressive functions. Notably, the C1-LDLR+ MDSC cluster was enriched in genes associated with lipid metabolism and protein folding, including HSPA1A, HSPA1B, and XBP1, suggesting a potential role in modulating endoplasmic reticulum stress. The elevated expression of S100A8 and S100A9, markers linked to diminished T cell immunity and improved transplant outcomes,54 further supports the enhanced immunosuppressive capacity. Complementary murine scRNA-seq data reveal that the C2-LDLR+ MDSC shows enrichment in genes related to immune regulation (IL1RN, FCGR2B, and TREM2), cell adhesion and migration (TGFBI, FN1, and SDC4), and signal transduction (DOK2, MS4A6D, and PHLDA1). Additionally, dynamic variation in MDSC scores across time points exhibited a distinct temporal pattern.
During the acute phase following LT, the proportion of MDSCs increased significantly, with rejection tissues displaying markedly elevated expression of MDSC marker genes. These observations are consistent with the known functional characteristics of MDSCs in inflammatory settings, suggesting that M-MDSCs are recruited to sites of inflammation through classical monocytic trafficking pathways to mitigate tissue damage.55 However, immunosuppressive therapies, including glucocorticoids and CNIs, have been shown to influence the mobilization and functional activity of MDSCs.56–58 Similar trends have been reported in kidney and small intestine transplantation, where sustained M-MDSC levels contribute to Treg expansion and improved graft survival.59–63 In parallel, liver transplant recipients experiencing rejection exhibit higher static proportions of M-MDSCs.64 The mouse OLT models validated these dynamic patterns. Flow cytometry analyses of the liver, bone marrow, and peripheral blood in mice revealed trends in M-MDSC populations—including LDLR+ M-MDSCs—that closely mirrored clinical observations. These findings provide strong evidence that M-MDSCs, particularly the LDLR+ subset, play a pivotal immunosuppressive role in liver transplant rejection. Furthermore, the parallel expression of NECTIN2 and PDL1 with LDLR suggests that immune checkpoint pathways may mediate the immunosuppressive effects of these cells.
The immune system regulates appropriate responses through a balance of co-stimulatory and inhibitory signals. In acute liver transplant rejection, the activation and proliferation of CD8+ T cells represent key mechanisms driving graft injury.15,16 Consequently, promoting functional exhaustion of CD8+ T cells may serve as an effective strategy to attenuate transplant rejection and preserve graft function. Functionally, exhausted T cells diverge from effector and memory T cells by exhibiting a loss of effector function and increased expression of inhibitory receptors. Spatial analysis via mIHC in mice revealed significant clustering of LDLR+ M-MDSCs and TIGIT+ CD8+ T cells during the tolerance-prone phase (four weeks post-LT), suggesting that LDLR+ M-MDSCs may contribute to the induction of CD8+ T cell exhaustion. Effector T cells are typically marked by the expression of IFN-γ, GZMB, and IL-2, which distinguish them from exhausted T cells.65,66
MDSCs suppress T cell function primarily through the actions of ARG-1 and iNOS.11,67 ARG-1 depletes L-arginine in the T cell microenvironment, thereby impairing T cell receptor signaling and inhibiting proliferation. Additionally, ARG-1 contributes to the differentiation of Th17 cells and Tregs.65,68 iNOS catalyzes the production of NO in large quantities, which suppresses T cell activation and induces apoptosis.69–71 We first assessed the expression of functional molecules in wild-type M-MDSCs and LDLR−/− M-MDSCs using flow cytometry. The analysis revealed a significant reduction in iNOS expression in LDLR−/− M-MDSCs. Co-culture experiments further showed that, upon stimulation by CD8+ T cells, wild-type M-MDSCs exhibited increased expression of both ARG-1 and iNOS, whereas LDLR−/− M-MDSCs displayed an upregulation of ARG-1 alone. These findings suggest that wild-type M-MDSCs exert their immunosuppressive effects, at least in part, through elevated iNOS expression, and that LDLR modulates iNOS expression via an as-yet undefined regulatory pathway. Together, these results—including changes in effector molecule and inhibitory receptor expression in CD8+ T cells, alongside altered functional marker expression in M-MDSCs—demonstrate a diminished immunosuppressive capacity in LDLR−/− M-MDSCs. This highlights the essential role of LDLR in supporting the immunosuppressive function of M-MDSCs.
Moreover, in the mouse OLT model, we concurrently detected the expression of the immune checkpoint molecules NECTIN2 and PDL1 in M-MDSCs, with expression patterns closely paralleling those of LDLR+ M-MDSCs. These findings suggest that during liver transplant rejection, LDLR+ M-MDSCs may mediate immunosuppressive effects through ARG-1, iNOS, and immune checkpoint pathways, with iNOS serving as a particularly distinctive and functionally relevant marker.
Changes in metabolic states significantly affect MDSC activity. In dyslipidemia, elevated CCR5 expression in M-MDSCs enhances their sensitivity to chemokines, thereby promoting their accumulation in inflammatory regions.70,72 Variations in LDLR expression in M-MDSCs may be associated with alterations in cholesterol metabolism before and after LT. Prior to transplantation, patients with end-stage liver disease often exhibit reduced cholesterol levels due to malnutrition and diminished activity of synthetic enzymes. SREBP2, a key transcriptional regulator of LDLR, is modulated by intracellular cholesterol content, thereby influencing LDLR expression.73 Following transplantation, nutritional support and recovery of liver function typically lead to increased cholesterol levels, potentially triggering a reactive upregulation of LDLR expression during the acute phase. Over time, LDLR levels may stabilize as the patient’s clinical condition improves. Cholesterol metabolism plays a critical role in regulating the immune microenvironment, impacting both innate and adaptive immune responses.74 In hepatocellular carcinoma, reduced LDLR expression promotes tumor progression by disrupting cholesterol homeostasis.75 In addition to its role in cholesterol transport, LDLR functions as an immunoregulatory membrane protein essential for the activation, proliferation, and effector functions of CD8+ T cells.76 Therefore, LDLR may influence MDSC function by modulating cholesterol homeostasis within these cells.

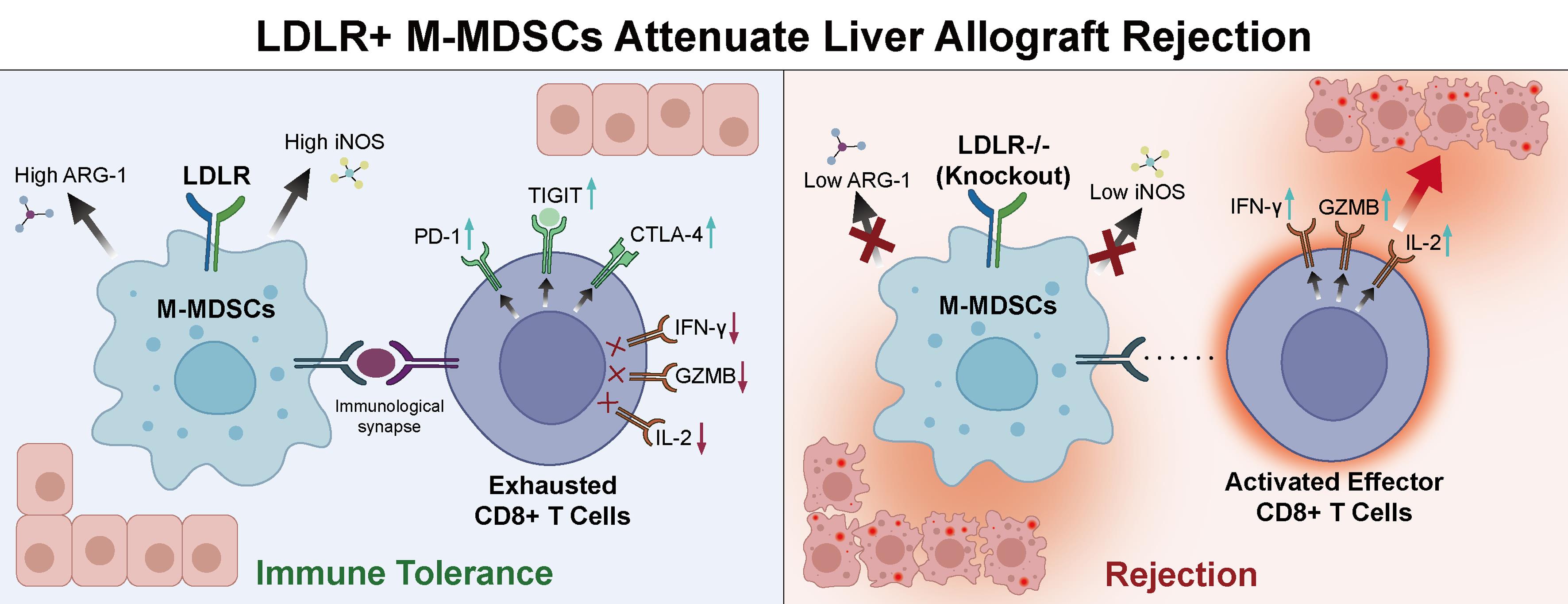

In this study, LDLR+ M-MDSCs were identified as a functionally superior immunosuppressive subset with distinct temporal and spatial dynamics following LT. These cells expanded during the acute post-transplantation phase and early rejection in mouse OLT models, declined with immune stabilization, and exhibited a close spatial and functional association with exhausted CD8+ T cells within the graft. This pattern suggests that LDLR+ M-MDSCs may serve as a potential non-invasive biomarker for immune status stratification, allowing dynamic assessment of rejection risk or transition toward immune tolerance beyond static histological evaluation. Clinically, sustained elevation of circulating LDLR+ M-MDSCs may indicate ongoing alloimmune activation and unresolved rejection, thereby facilitating earlier optimization of individualized immunosuppressive regimens. Furthermore, LDLR+ M-MDSCs represent a promising therapeutic target, as their ability to induce CD8+ T cell exhaustion via ARG-1, iNOS, and immune checkpoint pathways supports strategies to selectively enhance this subset to promote graft tolerance. The association between LDLR expression, lipid metabolism, and the immunoregulatory function of M-MDSCs highlights immunometabolism as a clinically actionable axis that can be pharmacologically modulated through the LDLR pathway. Notably, PCSK9 inhibitors, which prevent LDLR degradation77 and have been shown in oncology to enhance CD8+ T cell–mediated antitumor immunity,78 offer a particularly compelling therapeutic option. In the context of LT for hepatocellular carcinoma, PCSK9 inhibition may confer dual benefits by simultaneously augmenting antitumor immunity and enhancing M-MDSC-mediated suppression to promote graft acceptance, a hypothesis that warrants further investigation.
This study has several limitations. First, although peripheral blood flow cytometry data from clinical patients revealed trends in MDSCs, the relatively small sample size limited the depth of subsequent analyses. In addition, the functional experiments involving LDLR+ M-MDSCs did not comprehensively examine metabolic differences, thereby constraining the understanding of the underlying mechanisms. Addressing these limitations in future research will be essential for achieving a more comprehensive understanding of the role of MDSCs in LT.
Supporting information
Supplementary File 1
Supplementary method.
(DOCX)
Supplementary Table 1
Canonical myeloid markers in humans.
(DOCX)
Supplementary Table 2
Differentially expressed genes across three human MDSC clusters.
(DOCX)
Supplementary Table 3
Gene Ontology and KEGG functional enrichment analyses of three MDSC clusters.
(DOCX)
Supplementary Table 4
CellChat analysis between MDSC clusters and CD8+ T-cell clusters.
(DOCX)
Supplementary Table 5
Differentially expressed genes across myeloid clusters in mice.
(DOCX)

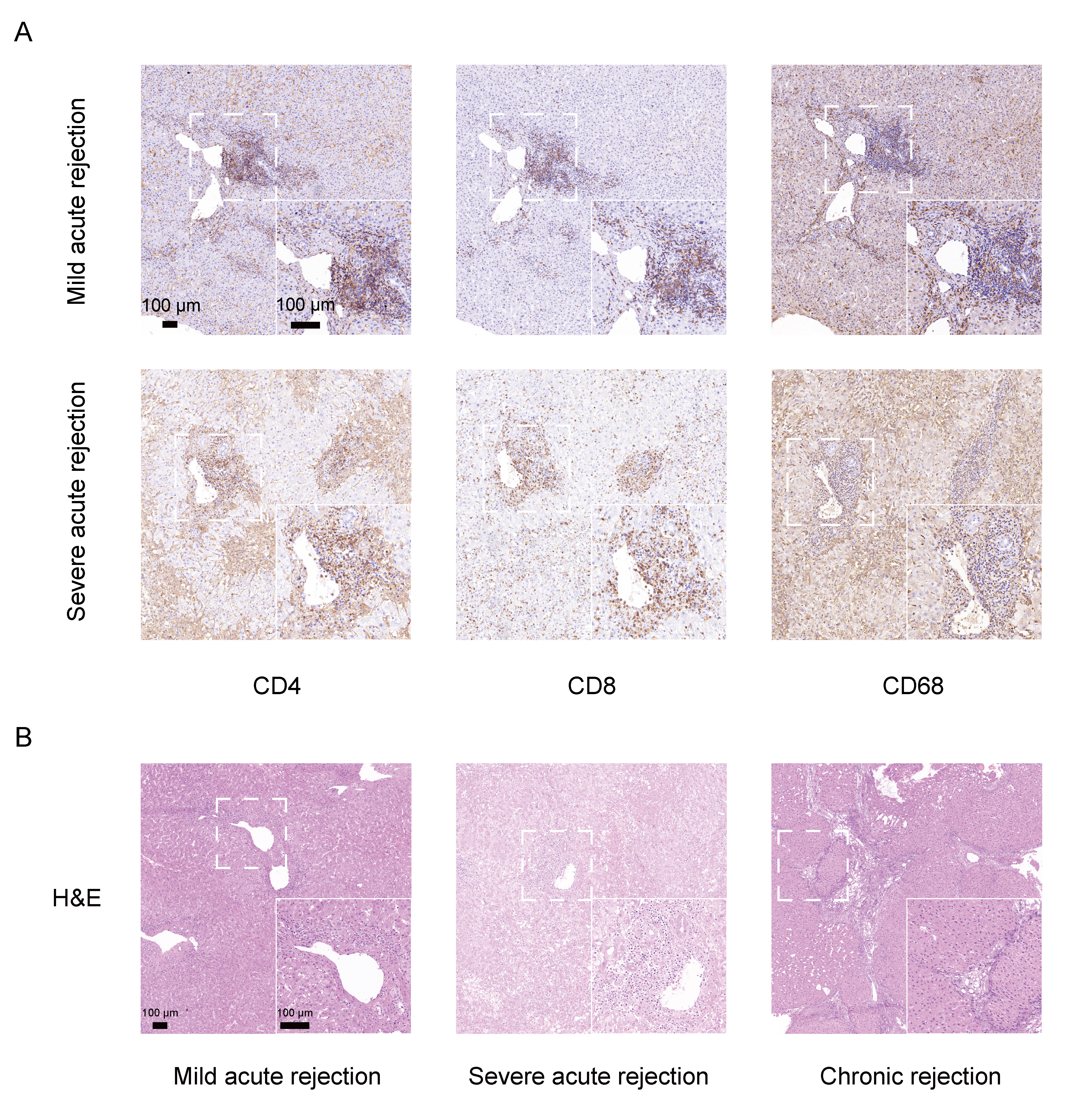

Supplementary Fig. 1
IHC and H&E staining of human transplanted livers.
(A). IHC of CD4, CD8, and CD68 in transplanted livers with different severities of rejection. Highlighted areas show cell infiltration around portal areas. Whole/insert image scale bar, 100 µm. (B). H&E staining of transplanted livers with different severities of rejection. Whole/insert image scale bar, 100 µm. IHC, immunohistochemistry; H&E, hematoxylin and eosin.
(JPG)

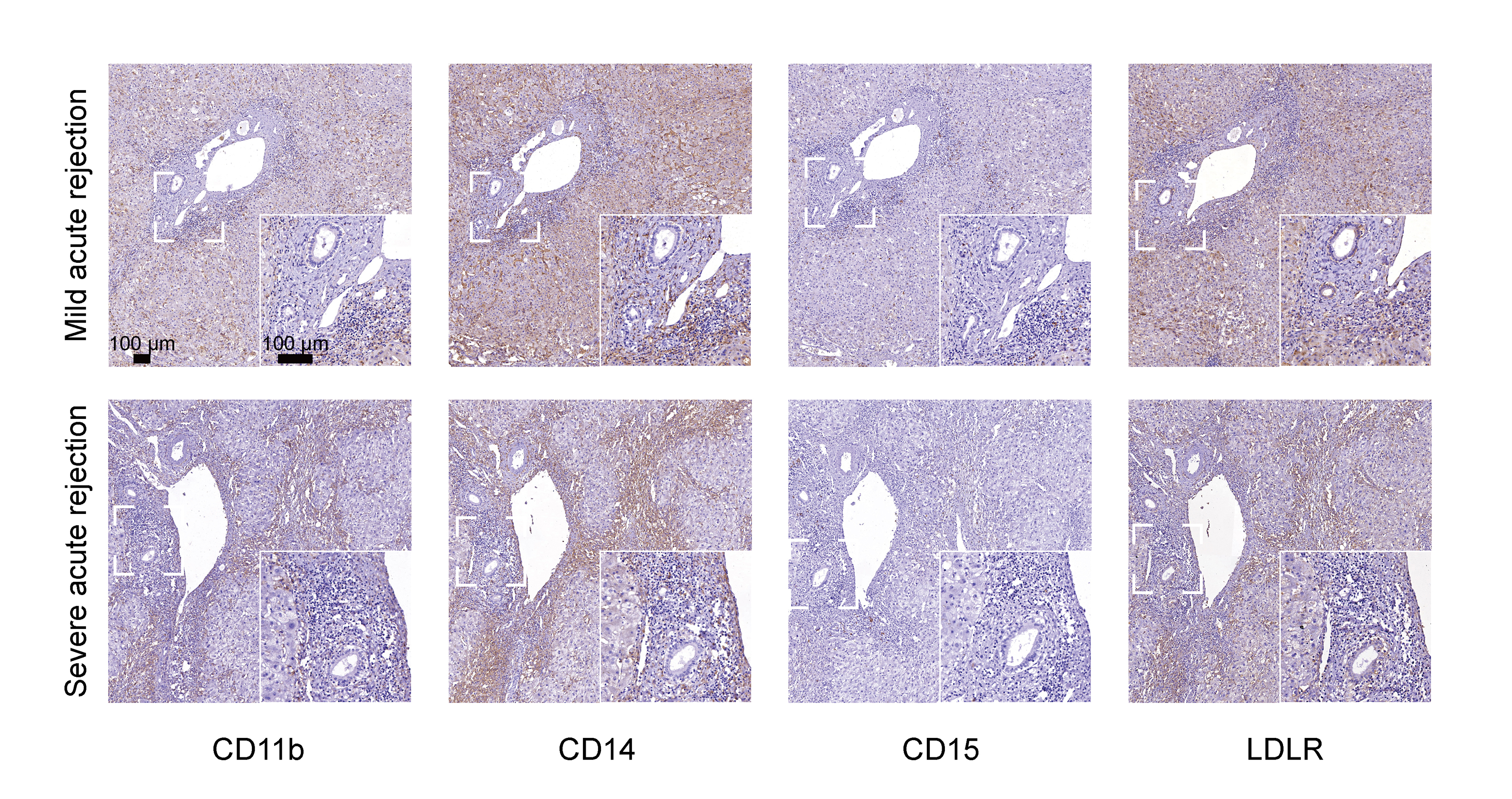

Supplementary Fig. 2
IHC staining of human transplanted livers.
IHC of CD11b, CD14, CD15, and LDLR in transplanted livers with different severities of rejection. Whole/insert image scale bar, 100 µm. IHC, immunohistochemistry.
(JPG)

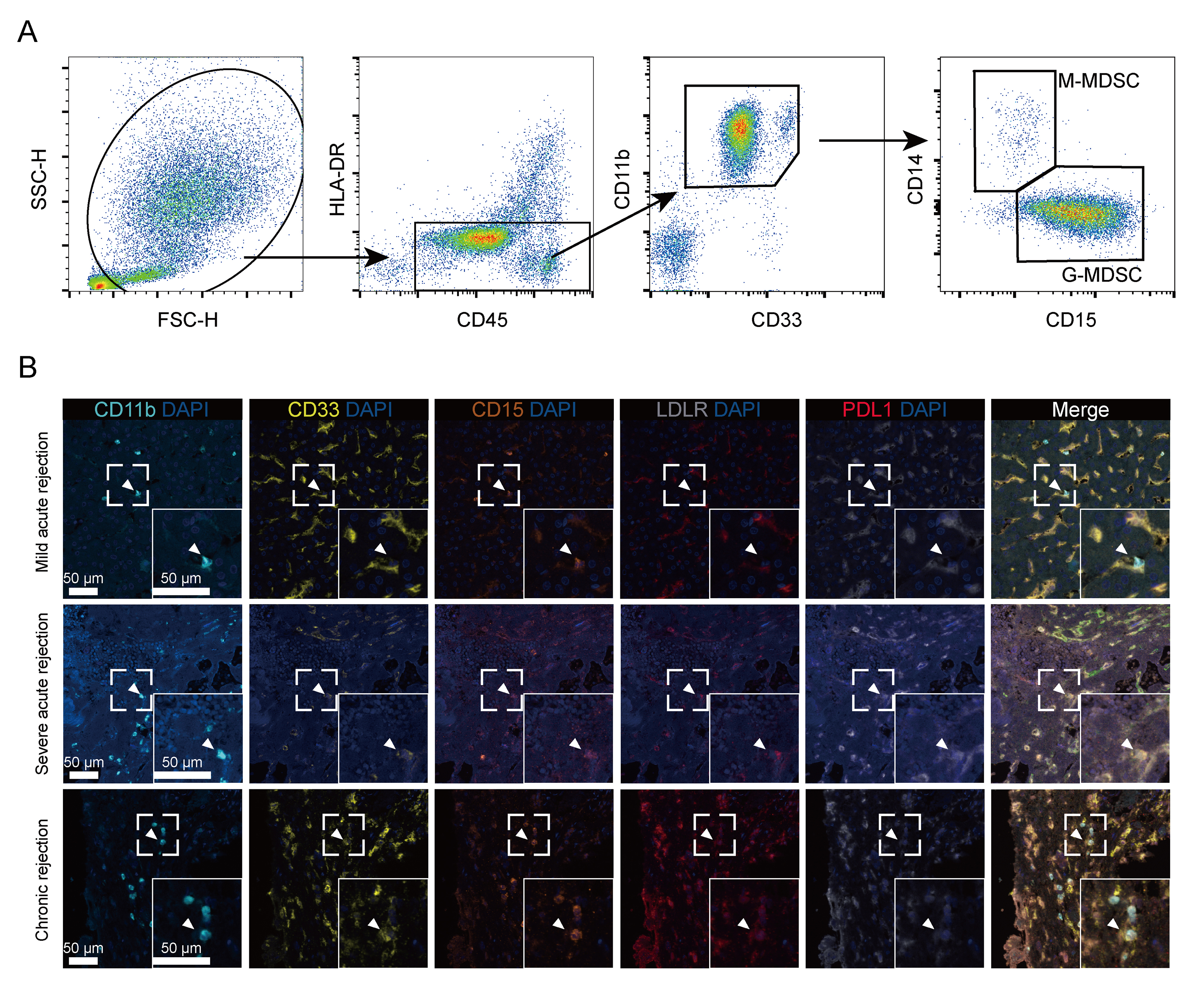

Supplementary Fig. 3
Flow cytometry gating and mIHC of MDSCs in human transplanted livers.
(A). Flow cytometry gating strategy for MDSCs. (B). mIHC of DAPI (blue), CD11b (cyan), CD33 (yellow), CD15 (orange), LDLR (gray), and PDL1 (red) in transplanted livers with different severities of rejection. White arrows indicate cells co-expressing CD11b, CD33, CD14, LDLR, and PDL1. Whole/insert image scale bar, 50 µm. mIHC, multiplex immunohistochemistry; MDSCs, myeloid-derived suppressor cells.
(JPG)
Supplementary Fig. 4

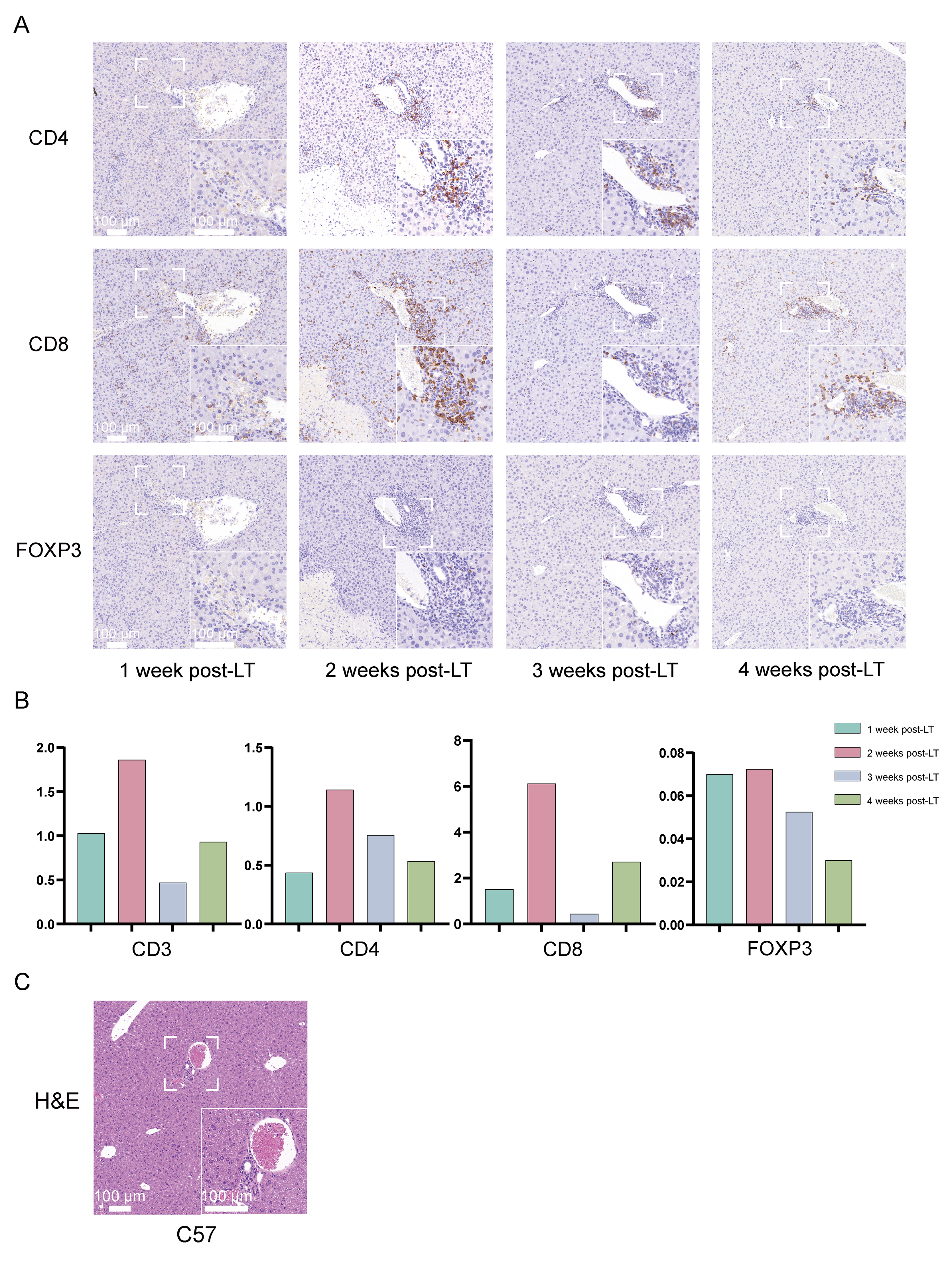

IHC and H&E staining of transplanted livers in mouse OLT models.
(A). IHC of CD4, CD8, and FOXP3 in transplanted livers obtained from mouse OLT models. Whole/insert image scale bar, 100 µm. (B). Bar charts depicting trends in positive cell proportion changes over time. (C). H&E staining of normal liver from C57BL/6J mice. IHC, immunohistochemistry; H&E, hematoxylin and eosin; OLT, orthotopic liver transplantation.
(JPG)

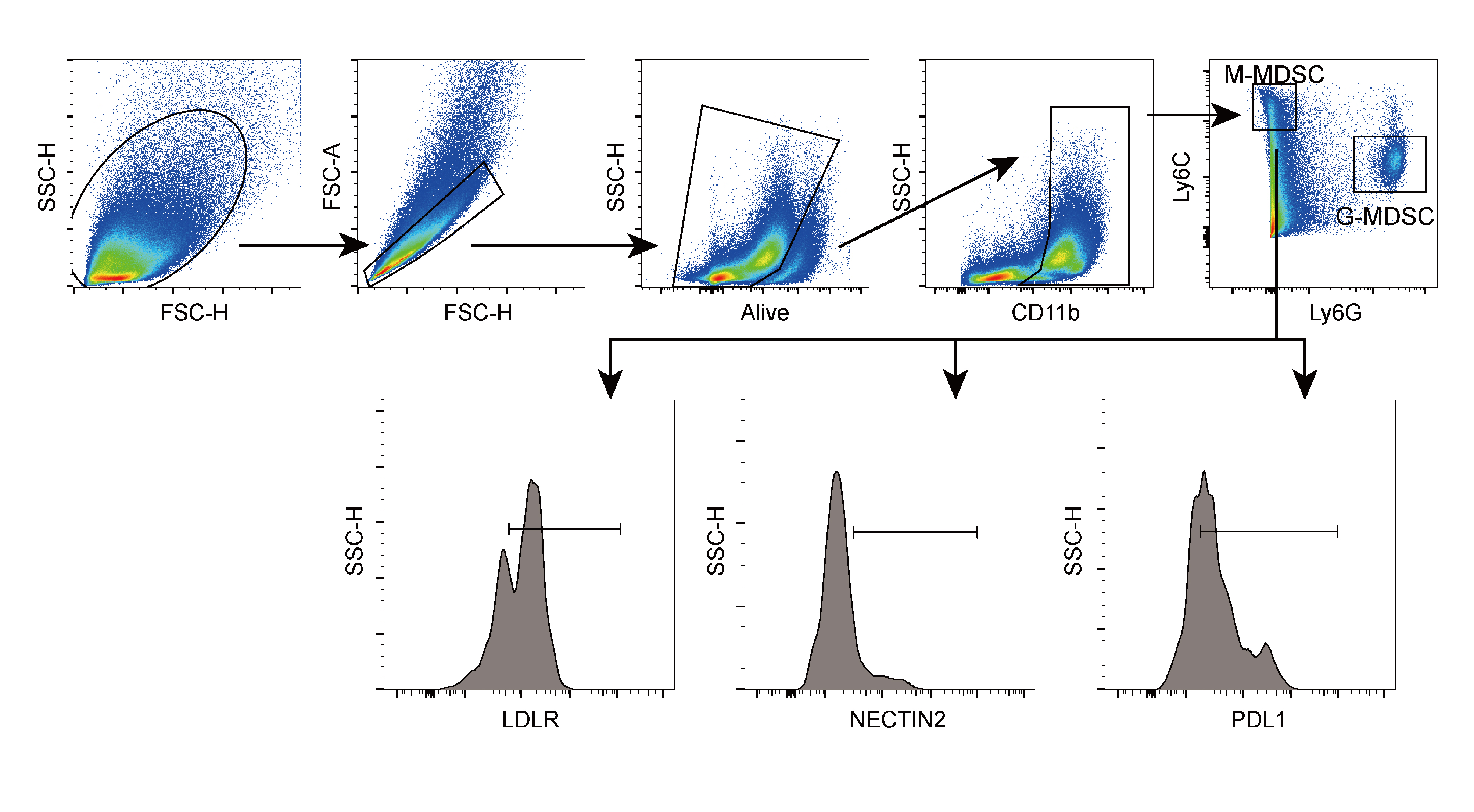

Supplementary Fig. 5
Flow cytometry gating strategy for MDSCs.
Flow cytometry gating strategies for distinct MDSC subsets (G-MDSCs and M-MDSCs) and their subtypes. MDSCs, myeloid-derived suppressor cells; G-MDSCs, granulocytic myeloid-derived suppressor cells; M-MDSCs, monocytic myeloid-derived suppressor cells.
(JPG)
Supplementary Fig. 6

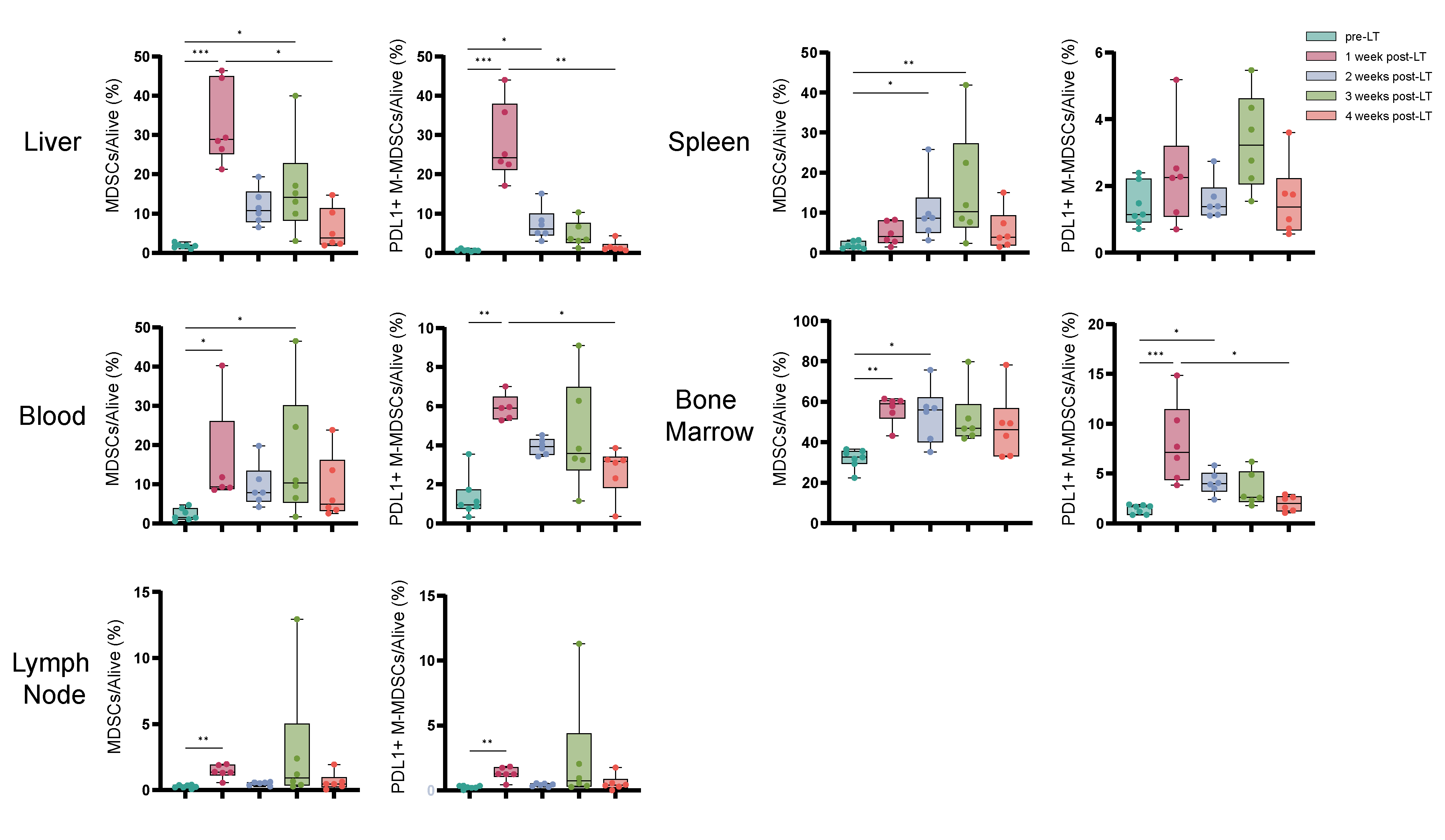

Detailed analysis of MDSCs in different tissues.
Box plots depicting statistical analyses of cell proportion changes over time within specific tissues. *p < 0.05. **p < 0.01. ***p < 0.001. MDSCs, myeloid-derived suppressor cells.
(JPG)

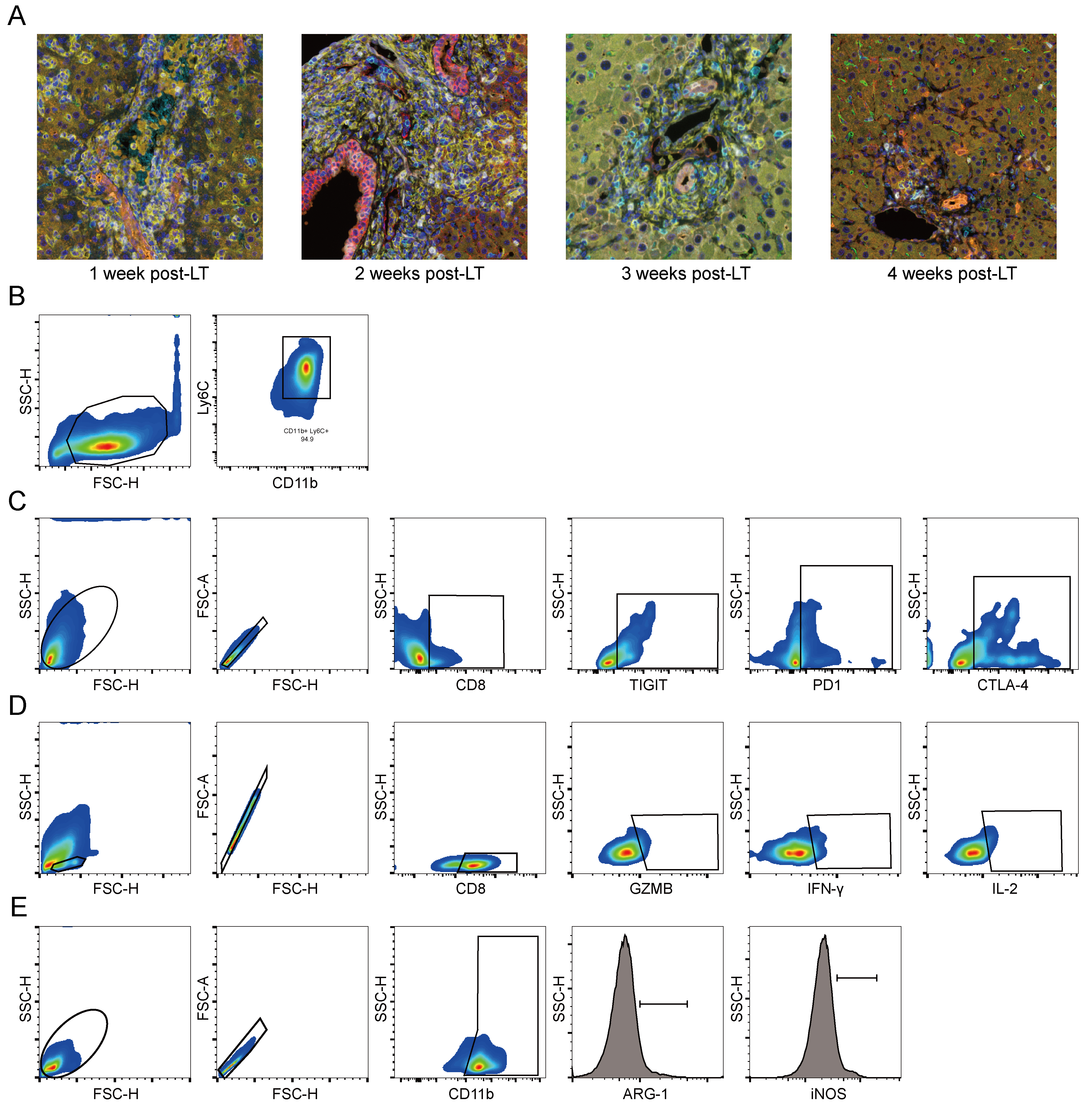

Supplementary Fig. 7
mIHC and flow cytometry gating of CD8+ T cells and MDSCs in mouse OLT models.
(A). mIHC of DAPI (blue), CD11b (gold), Ly6C (white), LDLR (magenta), NECTIN2 (red), CD8 (cyan), and TIGIT (green) in transplanted livers. (B). Percentage of M-MDSCs sorted by magnetic bead–based isolation. (C). Flow cytometry gating strategy for exhausted CD8+ T cells. (D). Flow cytometry gating strategy for effector CD8+ T cells. E Flow cytometry gating strategy for effective MDSCs. mIHC, multiplex immunohistochemistry; MDSCs, myeloid-derived suppressor cells; OLT, orthotopic liver transplantation; M-MDSCs, monocytic myeloid-derived suppressor cells.
(JPG)
