Introduction
Despite effective therapy for hepatitis C virus (HCV), it remains a leading cause of liver disease and cirrhosis worldwide.1 HCV differs from other viral hepatitis infections in that it has a much higher rate of both chronicity and extrahepatic manifestations.2 Extrahepatic manifestations in HCV are clinical complications that involve other organs outside of the liver. Up to two-thirds of patients with chronic HCV infection (HCVi) develop at least one extrahepatic manifestation,3 one such being insulin resistance (IR)/type II diabetes mellitus.4
Insulin signaling can be affected by a variety of mechanisms, most notably in HCV via increased intrahepatic tumor necrosis factor alpha (TNFα) production.5 Likewise, insulin signaling can be disrupted by altered hepatokine production, resulting in either decreased insulin secretion or selective IR in hepatic and non-hepatic tissues.6 Dysfunction in pancreatic β-cells leads to decreased insulin release into the portal vein, directly affecting the load of insulin delivered to the liver. In a proportional manner to the amount of insulin secreted by the pancreas, the liver performs hepatic insulin extraction, removing approximately 80% of endogenous insulin secreted in the blood under normal physiological conditions.7 Viral infection can also impact hepatic insulin extraction, and it has been proposed that liver damage in chronic hepatitis leads to decreased insulin extraction.8 Therefore, alterations in insulin secretion and hepatic insulin extraction may impact insulin signaling in the context of HCV. Supplementary Figure 1 summarizes definitions of insulin secretion, resistance, and extraction.
Patients with chronic HCV who develop diabetes are more likely to progress to cirrhosis and decompensated liver disease compared to chronic HCV patients without diabetes.9In vitro studies reveal that hepatic IR is in part mediated by the HCV core protein by triggering the degradation of insulin receptor substrate 1, disrupting the insulin signaling pathway in hepatocytes.10 While this intrahepatic method of insulin disruption is well understood, alterations in pancreatic insulin release and subsequent suppression of hepatic glucose release require further investigation within the portal venous system. Additionally, understanding the immune and viral drivers of insulin disruption in HCV might create opportunities for therapeutic intervention.
Our group previously reported numerous changes that occur during and after direct-acting antiviral (DAA) therapy for HCVi, including but not limited to a unique liver transcriptome, perturbed bacterial diversity and translocation, host immunological changes, and an altered metabolomic profile.11–14 This hypothesis-generating study aimed to evaluate how changes in portal insulin secretion and extraction correlate with the aforementioned multi-omics data during and after infection. Through this correlational study, the mechanisms of insulin secretion and homeostasis, utilizing HCV as a model, may be further elucidated.
Our comprehensive analysis revealed that portal insulin was significantly reduced during infection compared to after treatment. In the liver, alterations in immune and metabolic pathways correlated with the reduction of portal insulin. In the immune system, portal insulin correlated with specific immune cells, notably naive cytotoxic T-cells, and various pro- and anti-inflammatory cytokines. In the metabolomics, portal insulin correlated with nucleotides, specifically orotate and other non-coding nucleotides. Through the integration of these analyses, we hypothesize that HCVi induces changes in the immune system and hepatic signaling to induce decreased pancreatic β-cell insulin secretion and selective hepatic IR, presenting as a reduction in portal insulin but no changes in peripheral insulin.
Methods
Study design and patient cohort

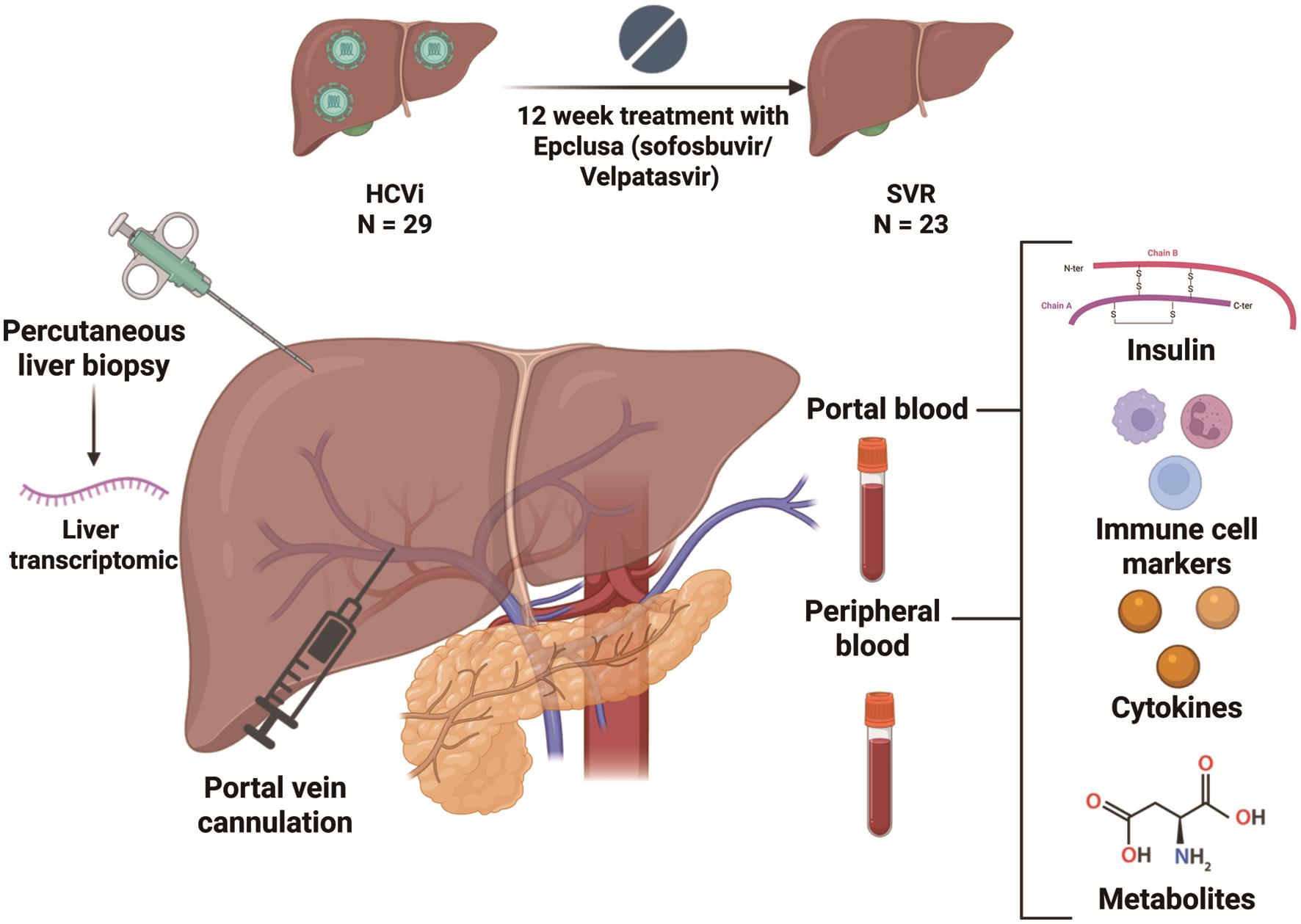

Twenty-nine patients with chronic HCV-associated liver disease were evaluated and underwent DAA therapy (sofosbuvir/velpatasvir) at the National Institutes of Health Clinical Center and achieved sustained virologic response (SVR) (NCT02400216). Selection criteria with patient details have been described elsewhere.12 All research was conducted in accordance with the Declarations of Helsinki and Istanbul, and all patients signed informed consent for participation in an NIDDK Institutional Review Board-approved protocol. All analyses on serum, plasma, and whole blood included 29 patients during HCVi and 23 patients one year post-SVR. Paired analyses consisted of 23 pairs, except transcriptomic analysis, which had 22 pairs. Two patients were taking medications for diabetes mellitus (Novolin insulin for one patient and glimepiride for another patient). However, neither was excluded from analyses because their medication and dosage did not change across infection status, and analyses were focused on the impact of HCVi. Patients were further subdivided based on liver cirrhosis status at baseline, with Ishak fibrosis scores of 0–4 classified as non-cirrhotic and 5–6 as cirrhotic. This led to the following patient distribution: 13 patients with active HCVi and cirrhosis, 16 with active HCVi without cirrhosis, 9 with SVR and cirrhosis, and 14 with SVR without cirrhosis.
Sample collection
Both portal and peripheral blood and liver biopsies were collected from all patients. All patients fasted overnight prior to sample collection. Blood samples were centrifuged for 10 min at 1,000 rpm within 4 h of collection and then stored at –80°C until analysis. Two hepatic core biopsy specimens were collected with a coaxially introduced 18G Temno needle (Temno Evolution, MeritMedical, Jordan, Utah, USA). Liver biopsies were scored in a blinded manner by a single liver pathologist to determine hepatic activity index and Ishak fibrosis scores for inflammation and fibrosis.
RNA sequencing of liver tissue
Total RNA extraction was performed on snap-frozen liver biopsies and used for RNA sequencing analysis.12 In brief, total RNA was extracted from 10 mg of liver tissue using TriZol (Cat No. 15596026) and the Qiagen RNA Extraction Kit (Cat No. 74104). The NEBNext poly(A) Selection Kit (Cat No. E7490S) was used for poly-A tail selection and to generate the RNA library using the ScriptSeq RNA library prep kit (Cat No. SSV21106). All cDNA libraries were quantified using the KAPA Biosystems Illumina qPCR kit (Roche Cat No.: 0796010140001). Libraries were normalized and sequenced on an Illumina HiSeq 4000. Raw sequences were aligned to the Homo sapiens hg38 reference genome using STAR (version 10.1) on PartekFlow. The DESeq2 R package (version 1.40.2) was used to remove batch effects and perform differential gene expression analysis.15 The GAGE R package (version 2.50.0)16 was used to identify pathways from the Kyoto Encyclopedia of Genes and Genomes (KEGG) that were significantly up- or downregulated with an FDR < 0.1 using the differentially expressed genes.
Clinical markers of liver disease
Biochemical assays were performed on a Cobas C 501 system to measure alanine aminotransferase, aspartate aminotransferase, albumin, total and direct bilirubin, and insulin. Glucose was measured using an Abbott Architect c8000 instrument. Complete blood counts were measured on a Sysmex system. Homeostatic model assessment for insulin resistance (HOMA-IR) was calculated as (Insulin × Glucose)/405; quantitative insulin sensitivity check index (QUICKI) was calculated as 1/(logInsulin + logGlucose); and homeostatic model assessment of β-cell function (HOMA-β) was calculated as 360 × Insulin/(Glucose – 63),17 where insulin was measured in µU/mL and glucose in mg/dL. For HOMA-IR and QUICKI, peripheral insulin was used, while for HOMA-β, portal insulin was used.
Serum immune and microbial markers
More than sixty serum markers were measured in both HCVi and SVR cohorts using commercially available research kits. Each assay was conducted in duplicate according to the respective manufacturers’ protocols. A list of markers and kits is presented in Supplementary Table 1.
Flow cytometry
Portal and peripheral blood samples were processed for flow cytometry using a whole blood lysis method, stained with fluorescent antibodies, measured with a FACS Canto II instrument, and analyzed using FCS Express Software (De Novo, Glendale, CA). Lymphocytes were identified based on a gate established by forward and side-angle scatter and confirmed using anti-CD45 and anti-CD14 antibodies. B cells were identified with the following antibodies: anti-CD20, anti-CD19, anti-CD5, anti-CD10, anti-IgM, anti-CD38, and anti-CD27. Irrelevant, directly conjugated murine IgG1 was used to ascertain background staining. All monoclonal antibodies were obtained from Becton Dickinson (San Jose, CA), with the exception of anti-IgM (BioLegend, San Diego, CA) and anti-CD45, anti-CD14, anti-CD19, anti-CD10, and anti-CD27 (Life Technologies, Carlsbad, CA).
Non-targeted global metabolite profiling
Metabolon conducted the global metabolomics assays in portal and peripheral serum at both time points. A detailed process for sample handling, quality control, data extraction, biochemical identification, data curation, quantification, and data normalization has been published.18 In brief, samples were vigorously shaken in methanol for 2 min to extract metabolites (Glen Mills GenoGrinder 2000) and then centrifuged. The extract was then aliquoted, dried, and reconstituted in acidic or basic liquid chromatography-compatible solvents for analysis by ultraperformance liquid chromatography-tandem mass spectrometry methods.19 Using a reference library of chemical standards, metabolites were identified by automated comparison of the ion features. Samples were curated by visual inspection for quality control using software developed at Metabolon.20
Statistical analysis
Statistical analysis was performed using GraphPad PRISM 10.2.2 and R. Continuous variables are expressed as median (IQR). All paired statistical tests were performed using the Wilcoxon rank-sum test, and all nonpaired statistical tests were performed using two-sided Mann-Whitney (MW) U tests. All correlational tests were performed using two-tailed Spearman correlation tests. p-values were adjusted using the false discovery rate for transcriptomic pathways. Corrected p-values (pcorrected) were calculated by performing an analysis of covariance to control for body mass index (BMI).
Results
Patient demographics
As described above, 29 patients underwent evaluation during HCVi, and 23 patients completed re-evaluation one year after SVR. Subject characteristics are presented in Table 1. Hepatic activity index, steatosis (fat), alanine aminotransferase, aspartate aminotransferase, gamma-glutamyl transferase, albumin, total bilirubin, and PT-INR were all significantly elevated during HCVi compared to after SVR. Notably, BMI was not significantly different across infection status (Table 1).
Table 1Subject Characteristics
| HCVi | HCVi for paired analysis | SVR (paired and unpaired) | Wilcoxox Rank Sum (HCVi vs SVR) |
|---|
| Number of Subjects (n) | 29 | 23 | 23 | – |
| Age; Median (IQR) | 59 (54.5–62) | 58.3 (54.5–62.5) | 59.3 (55.5–63.5) | – |
| Sex (male), % (n) | 18 (62.1%) | 14 (60.8) | 14 (61) | – |
| Race | | | | |
| White % (n) | 19 (65.6) | 15 (65.2) | 15 (65.2) | – |
| Asian % (n) | 2 (6.8) | 1 (4.3) | 1 (4.3) | – |
| Black/African American % (n) | 5 (17.2) | 5 (21.7) | 5 (21.7) | – |
| Hispanic % (n) | 3 (10.3) | 2 (8.7) | 2 (8.7) | – |
| Cirrhosis status | | | | |
| Cirrhotic | 13 (44.8) | 9 | 9 (39.1) | – |
| Non-cirrhotic | 16 (55.2) | 14 (60.9) | 14 (60.9) | – |
| Histological and Laboratory Parameters, Median (IQR) |
| log HCV RNA (IU/ml) | 6.3 (5.85–6.86) | 6.4 (6.03–6.90) | – | – |
| Ishak Fibrosis Score | 4 (2–6) | 3.47 (1.5–6) | 3 (0–6) | 0.2238 |
| HAI Inflammatory Score | 8 (7–10) | 8 (7–10) | 3 (2–3) | <0.0001 |
| Direct Portal pressures (mmHg) | 19 (12–25) | 17.4 (12.5–23) | 19 (12–22) | 0.82 |
| Fat (0–4) | 0.769565217 | 0.81 (0.1–1) | 0.386956522 | 0.019 |
| ALT (IU/L) | 85 (46.0–145.5) | 102 (35–131) | 21 (17–29) | <0.0001 |
| AST (IU/L) | 72 (34.5–109.5) | 80 (33.5 – 107.5) | 24 (21–28) | <0.0001 |
| ALP (IU/L) | 81 (73.0–108.5) | 94 (69 – 106.5) | 76 (63–106) | 0.1177 |
| GGT (IU/L) | 113 (35.5–169.0) | 128 (35.5–184) | 33 (20–43) | 0.0004 |
| Albumin (g/dl) | 4.1 (4.0–4.4) | 4.2 (4–4.4) | 4.3 (4.1–4.5) | 0.0227 |
| Total Bilirubin (mg/dl) | 0.6 (0.5–0.8) | 0.7 (0.5–0.8) | 0.4 (0.3–0.6) | 0.0015 |
| Platelet Count (×109 /L) | 165 (116.0–201.5) | 168 (129–199) | 170.5 (140.8–195.8) | 0.2053 |
| PT-INR | 1.07 (0.99–1.13) | 1.06 (0.99–1.12) | 1.09 (1.01–1.17) | 0.0175 |
| BMI (kg/m2) | 27.3 (24.4–31.4) | 27.2 (24.6–29.5) | 27.7 (23.8–31.1) | 0.2355 |
| HbA1c (%) | 5.5 (5.0–6.0) | 5.4 (5.2–6) | 5.5 (5.3–5.9) | 0.6963 |
Portal insulin is reduced during HCVi

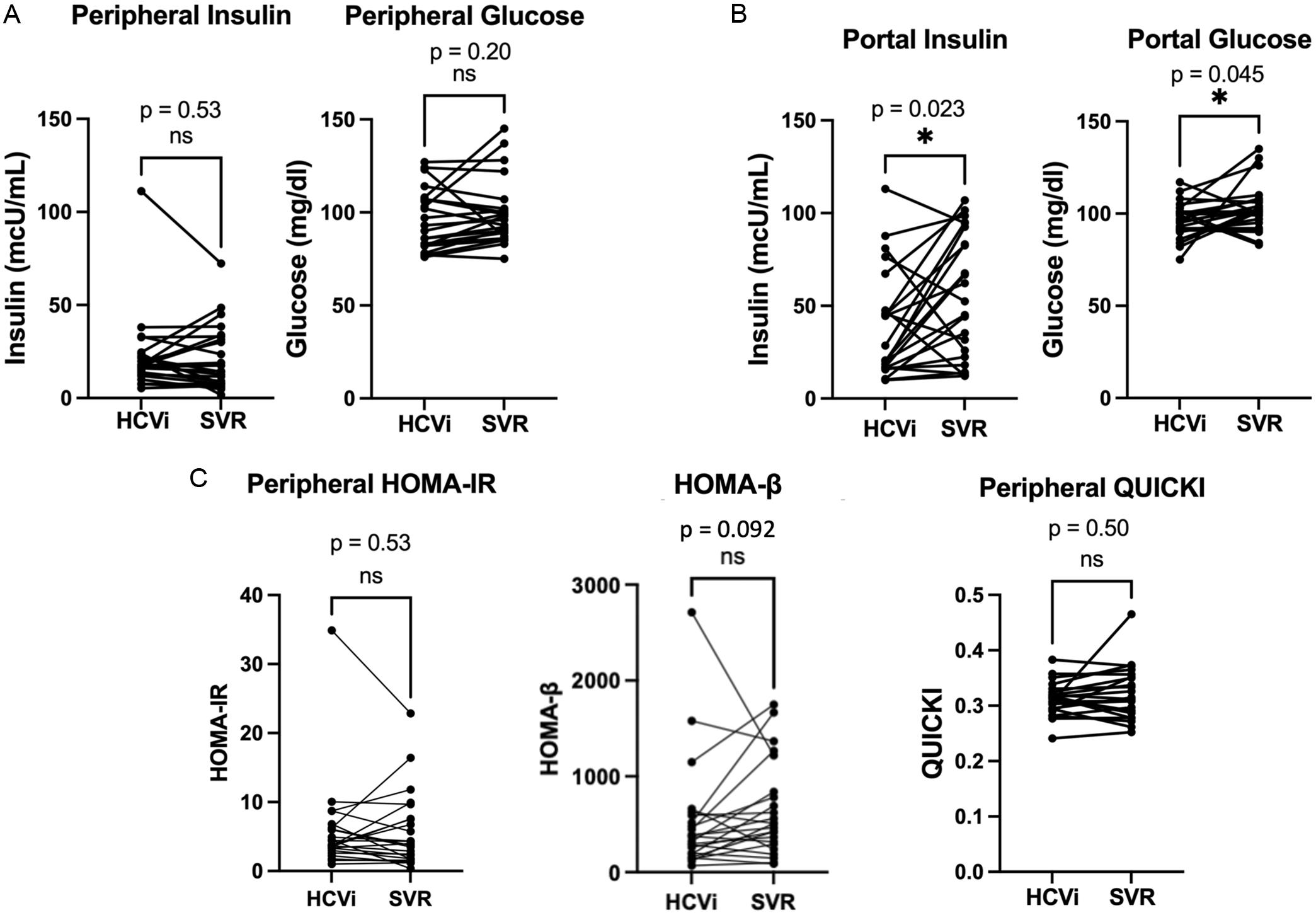

To understand how HCV affects IR, insulin and glucose were measured in both the peripheral and portal blood during HCVi and after SVR. Peripheral insulin (median HCVi: 17.6, IQR: 11.9; median SVR: 14.7, IQR: 23.9) and peripheral glucose (median HCVi: 93.0, IQR: 24.0; median SVR: 95.0, IQR: 12.8) levels did not differ significantly between infection status (pinsulin = 0.53, pglucose = 0.20) (Fig. 1A).
In contrast, portal glucose was significantly lower during infection (median: 97, IQR: 12) compared to SVR (median: 101, IQR: 10.5) (p = 0.045); however, this difference was not significant after adjusting for BMI (pcorrected = 0.053). Portal insulin was also significantly reduced during infection (median: 28.6, IQR: 30.9) compared to SVR (median: 52.4, IQR: 24.2) (p = 0.023), and this remained significant after BMI correction (pcorrected = 0.025) (Fig. 1B).
Neither peripheral HOMA-IR, HOMA-β, nor peripheral QUICKI differed across infection status (pHOMA-IR = 0.62, pHOMA-β = 0.092, pQUICKI = 0.50) (Fig. 1C). Portal insulin also did not differ across sex or race during HCVi (psex = 0.99, prace = 0.51) (Supplementary Fig. 2). This demonstrates that during infection, portal insulin was significantly reduced, while portal and peripheral glucose, as well as peripheral insulin, remained unchanged compared to SVR. Therefore, we observed decreased insulin secretion into the portal vein during HCVi; however, there was no change in peripheral insulin. This suggests that the liver may also be extracting less insulin from the portal blood, demonstrating a viral effect on hepatic insulin extraction.
Impact of cirrhosis, steatosis, and BMI on portal insulin
To determine whether cirrhosis status affected portal insulin, portal insulin was compared in patients with and without cirrhosis before and after SVR. Portal insulin did not differ when comparing patients with cirrhosis versus patients without cirrhosis during infection (p = 0.18) and after SVR (p = 0.22) (Supplementary Fig. 3). There was also no significant difference when comparing portal insulin levels in patients with cirrhosis during infection to after SVR (p = 0.098) or in patients without cirrhosis during infection to after SVR (p = 0.10). Steatosis grade from liver biopsies did not correlate with portal insulin during infection (ρ = 0.012, p = 0.9501) or after SVR (ρ = 0.21, p = 0.49). BMI also did not correlate with portal insulin during infection (ρ = 0.31, p = 0.10) or after SVR (ρ = 0.37, p = 0.083). Lack of relationships with cirrhosis status, steatosis, and BMI suggests that HCV, rather than advanced liver disease, may be driving decreased portal insulin (Supplementary Fig. 3).
Impact of hepatitis C genotype on portal insulin

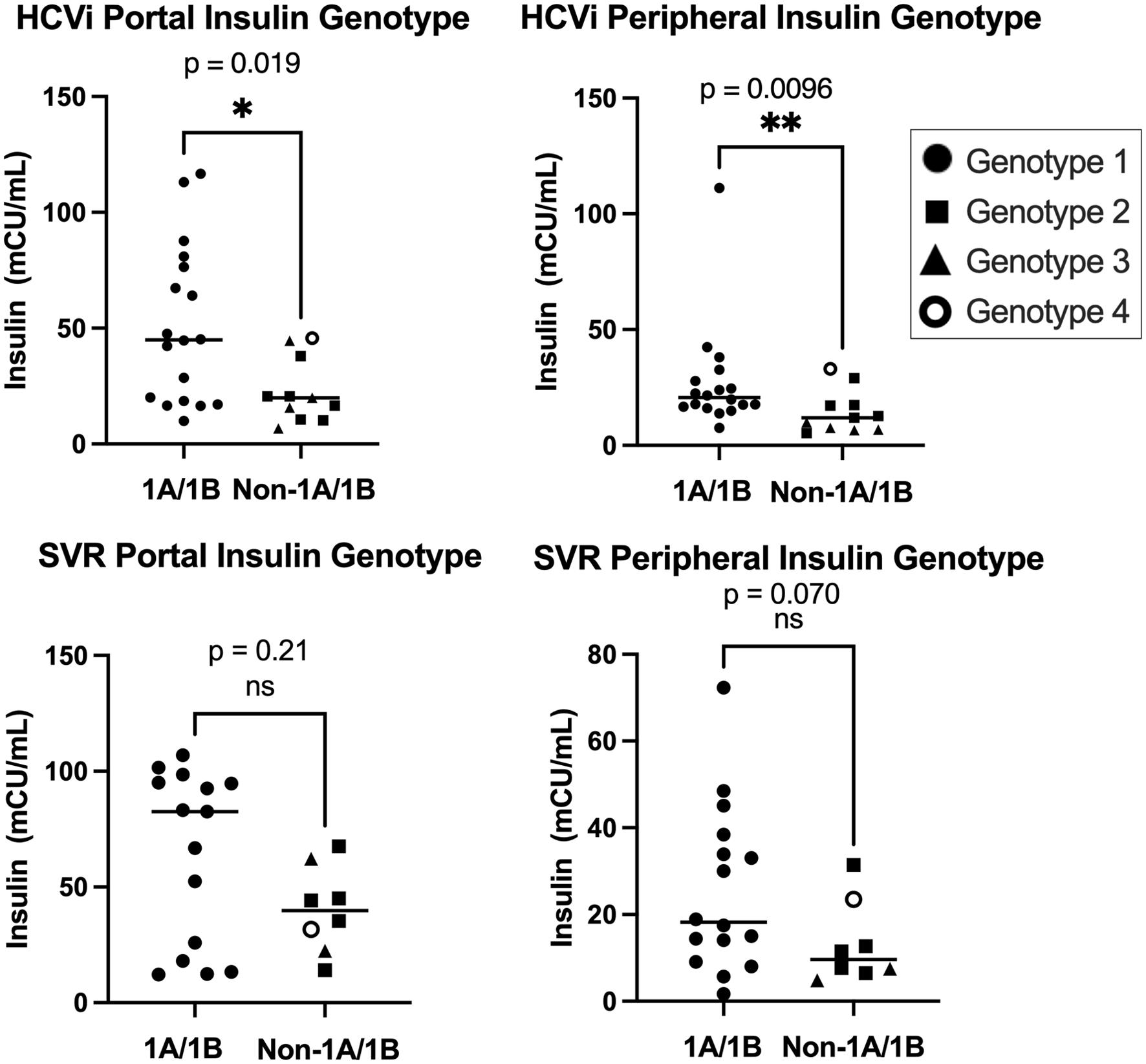

Since specific HCV genotypes, notably genotype 3, are associated with increased hepatic steatosis,21 portal and peripheral glucose and insulin were compared in patients with genotype 1 to those with non-genotype 1 HCV. Eighteen patients had HCV genotype 1 (10 genotype 1A, 8 genotype 1B). Of the other eleven patients, six were infected with HCV genotype 2, four with HCV genotype 3, and one with HCV genotype 4 (Supplementary Fig. 4). Portal insulin was significantly higher in patients infected with HCV genotype 1 compared to non-genotype 1 during infection (MW, p = 0.019), but did not differ after SVR (MW, p = 0.21) (Fig. 2). Therefore, a non-genotype 1 HCV genotype seems to coincide with reduced pancreatic insulin secretion observed during infection.
Correlations of immunogenic pathways with portal insulin

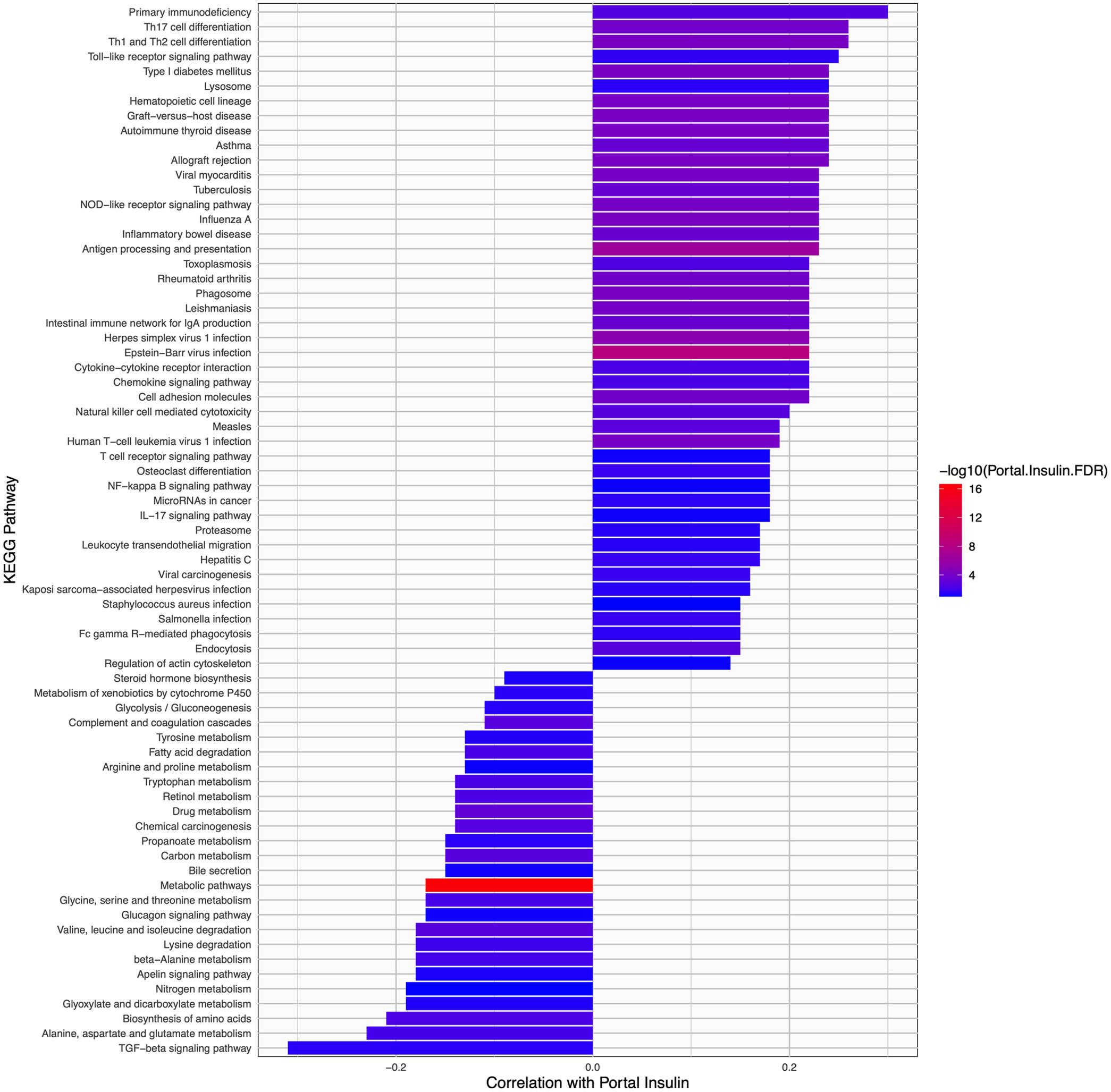

Hepatic differentially expressed genes were mapped to the KEGG pathway database. Correlation analysis between HCVi portal insulin and pathways was performed by comparing the median correlations of genes within the pathway and those not within the pathway to estimate effect size. Seventy-one pathways significantly correlated with portal insulin (Fig. 3). Of these 71, 45 were positively correlated, and 26 were negatively correlated. Twenty-one immune pathways correlated with portal insulin, with 20 correlating positively. Out of the top 15 positively correlated pathways, 11 were immune pathways. Conversely, out of the top 15 negatively correlated pathways, 11 were metabolism and energy pathways. These pathways are listed in Supplementary Table 2. Top genes contributing to these KEGG pathways with their correlations to portal insulin and log2 fold changes are listed in Supplementary Table 3. This represents a relationship between high levels of insulin and immune pathways, and between low levels of insulin and metabolic pathways during HCVi. An over-representation analysis using differentially expressed genes mapped to KEGG pathways found that the O-GlcNac regulation of IR pathway (Supplementary Fig. 5) is upregulated during HCVi. Activation of O-GlcNac regulatory pathway increases IR in high glucose environments.22 Additionally, key genes in the IR pathway, such as JNK1 and IKKB,23,24 were also upregulated during HCVi in our patient cohort. Though there was no change in peripheral glucose levels in HCVi versus SVR, the liver transcriptome demonstrates activation of pathways associated with IR during HCVi. This suggests a possible influence of HCVi on reduced extraction of insulin, similar to effects seen in hyperglycemia.
Correlation of proinflammatory cytokines, microbial markers, and vascular injury markers with portal insulin

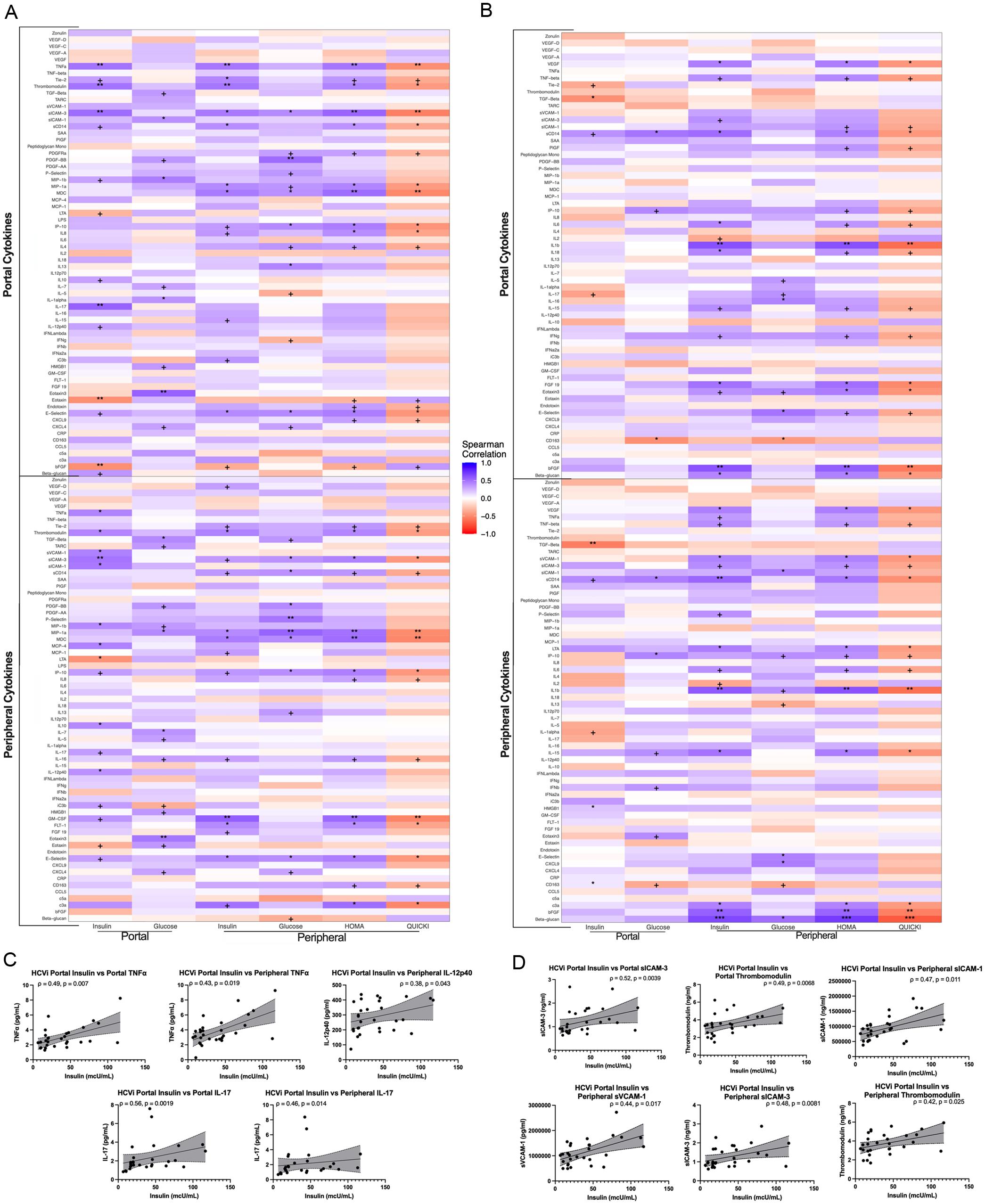

Sixty-five serum markers, measured in portal and peripheral blood, were evaluated for correlations with portal insulin during infection (Fig. 4A) and after SVR (Fig. 4B). During infection, six serum markers from portal blood and ten serum markers from peripheral blood correlated with portal insulin (Table 2).
Table 2Significant Correlations of Portal and Peripheral Serum Markers with Portal Insulin
Correlations with portal insulin
|
|---|
| Marker | Class | HCVi rho (p) | SVR rho (p) | Wilcoxox Rank Sum |
|---|
| Portal Serum Markers |
| IL-17 | Proinflammatory | 0.56(0.0019) | 0.24 (0.26) | 0.17 |
| sICAM-3 | Vascular injury marker | 0.52 (0.0039) | 0.20 (0.36) | 0.54 |
| Thrombomodulin | Vascular injury marker | 0.49 (0.0068) | −0.16 (0.46) | 0.075 |
| TNFα | Proinflammatory | 0.49 (0.0070) | 0.14 (0.51) | 0.0043 |
| bFGF | Growth factor | −0.48 (0.0086) | 0.030 (0.89) | 0.87 |
| Eotaxin | Chemokine | −0.48 (0.0089) | −0.071 (0.75) | 0.60 |
| Peripheral Serum Markers |
| sICAM3 | Vascular injury marker | 0.48 (0.0081) | 0.33 (0.13) | 0.0048 |
| sICAM1 | Vascular injury marker | 0.47 (0.011) | 0.29 (0.18) | 0.42 |
| LTA | Microbial products | −0.46 (0.011) | −0.11 (0.62) | 0.068 |
| sVCAM1 | Vascular injury marker | 0.44 (0.017) | −0.092 (0.67) | 0.29 |
| MCP-4 | Chemoattractants | 0.44 (0.018) | Not measured after SVR |
| TNFα | Proinflammatory | 0.43 (0.019) | 0.16 (0.46) | 0.00015 |
| Thrombomodulin | Vascular injury marker | 0.42 (0.025) | −0.067 (0.76) | 0.065 |
| MIP-1b | Chemoattractants | 0.41 (0.029) | 0.18 (0.40) | 0.11 |
| IL10 | Regulatory cytokines | 0.40 (0.030) | −0.35 (0.10) | <0.000001 |
| IL-12p40 | Proinflammatory | 0.38 (0.043) | 0.075 (0.7334) | <0.000001 |
In this cohort, as previously reported, portal and peripheral TNFα and interleukin (IL) 12p40 were significantly elevated during HCVi vs. SVR.11 Peripheral soluble intercellular adhesion molecule 3 (sICAM-3) (p = 0.0048) was also significantly elevated during HCVi. These cytokines demonstrated a relationship to portal insulin, along with others that were not significantly different across infection status (Supplementary Fig. 6). Cytokines that positively correlated with portal insulin included proinflammatory cytokines such as portal and peripheral TNFα, portal IL17, and peripheral IL12p40 (Fig. 4C), and vascular injury markers such as portal and peripheral sICAM-3, portal and peripheral thrombomodulin, peripheral sICAM-1, and soluble vascular cell adhesion molecule 1 (Fig. 4D). Conversely, portal basic fibroblast growth factor, portal eotaxin (serum cytokines), and peripheral lipoteichoic acid (microbial marker) correlated negatively with portal insulin. None of these serum markers were significantly correlated with portal insulin after SVR (Supplementary Fig. 7). These results reveal a clear association between cytokines, microbial, and vascular injury markers with portal insulin, potentially suggesting a role for circulating markers in decreasing insulin secretion and hepatic insulin extraction during HCVi.
Correlation between immune cell populations and portal insulin before and after treatment

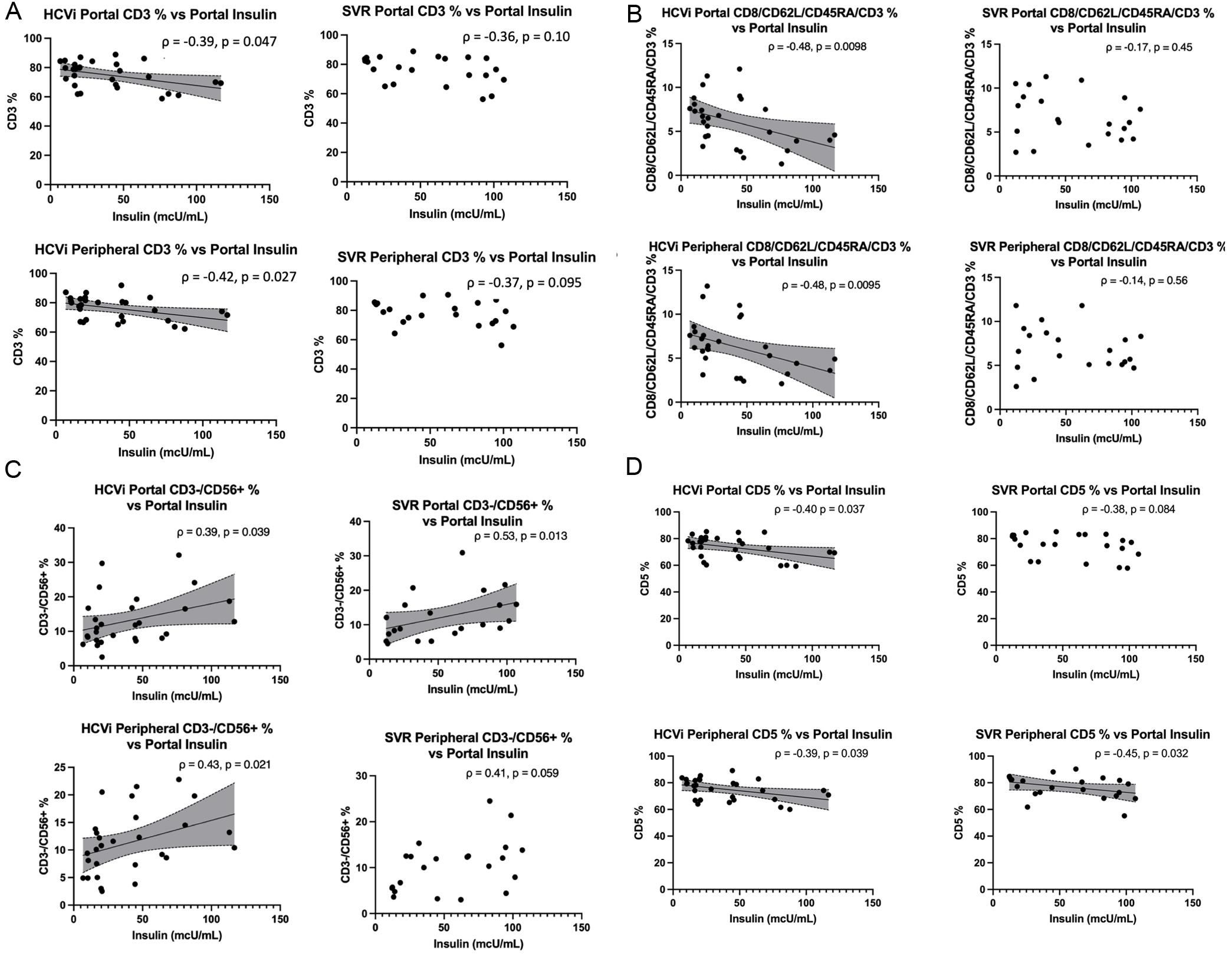

Our findings that proinflammatory cytokines and vascular injury markers correlated with portal insulin prompted further investigation into how immune cells that produce and interact with these cytokines directly correlate with changes in portal insulin (Supplementary Fig. 8). Four populations of cells significantly correlated with portal insulin: cytotoxic T-cells (CD3+/CD8+), natural killer cells (CD3-/CD56+), CD20+ B cells, and CD5+ B cells.
The percentage of CD3+ cytotoxic T-cells in portal and peripheral circulation negatively correlated with portal insulin during infection (portal: ρ = −0.39, p = 0.040; peripheral: ρ = −0.42, p = 0.027), but had no correlation after SVR (Fig. 5A). Of these CD3+ cells, the percentage of naive cytotoxic T-cells (CD8/CD62L/CD45RA/CD3) in portal (ρ = −0.48, p = 0.0098) and peripheral (ρ = −0.48, p = 0.0095) serum was the only subpopulation that negatively correlated with portal insulin (Fig. 5B).
Natural killer cells and CD5+ B cells correlated with portal insulin during infection and after SVR. The percentage of CD3-/CD56+ cells positively correlated with portal insulin during infection in portal (ρ = 0.39, p = 0.039) and peripheral (ρ = 0.43, p = 0.021) serum, and after SVR in portal (ρ = 0.53, p = 0.013) but not peripheral serum (ρ = 0.41, p = 0.059) (Fig. 5C). The percentage of CD5+ B cells during infection in portal (ρ = −0.40, p = 0.037) and peripheral (ρ = −0.3918, p = 0.0392) serum negatively correlated with portal insulin. Likewise, after SVR, the percentage of CD5+ B cells negatively correlated with portal insulin in peripheral serum (ρ = −0.45, p = 0.032), but no significant correlation was observed with the percentage of these cells in portal serum (ρ = −0.38, p = 0.084) (Fig. 5D).
Together, these results suggest that naive cytotoxic T-cells and specific populations of B cells are correlated with portal insulin during infection, while natural killer and CD5+ B cells correlate with portal insulin both during and after infection.
Correlation of nucleotides with portal insulin

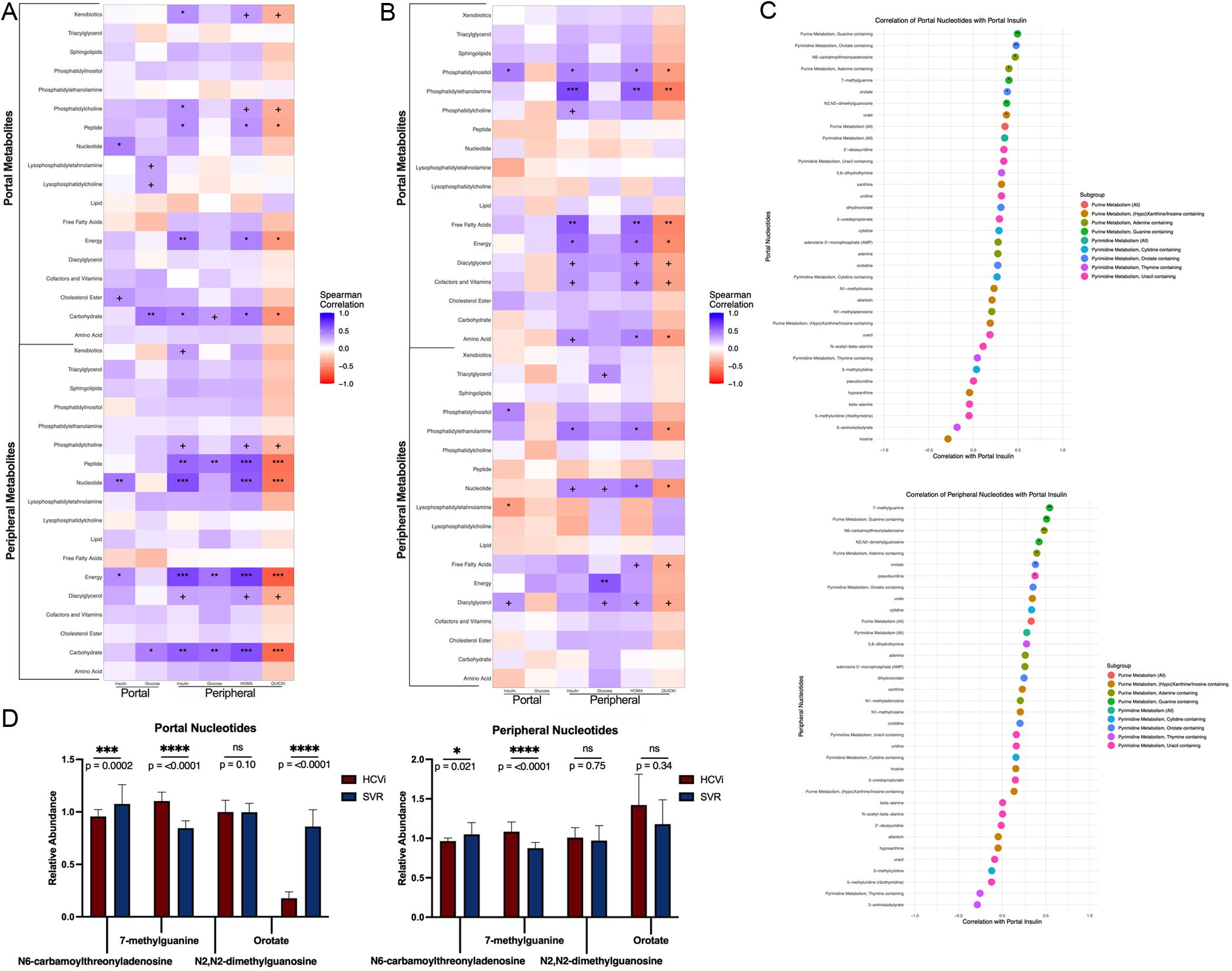

To further explore associations with reduced portal insulin during infection, a correlation analysis of portal and peripheral metabolites with portal insulin was performed. The portal and peripheral nucleotide supergroups significantly correlated with portal insulin during infection (ρ = 0.45, p = 0.016 & ρ = 0.48, p = 0.0089, respectively) (Fig. 6A) but did not after SVR (portal: ρ = 0.12, p = 0.60; peripheral: ρ = −0.14, p = 0.53) (Fig. 6B). Orotate, N6-carbamoylthreonyladenosine (t6A), 7-methylguanine, and N2,N2-dimethylguanosine (M22G) all significantly correlated with portal insulin during infection (portal orotate: ρ = 0.38, p = 0.042; peripheral orotate: ρ = 0.38, p = 0.042; portal t6A: ρ = 0.47, p = 0.010; peripheral t6A: ρ = 0.48, p = 0.0085; portal 7-methylguanine: ρ = 0.40, p = 0.032; peripheral 7-methylguanine: ρ = 0.54, p = 0.0024; portal M22G: ρ = 0.37, p = 0.047; peripheral M22G: ρ = 0.42, p = 0.023) (Fig. 6C). Portal and peripheral t6A and portal orotate were reduced during infection, while portal and peripheral 7-methylguanine were increased during infection (portal t6A: p = 0.0002; peripheral t6A: p = 0.021; portal orotate: p < 0.0001). Portal and peripheral M22G and peripheral orotate did not differ across infection status (portal M22G: p = 0.1045; peripheral M22G: p = 0.7530; peripheral orotate: p = 0.3447) (Fig. 6D).
Discussion
Previous investigations have demonstrated that HCVi is associated with a multitude of extrahepatic manifestations, one being IR.4 Through the administration of DAAs, we were able to evaluate paired values of portal and peripheral insulin and glucose in HCVi and after SVR. Our findings of reduced portal insulin with unchanged systemic glucose and insulin suggest reduced β-cell insulin release and decreased hepatic insulin extraction during HCVi.
We aimed to study insulin metabolism and homeostasis in HCV and uncovered previously unrecognized alterations in insulin secretion. In the context of our study, portal insulin represents the amount of insulin secreted by the pancreas, while peripheral insulin represents the amount of insulin remaining in the circulation following hepatic extraction. The liver extracts the majority, approximately 80%, of endogenous insulin secreted in the blood under normal physiological conditions.7 There is a close relationship between hepatic insulin extraction in response to finite numbers of insulin receptors in hepatocytes and the amount of insulin presented to the liver. With decreased portal insulin, we expected to find proportionally decreased peripheral insulin following hepatic extraction; however, values of peripheral insulin did not change between HCVi and SVR. This finding suggests decreased hepatic extraction of insulin during HCVi, maintaining insulin homeostasis in the periphery. Viral infection and impaired insulin homeostasis or IR are well-established phenomena.25–27 HCVi is associated with the development of IR,26 resulting in hyperglycemia in some patients; however, there were equivalent amounts of peripheral glucose during and after HCVi in our cohort. This points to an HCV-mediated pathway differing from classical hyperglycemia and IR, leading to reduced hepatic insulin extraction.
Previous studies have shown the Warburg effect of inflammatory immune cells, switching from oxidative phosphorylation to glycolysis for energy production in the setting of inflammation or infection.28,29 This demonstrates a potential adaptive response by the liver in response to decreased portal insulin while conserving glucose for utilization by inflammatory immune cells rather than hepatocytes. Relationships between immune markers and portal insulin were much more robust during HCVi vs. SVR. Thus, we might conclude that HCVi-associated immunologic responses are either influenced by portal insulin and/or influence portal insulin. The percentage of NK cells (CD3-/CD56+) correlated positively with portal insulin during infection and after SVR and did not change in number across infection status, suggesting that this population of natural killer cells may have an innate relationship with portal insulin beyond the context of HCVi. The percentage of CD8/CD62L/CD45RA/CD3 cells, conversely, negatively correlated with portal insulin during infection and had no correlation after SVR. These results suggest that this specific population of cytotoxic T cells may be associated with reduced portal insulin during infection.
We also wondered if virus genotype may have an effect on observed insulin alterations. Infection with HCV genotype 3 is associated with an increased rate of hepatic steatosis and a quicker progression to cirrhosis,21 but does not induce changes to peripheral insulin, glucose levels, nor HOMA-IR.30 In this study, HCV genotype 1 infection was associated with higher levels of portal insulin compared to non-genotype 1 HCVi. While these findings suggest a relationship between HCV genotype and severity in the reduction of portal insulin, further studies with a larger sample size are required to analyze the role of specific genotypes.
Insulin signaling is tightly associated with immune pathways, as both innate and adaptive immune cells express insulin receptors at various stages of activation.31,32 From liver transcriptomics, we uncovered a positive linear relationship between portal insulin and multiple immune pathways, such as Th1, Th2, Th17 cell differentiation, Toll-like receptor signaling, T-cell receptor signaling, IL-17 signaling, NF-κB signaling pathways, etc., which supports immune-mediated insulin signaling during HCVi. Additionally, activation of O-GlcNAc regulation of IR as well as upregulation of key IR genes, including JNK1, PI3K, and IKKB, during HCVi demonstrates involvement of infection-induced IR-like pathways despite the absence of hyperglycemia. During normal physiological conditions, insulin is anabolic, inhibiting protein catabolism and reducing the availability of circulating amino acids while stimulating protein synthesis and amino acid uptake in the liver.33,34 We observed a negative correlation between amino acid metabolism, both anabolic and catabolic pathways, and portal insulin during HCVi, but how these pathways are regulated by portal insulin remains unclear.
One potential confounder in the reduction of portal insulin during HCVi is spontaneous porto-systemic shunting, resulting in blood bypassing the liver and directly delivering portal insulin to the periphery, which could potentially dilute insulin measured in the portal vein. Spontaneous porto-systemic shunting occurs at higher rates in cirrhosis, most likely due to elevated portal venous pressure.35 We did not measure porto-systemic shunting directly, but portal insulin did not differ across cirrhosis status in our cohort. These results suggest that the reduction in portal insulin is most likely not due to spontaneous shunting and further support the hypothesis of reduced insulin secretion in HCVi. Another potential confounder in portal insulin levels is BMI, as changes in BMI can be associated with changes in insulin levels.36 However, BMI was not significantly different across infection status, negating the effects of BMI on portal insulin levels. Furthermore, increased hepatic steatosis is associated with increased levels of fasting serum peripheral insulin.37 While steatosis was significantly reduced after SVR compared to during HCVi, the degree of steatosis did not correlate with portal insulin either during infection or after SVR. Together, these results suggest that the reduction of portal insulin was not due to the effects of spontaneous shunting, BMI, or steatosis.
HCV-mediated infection in the pancreas has already been reported in other studies, but no one has correlated this with reduced insulin secretion into the portal vein. Here, we observed correlations of the Th1 and Th2 cell differentiation KEGG pathway and CD8/CD62L/CD45RA/CD3 cells with portal insulin during HCVi, suggesting that HCV induces immunological changes that trigger pancreatic dysfunction and decreased insulin secretion.
Portal insulin positively correlated with vascular markers sICAM-3, sICAM-1, thrombomodulin, and soluble vascular cell adhesion molecule 1. Insulin signaling exerts both direct and indirect actions on vascular cells38; therefore, alterations in insulin secretion may affect the secretion of vascular injury markers. Additionally, portal insulin negatively correlated with basic fibroblast growth factor, eotaxin, and lipoteichoic acid. While these three serum markers vary in mechanism of action, they are connected via their ability to stimulate an immune and inflammatory response. The correlations between portal insulin and important serum cytokines such as TNFα, IL17, and IL12p40 demonstrate their connections to mechanisms of insulin dysfunction. TNFα, IL17, and IL12p40 are known for their roles in metabolic disorders such as obesity, diabetes, IR, and hepatic steatosis. For example, neutralization of TNFα led to improved glucose metabolism in animal models of metabolic disease and obesity.39 Polymorphisms in TNFα alter susceptibility to IR, metabolic-dysfunction-associated steatotic liver disease, and steatohepatitis.40 IL17 is associated with hepatic steatosis41 and moderates glucose metabolism in mice.42 IL12p40 polymorphisms are also known to be associated with type 1 diabetes in Caucasians.43 The significant correlations between these cytokines and portal insulin suggest a shared mechanism associated with HCV-mediated decreased hepatic extraction and IR. This mechanism also appears to affect β-cell functionality despite a lack of hyperglycemia, a standard clinical marker of IR.
Neither HOMA-IR, QUICKI, nor HOMA-β differed significantly across infection status, indicating that despite a reduction in portal insulin levels during HCVi, neither peripheral IR nor β-cell function was attributable directly to HCVi.44 However, IR pathways were significantly upregulated in the hepatic transcriptome, suggesting the presence of hepatic IR. Certain hepatokines, such as selenoprotein P,45 fibroblast growth factor 21,46 and adropin,47 are all involved in the regulation of insulin secretion. We posit that HCVi may alter the secretion of specific hepatokines, allowing the liver to communicate to the pancreas its insulin resistance, which in turn reduces the insulin required for secretion, as evidenced by decreased insulin in the portal vein. Due to the liver’s selective IR, less insulin is cleared from the portal circulation as it enters the peripheral circulation. Thus, we speculate that there is a reduction in insulin secretion into the portal vein, but the liver clears less insulin, resulting in normal levels of insulin in the periphery. However, further research is required to elucidate specifically which hepatokines may be involved.
Three metabolites that correlated with portal insulin are nucleotides not traditionally found in the genetic code: orotate, t6A, and 7-methylguanine. Portal insulin is a regulator of hepatic nucleotide flux, RNA turnover, and mitochondrial–immune stress. Orotate and 7-methylguanine are free nucleobases, while t6A is a modified nucleoside. Orotate is a known precursor in de novo biosynthesis of pyrimidines with cardioprotective and neuroprotective roles.48 Orotate is utilized to induce fatty liver in mouse models and was recently discovered to induce the activation of SREBP-1 in cell culture,49 demonstrating its function as a transcriptional regulator. Moreover, orotic acid ameliorates p53 activation in MIN6 β cells and maintains pancreatic β-cell function in db/db mice.50 Reduced orotate levels in portal blood during HCVi compared to SVR also support its role in maintaining pancreatic functionality in this study. Significant changes in portal t6A and 7-methylguanine during and after HCVi indicate involvement of universal transcriptional regulation in our cohort of HCV patients, but further research is needed to support their role in pancreatic functionality and hepatic insulin extraction. All three of these nucleotides are sensitive to immune activation, regulated by mTOR/insulin, and are markers of metabolic flux. The association of portal insulin with non-canonical nucleotides such as orotate, t6A, and 7-methylguanine suggests that insulin signaling in HCVi modulates hepatic nucleotide flux and RNA turnover rather than DNA synthesis per se. These metabolites likely reflect immune-driven translational and epitranscriptomic reprogramming that becomes disinhibited when portal insulin signaling is reduced.
The finding that lower portal insulin in HCV reflects altered β-cell signaling and impaired hepatic insulin extraction, most likely driven by immune-mediated mechanisms, has a number of direct clinical implications. The first is that lower portal insulin may suppress hepatic gluconeogenesis and glycogen synthesis, which may contribute to early dysglycemia before overt diabetes develops. This suggests that patients with HCV (even pre-cirrhotic) warrant earlier and closer glucose monitoring, especially in the setting of significant inflammation. The second is that treatments improving hepatic function and decreasing inflammation (e.g., viral eradication, inflammation control) may improve insulin dynamics independently of weight loss. The improvement in insulin dynamics may delay or prevent the development of dysglycemia and even IR with diabetes. These findings, if reproduced in other liver diseases, will allow for therapeutic management of metabolic derangements even in the face of difficult-to-treat underlying liver diseases.
This is a hypothesis-generating correlational study; therefore, corrections for multiplicity were not performed. All the findings are from a small sample size, observational and associative, and would need to be further studied in a controlled experiment to validate the results. Although the sample size is appropriate for a clinical investigation involving invasive procedures, it limits the ability to perform detailed subgroup analyses. Regardless, the validity of these results was supported by the consistency of findings across biological compartments, patient subsets, and previously published literature. Another limitation of this study is the lack of more robust measures of β-cell function. Serum lipase values were examined, but no differences were found across infection and SVR (not published). Pancreatic tissue would have been an important source and support for the hypothesis, but pancreatic biopsies were not collected in the current study. Another limitation is the lack of C-peptide data, which can be used to calculate the amount of hepatic insulin extraction. However, through comparison of the relative abundance of insulin in the portal and peripheral blood, we are able to make conclusions about hepatic insulin extraction without C-peptide.
