Introduction
Pancreatic ductal adenocarcinoma (PDAC) is one of the most lethal malignancies, with a five-year overall survival rate of only 13%, largely attributable to its propensity for early metastasis.1 Approximately 57% of PDAC patients present with metastatic disease at diagnosis.2 Among them, hepatic metastasis (HM) and lymph node metastasis (LNM) occur frequently and predict poorer prognosis.3,4 Although the poor prognosis of PDAC has often been attributed to HM and LNM, which contribute to extensive dissemination into peripheral tissues and distant metastasis,5 other potential mechanisms remain unexplored. Therefore, investigating the underlying mechanisms of HM and LNM in PDAC and identifying strategies to inhibit them may highlight novel therapeutic approaches and ultimately improve the five-year overall survival rate.
The occurrence of HM and LNM is associated with an immunosuppressive tumor microenvironment (TME) and activation of epithelial-mesenchymal transition (EMT) in tumor cells.6 PDAC is characterized by its immunosuppressive TME, which is strongly associated with HM and LNM.7,8 Multiple immune cells, including myeloid-derived suppressor cells (MDSCs), M2 macrophages, dendritic cells, regulatory T cells, and group 3 innate lymphoid cells, have been identified as contributors to the immunosuppressive TME that promotes HM and LNM in PDAC.9–11 MDSCs are a heterogeneous population of myeloid cells that strongly inhibit the anticancer functions of effector immune cells.12 Recent studies have revealed distinct immunosuppressive functions of various MDSC subtypes in remodeling the TME. For instance, polymorphonuclear MDSCs (PMN-MDSCs) suppress tumor-specific immune responses by regulating the endoplasmic reticulum stress response in mice with lung cancer and lymphoma,13 while monocytic MDSCs (M-MDSCs) upregulate secreted phosphoprotein 1 to compensate for CD274 function, thereby promoting immune escape in PDAC.14 Despite growing insights into the functions of MDSCs in various cancer types, their relationship with HM and LNM in PDAC remains poorly explored.
The interleukin (IL)-1 subfamily consists of IL-1α, IL-1β, IL-33, and IL-1 receptor antagonist (IL1RA).15 Within this subfamily, IL1RA, encoded by IL1RN, serves as a competitive inhibitor of IL-1 ligands, counteracting IL-1 signaling to modulate immune responses.16 In the context of its immunosuppressive role in the TME, IL1RA has been shown to interact with the cholinergic muscarinic 4 receptor, promoting an M2-like phenotype in monocytes and enhancing tumor aggressiveness in prostate cancer.17 Beyond immune regulation, IL1RA can also reverse the suppressive effects of methionine deprivation, thereby promoting glioma cell proliferation.18 Although emerging evidence suggests that IL1RA contributes to tumor progression, the specific roles of IL1RA+ MDSCs in HM and LNM of PDAC remain poorly defined.
EMT is a process through which epithelial cells lose their characteristic features and acquire mesenchymal traits, enabling tumor cells to invade adjacent tissues, including lymph nodes.19 EMT-related proteins such as Snail, N-cadherin, and E-cadherin have been correlated with HM in PDAC20 and with LNM in oral squamous cell carcinoma and cervical cancer.21,22 The EMT pathway is widely recognized as being activated early during metastasis or in response to oxidative stress.23 Importantly, immune cells such as macrophages have been shown to drive EMT through the secretion of cytokines like IL-1β and transforming growth factor (TGF)-β in breast and lung cancers.24,25 However, whether EMT can be driven by MDSCs remains unclear.
To identify immune-cell subsets that drive HM and LNM in PDAC, we performed single-cell RNA sequencing (scRNA-seq) and discovered a novel subtype of IL1RA+ MDSCs aberrantly enriched in HM and lymph node-positive (LNP) PDAC. IL1RA+ MDSCs exert potent immunosuppressive effects on macrophages, NK cells, and T cells by inhibiting the IL-1 pathway. Moreover, IL1RA+ MDSCs promote PDAC cell migration by activating the EMT pathway in a VEGFA-dependent manner. Treatment with axitinib, a VEGFA-targeted drug, effectively abolished the influence of IL1RA+ MDSCs on PDAC cells. These findings reveal a novel mechanism whereby IL1RA+ MDSCs promote HM and LNM by activating EMT and remodeling the immunosuppressive microenvironment, suggesting that targeting IL1RA+ MDSCs may represent a promising therapeutic strategy in PDAC.
Methods
Patient information and sample acquisition
Fresh tissue specimens were collected from a cohort of 24 PDAC patients at the First Affiliated Hospital of Jilin University (Changchun, China) between 2023 and 2024. For resectable primary pancreatic cancer, all patients had non-metastatic PDAC, had not received prior preoperative treatment, and were confirmed by pathological assessment. Patients with other malignancies, comorbidities, or those who had received neoadjuvant therapy were excluded from the study. Six patients underwent scRNA-seq; three of them were pathologically diagnosed with LNM. In addition, one hepatic metastasis sample was collected for scRNA-seq. One PDAC tumor tissue specimen was obtained from a 63-year-old woman who underwent radical resection for the establishment of patient-derived xenograft (PDX) models. Tissue slides from another cohort of 10 PDAC patients were obtained from the Department of Pathology for multiplex immunofluorescence assays. Blood samples from three healthy donors were collected for in vitro immune functional assays. All participants were informed about the use of their samples for experimental studies and PDX model establishment. This study was approved by the Ethics Committee of the First Affiliated Hospital of Jilin University (Approval No. 2019180) and conducted in accordance with recognized ethical guidelines.
Tissue dissociation and single-cell suspension preparation
For scRNA-seq, PDAC and HM tissues were preserved in GEXSCOPE Tissue Preservation Solution (Singleron Biotechnologies, Nanjing, China) immediately after surgery and transported to the Singleron laboratory on ice packs within 48 h. The specimens were washed with Hank’s balanced salt solution (HBSS; Gibco, Grand Island, NY, USA) and cut into 1–2 mm pieces. Tissue fragments were digested with GEXSCOPE Tissue Dissociation Solution (Singleron Biotechnologies) at 37°C for 15 m with continuous agitation. Once cell counts exceeded 20,000, the resulting suspension was filtered through 40-µm sterile strainers (Falcon, Marlboro, NY, USA) and centrifuged at 300 × g for 5 m (Eppendorf, Hamburg, Germany). Pellets were resuspended in 1 mL phosphate-buffered saline (PBS; Hyclone, Logan, UT, USA), and RBC lysis buffer (Rochester, MI, USA) was added to remove red blood cells. The mixture was centrifuged at 500 × g for 5 m at 15–25°C and resuspended in PBS (Hyclone). The final cell concentration was adjusted to 1 × 105 cells/mL, and downstream processing proceeded once cell viability exceeded 80%.
scRNA-seq
scRNA-seq was performed as previously described.26 Single-cell suspensions at 1 × 105 cells/mL were loaded onto microfluidic devices, and scRNA-seq libraries were prepared using the GEXSCOPE Single-Cell RNA Library Kit (Singleron Biotechnologies), following the manufacturer’s protocol. Libraries were diluted to 4 nM, pooled, and sequenced on an Illumina HiSeq X platform with 150 bp paired-end reads. Raw reads were processed using fastQC and fastp to remove low-quality reads, while poly-A tails and adaptor sequences were trimmed using cutadapt. After quality control, reads were aligned to the GRCh38 reference genome (Ensembl version 92 annotation) using STAR. Gene and UMI counts were generated using featureCounts, and expression matrices were constructed for downstream analyses.
scRNA-seq data integration and quality control
The scRNA-seq data from the study cohort (n = 7) were integrated with five publicly available datasets: CRA001600, GSE197177, GSE229413, GSE242230/syn5241395, and OEP003254. Cells with <200 or >5,000 detected genes, or with >10% mitochondrial reads, were excluded. The Seurat package was used for normalization and scaling of the expression matrix. Principal component analysis was performed on the top 2000 highly variable genes for dimensionality reduction. To correct for batch effects across samples and datasets, the Harmony package was applied.
Unsupervised clustering, marker identification, and cell type annotation
Unsupervised clustering was performed using a graph-based approach with the top 30 principal components and a resolution of 0.8. Clusters were visualized using Uniform Manifold Approximation and Projection (UMAP) and t-distributed Stochastic Neighbor Embedding (tSNE). Clusters were annotated based on canonical marker expression to identify cell types. For myeloid cell subsets, the ‘FindAllMarkers’ function in Seurat was used to identify the top five most highly expressed genes per subset. Myeloid cells with low HLA-DR expression were defined as MDSCs.27
Pathway analysis and single-cell trajectories of neutrophil-derived MDSCs
Differentially expressed genes (DEGs) in neutrophil-derived MDSCs were identified using the ‘FindAllMarkers’ function in Seurat (min.pct = 0.25, logfc.threshold = 0.25). Gene Ontology enrichment analysis was performed with the clusterProfiler R package. Pseudotime analysis of neutrophil-derived MDSC developmental trajectories was conducted using the Monocle2 R package with default parameters, as recommended.
Cell-cell interaction analysis
Cell-cell interactions among TME cell types were predicted using CellPhoneDB based on the normalized expression matrix generated by Seurat.
Multiplex immunofluorescence staining
Formalin-fixed, paraffin-embedded tumor slides from 10 PDAC patients (five lymph node-negative (LNN) and five LNP) were obtained from the Department of Pathology at the First Hospital of Jilin University. Primary antibodies included CD11b (Abcam, Cambridge, UK), CD68 (Proteintech, Wuhan, China), MPO (Abcam), IL1RA (Proteintech), and VEGFA (Proteintech). Antibody concentrations are listed in Supplementary Table 1. Secondary horseradish peroxidase-conjugated antibodies were applied, and nuclei were counterstained with DAPI (4′,6-diamidino-2-phenylindole). Slides were imaged using a Nikon DS-U3 microscope (Nikon, Tokyo, Japan; 10× magnification).
Cell culture
Human PDAC cell lines PANC-1 and AsPC-1 were purchased from Fenghui Biotechnology Co., Ltd. (Changsha, China) for Transwell and Western blotting assays. THP-1 and K562 cells were obtained from the Cell Bank of Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences (Shanghai, China). AsPC-1 and K562 were cultured in Roswell Park Memorial Institute (hereinafter referred to as RPMI)-1640 medium (Corning, NY, USA), while PANC-1 was cultured in Dulbecco’s modified Eagle’s medium (Corning) at 37°C in a humidified incubator with 5% CO2. All media were supplemented with 10% fetal bovine serum (Gibco) and 1% penicillin/streptomycin (100 µg/mL; Gibco). All cell lines were authenticated by short tandem repeat profiling and confirmed to be mycoplasma-free using the MycoAlert™ Mycoplasma Detection Kit (Lonza, Basel, Switzerland). None of the cell lines used is listed in the database of commonly misidentified cell lines maintained by the International Cell Line Authentication Committee (ICLAC).
Flow cytometry analysis of PDAC tissues
Tumor-infiltrating immune cells were isolated from PDAC tissues by mincing tumors into 1–2 mm fragments, followed by enzymatic digestion with 200 U/mL collagenase type IV (Gibco) and 200 µg/mL DNase I (Solarbio, Beijing, China) at 37°C with agitation in a water bath for 2 h. Dissociated cells were filtered through a 70-µm strainer (Merck Millipore, Burlington, MA, USA) and centrifuged at 300 × g for 7 m. Cells were washed, resuspended at 1 × 106 cells/50 µL in FACS buffer, and stained with antibody panels for 30 min at 4°C.
Panel 1
anti-HLA-DR FITC (BioLegend, CA, USA), anti-CD11b PE (BioLegend), anti-CD33 APC (BioLegend), anti-CD14 V450 (BD Biosciences, CA, USA), anti-CD66b PE-Cy7 (BioLegend), and anti-CD45 APC/Cy7 (BioLegend).
Panel 2
anti-HLA-DR BV421 (BioLegend), anti-CD11b PE (BioLegend), anti-CD33 APC (BioLegend), anti-CD14 PerCP (BioLegend), anti-CD66b PE-Cy7 (BioLegend), and anti-CD45 APC/Cy7 (BioLegend).
For intracellular staining, anti-IL1RA FITC (eBioscience™, San Diego, CA, USA) was used. Cells were fixed and permeabilized using the BD Cytofix/Cytoperm™ Fixation/Permeabilization Kit (BD Biosciences, San Diego, CA, USA) following the manufacturer’s instructions.
Samples were analyzed using a BD Fortessa flow cytometer (BD Biosciences). For Panel 1, 7-AAD (BioLegend) was added to exclude dead cells. Data were analyzed with FlowJo software (Version 10.8.1; TreeStar, Ashland, OR, USA). Detailed antibody information is presented in Supplementary Table 2.
Cell isolation and flow cytometry sorting
Peripheral blood samples were collected from three healthy donors at the First Hospital of Jilin University. Peripheral blood mononuclear cells (PBMCs) were isolated using Ficoll density gradient centrifugation (Lymphoprep; Stemcell, BC, Canada). PBMCs were washed, resuspended at 1 × 108 cells/50 µL in FACS buffer, and stained with anti-CD3 PerCP (BioLegend) and anti-CD56 FITC (BioLegend) for 30 m at 4°C. CD3+ T cells and CD3−CD56+ NK cells were sorted using a BD Influx flow cytometer (BD Biosciences) for subsequent in vitro immune assays.
For tumor-infiltrating immune cells, isolated cells were stained with anti-HLA-DR BV421 (BioLegend), anti-CD11b PE (BioLegend), anti-CD66b PE-Cy7 (BioLegend), anti-GPR109 AF647 (BioLegend), and anti-CD182 FITC (BioLegend).
HLA-DR−/dimCD11b+CD66b+GPR109+CD182−/dim MDSCs were isolated using a BD Influx flow cytometer (BD Biosciences). Dead cells were removed prior to sorting using the Dead Cell Removal Kit (Miltenyi Biotec, Bergisch Gladbach, Germany) according to the manufacturer’s protocol. To prepare conditioned medium (CM), GPR109+CD182−/dim MDSCs were cultured for 48 h. The supernatant was filtered through a 0.22-µm membrane filter (Merck Millipore) and centrifuged at 1,000 × g for 10 m at 4°C.
RNA isolation and quantitative reverse transcription polymerase chain reaction (qRT-PCR)
Total RNA was extracted from NK cells, T cells, and THP-1 cell pellets using TRIzol reagent (Invitrogen, CA, USA). RNA was reverse-transcribed into complementary DNA using a kit from Takara (Tokyo, Japan). qRT-PCR was performed with TB Green Premix Ex Taq™ (Takara). Relative expression levels were calculated using the 2−ΔΔCt method. Primer sequences are listed in Supplementary Table 3.
Western blotting
PANC-1 cells were cultured in CM derived from IL1RA+ MDSCs for 48 h. Cells were lysed with RIPA buffer (Merck Millipore), and protein concentration was quantified using a BSA protein assay kit. Equal amounts of protein were separated by sodium dodecyl sulfate-polyamide gel electrophoresis and transferred to polyvinylidene fluoride membranes (Merck Millipore). Membranes were blocked with 5% skim milk and incubated overnight at 4°C with primary antibodies. After washing three times with TBST (10 m each), membranes were incubated with secondary antibodies for 45 m at room temperature. Immunoreactive bands were visualized using a Tanon imaging system. Antibody details and dilutions are listed in Supplementary Table 1.
Enzyme-linked immunosorbent assay (ELISA)
NK cells, T cells, and THP-1 cells (1 × 105 each) were cultured in CM derived from IL1RA+ MDSCs for 48 h. Supernatants were collected and analyzed for cytokine production using ELISA kits according to the manufacturers’ protocols. The ELISA kits included assays for MCP-4/CCL13 (Invitrogen), TNF-α (Invitrogen), TGF-β1 (Invitrogen), IL-1β (Invitrogen), IL-2 (Invitrogen), IL-10 (Invitrogen), IFN-γ (Invitrogen), and Granzyme B (GZB; Invitrogen). Detailed kit information is provided in Supplementary Table 4.
Lactate dehydrogenase (LDH) release assay
Freshly isolated NK cells (1 × 105) from PBMCs were cultured in IL-2-supplemented RPMI-1640 medium. IL1RA+ MDSCs were sorted from PDAC tissue samples using flow cytometry. Target cells (K562 leukemia cells) were prepared at a concentration of 1 × 105 cells/mL. NK cells, K562 cells, and MDSCs were co-cultured in 96-well U-bottom plates at an effector-to-target-to-MDSC (E:T:M) ratio of 10:1:1 (1 × 105 NK cells, 1 × 104 K562 cells, and 1 × 104 MDSCs per well). After 6 h of incubation, 150 µL of supernatant was collected from each well after centrifugation (200 × g, 10 m), mixed with 50 µL of LDH reaction mix (Beyotime, Shanghai, China), incubated for 20–30 m in the dark, and measured at OD490. NK-specific cytotoxicity was calculated as:
% Cytotoxicity=Maximum OD−Spontaneous ODExperimental OD−Spontaneous OD×00%.
Transwell assay
A total of 200 µL of serum-free medium containing 1 × 105 PANC-1 or AsPC-1 cells was added to the upper chamber of a Transwell plate (Corning). IL1RA+ MDSCs were pretreated with or without 5 nM axitinib for 48 h. Then, 600 µL of complete medium containing 10% fetal bovine serum (Gibco) was added to the lower chamber. After 24 h, cells in the upper chamber were fixed with 4% paraformaldehyde and stained with 1× DAPI. Cells remaining on the upper surface of the membrane were removed with cotton swabs. Images were captured using an Olympus IX73 microscope system (Olympus, Tokyo, Japan).
Patient-derived xenograft (PDX) models
PDAC tumor tissue was obtained from a 63-year-old female patient who underwent radical resection at the First Hospital of Jilin University to establish PDX models. Fresh PDAC tissue was cut into 3–5 mm3 pieces and implanted into the right flanks of six-week-old female BALB/c nude mice (F1 generation). Tumor volumes were measured twice weekly. When tumors reached 1,000 mm3, mice were sacrificed, xenografts harvested, and implanted into a second generation of mice (F2 generation). Once F2 tumors reached 1,000 mm3, xenografts were surgically removed and segmented for further animal experiments.
Xenograft models
Nine five-week-old BALB/c nude mice were purchased from SiPeiFu Biotechnology (Beijing, China) and housed in a positive-pressure barrier facility with HEPA-filtered air. The nine mice were randomly divided into three groups: negative control, IL1RA+ MDSCs, and IL1RA+ MDSCs + axitinib. Tumor tissue was cut into 1 mm3 blocks and implanted subcutaneously into the right flank of six-week-old female BALB/c nude mice. When tumors reached 3 mm in diameter, 5 × 104 IL1RA+ MDSCs were subcutaneously injected into three mice from the IL1RA+ MDSC group. Axitinib (Selleck Chemicals, Houston, TX, USA) was dissolved in 0.5% carboxymethylcellulose/H2O·HCl (g/v, pH 2–3) and administered orally at 30 mg/kg twice daily to the treatment group, as previously described.27 Tumor volumes were measured twice a day. Mice were sacrificed by cervical dislocation after six weeks, and tumor weights and volumes were recorded post-resection. All animal studies complied with the Institutional Animal Care and Use Committee of Changchun Veterinary Research Institute (Approval No. 2024-11-066).
Statistical analysis
Statistical analyses were performed using GraphPad Prism 8.0 software (GraphPad Software Inc., La Jolla, CA, USA). Kaplan–Meier survival curves and log-rank tests were used to compare overall survival between LNN and LNP PDAC patients. Data are presented as the mean ± standard deviation. Results represent at least three independent experiments. Statistical differences between two groups were determined using an unpaired, two-tailed Student’s t-test. Comparisons among multiple groups were made using one-way analysis of variance. The Chi-square test was applied to assess differences between categorical variables. A p-value < 0.05 was considered statistically significant and indicated as follows: *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001, ns: not significant.
Results

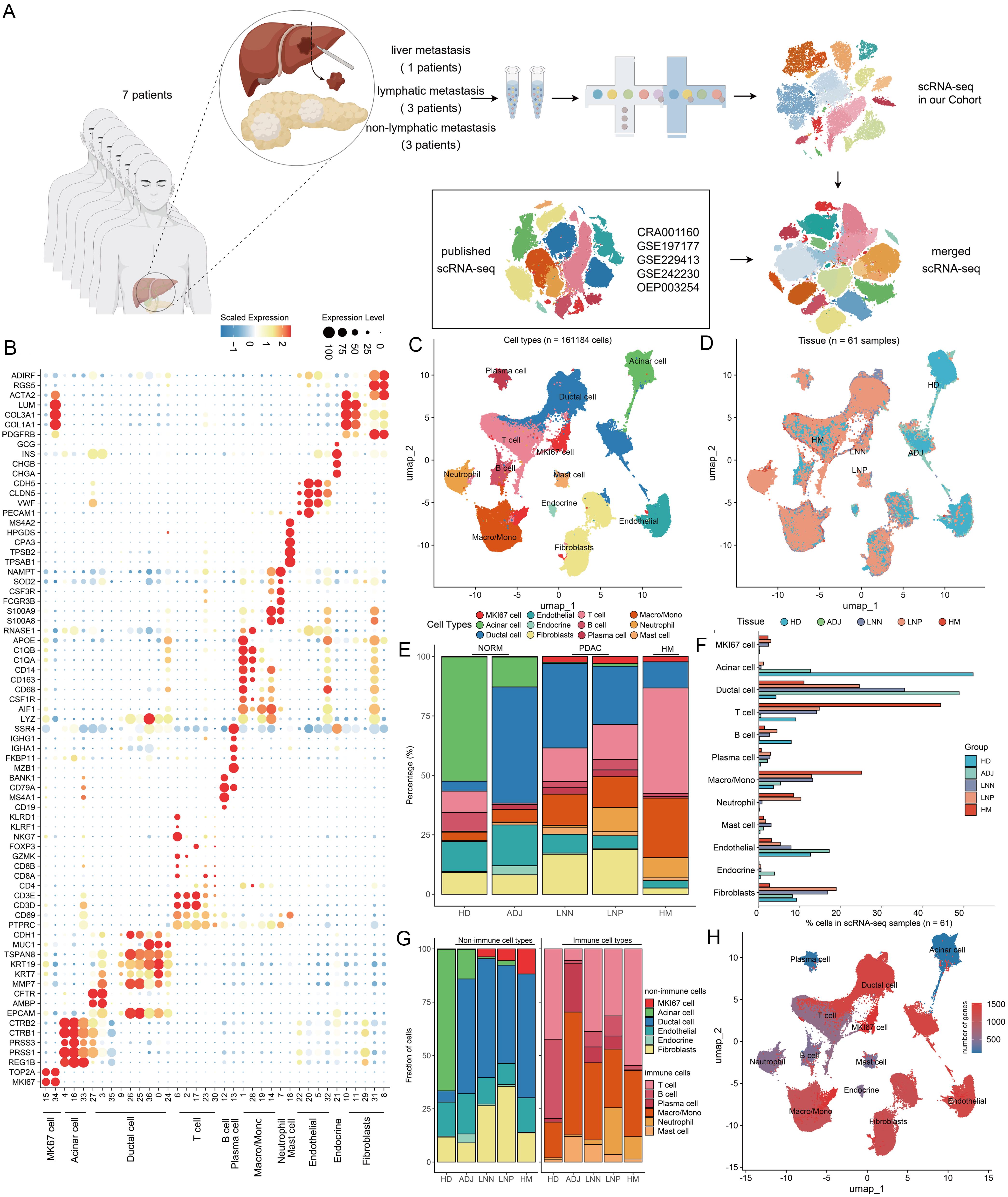

Single-cell transcriptomic atlas and cell typing in primary PDAC, lymphatic metastasis tumors, and hepatic metastatic tumors
To comprehensively understand the TME in PDAC with lymphatic metastasis, scRNA-seq was conducted on tissues from three LNN, three LNP PDAC patients, and one HM patient, all confirmed by histopathology (Fig. 1A, Supplementary Fig. 1, Supplementary Table 5). After quality control, a total of 32,504 cells from the cohort were included in the analysis. Annotation based on well-established markers classified these cells into 12 distinct cell types: MKI67+ cells, acinar cells, ductal cells, T cells, B cells, plasma cells, macrophages/monocytes, neutrophils, mast cells, endothelial cells, endocrine cells, and fibroblasts (Supplementary Fig. 2A). To enhance the reliability of the data, scRNA-seq from our cohort was integrated with five publicly available datasets with intact clinical parameters (CRA001160, GSE197177, GSE229413, GSE242230/syn5241395, and OEP003254), expanding the analysis to a total of 161,184 cells from 61 patients (Fig. 1B–D, Supplementary Fig. 2B and C, Table 1, and Supplementary Table 6). All treatment-naive PDAC samples were surgically obtained from primary tumors, and all treatment-naive HM samples were surgically obtained from hepatic metastatic tissues. The UMAP plot revealed that the distribution of cell types varied across different groups (Fig. 1E, Supplementary Fig. 2D and E). Notably, myeloid cells exhibited significant heterogeneity between tissue types. Neutrophils were particularly more abundant in HM and LNP PDAC tissues compared with LNN PDAC tissues, whereas other immune cells showed minimal differences (Fig. 1F and G, Supplementary Fig. 2F and G). Although the DEGs in neutrophils were less abundant than in ductal or MKI67+ cells, this indicates that, despite their lower numbers, neutrophils may play critical roles in lymphatic metastasis (Fig. 1H). These findings demonstrate that neutrophils are the most differentially infiltrated cell type in PDAC and may play a central role in regulating LNM.
Table 1Cell types and abundances in pancreatic ductal adenocarcinoma and hepatic metastases tissues detected by scRNA-seq
| Cell types | NORM
| PDAC
| HM | Total Numbers of cells | Percentage (100%) |
|---|
| HD | ADJ | LNN | LNP |
|---|
| MKI67 cell | 37 | 48 | 891 | 1,785 | 512 | 3,273 | 2.03 |
| Acinar cell | 10,067 | 2,631 | 202 | 687 | 1 | 13,588 | 8.43 |
| Ductal cell | 805 | 10,214 | 13,297 | 14,868 | 2,521 | 41,705 | 25.87 |
| T cell | 1,737 | 105 | 5,270 | 8,936 | 10,163 | 26,211 | 16.26 |
| B cell | 1,521 | 25 | 983 | 2,681 | 312 | 5,522 | 3.43 |
| Plasma cell | 71 | 441 | 1,010 | 1,745 | 139 | 3,406 | 2.11 |
| Macro/Mono | 686 | 1,110 | 4,915 | 7,814 | 5,749 | 20,274 | 12.58 |
| Neutrophil | 26 | 14 | 292 | 6,225 | 1,947 | 8,504 | 5.28 |
| Mast cell | 55 | 231 | 1,118 | 1,018 | 263 | 2,685 | 1.67 |
| Endothelial | 2,425 | 3,592 | 2,939 | 3,178 | 705 | 12,839 | 7.97 |
| Endocrine | 67 | 794 | 197 | 296 | 12 | 1,366 | 0.85 |
| Fibroblast | 1,772 | 1,709 | 6,287 | 11,450 | 593 | 21,811 | 13.53 |
| Total | 19,269 | 20,914 | 37,401 | 60,683 | 22,917 | 161,184 | 100 |

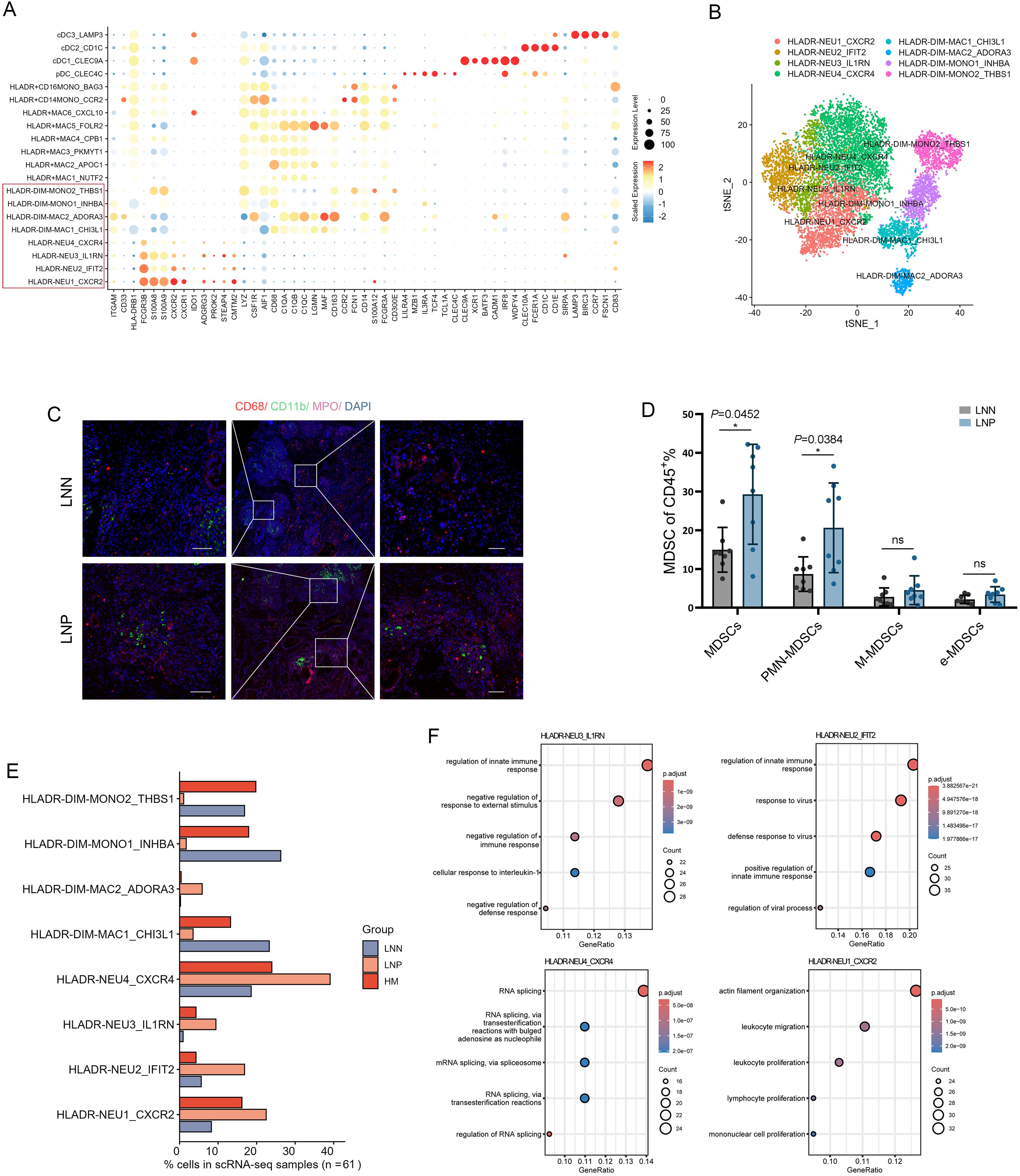

HM and LNP PDAC tissues show increased MDSC recruitment
To investigate whether MDSCs participate in regulating PDAC hepatic and lymphatic metastasis, the distribution of myeloid-derived cells in the cohort was analyzed alongside publicly available datasets. Seven distinct MDSC clusters were annotated based on DEGs and compared with other myeloid cell populations using the reported HLA-DR−/dim criteria (Fig. 2A). tSNE visualization showed the distribution of MDSCs across PDAC tissues and external datasets (Fig. 2B). In HM and LNP PDAC tissues, MDSCs were predominantly derived from monocytes/macrophages and neutrophils. These were categorized as monocytic MDSCs (M-MDSCs, marked by HLA-DR−/dimCD11b+CD33+CD14+CD66b-) and PMN-MDSCs (marked by HLA-DR−/dimCD11b+CD33+CD14−CD66b+), respectively. Both MDSC types exert immunosuppressive functions in the TME. Multiplex immunofluorescence staining further revealed the spatial distribution of these subsets, showing that PMN-MDSC infiltration positively correlated with lymphatic metastasis, whereas M-MDSCs did not demonstrate a similar association (Fig. 2C). Flow cytometry analysis confirmed an increased presence of MDSCs and PMN-MDSCs in LNP PDAC tissues, while M-MDSCs and early-stage MDSCs showed no difference between LNN and LNP tissues (Fig. 2D and Supplementary Fig. 3). Single-cell sequencing revealed that neutrophil-derived CXCR2+, IFIT2+, IL1RN+, and CXCR4+ MDSCs were significantly elevated in HM and LNP PDAC tissues compared with monocyte-derived MDSCs (Fig. 2E), suggesting that these neutrophil-derived subtypes may play a primary role in liver and lymphatic metastasis. The Gene Ontology analysis of the four neutrophil-derived MDSC clusters indicated that only IL1RN+ and CXCR2+ MDSCs were involved in immune suppression and leukocyte regulation (Fig. 2F). CXCR2+ MDSCs were excluded from further analysis due to extensive prior studies. These findings highlight that MDSCs, particularly neutrophil-derived PMN-MDSCs, are increasingly recruited in HM and LNP PDAC tissues. Among them, IL1RN+ MDSCs may represent the main immunosuppressive subtype contributing to hepatic and lymphatic metastasis.

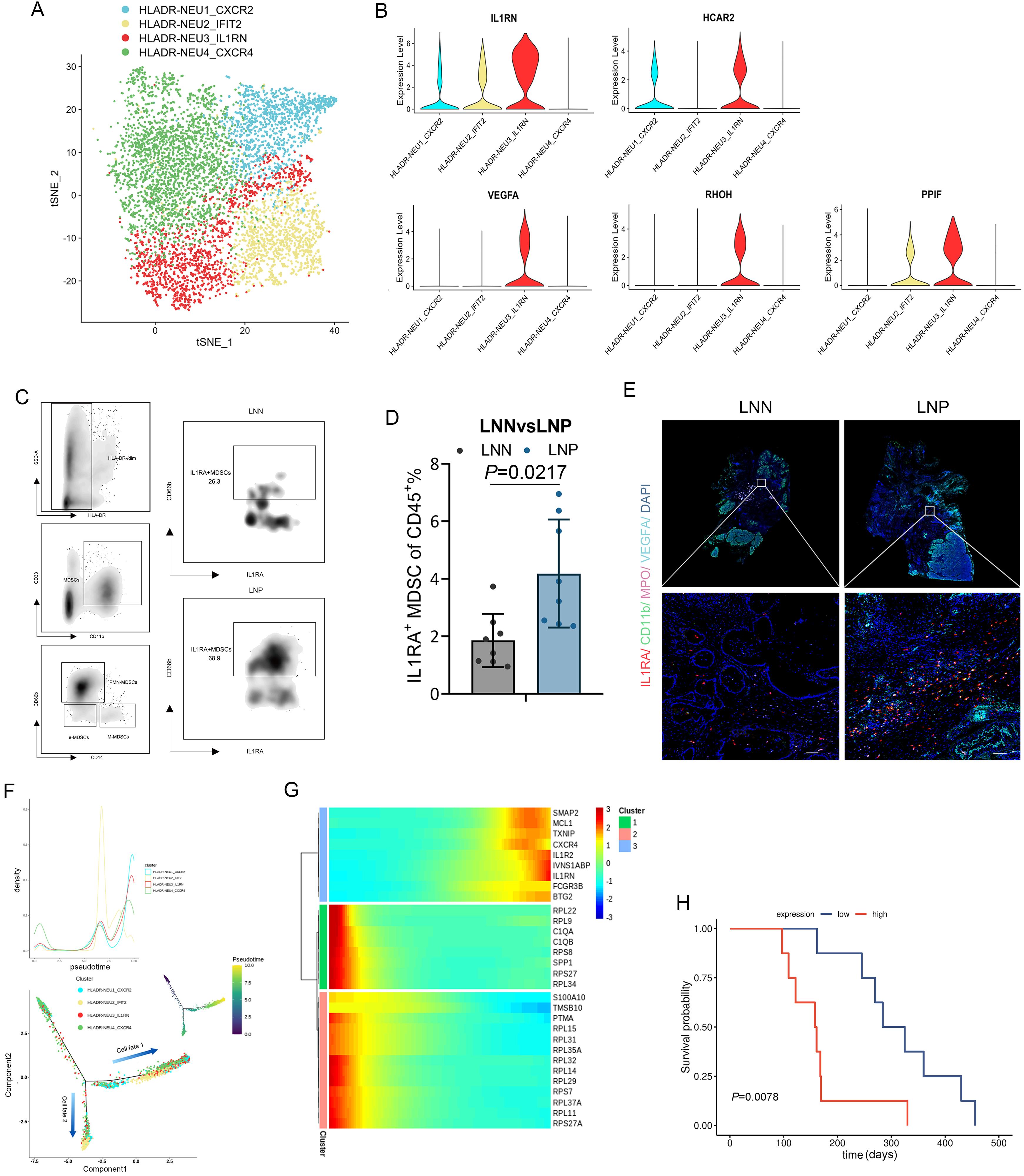

IL1RN+ MDSCs are increased in HM and LNP PDAC and correlate with worse survival outcomes
Given the potential immunosuppressive role of IL1RN+ MDSCs, we examined whether these cells were elevated in HM and LNP PDAC and associated with poor prognosis. tSNE visualization confirmed the presence of IL1RN+ MDSCs across all scRNA-seq datasets (Fig. 3A). The top five DEGs of IL1RN+ MDSCs were displayed to highlight their molecular distinctions (Fig. 3B). IL1RA, encoded by IL1RN, was employed to stain for PMN-MDSCs (HLA-DR−/dimCD11b+CD33+CD14−CD66b+IL1RA+) and analyzed by flow cytometry and immunofluorescence staining in LNP PDAC tissues (Fig. 3C–E). Monocle2 was used to examine the developmental trajectory of IL1RN+ MDSCs in the TME, revealing that CXCR4+ MDSCs were at the trajectory’s initiation point, while IL1RN+ MDSCs were at the terminal stage (Fig. 3F). Along this trajectory, genes associated with immune suppression and dysfunction were upregulated, indicating progressive immunosuppression in HM and LNP PDAC (Fig. 3G). Among 16 PDAC patients, high and low IL1RA MDSC groups (n = 8 per group) were defined using a median cut-off of 2.46% of all CD45+ cells, as determined by flow cytometry. Pathological parameters, including age, gender, differentiation, peripancreatic lymph node involvement, and neural invasion, were analyzed (Supplementary Table 7). IL1RA+ MDSCs were correlated only with tumor size and peripancreatic lymph node invasion. Kaplan-Meier survival analysis indicated that higher IL1RA+ MDSC proportions were associated with poorer prognosis (Fig. 3H). Overall, these findings suggest that IL1RN+ MDSCs are elevated in HM and LNP PDAC and are linked to adverse survival outcomes.

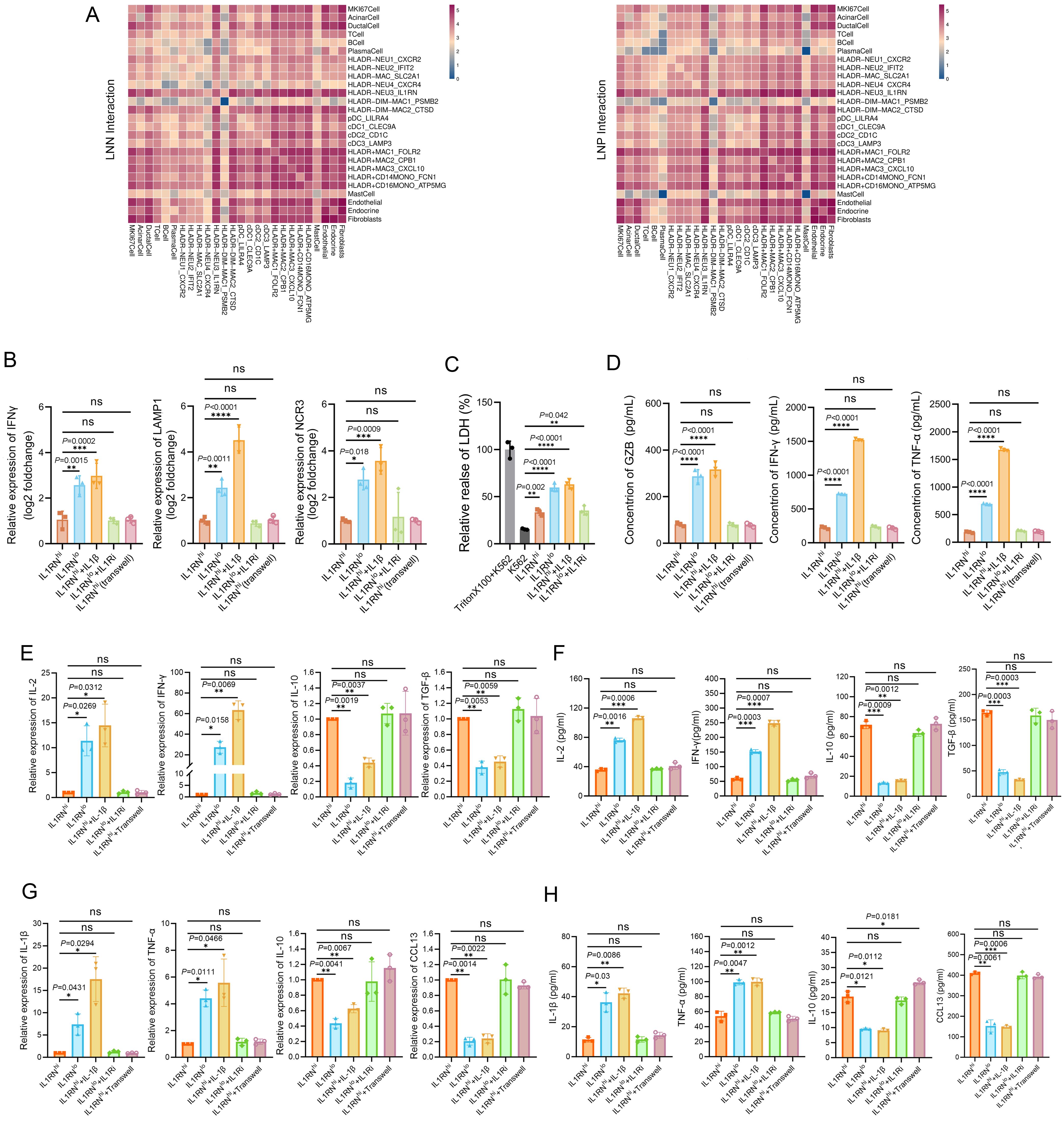

IL1RN+ MDSCs contribute to the establishment of an immunosuppressive microenvironment in PDAC
Given the increased presence of IL1RN+ MDSCs in the LNP PDAC microenvironment, it was hypothesized that these cells may suppress antitumor immune responses by interacting with other immune cell types. To test this hypothesis, cell–cell interaction analysis was performed to visualize intercellular interactions. IL1RN+ MDSCs were found to interact with multiple immune cell types in both LNN and LNP PDAC tissues (Fig. 4A). To further investigate the functional role of IL1RN+ MDSCs, these cells were sorted for coculture experiments. Due to the intracellular localization of IL1RA, the sorting strategy was adjusted to isolate cells expressing the membrane protein HCAR2+ and CXCR2−/dim as a surrogate for IL1RN+ MDSCs (Fig. 4B, Supplementary Fig. 4A). qRT-PCR confirmed that the sorted cells highly expressed IL1RN (Supplementary Fig. 4B). NK cells and T cells were isolated from human peripheral blood via flow cytometry and cocultured with CM from IL1RN+ MDSCs for 48 h (Supplementary Fig. 4C). The results revealed that IL1RN+ MDSCs directly inhibited NK cell effector functions via the IL-1β pathway. This inhibition was evidenced by a significant reduction in the mRNA expression levels of IFN-γ, LAMP1, and NCR3 (qRT-PCR), diminished lysosomal activity in target cells (LDH assay), and decreased secretion of IFN-γ, TNF-α, and granzyme B (ELISA). Notably, this suppression was reversible upon IL-1β stimulation, which restored NK cell activation markers above baseline levels. In transwell experiments, NK cell cytotoxic functions were inhibited even without direct coculture with IL1RN+ MDSCs, indicating that cell-cell contact was not required for this effect. Furthermore, IL-1 receptor blockade (raleukin, 50 ng/mL, MedChemExpress, Monmouth Junction, NJ, USA) in IL1RNlow MDSCs enhanced immunosuppressive activity, highlighting the pivotal role of IL-1 signaling in MDSC-mediated regulation of NK cells (Fig. 4B–D). Collectively, these results demonstrate that IL1RN+ MDSCs inhibit NK cell cytotoxic functions via IL-1 secretion rather than direct contact. For T cell functions, qRT-PCR and ELISA assays were performed to measure IL-2 and IFN-γ (T cell activation) and IL-10 and TGF-β (T cell exhaustion) in cell lysates and supernatants, respectively (Fig. 4E and F). These assays revealed that IL1RNhigh MDSCs inhibited T cell activation and promoted exhaustion through the IL-1 pathway compared with IL1RNlow MDSCs. For macrophage polarization, THP-1 cells were treated with PMA (100 ng/mL) for 48 h and subsequently exposed to CM from MDSCs. The mRNA and protein levels of IL-1β, TNF-α, IL-10, and CCL13 were measured by qRT-PCR and ELISA, respectively (Fig. 4G and H). IL1RNhigh MDSCs promoted polarization toward M2 macrophages while suppressing M1 polarization. IL-1β treatment inhibited the effect of IL1RNhigh MDSCs, whereas IL-1 receptor inhibition promoted M2 polarization. Collectively, these data suggest that IL1RN+ MDSCs contribute to remodeling an immunosuppressive microenvironment in PDAC via the IL-1 pathway.

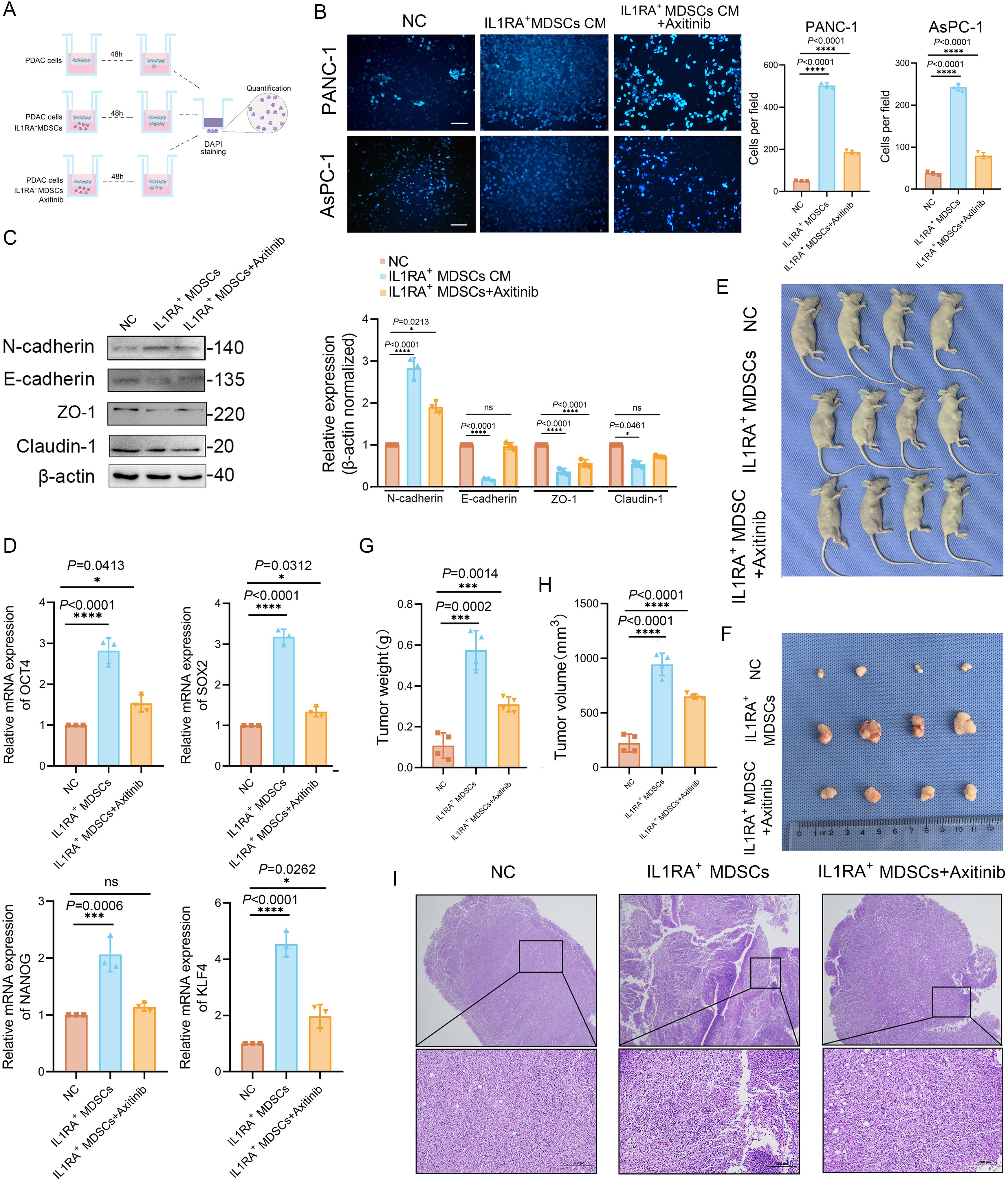

IL1RN+ MDSCs promote PDAC progression in vitro and in vivo
MDSCs are known not only to modulate immune cells in the TME but also to promote tumor progression by directly activating EMT and conferring stem-cell-like properties to tumor cells.28,29 Therefore, the potential role of IL1RN+ MDSCs in PDAC progression was investigated. Among the top five most highly expressed genes in IL1RN+ MDSCs in LNP PDAC tissues, VEGFA was identified as a prominent molecule. Given its role in promoting lymphatic metastasis, the migration ability of PDAC cells was evaluated after coculture with IL1RN+ MDSC-CM, with or without the VEGFR inhibitor axitinib (Fig. 5A). Transwell assays demonstrated that IL1RN+ MDSCs enhanced PDAC cell migration, whereas axitinib reversed this effect (Fig. 5B). Western blotting and grayscale analysis quantified the expression of EMT markers (E-cadherin, N-cadherin, Claudin, and ZO-1) in PANC-1 cells treated with IL1RN+ MDSC-CM with or without axitinib. The results revealed that IL1RN+ MDSC-CM promoted EMT in PDAC cells, an effect reversed by axitinib (Fig. 5C). These data indicate that IL1RN+ MDSCs promote PDAC progression via a VEGFA-dependent pathway. Further analysis of OCT4, SOX2, NANOG, and KLF4 mRNA revealed that IL1RN+ MDSCs enhance stemness in PANC-1 cells (Fig. 5D). To investigate tumorigenic potential in vivo, PDX models from LNP patients were established. Xenograft mice were subcutaneously injected with IL1RN+ MDSCs isolated from LNP PDAC tissues and treated with or without axitinib. Consistently, tumors in mice receiving IL1RN+ MDSCs were significantly larger, with higher tumor weights and volumes compared with controls. Axitinib treatment reversed this tumorigenic effect (Fig. 5E–H), as confirmed by hematoxylin and eosin staining (Fig. 5I). Overall, these data indicate that IL1RN+ MDSCs promote PDAC progression both in vitro and in vivo.
Discussion
Notably, HM and LNM pose a significant challenge in treating PDAC, as they occur frequently and are often associated with poorer prognosis.3,30 It is well documented that HM and LNM in PDAC are closely linked to an immunosuppressive TME.7,20 During metastasis, disseminated orthotopic PDAC cells migrate into blood vessels and establish lesions at distant sites, such as the liver and lymph nodes. However, only a small proportion of disseminated tumor cells can survive in these organs, as the immune system monitors aberrant cells.31 Metastatic PDAC cells in the liver encounter a harsh and strange microenvironment, different from the optimal orthotopic pancreatic TME. Consequently, most metastatic cells remain dormant when repelled by local hepatic cells.32 To survive, metastatic PDAC cells actively remodel the liver microenvironment to support their persistence.8 Over the past few decades, advancements in immunotherapy, particularly strategies aimed at remodeling the immunosuppressive TME in metastatic lesions, have revolutionized cancer treatment.33 However, for PDAC patients, the application of immunotherapy remains limited.7 One key reason for the limited efficacy of immunotherapy in PDAC is the incomplete characterization of immunosuppressive cell subtypes within the TME.
MDSCs, as a dominant cell population in tumor stroma, have emerged as a potential target for PDAC immunotherapy. These cells traffic into the PDAC microenvironment, where they suppress immune responses and inhibit the infiltration of cytotoxic immune cells.34,35 Interestingly, although the TME of PDAC HM lesions and hepatocellular carcinoma (HCC) arises from different processes, TME remodeling in PDAC versus chronic fibrosis in HCC, the MDSCs present in both TMEs are relatively similar. For instance, both HCC and PDAC exhibit increased MDSC recruitment, which can serve as a prognostic biomarker.36,37 MDSCs in both cancers create an immunosuppressive TME via the PD-L1 pathway.14,38 Previous studies demonstrated that CXCR4-modified CAR-T cells could reduce the MDSC population and tumor volume in tumor-bearing mice by suppressing MDSC recruitment in PDAC.39 However, the development of CXCR4-modified CAR-T cells is costly. Therefore, the present study focused on identifying novel therapeutic targets on MDSCs using existing drugs.
The increased recruitment of PMN-MDSCs in liver metastatic and LNP PDAC tissues was confirmed, correlating with HM and LNM in PDAC. Neutrophils have recently been identified as a primary source of PMN-MDSCs, contributing to the formation of an immunosuppressive TME that promotes necrosis and metastasis in multiple tumor types.27,40 For instance, CD11b+ LY6G+ Ly6Clow and STAT3-activated neutrophils can exert immunosuppressive functions as PMN-MDSCs.41 In the present study, neutrophils were identified as one of the most differentially expressed cell types in both HM and LNP PDAC tissues. The increased neutrophil recruitment in these tissues demonstrates that specific neutrophil subtypes may function as PMN-MDSCs, facilitating metastasis.
Four distinct subtypes of neutrophil-derived MDSCs were identified in HM and LNP PDAC tissues: CXCR2+, IFIT2+, IL1RN+, and CXCR4+ MDSCs. Among them, IL1RN+ MDSCs have not been well characterized but were identified as a significant population involved in immune suppression in the TME and as a predictor of prognosis. IL1RA+ MDSCs were found to impair macrophage, NK cell, and T cell functions via the IL-1 pathway. IL1RA, encoded by IL1RN, is a member of the IL-1 cytokine family and serves as a competitive inhibitor of IL-1 ligands.15 IL1RA plays a notable role in blocking the IL-1 pathway and preventing overactive immune responses. Previous studies reported that IL1RA promotes immunosuppression and tumor cell proliferation in prostate cancer and glioma, establishing it as a pro-tumorigenic cytokine in the TME.17,18 However, the role of IL1RA in HM or LNM of PDAC has not been fully elucidated. Similarly, IL-1 is recognized as a pro-tumoral cytokine that accelerates tumor progression by recruiting myeloid cells to establish an immunosuppressive environment, promoting angiogenesis, activating endothelial cells, and skewing lymphoid cells.42 Therefore, the function of the IL-1 pathway in the TME remains complex, as both IL-1 and IL1RA have been implicated in promoting tumor progression, while IL1RA directly inhibits the IL-1 pathway. These paradoxical findings complicate the use of IL-1-targeted immunotherapies in PDAC. Accordingly, the roles of IL1RA+ MDSCs in HM and LNP PDAC tissues were further explored.
Although IL1-mediated chronic inflammation is a common driver of tumor progression, IL1 can also act as a licensing signal to activate T cells and NK cells in colon adenocarcinoma and neuroblastoma.43,44 The results of the present study confirmed that IL1RA+ MDSCs are increasingly recruited in HM and LNP PDAC TMEs and serve as a potent immunosuppressive population, inhibiting the cytotoxic functions of NK and T cells and promoting M2 macrophage polarization via suppression of the IL1 pathway. These findings highlight IL1RA+ MDSC populations as potential prognostic biomarkers for HM and LNM. Moreover, a potent and short-term regimen targeting IL1RA+ MDSCs could reactivate anti-tumor immune responses in PDAC.
VEGFA has been characterized as a dominant driver of angiogenesis in tumor progression, and targeting VEGFA has emerged as a promising therapeutic strategy in multiple cancers, including HCC.45 Additionally, VEGFA has been validated to activate the EMT pathway, promoting lymphatic metastasis in esophageal squamous cell carcinoma, indicating that VEGFA-targeted therapy may be effective in PDAC.46 However, clinical outcomes for PDAC patients receiving VEGFA-targeted therapies remain unsatisfactory.47 This failure is largely attributed to the limited efficacy of VEGF inhibition alone. Consequently, strategies combining immunotherapy with targeted therapy have been investigated to enhance treatment efficacy in PDAC.48
Importantly, VEGFA was identified as one of the top five DEGs in IL1RA+ MDSCs, presenting the potential to combine immunotherapy and targeted therapy by simultaneously inhibiting IL1RA+ MDSCs. Axitinib, a well-known VEGFR inhibitor that blocks VEGFR1–3, was used to validate this approach. In HCC, the combination of axitinib and avelumab achieved a 31.8% objective response rate.49 Moreover, VEGF antibodies have been shown to inhibit the EMT pathway in breast cancer and HCC.50 Our results confirmed that VEGFR inhibition with axitinib reversed the migratory capacity and EMT changes induced by IL1RA+ MDSCs in PDAC, providing further evidence that axitinib can suppress the EMT pathway through IL1RA+ MDSCs. Since axitinib has been successfully applied in HCC, it may represent a promising treatment for PDAC with HM and LNM. Overall, these findings highlight the potential of combining immunotherapy and targeted therapy by inhibiting both IL1RA+ MDSC-mediated IL1 signaling and EMT pathways.
Collectively, our findings reveal a novel IL1RA+ MDSC subtype that promotes hepatic and LNM in PDAC, highlighting the prognostic and therapeutic potential of targeting these cells to remodel the immunosuppressive TME via IL1 pathway blockade and VEGF inhibition. However, the limited availability of liver metastasis tissues and the need for further investigation into EMT-related mechanisms remain constraints of this study, warranting more comprehensive validation in future research.
Conclusions
IL1RA+ MDSCs have been identified as novel regulatory immune cells that are significantly enriched in the HM and LNP PDAC microenvironment and are associated with poor prognosis. This study confirmed that IL1RA+ MDSCs express high levels of IL1RA and VEGFA and interact with NK cells, T cells, and macrophages to establish an immunosuppressive microenvironment via the IL1 pathway. Furthermore, IL1RA+ MDSCs promote PDAC progression through the VEGF pathway in both in vitro and in vivo models. These findings highlight the potential of targeting IL1RA+ MDSCs in the TME as a promising therapeutic strategy for PDAC.
Supporting information
Supplementary Table 1
List of antibodies used for immunological assays.
(DOCX)
Supplementary Table 2
List of flow cytometry antibodies used in the experiments.
(DOCX)
Supplementary Table 3
Primers and probes used in the experiments.
(DOCX)
Supplementary Table 4
ELISA kits used for cytokine quantification in the experiments.
(DOCX)
Supplementary Table 5
Clinical characteristics of patients who underwent single-cell RNA sequencing.
(DOCX)
Supplementary Table 6
Public scRNA-seq datasets for pancreatic ductal adenocarcinoma.
(DOCX)
Supplementary Table 7
The relationship between clinicopathological parameters and IL1RA+ MDSC proportion in 16 pancreatic cancer patients.
(DOCX)
Supplementary Fig. 1
Pathological identification of LNN, LNP PDAC, and HM tissues.
Representative H&E images of LNN, LNP PDAC, and HM tissues used for single-cell sequencing. Scale bar = 50 µm. LNN, lymph node-negative; LNP, lymph node-positive; HM, hepatic metastasis.
(DOCX)
Supplementary Fig. 2
Single-cell transcriptomic atlas and cell typing in primary PDAC and hepatic metastatic tumor.
(A) Dot plot showing representative marker genes across 22 cell clusters in our cohort. Dot size is proportional to the fraction of cells expressing specific genes. Color intensity corresponds to the relative expression of specific genes. (B and C), tSNE plots displaying the integrated scRNA-seq cell map before and after batch correction using the Harmony package. (D) The UMAP plot displaying the scRNA-seq cell map consisting of 12 annotated cell types (n = 32,504 cells). The UMAP plot illustrates the distribution of all sequenced cells categorized by tissue origin. (E) The UMAP plot displaying the cell map in LNN, LNP, and HM groups. (F) The bar plot showing cell type abundance from different groups, including three LNN, three LNP, and one HM PDAC tissues. (G) The bar plot showing cell type abundance in scRNA-seq, including seven samples from our cohort. PDAC, pancreatic ductal adenocarcinoma; LNN, lymph node-negative; LNP, lymph node-positive; HM, hepatic metastasis.
(DOCX)
Supplementary Fig. 3
Lymph node-positive PDAC tissues show increased MDSC recruitment.
The gating strategy of MDSCs in tumor tissues.
(DOCX)
Supplementary Fig. 4
IL1RN+ MDSCs contribute to the establishment of an immunosuppressive microenvironment in PDAC. (A) The gating strategy for flow cytometry sorting of IL1RA+ MDSCs in tumor tissues. (B) Sorted HCAR2+ CXCR2− MDSCs highly express IL1RN. (C) The gating strategy for flow cytometry sorting of NK cells and T cells in peripheral blood.
(DOCX)
Declarations
Acknowledgement
We would like to thank the First Hospital of Jilin University and the Flow Cytometry Platform in the Core Facility of the First Hospital of Jilin University. We also appreciate the funding from the National Natural Science Foundation of China and the National Natural Science Foundation of Jilin Province.
Ethical statement
The acquisition of patient tissues was approved by the Medical Ethics Committee of the First Affiliated Hospital of Jilin University (Approval No. 2019180), in accordance with the Helsinki Declaration as revised in 2024. All patients provided written informed consent. All animal experiments were conducted in accordance with the regulations of the Institutional Animal Care and Use Committee of Changchun Veterinary Research Institute (Approval No. 2024-11-066). All animals revived human care.
Data sharing statement
The raw scRNA-seq data (FASTQ files) generated in this study, including six PDAC samples and one hepatic metastasis sample, have been deposited in SRA under the accession numbers SAMN47538140–42, SAMN5021233–35, and SAMN5021237. The publicly available scRNA-seq datasets used in this study can be accessed as follows: The Genome Sequence Archive under project PRJCRA001160, which includes 11 adjacent normal pancreas samples and 24 PDAC samples. The GSE197177 dataset, which includes three hepatic metastasis samples and one adjacent normal pancreas sample, was retrieved from the Gene Expression Omnibus database. The GSE229413 dataset, which includes five healthy donor pancreas samples, was retrieved from the Gene Expression Omnibus database. The GSE242230/syn5241395 dataset, which includes five PDAC samples, is available for download via dbGaP from the Human Tumor Atlas Network data portal (https://humantumoratlas.org). The OEP003254 dataset, retrieved from the National Omics Data Encyclopedia with accession code OEP003254, includes five PDAC samples.
Funding
This work was supported by the National Natural Science Foundation of China under Grant [No. 82473314, 82273276, 81970529] and the National Natural Science Foundation of Jilin Province under Grant [20200201546JC].
Conflict of interest
The authors have no conflict of interests related to this publication.
Authors’ contributions
Experiment conception and design (FW, HaiL , JZ), drafting of the manuscript (HuanL, JZ), Figure preparation (HuanL, SL, XP, HanL, JZ), clinical specimen preparation, flow cytometry (HuanL, HanL). All authors read and approved the submitted version of the manuscript.
