Introduction
Drug-induced liver injury (DILI) is a major challenge in hepatology and remains an important cause of abnormal liver biochemistry, post-marketing drug withdrawal, and acute liver failure.1,2 Its clinical course is highly heterogeneous. Although most patients recover after withdrawal of the implicated agent, a substantial proportion develop persistent liver test abnormalities beyond 6 months, a phenotype commonly regarded as DILI chronicity.3,4 Some patients who do not recover may remain at risk of prolonged morbidity and progressive liver disease.2 Early identification of individuals at increased risk of non-recovery could therefore help guide the intensity of follow-up and clinical management.
Current reliable prediction tools for non-recovery after DILI are limited and have largely relied on clinical laboratory parameters, imaging features, or selected biomarkers.5–7 However, these phenotypic markers are dynamic and may be influenced by the timing of assessment, disease stage, treatment, and comorbid conditions. Due to their relatively stable nature, genetic variants may provide complementary information for early risk prediction. In other disease settings, incorporating genetic information has improved the performance of clinical prediction models.8,9
Genetic studies of DILI have mainly focused on susceptibility rather than disease course.10–12 In a large, international, multicenter genome-wide association study, Nicoletti et al13 identified three non-HLA genetic signals (HLA, human leukocyte antigen) associated with DILI susceptibility: rs114577328, rs72631567, and rs28521457. Whether these variants are also associated with subsequent non-recovery after DILI onset remains unclear.
In the present study, we examined the associations of these candidate single-nucleotide polymorphisms (SNPs) with 6-month non-recovery in a real-world cohort. We then developed an interpretable machine learning model that integrated genetic variants with baseline clinical variables available during the initial hospitalization. We aimed to improve early prediction of non-recovery and provide a framework for future genotype-informed risk stratification of DILI.
Methods

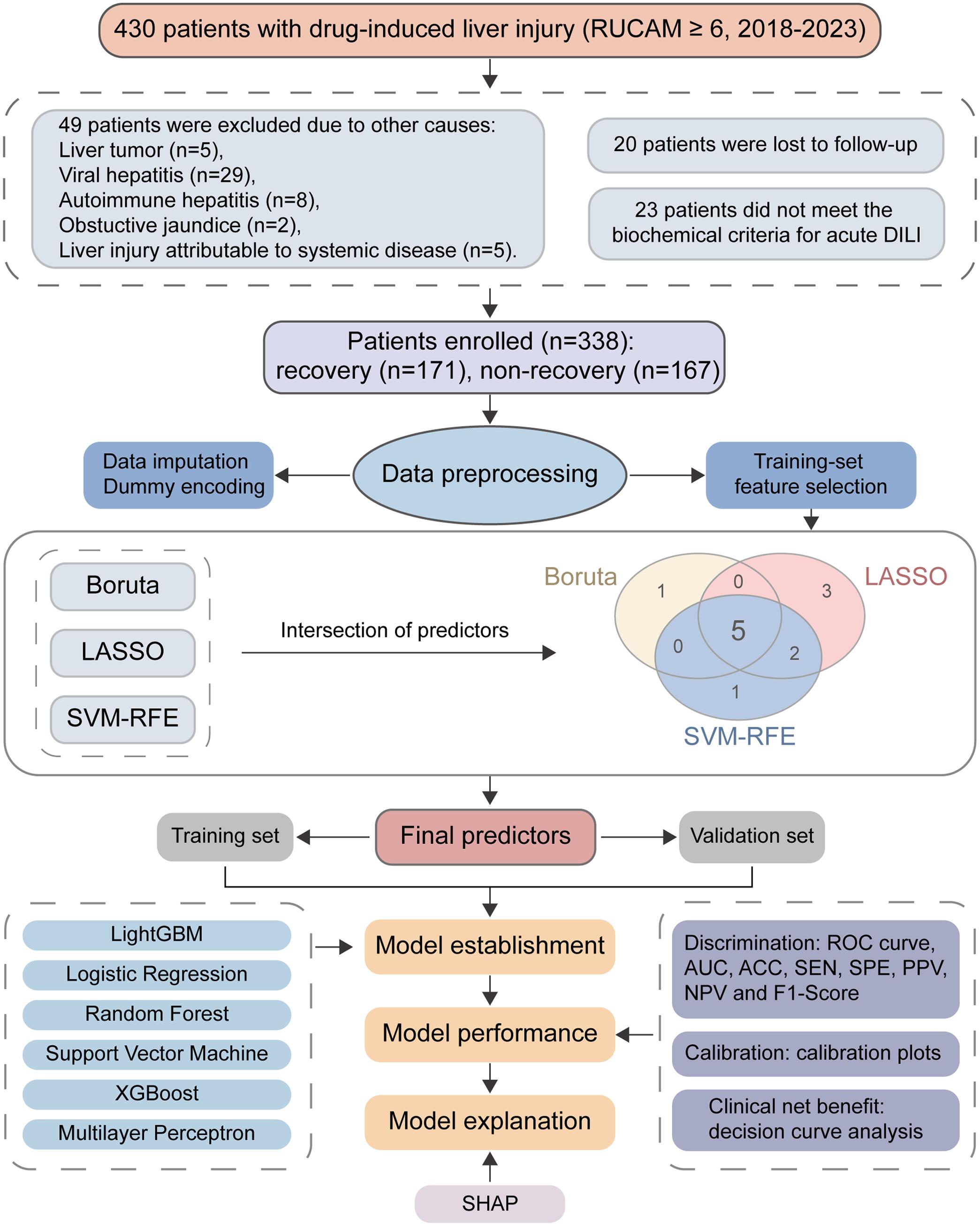

Study design and patient selection
This retrospective, single-center cohort study was conducted at Ruijin Hospital, Shanghai, China. Patients hospitalized with suspected DILI between May 2018 and May 2023 were consecutively screened. The study was approved by the institutional ethics committee of Ruijin Hospital (Ethics Approval No. 11-2017) and conducted in accordance with the principles outlined in the Declaration of Helsinki.
Patients were eligible if they met all of the following criteria: age ≥18 years, documented exposure to a suspected drug, fulfillment of biochemical criteria for acute DILI, a Roussel Uclaf Causality Assessment Method (RUCAM) score ≥6, and available follow-up data for at least 6 months after DILI diagnosis. The biochemical criteria for acute DILI were defined as alanine aminotransferase (ALT) ≥5 × the upper limit of normal (ULN), alkaline phosphatase (ALP) ≥2 × ULN with bone disease excluded, or ALT ≥3 × ULN together with total bilirubin (TBil) ≥2 × ULN.14 Patients were excluded if they were lost to follow-up or if liver injury could be attributed to other definite causes, including viral hepatitis, autoimmune hepatitis, liver tumors, obstructive jaundice, or liver injury secondary to systemic disease. The final cohort comprised 338 patients, including 171 in the recovery group and 167 in the non-recovery group.
Outcome definition
The primary outcome was 6-month non-recovery after DILI diagnosis, representing DILI chronicity in this study.15 Non-recovery DILI was defined as persistent abnormalities in any of the following liver biochemical indices at 6 months after DILI diagnosis: ALT, AST, ALP, or TBil.
Clinical variable collection
Baseline clinical data were extracted from electronic medical records within the first 24 h of hospitalization. Candidate variables included demographic characteristics, lifestyle factors, comorbidity burden, biochemical indices, lipid and iron metabolism markers, coagulation parameters, hematologic indices, autoantibodies, immunoglobulin levels, and lymphocyte subsets. The collected variables included sex, age, BMI, smoking status, alcohol consumption history, Charlson Comorbidity Index (CCI), fasting glucose, ALT, AST, ALP, gamma-glutamyl transferase (GGT), TBil, direct bilirubin (DBil), total bile acids (TBA), albumin (ALB), prealbumin (PAB), creatinine (Cr), triglycerides (TG), total cholesterol (TC), high-density lipoprotein (HDL), low-density lipoprotein (LDL), free fatty acids (FFA), serum iron (SI), total iron-binding capacity (TIBC), ferritin (SF), transferrin saturation (TSAT), alpha-fetoprotein (AFP), prothrombin time (PT), activated partial thromboplastin time (APTT), international normalized ratio (INR), D-dimer, white blood cell (WBC) count, monocyte percentage (Mono), eosinophil percentage (Eos), hemoglobin (Hb), platelet (PLT) count, antinuclear antibody (ANA), immunoglobulin G (IgG), and lymphocyte subsets including CD3+, CD3+CD4+, and CD3+CD8+ T cells. Culprit drugs were also recorded and descriptively categorized.
The pattern of liver injury was classified according to the R value as hepatocellular (R ≥ 5), mixed (2 < R < 5), or cholestatic (R ≤ 2). DILI severity was graded from Grade 1 to Grade 4 according to criteria established by the International DILI Expert Working Group.16 Grade 1 DILI was defined as ALT ≥5 × ULN or ALP ≥2 × ULN with TBil <2 × ULN. Grade 2 DILI was defined as ALT ≥5 × ULN or ALP ≥2 × ULN with TBil ≥2 × ULN, or symptomatic hepatitis. Grade 3 DILI was defined as ALT ≥5 × ULN or ALP ≥2 × ULN with TBil ≥2 × ULN and at least one of the following: INR ≥1.5, ascites or hepatic encephalopathy within 26 weeks in the absence of cirrhosis, or other organ failure attributable to DILI. Grade 4 DILI was defined as death or liver transplantation due to DILI.
SNP genotyping
Three candidate SNPs, including rs114577328, rs72631567, and rs28521457, were selected from a previous genome-wide association study that identified host genetic variants associated with DILI susceptibility.13 These loci were evaluated as candidate host genetic markers for association with 6-month recovery status after DILI onset. Genotyping was performed using Sanger sequencing. Genomic DNA was extracted from peripheral blood samples, and regions flanking each candidate locus were amplified by conventional PCR with locus-specific primers. The primer sequences are listed in Supplementary Table 1. Genotypes were assigned by comparing sequencing results with the corresponding reference sequences and identifying the nucleotide at each candidate SNP position.
Data preprocessing
The cohort was split into training and validation sets at an 8:2 ratio using stratified sampling according to non-recovery outcome status. After this split, feature selection, hyperparameter tuning, and model selection were performed exclusively on the training set, whereas the validation set was used solely for final model evaluation. Missing values were imputed using multiple imputation by chained equations (MICE) with predictive mean matching.17 Five imputed datasets were generated with 10 iterations under a fixed random seed, and one completed dataset was used as the primary analytic dataset for model development and validation. SNPs were additively encoded as 0, 1, or 2 according to the number of effect alleles. Categorical variables were dummy-coded when required for model development.
Feature selection
To reduce redundancy and improve robustness, three complementary feature selection methods were applied to the training set: least absolute shrinkage and selection operator (LASSO),18 support vector machine–recursive feature elimination (SVM-RFE),19 and Boruta.20 For LASSO, the optimal penalty parameter was selected using cross-validation according to the λ.1se criterion. For SVM-RFE, the optimal feature subset was defined as the set achieving the highest classification accuracy. Boruta, a random forest (RF)–based algorithm, was used to identify all relevant predictors by comparing observed variables with shadow features. Predictors consistently selected by all three methods were retained through intersection analysis for subsequent model construction.
Model development
Based on the selected predictors, six machine learning models were developed using the training set: Light Gradient Boosting Machine (LightGBM),21 logistic regression (LR), RF,22 support vector machine (SVM),23 eXtreme Gradient Boosting (XGBoost),24 and multilayer perceptron (MLP).25 Model construction and hyperparameter tuning were performed using the “tidymodels” R package. Five-fold cross-validation was conducted in the training set to optimize the model parameters and compare candidate models. The tuned models were then evaluated in the validation set.
Model performance evaluation
Model performance was assessed using receiver operating characteristic (ROC) curves and area under the curve (AUC). Additional metrics derived from confusion matrices included accuracy, sensitivity, specificity, positive predictive value, negative predictive value, and F1 score. Decision curve analysis (DCA) was used to evaluate net clinical benefit across a range of threshold probabilities,26 and calibration curves were used to assess agreement between predicted and observed probabilities. The final model was selected based on overall performance in discrimination, clinical utility, and calibration.
Ablation analysis for incremental predictive value of genetic variants
Ablation analyses were performed within the final LightGBM framework to evaluate the incremental predictive contribution of genetic variants. Five models were compared: a full model including rs72631567, rs28521457, ALT, Mono, and LDL; a genetic-only model including rs72631567 and rs28521457; a clinical-only model including ALT, Mono, and LDL; and two reduced models combining clinical variables with either rs72631567 or rs28521457. Model discrimination was assessed using AUC, and AUC differences were compared using DeLong’s test.27 In addition, log loss was calculated to evaluate the effect of removing individual genetic variables on probabilistic prediction performance.28
SHapley Additive exPlanations (SHAP)-based model interpretation
SHAP values were used to quantify the contribution of each predictor to model output.29 Global model interpretation was performed using SHAP summary plots and mean absolute SHAP value rankings. SHAP dependence plots were used to evaluate relationships between individual predictor values and model output. Representative force plots were generated to illustrate how the final model produced predictions for individual recovery and non-recovery cases.
Statistical analysis
Baseline characteristics were summarized and compared between the recovery and non-recovery groups for descriptive analyses. Continuous variables were expressed as mean ± standard deviation or median (IQR), as appropriate. Categorical variables were expressed as counts and percentages. Normality was assessed using the Shapiro–Wilk test. Continuous variables were compared using Student’s t-test or the Mann–Whitney U test, as appropriate, whereas categorical variables were analyzed using the chi-square test or Fisher’s exact test, as appropriate. Baseline comparisons were performed for descriptive purposes and were not used as the sole basis for predictor selection. All statistical analyses were performed using R (version 4.5.1). All tests were two-sided, and P < 0.05 was considered statistically significant.
Results
Study cohort and baseline characteristics
Among the 430 patients with DILI initially screened, 338 admitted between 2018 and 2023 with a RUCAM score ≥6 were ultimately included in this study. The final cohort comprised 171 patients in the recovery group and 167 patients in the non-recovery group (Fig. 1). Herbal and dietary supplements constituted the largest category of culprit drugs (Supplementary Fig. 1).
Baseline characteristics are summarized in Table 1. Among the three candidate SNPs, rs28521457 (P = 0.001) and rs72631567 (P < 0.001) differed significantly between the groups, whereas rs114577328 showed no variation in this cohort and was excluded from subsequent analyses. Injury grade distribution also differed between the groups (P = 0.035). Patients with non-recovery DILI had lower baseline ALT levels (P = 0.005), lower LDL levels (P = 0.023), lower WBC counts (P = 0.005), and a higher Mono level (P = 0.001) than those with recovery DILI. No significant differences were observed in age, sex, BMI, clinical type, bilirubin-related indices, coagulation parameters, or most immune-related variables (all P > 0.05).
Table 1Baseline characteristics of patients with recovery and non-recovery DILI
| Characteristics | Total (N = 338) | Recovery (N = 171) | Non-recovery (N = 167) | P-value |
|---|
| rs28521457, N (%) | | | | 0.001 |
| GG | 222 (66) | 128 (75) | 94 (56) | |
| AG | 108 (32) | 40 (23) | 68 (41) | |
| AA | 8 (2) | 3 (2) | 5 (3) | |
| rs72631567, N (%) | | | | < 0.001 |
| AA | 151 (45) | 105 (61) | 46 (28) | |
| AG | 152 (45) | 64 (37) | 88 (53) | |
| GG | 35 (10) | 2 (1) | 33 (20) | |
| rs114577328, N (%) | | | | 1 |
| GG | 338 (100) | 171 (100) | 167 (100) | |
| Injury grade, N (%) | | | | 0.035 |
| Grade 1 | 129 (38) | 67 (39) | 62 (37) | |
| Grade 2 | 182 (54) | 84 (49) | 98 (59) | |
| Grade 3 | 25 (7) | 18 (11) | 7 (4) | |
| Grade 4 | 2 (1) | 2 (1) | 0 (0) | |
| Gender, N (%) | | | | 0.395 |
| Female | 231 (68) | 121 (71) | 110 (66) | |
| Male | 107 (32) | 50 (29) | 57 (34) | |
| Age (years) | 55 (44.25, 64) | 55 (43.5, 63) | 55 (45, 65) | 0.351 |
| BMI (kg/m2) | 23.39 ± 3.28 | 23.42 ± 3.07 | 23.36 ± 3.49 | 0.867 |
| Smoking, N (%) | | | | 0.08 |
| NO | 286 (85) | 151 (88) | 135 (81) | |
| YES | 52 (15) | 20 (12) | 32 (19) | |
| Drinking, N (%) | | | | 0.081 |
| NO | 297 (88) | 156 (91) | 141 (84) | |
| YES | 41 (12) | 15 (9) | 26 (16) | |
| CCI | 2 (1, 4) | 2 (1, 4) | 2 (1, 3.5) | 0.634 |
| Clinical type, N (%) | | | | 0.48 |
| Hepatocellular DILI | 240 (71) | 126 (74) | 114 (68) | |
| Cholestatic DILI | 55 (16) | 24 (14) | 31 (19) | |
| Mixed DILI | 43 (13) | 21 (12) | 22 (13) | |
| Glucose (mmol/L) | 4.81 (4.5, 5.51) | 4.79 (4.47, 5.46) | 4.82 (4.54, 5.54) | 0.693 |
| PAB (g/L) | 112.5 (69.25, 171) | 119 (70.5, 171) | 108 (69, 171) | 0.797 |
| ALT (IU/L) | 562 (380, 1,026.25) | 671 (401.5, 1,199.5) | 485 (372.5, 887.5) | 0.005 |
| AST (IU/L) | 399.5 (172, 728.75) | 408 (170, 749.5) | 397 (173, 717.5) | 0.439 |
| ALP (IU/L) | 155.5 (116, 222.5) | 155 (123.5, 213) | 156 (112.5, 237.5) | 0.964 |
| GGT (IU/L) | 166 (92, 276.5) | 161 (99, 261.5) | 171 (85.5, 283) | 0.566 |
| TBil (µmol/L) | 60.35 (21.33, 168.98) | 66.8 (21.85, 148.05) | 53.3 (20.5, 177.7) | 0.75 |
| DBil (µmol/L) | 29.45 (6.3, 88.67) | 31 (6.4, 80.85) | 28.9 (5.75, 98.15) | 0.985 |
| ALB (g/L) | 36 (32, 39) | 36 (32, 39) | 35 (32, 39) | 0.476 |
| TBA (µmol/L) | 44.9 (12.3, 158.52) | 41.8 (11.85, 156.75) | 58 (14, 159.05) | 0.45 |
| Cr (µmol/L) | 60 (54, 74.75) | 60 (54, 71) | 61 (54, 77) | 0.313 |
| TG (mmol/L) | 1.54 (1.12, 2.26) | 1.53 (1.15, 2.08) | 1.55 (1.11, 2.37) | 0.644 |
| TC (mmol/L) | 3.88 (3.12, 4.79) | 3.97 (3.14, 4.84) | 3.8 (3.09, 4.75) | 0.424 |
| HDL (mmol/L) | 0.84 (0.51, 1.26) | 0.86 (0.52, 1.23) | 0.83 (0.48, 1.29) | 0.823 |
| LDL (mmol/L) | 2.14 (1.46, 2.77) | 2.33 (1.64, 2.79) | 1.97 (1.07, 2.7) | 0.023 |
| FFA (mmol/L) | 0.73 (0.52, 0.94) | 0.76 (0.54, 0.99) | 0.7 (0.51, 0.91) | 0.125 |
| SI (µmol/L) | 27.1 (18.85, 38.55) | 26 (18.75, 38.05) | 28 (19, 39.15) | 0.52 |
| TSAT (%) | 53.2 (36, 84.72) | 53.4 (34.55, 82.4) | 53 (36.6, 85.3) | 0.535 |
| TIBC (µmol/L) | 51 (42.52, 58.1) | 51 (42.95, 61.5) | 51.1 (42.35, 56.9) | 0.577 |
| APTT (s) | 31.8 (29.3, 34.5) | 31.2 (28.9, 35.1) | 32 (29.6, 34.35) | 0.344 |
| PT (s) | 12.4 (11.6, 14) | 12.3 (11.6, 14.4) | 12.5 (11.7, 13.7) | 0.612 |
| INR | 1.06 (0.99, 1.18) | 1.04 (0.98, 1.25) | 1.06 (1, 1.17) | 0.667 |
| D-dimer (mg/L FEU) | 0.36 (0.25, 0.56) | 0.36 (0.25, 0.65) | 0.36 (0.25, 0.54) | 0.264 |
| ANA, N (%) | | | | 0.114 |
| 0 | 243 (72) | 128 (75) | 115 (69) | |
| 1:80 | 48 (14) | 19 (11) | 29 (17) | |
| 1:160 | 28 (8) | 15 (9) | 13 (8) | |
| 1:320 | 15 (4) | 5 (3) | 10 (6) | |
| 1:640 | 3 (1) | 3 (2) | 0 (0) | |
| 1:1,280 | 1 (0) | 1 (1) | 0 (0) | |
| AFP (ng/mL) | 5.62 (2.89, 16.13) | 5.61 (2.89, 15.87) | 5.64 (2.9, 16.28) | 0.952 |
| SF (ng/mL) | 652.6 (263.38, 1,216.65) | 678.9 (285.35, 1,374.95) | 642.6 (239.65, 1,089.2) | 0.232 |
| WBC count (×109/L) | 4.81 (3.83, 5.98) | 5.13 (4, 6.38) | 4.5 (3.53, 5.66) | 0.005 |
| Mono (%) | 9 (6.8, 11.2) | 8.1 (6.35, 10.6) | 9.5 (7.5, 11.5) | 0.001 |
| Eos (%) | 2.15 (0.83, 3.6) | 2.1 (0.9, 4.05) | 2.2 (0.8, 3.5) | 0.348 |
| Hb (g/L) | 126 (118, 137) | 126 (116.5, 137) | 126 (119, 137.5) | 0.724 |
| PLT count (×109/L) | 181 (137.25, 231) | 182 (145, 236.5) | 180 (127, 228) | 0.223 |
| IgG (mg/dL) | 1,310 (1,110.25, 1,576) | 1,310 (1,115.5, 1,654.5) | 1,310 (1,108.5, 1,528) | 0.29 |
| CD3+ T (%) | 74.55 (66.8, 79.97) | 74.8 (66.3, 81) | 73.9 (67.3, 79.5) | 0.702 |
| CD3+CD4+ T (%) | 40.37 ± 10.12 | 40.77 ± 9.97 | 39.96 ± 10.29 | 0.466 |
| CD3+CD8+ T (%) | 28.1 (22.22, 35.77) | 28.3 (22.6, 35.95) | 27.3 (21.75, 35) | 0.599 |
The cohort was split at an 8:2 ratio, stratified by non-recovery outcome, into a training set (n = 269) and a validation set (n = 69). Baseline characteristics were generally balanced between the two sets, except for the proportion of CD3+CD8+ T cells (Table 2). The distribution of missing values across candidate variables is summarized in Supplementary Tables 2 and 3.
Table 2Baseline characteristics of the training and validation sets
| Characteristics | Training (n = 269) | Validation (n = 69) | P-value |
|---|
| Status, N (%) | | | 1 |
| Recovery | 136 (51) | 35 (51) | |
| Non-recovery | 133 (49) | 34 (49) | |
| rs28521457, N (%) | | | 0.888 |
| GG | 177 (66) | 45 (65) | |
| AG | 86 (32) | 22 (32) | |
| AA | 6 (2) | 2 (3) | |
| rs72631567, N (%) | | | 0.201 |
| AA | 124 (46) | 27 (39) | |
| AG | 121 (45) | 31 (45) | |
| GG | 24 (9) | 11 (16) | |
| Injury grade, N (%) | | | 0.196 |
| Grade 1 | 96 (36) | 33 (48) | |
| Grade 2 | 152 (57) | 30 (43) | |
| Grade 3 | 19 (7) | 6 (9) | |
| Grade 4 | 2 (1) | 0 (0) | |
| Gender, N (%) | | | 0.631 |
| Female | 186 (69) | 45 (65) | |
| Male | 83 (31) | 24 (35) | |
| Age (years) | 55 (43, 64) | 56 (49, 63) | 0.332 |
| BMI (kg/m2) | 23.31 ± 3.29 | 23.69 ± 3.24 | 0.387 |
| Smoking, N (%) | | | 0.146 |
| NO | 232 (86) | 54 (78) | |
| YES | 37 (14) | 15 (22) | |
| Drinking, N (%) | | | 0.088 |
| NO | 241 (90) | 56 (81) | |
| YES | 28 (10) | 13 (19) | |
| CCI | 2 (1, 4) | 3 (1, 4) | 0.23 |
| Clinical type, N (%) | | | 0.202 |
| Hepatocellular DILI | 196 (73) | 44 (64) | |
| Cholestatic DILI | 39 (14) | 16 (23) | |
| Mixed DILI | 34 (13) | 9 (13) | |
| Glucose (mmol/L) | 4.79 (4.49, 5.42) | 4.95 (4.52, 6.68) | 0.1 |
| PAB (g/L) | 112 (71, 166) | 119 (62, 185) | 0.705 |
| ALT (IU/L) | 594 (392, 1,086) | 496 (349, 771) | 0.053 |
| AST (IU/L) | 413 (188, 730) | 301 (129, 658) | 0.065 |
| ALP (IU/L) | 152 (113, 220) | 168 (130, 242) | 0.147 |
| GGT (IU/L) | 161 (90, 275) | 176 (104, 277) | 0.315 |
| TBil (µmol/L) | 66.2 (22.1, 160.5) | 50.1 (16.8, 181.4) | 0.444 |
| DBil (µmol/L) | 32.2 (6.6, 85.3) | 13.4 (5.4, 94.8) | 0.483 |
| ALB (g/L) | 36 (32, 39) | 36 (32, 38) | 0.478 |
| TBA (µmol/L) | 44.9 (13.3, 156.9) | 45.4 (9, 164.9) | 0.509 |
| Cr (µmol/L) | 60 (54, 73) | 64 (54, 80) | 0.085 |
| TG (mmol/L) | 1.53 (1.11, 2.23) | 1.66 (1.23, 2.34) | 0.315 |
| TC (mmol/L) | 3.87 (3.15, 4.78) | 3.97 (3.01, 4.79) | 0.905 |
| HDL (mmol/L) | 0.84 (0.54, 1.27) | 0.77 (0.4, 1.15) | 0.181 |
| LDL (mmol/L) | 2.14 (1.42, 2.78) | 2.09 (1.59, 2.7) | 0.859 |
| FFA (mmol/L) | 0.75 (0.52, 0.94) | 0.68 (0.49, 0.95) | 0.497 |
| SI (µmol/L) | 26.5 (18.2, 38.8) | 29.3 (19.2, 35.2) | 0.937 |
| TSAT (%) | 52.5 (35.6, 82.6) | 57 (39.7, 88.8) | 0.347 |
| TIBC (µmol/L) | 51.2 (44.4, 57.8) | 49.4 (39.1, 58.2) | 0.235 |
| APTT (s) | 31.8 (29.5, 34.3) | 31.7 (28.7, 36) | 0.833 |
| PT (s) | 12.3 (11.5, 13.9) | 12.8 (11.8, 14.6) | 0.203 |
| INR | 1.05 (0.98, 1.18) | 1.09 (1, 1.25) | 0.218 |
| D-dimer (mg/L FEU) | 0.35 (0.25, 0.53) | 0.4 (0.28, 0.79) | 0.139 |
| ANA, N (%) | | | 0.579 |
| 0 | 193 (72) | 50 (72) | |
| 1:80 | 41 (15) | 7 (10) | |
| 1:160 | 21 (8) | 7 (10) | |
| 1:320 | 10 (4) | 5 (7) | |
| 1:640 | 3 (1) | 0 (0) | |
| 1:1,280 | 1 (0) | 0 (0) | |
| AFP (ng/mL) | 5.61 (2.89, 13.08) | 5.64 (2.81, 18.84) | 0.231 |
| SF (ng/mL) | 615.4 (255.2, 1,189.6) | 785.9 (352, 1,272.5) | 0.099 |
| WBC count (×109/L) | 4.72 (3.73, 5.89) | 5.21 (4.06, 6.6) | 0.123 |
| Mono (%) | 9 (6.7, 11.1) | 8.4 (7.1, 11.4) | 0.838 |
| Eos (%) | 2.1 (0.8, 3.6) | 2.2 (0.9, 3.5) | 0.773 |
| Hb (g/L) | 127 (119, 137) | 124 (115, 137) | 0.39 |
| PLT count (×109/L) | 181 (136, 229) | 180 (140, 239) | 0.56 |
| IgG (mg/dL) | 1,292 (1,110, 1,524) | 1,330 (1,138, 1,665) | 0.229 |
| CD3+ T (%) | 74.8 (66.8, 80.5) | 73.6 (65.7, 79.4) | 0.365 |
| CD3+CD4+ T (%) | 39.86 ± 9.79 | 42.35 ± 11.18 | 0.094 |
| CD3+CD8+ T (%) | 29.2 (22.5, 36.1) | 24.8 (21.1, 30.4) | 0.004 |

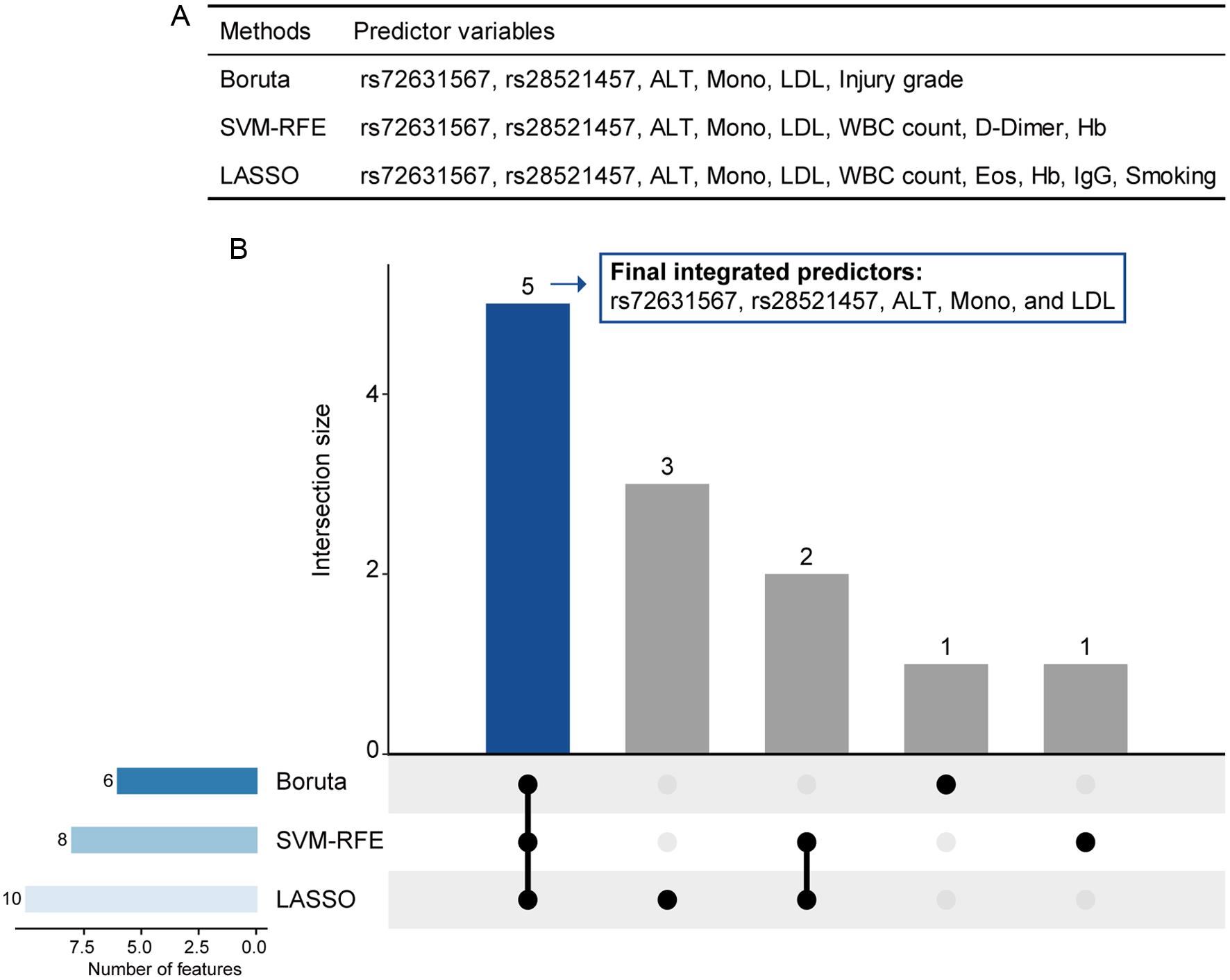

Feature selection identified an integrated five-predictor panel
Boruta, SVM-RFE, and LASSO were applied to the training set for feature selection and retained 6, 8, and 10 candidate variables, respectively (Fig. 2A). Detailed outputs of the individual feature-selection procedures are provided in Supplementary Figure 2. Intersection analysis showed that rs72631567, rs28521457, ALT, Mono, and LDL were consistently selected by all three methods (Fig. 2B). These five variables were used as the final integrated predictors for subsequent model construction.

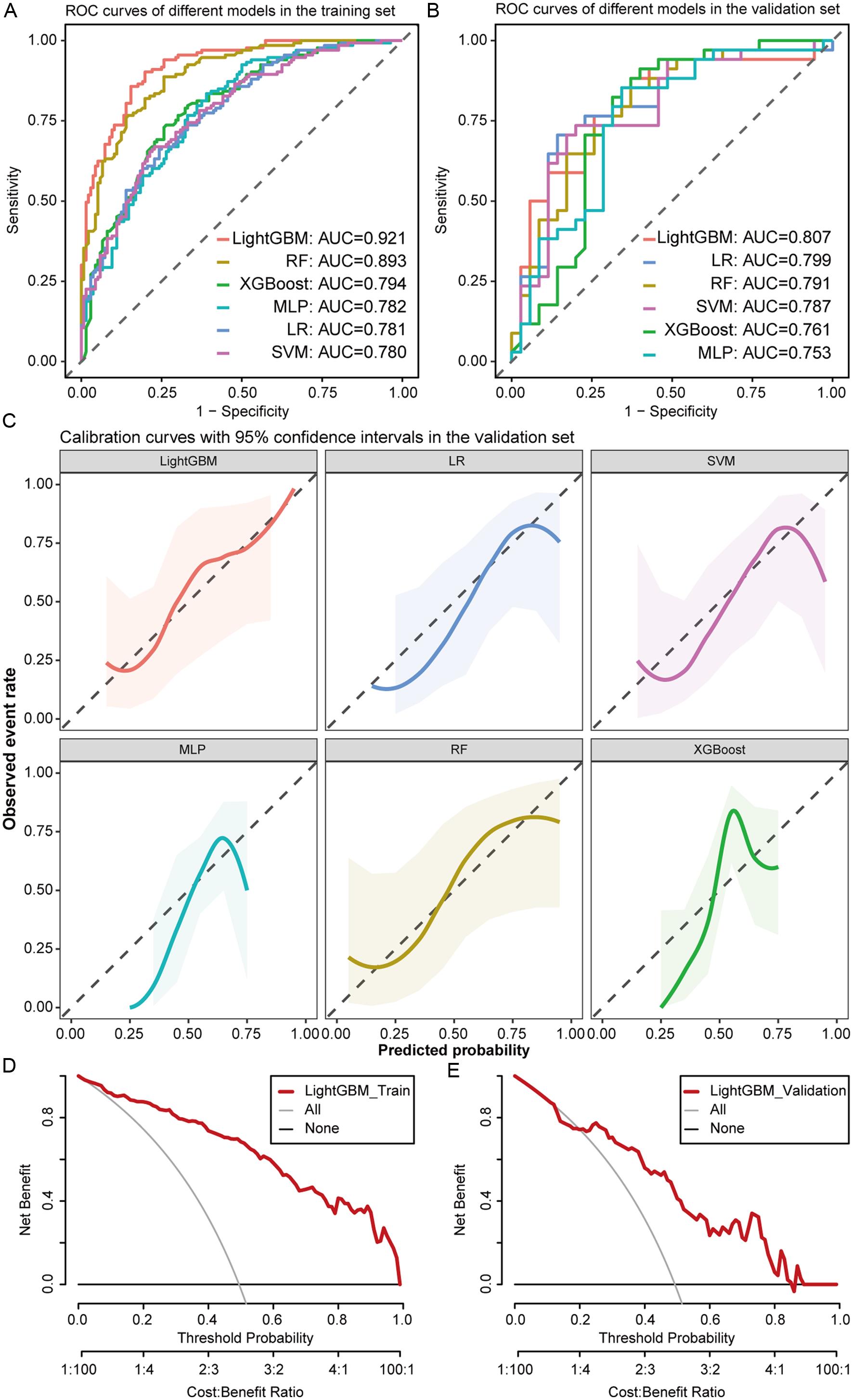

LightGBM demonstrated the best overall predictive performance among candidate algorithms
Using the five integrated predictors, six candidate algorithms (LightGBM, LR, RF, SVM, XGBoost, and MLP) were developed and compared. LightGBM achieved the highest discriminatory ability in both the training and validation sets, with AUCs of 0.92 (95% confidence interval (CI), 0.89–0.95) and 0.81 (95% CI, 0.70–0.91), respectively (Table 3; Fig. 3A and B). Although some models achieved comparable performance for individual metrics, LightGBM showed the most favorable overall balance. In the validation set, its accuracy, sensitivity, specificity, positive predictive value, negative predictive value, and F1 score were 0.72, 0.79, 0.66, 0.69, 0.77, and 0.74, respectively (Table 3). Calibration analysis showed good agreement between predicted and observed probabilities for the LightGBM model (Fig. 3C). DCA showed that the LightGBM model provided a positive net benefit across a broad range of threshold probabilities in both the training and validation sets (Fig. 3D and E). In addition, the LightGBM model showed stable discrimination in cross-validation and good calibration in the training set (Supplementary Fig. 3).
Table 3Predictive performance metrics of six machine learning algorithms in the training and validation sets
| Model | AUC (95% CI) | ACC | SEN | SPE | PPV | NPV | F1 score |
|---|
| Training set | | | | | | | |
| LightGBM | 0.92 (0.89–0.95) | 0.85 | 0.90 | 0.80 | 0.82 | 0.89 | 0.86 |
| LR | 0.78 (0.73–0.83) | 0.71 | 0.67 | 0.75 | 0.72 | 0.70 | 0.70 |
| RF | 0.89 (0.86–0.93) | 0.81 | 0.89 | 0.74 | 0.77 | 0.87 | 0.83 |
| SVM | 0.78 (0.73–0.83) | 0.72 | 0.67 | 0.77 | 0.74 | 0.70 | 0.70 |
| XGBoost | 0.79 (0.74–0.85) | 0.74 | 0.74 | 0.74 | 0.73 | 0.74 | 0.73 |
| MLP | 0.78 (0.73–0.84) | 0.72 | 0.83 | 0.61 | 0.68 | 0.79 | 0.75 |
| Validation set | | | | | | | |
| LightGBM | 0.81 (0.70–0.91) | 0.72 | 0.79 | 0.66 | 0.69 | 0.77 | 0.74 |
| LR | 0.80 (0.69–0.91) | 0.72 | 0.76 | 0.69 | 0.7 | 0.75 | 0.73 |
| RF | 0.79 (0.68–0.90) | 0.74 | 0.85 | 0.63 | 0.69 | 0.81 | 0.76 |
| SVM | 0.79 (0.68–0.90) | 0.72 | 0.74 | 0.71 | 0.71 | 0.74 | 0.72 |
| XGBoost | 0.76 (0.64–0.88) | 0.75 | 0.82 | 0.69 | 0.72 | 0.80 | 0.77 |
| MLP | 0.75 (0.64–0.87) | 0.68 | 0.94 | 0.43 | 0.62 | 0.88 | 0.74 |
Detailed hyperparameter settings and confusion matrices are provided in Supplementary Table 4 and Supplementary Figures 4–5. Given its superior overall performance, LightGBM was selected as the final model for further analyses.

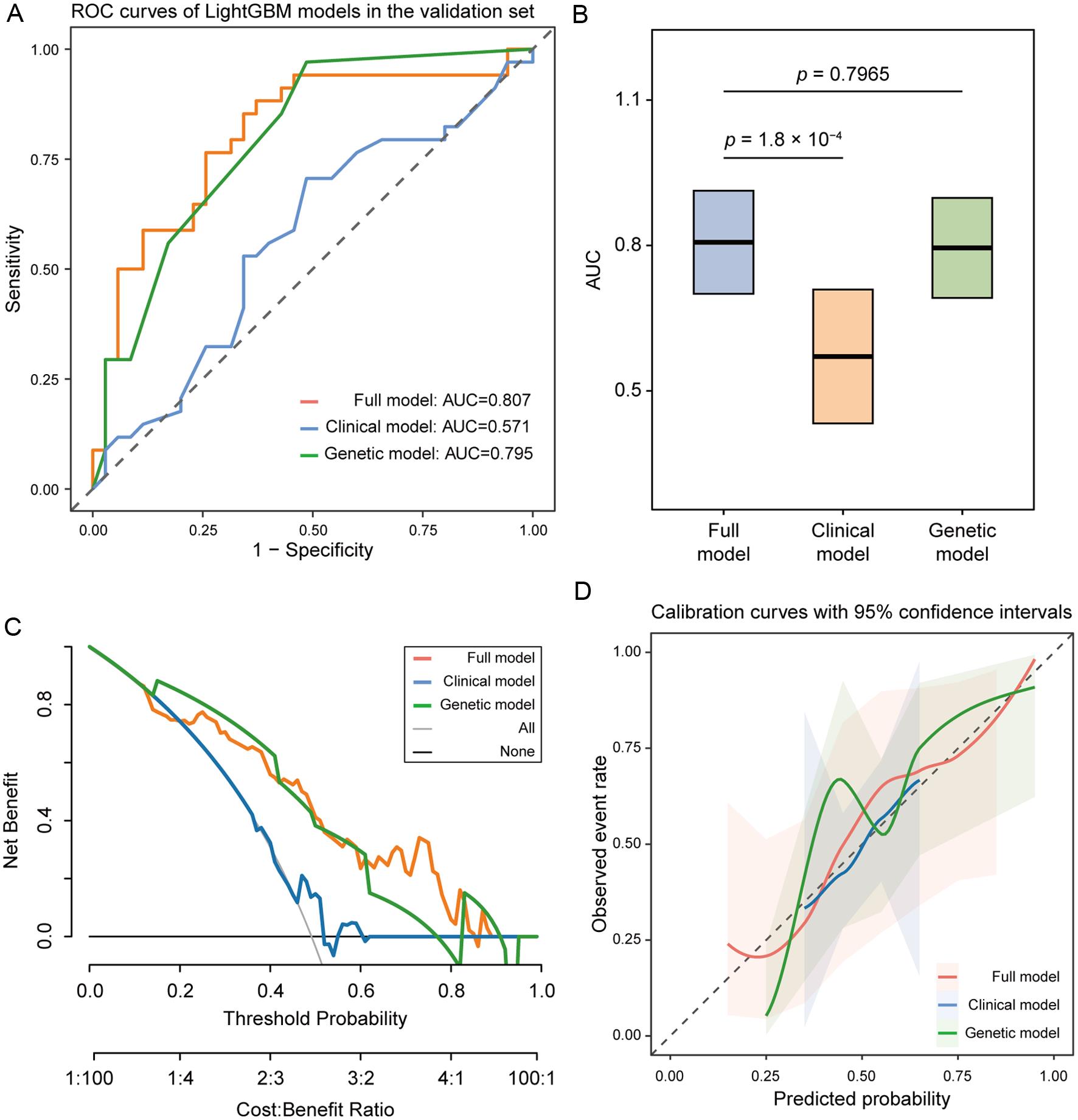

Genetic variants provided incremental predictive value beyond clinical variables
To further assess the incremental predictive value of genetic variants, we performed an ablation analysis within the LightGBM framework by comparing the full model with a genetic-only model, a clinical-only model, and two reduced models combining clinical variables with either rs72631567 or rs28521457 (Fig. 4A; Supplementary Table 5). In the validation set, the full model achieved the highest AUC (0.81, 95% CI 0.70–0.91), whereas the clinical-only model showed markedly poorer discrimination (AUC = 0.57, 95% CI 0.43–0.71). The genetic-only model retained good predictive ability (AUC = 0.79, 95% CI 0.69–0.90), approaching that of the full model. Consistently, DeLong’s test showed that the full model significantly outperformed the clinical-only model (P = 1.8 × 10−4), whereas no significant difference was observed between the full and genetic-only models (P = 0.7965) (Fig. 4B).
Detailed results of the reduced models are provided in Supplementary Table 5. Adding rs28521457 to the clinical variables increased the AUC from 0.57 to 0.65, whereas adding rs72631567 increased it from 0.57 to 0.76; inclusion of both variants further increased the AUC to 0.81. This pattern was consistent with the log loss analysis (Supplementary Table 6). The full model showed the lowest log loss (0.552), whereas omitting rs28521457 and rs72631567 increased the log loss to 0.608 and 0.662, respectively, again suggesting a greater contribution of rs72631567 to overall model performance.
DCA showed greater net benefit for the full and genetic-only models than for the clinical-only model across a broad range of threshold probabilities (Fig. 4C). Calibration analysis showed acceptable agreement between predicted and observed probabilities across models, with the full model maintaining a favorable balance between discrimination and calibration (Fig. 4D).

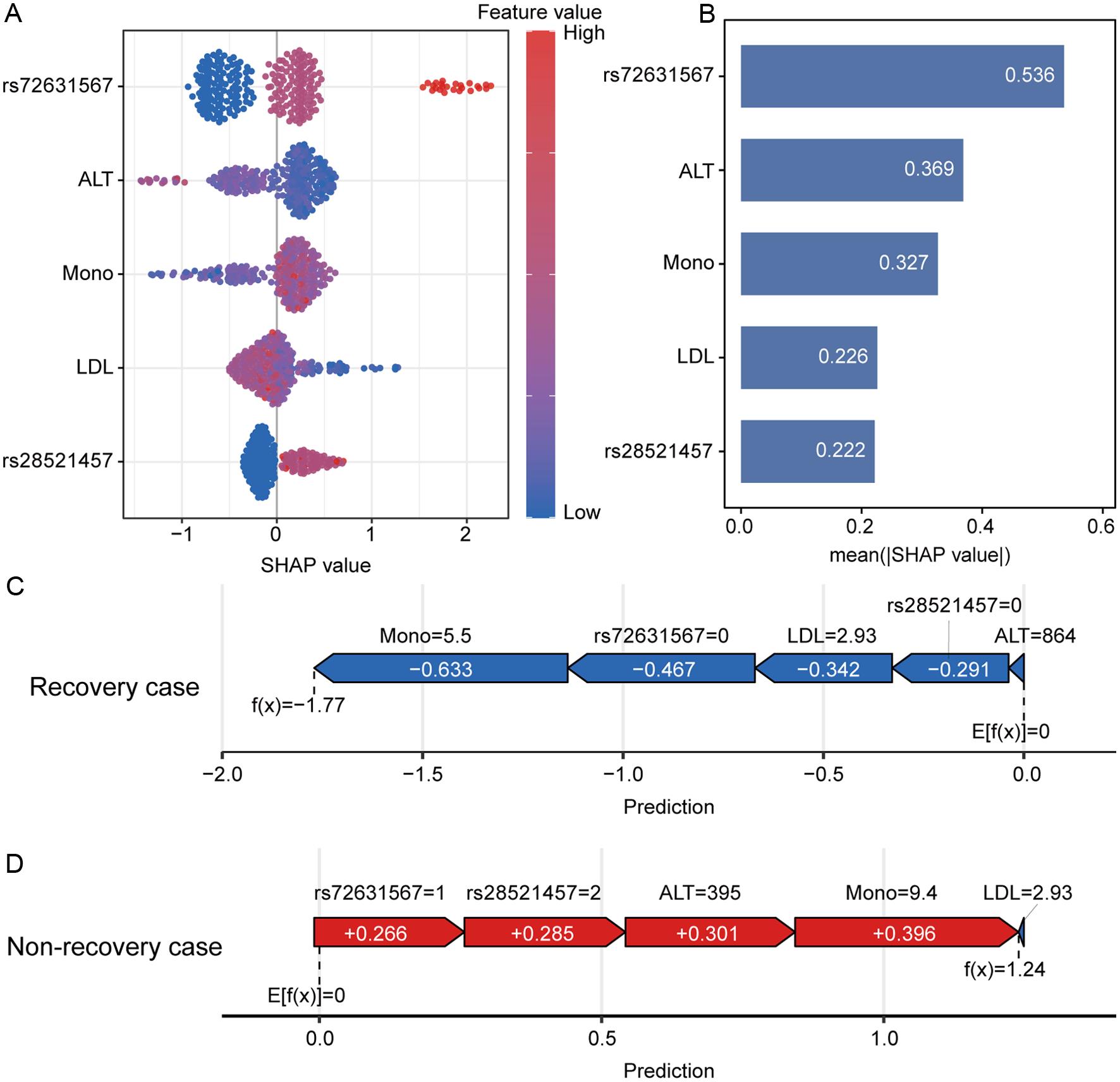

SHAP-based interpretation of the LightGBM model
To improve interpretability of the LightGBM model, SHAP analysis was performed to quantify each predictor’s contribution to model output. The SHAP summary plot showed the effects of the predictors on model output (Fig. 5A and B). Features were ranked by mean absolute SHAP value, with rs72631567 being the most influential predictor, followed by ALT, Mono, LDL, and rs28521457.
SHAP dependence plots further illustrated the relationships between individual feature values and model output (Supplementary Fig. 6). For both rs72631567 and rs28521457, the presence of effect alleles was associated with higher SHAP values, with a clearer allele-dose-dependent pattern observed for rs72631567. In contrast, ALT and LDL levels showed inverse associations with model output, with lower values contributing positively to the prediction of non-recovery DILI. Mono showed a positive association with SHAP values, with higher values corresponding to a higher predicted probability of non-recovery DILI.
To further illustrate individual predictions, SHAP force plots were generated for two representative patients. In a representative recovery case, the absence of effect alleles at rs72631567 and rs28521457, together with relatively high ALT, higher LDL, and lower Mono levels, contributed negatively to model output, thereby reducing the predicted probability of non-recovery DILI (Fig. 5C). In contrast, in a representative non-recovery case, carriage of one effect allele at rs72631567 and two effect alleles at rs28521457, together with lower ALT and higher Mono, contributed positively to the model output and jointly increased the predicted probability of non-recovery DILI (Fig. 5D).
Discussion
In this retrospective, single-center cohort of patients with DILI, we developed an interpretable model to predict 6-month non-recovery by combining host genetic variants with baseline clinical variables available at initial hospitalization. We identified rs72631567, rs28521457, ALT, LDL, and Mono as features associated with 6-month non-recovery in DILI. Using these predictors, we constructed and compared multiple machine learning models. The LightGBM model showed the best overall performance among the algorithms examined. Notably, the addition of genetic information materially improved discrimination over the clinical-only model, suggesting that host genetic background may capture prognostic information not adequately reflected by baseline clinical features alone.
Early identification of patients at risk of non-recovery after DILI is clinically important, as persistent liver injury may delay treatment of the underlying condition and increase the risk of adverse long-term liver-related outcomes. However, reliable early prediction tools remain limited.30 A baseline clinical model identified lymphocyte count and cholinesterase as predictors of chronic herbal DILI, but its discriminatory performance was modest (AUC = 0.663).5 In our previous work, we found that noninvasive biomarker-based models may improve early risk stratification in DILI, including magnetic resonance imaging (MRI) radiomics- and metabolite panel-based approaches with AUCs of 0.88 and 0.89, respectively.6,7 However, these approaches remain influenced by disease stage and timing of assessment, which may limit their generalizability in early clinical decision-making. In contrast, genetic variants are stable throughout the disease course and may therefore provide complementary prognostic information at an early stage. Machine learning approaches may further enhance prediction by capturing nonlinear relationships and interactions among heterogeneous variables.
The five selected predictors may capture complementary aspects of DILI progression and recovery. Among the clinical variables, lower baseline ALT and LDL levels and higher Mono were associated with non-recovery in our cohort. Although ALT is commonly regarded as a marker of hepatocellular injury, this finding suggests that the long-term outcome of DILI may not be determined solely by the severity of hepatocellular injury at presentation. Instead, lower ALT may partly reflect differences in the injury phenotype, including a possible cholestatic or mixed component, which has been associated with slower resolution and a higher likelihood of persistent liver injury.31 Higher Mono may indicate sustained innate immune activation or a persistent inflammatory milieu, which is biologically plausible given the recognized role of recruited monocytes in chronic hepatic inflammation and fibrogenic progression.32,33 Lower LDL may reflect altered hepatic metabolic status or impaired liver synthetic capacity, although the biological basis of this association remains unclear. Although the genetic-only model performed comparably to the full model, adding ALT, Mono, and LDL modestly improved the AUC, yielded the lowest log loss, and produced a calibration curve closer to the ideal calibration line. These findings suggest that the clinical variables provided complementary information on baseline injury phenotype, inflammatory status, and metabolic context, thereby improving probability estimation and calibration, despite not being the dominant discriminatory signals in this cohort.
The genetic variables included in our model were selected based on a large international multicenter genome-wide association study reported by Nicoletti et al., in which rs28521457 and rs72631567 emerged as candidate non-HLA susceptibility loci for DILI.13 Biologically, rs28521457 is an intronic variant within LRBA, a gene encoding a protein involved in vesicle trafficking and immune regulation. LRBA deficiency has been linked to reduced cytotoxic T lymphocyte-associated antigen-4 expression, regulatory T-cell dysfunction, and systemic immune dysregulation.34,35 Variation within LRBA may plausibly influence not only susceptibility to DILI onset but also subsequent resolution of liver injury, as impaired immune homeostasis or weakened inhibitory checkpoint control could favor sustained inflammatory activation and delayed termination of the injury response. By contrast, rs72631567 lies in an intergenic region approximately 800 kb upstream of SOX11, and its proximity to SOX11 suggests it may reside within regulatory elements that affect SOX11 or neighboring genes. SOX11 is a developmental transcription factor with established roles in cell fate determination, chromatin remodeling, and tissue remodeling, but its relevance to liver injury or DILI remains unclear.36,37 Experimental evidence indicates that SOX11 deficiency leads to upregulation of Mlxipl (also known as carbohydrate response element-binding protein, ChREBP), a key regulator of hepatic glucose and lipid metabolism, accompanied by mitochondrial dysfunction.38,39 Given the importance of metabolic adaptation and mitochondrial integrity in injury resolution, rs72631567 may influence DILI chronicity through regulatory effects on SOX11-related pathways; however, this interpretation remains speculative. Notably, in our cohort, rs72631567 was the dominant genetic signal in the model, ranking first in SHAP analysis and contributing the largest incremental gain in performance in ablation analysis. Together, these findings suggest that rs72631567 may serve as a candidate host genetic marker associated with DILI recovery, although its functional relevance remains to be established.
These candidate SNPs were selected from previous DILI studies conducted mainly in European populations, and their relevance to Chinese patients should be interpreted with caution. In our cohort, rs114577328 showed no variation, whereas rs72631567 and rs28521457 were polymorphic and differed between the recovery and non-recovery groups, suggesting potential prognostic value. However, population differences in allele frequency, linkage disequilibrium patterns, and effect size may have affected the consistency of these associations. Therefore, further validation is required in independent Chinese cohorts and DILI populations from diverse ethnic groups.
This model has potential clinical value because it integrates variables available at the time of initial evaluation, enabling early risk stratification for non-recovery in DILI. In addition to showing acceptable discrimination, calibration, and decision curve performance, it also demonstrated favorable interpretability. SHAP analysis quantified the relative contribution of each predictor to the model output and illustrated how different combinations of genetic and clinical factors shaped individual risk predictions, thereby improving model transparency and supporting future clinical translation.
This study has several limitations. First, the cohort was drawn from a single center and consisted predominantly of Asian patients. Therefore, the allele frequencies of rs72631567 and rs28521457, as well as the model’s performance, may differ in other populations and will require careful external validation. Second, only hospitalized patients were included, which may have introduced selection bias and enriched the cohort for more severe or clinically complex cases. Third, the outcome was defined at 6 months in this study, whereas 12-month outcome definitions have also been proposed in some studies; 12-month follow-up data were not uniformly available. Future studies should validate this model in independent, multicenter cohorts with extended follow-up periods and explore the functional relevance of these variants in DILI persistence and recovery.
Supporting information
Supplementary Table 1
Primer sequences used for Sanger sequencing of candidate SNPs.
Abbreviation: SNPs, single-nucleotide polymorphisms.
(XLSX)
Supplementary Table 2
Distribution of missing values across variables.
Abbreviations: BMI, body mass index; CCI, Charlson Comorbidity Index; PAB, prealbumin; ALT, alanine aminotransferase; AST, aspartate aminotransferase; ALP, alkaline phosphatase; GGT, gamma-glutamyl transferase; TBil, total bilirubin; DBil, direct bilirubin; ALB, albumin; TBA, total bile acids; Cr, creatinine; TG, triglycerides; TC, total cholesterol; HDL, high-density lipoprotein; LDL, low-density lipoprotein; FFA, free fatty acids; SI, serum iron; TSAT, transferrin saturation; TIBC, total iron-binding capacity; APTT, activated partial thromboplastin time; PT, prothrombin time; INR, international normalized ratio; ANA, antinuclear antibody; AFP, alpha-fetoprotein; SF, ferritin; WBC, white blood cell count; Mono, monocyte percentage; Eos, eosinophil percentage; Hb, hemoglobin; PLT, platelet count; IgG, immunoglobulin G.
(XLSX)
Supplementary Table 3
Comparison of characteristics before and after multiple imputation in the full cohort.
Abbreviations: TG, triglycerides; TC, total cholesterol; HDL, high-density lipoprotein; LDL, low-density lipoprotein; FFA, free fatty acids; SI, serum iron; TSAT, transferrin saturation; TIBC, total iron-binding capacity; AFP, alpha-fetoprotein; SF, ferritin; IgG, immunoglobulin G.
(XLSX)
Supplementary Table 4
Hyperparameter settings of the machine learning models.
The table presents the final hyperparameter configurations used for each machine learning algorithm after tuning. Abbreviations: LGBM, light gradient boosting machine; LR, logistic regression; RF, random forest; SVM, support vector machine; XGB, extreme gradient boosting; MLP, multilayer perceptron.
(XLSX)
Supplementary Table 5
Performance of the LGBM model in the ablation analysis.
Abbreviations: LGBM, light gradient boosting machine; ACC, accuracy; AUC, area under the curve; SEN, sensitivity; SPE, specificity; PPV, positive predictive value; NPV, negative predictive value.
(XLSX)
Supplementary Table 6
Impact of feature ablation on log loss in the LGBM model.
Abbreviation: LGBM, light gradient boosting machine.
(XLSX)
Supplementary Fig. 1
Distribution of culprit drugs.
(A) Pie chart showing the proportional distribution of culprit drug categories in the entire DILI cohort. (B) Stacked bar chart showing the proportions of different drug categories in the recovery and non-recovery groups. n indicates the number of non-recovery cases in each drug category. NSAIDs, nonsteroidal anti-inflammatory drugs.
(TIF)
Supplementary Fig. 2
Feature selection procedures.
(A) LASSO coefficient profiles of candidate predictors at different penalty parameters (lambda). (B) Cross-validation plot for selection of the optimal lambda in LASSO. (C, D) Performance of SVM-RFE across different numbers of selected features, showing classification accuracy and its standard deviation, with the optimal feature number highlighted. (E) Boruta feature-selection results. Each trajectory represents the Z-score of an individual predictor during iterative model fitting. BMI, body mass index; CCI, Charlson Comorbidity Index; PAB, prealbumin; ALT, alanine aminotransferase; AST, aspartate aminotransferase; ALP, alkaline phosphatase; GGT, gamma-glutamyl transferase; TBil, total bilirubin; DBil, direct bilirubin; ALB, albumin; TBA, total bile acids; Cr, creatinine; TG, triglycerides; TC, total cholesterol; HDL, high-density lipoprotein; LDL, low-density lipoprotein; FFA, free fatty acids; SI, serum iron; TSAT, transferrin saturation; TIBC, total iron-binding capacity; APTT, activated partial thromboplastin time; PT, prothrombin time; INR, international normalized ratio; ANA, antinuclear antibody; AFP, alpha-fetoprotein; SF, ferritin; WBC, white blood cell count; Mono, monocyte percentage; Eos, eosinophil percentage; Hb, hemoglobin; PLT, platelet count; IgG, immunoglobulin G.
(TIF)
Supplementary Fig. 3
Internal validation of the final LGBM model.
(A) Mean ROC curve of the LGBM model in the training set derived from five-fold cross-validation. Thin lines represent ROC curves from individual folds, the bold line represents the mean ROC curve, and the shaded area indicates ±1 standard deviation. (B) Calibration curve of the final LGBM model in the training set. The shaded area indicates the 95% confidence interval. ROC, receiver operating characteristic; AUC, area under the curve; LGBM, light gradient boosting machine.
(TIF)
Supplementary Fig. 4
Confusion matrices of the six machine learning models in the training set.
LGBM, light gradient boosting machine; MLP, multilayer perceptron; LR, logistic regression; RF, random forest; SVM, support vector machine; XGB, extreme gradient boosting.
(TIF)
Supplementary Fig. 5
Confusion matrices of the six machine learning models in the validation set.
LGBM, light gradient boosting machine; MLP, multilayer perceptron; LR, logistic regression; RF, random forest; SVM, support vector machine; XGB, extreme gradient boosting.
(TIF)
Supplementary Fig. 6
SHAP dependence plots for the five predictors included in the final model.
Each panel shows the relationship between an individual predictor and the model output. Points represent individual samples, and the blue curve indicates the smoothed trend. SHAP, Shapley additive explanations; LGBM, light gradient boosting machine; ALT, alanine aminotransferase; LDL, low-density lipoprotein; Mono, monocyte percentage.
(TIF)
