Publications > Journals > Journal of Clinical and Translational Pathology> Article Full Text

  • Mini Review
  • OPEN ACCESS

Heterogeneous Phenotype of Acute Leukemia with EWSR1 or FUS Gene Rearrangements

  • Yanna Ding1 and
  • Jinjun Cheng2,*
 Author information

Abstract

Background and objectives

Acute leukemias with chimeric fusion genes involving FET (FUS, EWSR1, and TAF15) family proteins and ETS (E26 transformation-specific)-like transcription factors often present with unique clinical and pathological characteristics. This mini-review aims to summarize the clinical and pathological features of acute leukemia cases harboring rearrangements involving the fused in sarcoma (FUS) or Ewing sarcoma breakpoint region 1 (EWSR1) genes.

Methods

An extensive literature review was performed on reported acute leukemia cases with fusions involving FUS or EWSR1. The details of the reported cases, as well as summarized information, are presented.

Results

Rare cases of acute leukemia have been found to harbor either FUS or EWSR1 gene rearrangements with ETS or non-ETS proteins as partners and demonstrate heterogeneous clinical and pathological features. Acute leukemias carrying FUS gene rearrangements present with diverse immunophenotypes and are predominantly, but not exclusively, acute myeloid leukemia (AML), with ERG as the most frequent fusion partner. In contrast, acute leukemias with EWSR1 gene rearrangements more commonly present as B-cell acute lymphoblastic leukemia (ALL) and mixed phenotypic acute leukemia (MPAL), with ZNF384 as the predominant partner. At present, FUS::ERG-positive AML is the only specific entity with a FET::ETS fusion that is formally recognized in the World Health Organization 5th edition hematolymphoid tumor classification (WHO-HEM5) and the International Consensus Classification (ICC) systems. Cytogenetic karyotyping and fluorescence in situ hybridization remain crucial tools for detecting chromosomal translocations in over half of acute leukemias harboring FUS or EWSR1 gene rearrangements. However, a subset of patients may exhibit a normal karyotype and require advanced molecular diagnostic methods. EWSR1-rearranged leukemias can be difficult to distinguish from Ewing sarcoma and therefore require particular attention.

Conclusions

As more cases and additional data become available, it may be justified to expand this category of acute leukemias to include other specific acute leukemia entities with fusions involving FET::ETS, such as FUS::FLI1 and FUS::FEV, in addition to FUS::ERG-positive AML. However, additional data are required to support such subclassification. In contrast, AML cases with EWSR1 rearrangements are exceedingly rare and display considerable variability. Cases of B-ALL or B/myeloid MPAL with the EWSR1::ZNF384 fusion may be more appropriately classified together with other ZNF384-rearranged leukemia subtypes. Advanced molecular diagnostic methods, especially RNA-based next-generation sequencing, are suggested to improve the accurate diagnosis of acute leukemias with FUS or EWSR1 fusions. Additional pathologic workup, particularly immunohistochemical staining with hematopoietic markers, is highly recommended to differentiate EWSR1-rearranged leukemia from Ewing sarcoma.

Keywords

Acute leukemia, FET, ETS, EWSR1, FUS, FUS::ERG, EWSR1::ZNF384, Ewing sarcoma

Introduction

Ewing sarcoma breakpoint region 1 (EWSR1) and fused in sarcoma (FUS), two closely related RNA-binding proteins that belong to the FET (FUS, EWSR1, and TAF15) protein family,1 are frequently implicated in the chimeric fusion proteins found in a variety of sarcomas. For instance, in Ewing sarcoma, nearly all cases feature rearrangements of ETS (E26 transformation-specific) family genes, with the EWSR1::FLI1 fusion accounting for approximately 90% of cases and EWSR1::ERG for about 5–10%. In most cases, these fusions result in chimeric proteins in which the activation domain from EWSR1 or FUS replaces the N-terminal portion of the ETS protein and fuses with its DNA-binding domain. This structural change leads to aberrant transcriptional activation and enhances the posttranscriptional splicing activity of ETS target genes (Fig. 1).2 More recently, fusions involving EWSR1 or FUS have been identified in a subset of acute leukemias, displaying diverse clinical and pathological phenotypes, with or without the involvement of ETS-like transcription factors.3,4 ETS-family transcription factors, which include members encoded by more than 28 distinct genes, are abnormally expressed in a wide range of cancers, such as prostate cancer, tumors of the Ewing sarcoma family, melanoma, secretory breast carcinoma, acute lymphoblastic leukemia (ALL), gastrointestinal stromal tumors, and uncommon types of acute myeloid leukemia (AML).2 Acute leukemias that harbor chimeric fusion genes involving ETS-like transcription factors, such as TEL and ERG, often display unique clinical and pathological characteristics. These features support the need for subclassification of acute leukemias with translocations involving both the FET protein and ETS protein families to enable more precise, targeted treatment strategies.3,4 In contrast, acute leukemias with fusions involving FET proteins and non-ETS proteins, such as ZNF384, PBX1, and MYB, have also been reported, and their subclassification requires further evaluation. This mini-review aims to summarize the clinical and pathological characteristics of acute leukemia cases involving EWSR1 or FUS gene rearrangements.

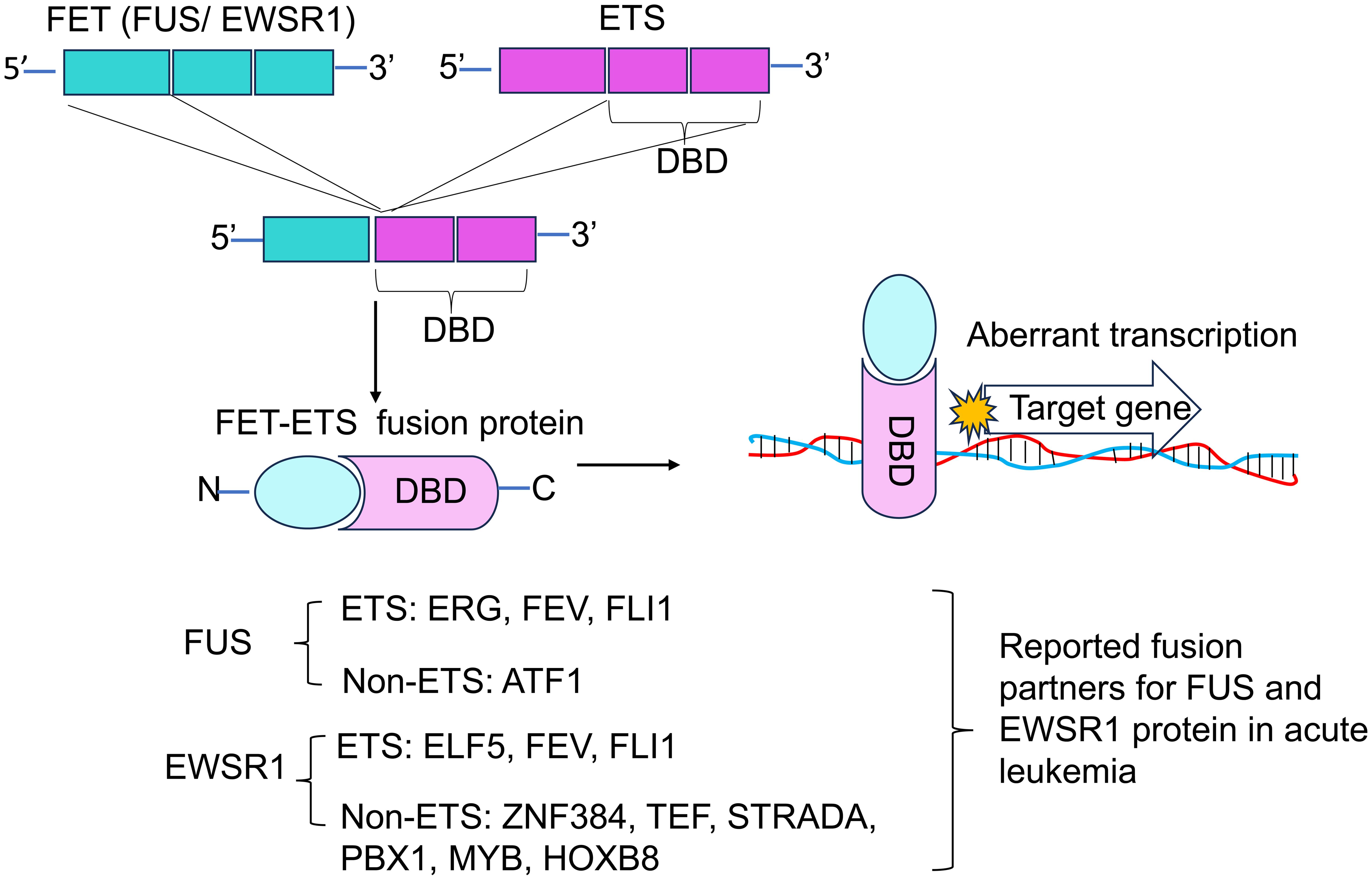

Schematic representation of the pathogenic mechanism of FET-ETS fusion proteins and reported fusion partners for <italic>FUS</italic> and <italic>EWSR1</italic> in acute leukemia.
Fig. 1  Schematic representation of the pathogenic mechanism of FET-ETS fusion proteins and reported fusion partners for FUS and EWSR1 in acute leukemia.

FET-ETS fusions are typically composed of the activation domain from EWS or FUS at the N-terminus fused with the DBD of the ETS protein at the C-terminus. The fusion protein acts as an aberrant transcription factor, leading to aberrant transcriptional activation and enhanced posttranscriptional splicing activity of ETS target genes. Reported fusion partners for FUS and EWSR1 genes in acute leukemia are listed, including ETS and non-ETS proteins. C, C-terminus; DBD, DNA-binding domain; EWSR1, Ewing sarcoma breakpoint region 1; FUS, fused in sarcoma; N, N-terminus.

Acute leukemia with FUS::ERG and other FUS-related gene rearrangements

The t(16;21)(p11;q22) translocation is a recurrent chromosomal abnormality found in approximately 0.3–1% of AML cases that are classified among AML with other rare recurring translocations in the recent International Consensus Classification (ICC 2022) and AML with other defined genetic alterations in the World Health Organization 5th edition hematolymphoid tumor classification (WHO-HEM5).3–5 Early Southern blot and polymerase chain reaction (PCR) studies of bone marrow from a 3-year-old boy with t(16;21)(p11;q22)-positive AML revealed that this translocation results in chimeric proteins typically composed of the N-terminal region of FUS fused to the DNA-binding domain of ERG.6 Four distinct types of FUS::ERG fusion genes have been identified and are classified as A, B, C, and D. These variants produce chimeric transcripts measuring 255, 211, 179, and 349 base pairs (bp), respectively. PCR assays have been developed to detect these transcript isoforms.7

Clinically, patients with AML who carry FUS::ERG fusions exhibit a wide age distribution but are mainly young adults (median age: 30 years) and tend to present with reduced platelet counts, lower white blood cell counts, occasional eosinophilia, elevated levels of lactate dehydrogenase, and increased bone marrow blasts. Although there is no uniform pattern of differentiation or immunophenotype for these cases, some reports indicate a greater prevalence of the M1 FAB subtype, but this observation is not consistent across all studies.8,9 Additionally, cases of acute megakaryocytic leukemia (AMKL) and acute basophilic leukemia have been documented in individuals with the FUS::ERG fusion gene. The leukemic cells frequently show expression of CD34, CD56, and CD123.8 Notably, up to 40% of the leukemic blasts demonstrate characteristic cytoplasmic vacuolation or hemophagocytosis.10,11

From a genetic standpoint, AML with FUS::ERG fusion frequently displays complex karyotypes and trisomy 8, followed by trisomy 10 occurring at a slightly higher rate.8,9 Mutations in RTK-RAS GTPase pathway genes, including NRAS and PTPN11, are common, alongside other co-mutations such as RUNX1, DNMT3A, ASXL1, and BCOR.12 Transcriptome studies have shown activation of the phosphatidylinositol-3-kinase-Akt, mitogen-activated protein kinase, and RAS signaling pathways, along with increased expression of BCL2—a target of venetoclax—in FUS::ERG AML.8,13

Despite recent cytogenetic classifications placing t(16;21)(p11;q22) in the intermediate-risk category, outcomes remain poor.12 Patients with FUS::ERG tend to have a high incidence of relapse.9 In one study, patients with FUS::ERG-positive AML had a median event-free survival of 11.9 months and a median overall survival of 18.2 months. Notably, allogeneic hematopoietic stem cell transplantation did not significantly improve survival.8 An additional large retrospective analysis demonstrated that survival outcomes following allogeneic hematopoietic stem cell transplantation for AML with t(16;21)(p11;q22) remained poor, irrespective of the risk classification or disease status.9,14

Importantly, the FUS::ERG fusion is not exclusive to AML. Out of 1,098 pediatric patients diagnosed with B-ALL, four children (0.36%) were identified as carrying the FUS::ERG fusion gene.15 According to reported cases in the literature (Table 1),15–22 clinical outcomes for patients with FUS::ERG-positive B-ALL were variable, and a comprehensive understanding of their clinical, pathological, and genetic characteristics remains incomplete.

Table 1

Summary of B-lymphoblastic leukemia cases with FUS rearrangements in the literature

CaseAge/sexPresentationDiagnosis and phenotypeFUS-rearrangementTherapy and outcomeReference
18-month/N/AAnemia, thrombocytopenia, leukocytosis, lymphadenopathy, hepatosplenomegalyALL; CD10, CD19, CD20, CD22, HLA-DR, and TdT45,XY,-16, der(21)t(16;21)(p11.2;q22) [10]/46,XY [10]; FUS (exon 7)::ERG (exon 6)Induction chemotherapy: relapsed at 4 months follow-up17
21-yr/MFever, coughing, anemia, thrombocytopenia, leukocytosis with circulating blastsALL; CD10, CD19, CD20, HLA-DR, CD13, CD3346,XY, t(16;21)(p11;q22); FUS (exon 7)::ERG (exon 6)Chemotherapy (ALL-oriented protocol to AML -oriented protocol, followed by transplant ): In remission at 48 months follow-up18
36-yr/MParotid enlargement, cranial nerve VII palsy, hepatomegaly, anemia, circulating blastsALL (CD79a, CD22, CD19, CD10, HLA-DR; partially positive for TdT, CD34, CD117)46,XY,t(16;21) (p11.2;q22) [10]/46,XY [10]; FUS (exon 7)::ERG (exon 6)Chemotherapy: In remission at 31 months follow-up19
45-yr/MN/AB-ALL46, XY, add(14)(q32), t(16;21)(p11.2;q22)[7]/46,XY[13]; FUS::ERG (by multiplex fluorescence RT-PCR)In remission at 30 months follow-up15,16
3-yr/FN/AB-ALL46, XX [20]; FUS::ERG (by multiplex fluorescence RT-PCR)In remission at 98 months follow-up
4-yr/MN/AB-ALL46, XY [20]; FUS::ERG (by multiplex fluorescence RT-PCR)In remission at 122 months follow-up
4-yr/FN/AB-ALL46, XX [20]; FUS::ERG (by multiplex fluorescence RT-PCR)In remission at 128 months follow-up
55-yr/FAnemia, thrombocytopenia, leukocytosisB-ALL46,XX,t(16;21)(p11;q22)[5]/46,XX[15]; FUS (exon 7)::ERG (exon 9)Chemotherapy: In remission at 16 months follow-up20
63-yr/MN/AB-ALL46, XY[20]; FUS::ERG (low level by multiplex fluorescence RT-PCR)Chemotherapy: Continuous complete remission21
4-yr/MN/AB-ALL46, XY, add(11)(p15), add(15)(q22),inc[5]/46, XY[2]; FUS::ERG (low level by multiplex fluorescence RT-PCR)Haploidentical HCT: Relapsed
74-yr/FBruising, splenomegaly, anemia, thrombocytopenia, leukocytosis, markedly increased LDHB-ALL46,XX,?t(X;19)(q13;q13.3),der(9); FUS with unknown partner (FISH)Induction chemotherapy: died of sepsis and cardiopulmonary failure22

ALL, acute lymphoblastic leukemia; AML, acute myeloid leukemia; B-ALL, B-lymphoblastic leukemia or acute B-cell lymphoblastic leukemia; F, female; FISH, fluorescence in situ hybridization; FUS, fused in sarcoma; HCT, hematopoietic stem cell transplantation; LDH, lactate dehydrogenase; M, male; N/A, not available; RT-PCR, reverse transcription polymerase chain reaction; yr, year.

Significantly, the FUS gene is capable of creating fusion proteins with the DNA-binding domains of various transcription factors—including ATF1, FEV, and FLI1—in AML as well as other acute leukemias.5,16,23–25 For example, the FUS::FEV fusion gene was also identified in rare cases of T/myeloid mixed phenotypic acute leukemia (MPAL).24 This raises a key question: Should fusion genes like FUS::FEV, FUS::FLI1, and similar variants be classified alongside FUS::ERG, given their comparable molecular mechanisms and their association with aggressive disease behavior? Recent genetic and RNA sequencing analyses of more than 1,400 pediatric AML cases from Children’s Oncology Group trials revealed a wide array of FUS fusions, such as FUS::ERG, FUS::FEV, and FUS::FLI1, totaling 25 distinct fusion types.5,23 Clinical outcomes differed among patients with FUS rearrangements.23 Interestingly, unlike the increased EZH2 expression seen in FUS::ERG pediatric AML, other FET-ETS fusion types do not show elevated EZH2 levels when compared with FUS::ERG,23 suggesting that increased EZH2 is a unique feature of pediatric AML with FUS::ERG. Beyond this study, there is a scarcity of data directly comparing the clinical and pathological characteristics of FUS::ERG-positive AML with those of other FET-ETS fusion subtypes.

Heterogeneous phenotype of acute leukemia with EWSR1 gene rearrangements

The EWSR1 gene (22q12.2) is widely recognized for its involvement in bone and soft tissue tumors through genetic rearrangements. Nonetheless, recent evidence indicates that EWSR1 rearrangements can also be found in hematopoietic malignancies, although such occurrences are rare. Unlike AML cases featuring FUS::ERG translocations—which are relatively well defined—acute leukemias with EWSR1 rearrangements display greater heterogeneity and are not currently classified as a distinct entity in the latest hematological guidelines.

As shown in Table 2,24,26–38EWSR1 rearrangements are found in a wide spectrum of acute leukemias. Among these, the EWSR1::ZNF384 fusion gene stands out as the most common and is predominantly associated with B-ALL and MPAL exhibiting B/myeloid features. The EWSR1::ZNF384 fusion was initially described by Martini et al.,39 with most cases involving fusion of EWSR1 to ZNF384 exon 2 or 3, leaving the ZNF384 coding sequence intact. In rare cases, the fusion breakpoint in ZNF384 occurs in exon 7. Mutation and copy number variation data remain limited for EWSR1::ZNF384 cases, largely because high-throughput sequencing was not available for many earlier reports.26,27 Nonetheless, fusion genes involving ZNF384 have been identified in B-ALL, with seven distinct fusion partners reported to date. According to the latest hematopoietic neoplasm classifications, acute leukemia with ZNF384 rearrangement is now recognized as a distinct disease entity, classified within either B-ALL or MPAL.4,12 While ZNF384-related fusion genes represent a distinct subgroup of B-ALL, the clinical features may still depend on the functional properties of the individual fusion partners.28

Table 2

Summary of 18 acute leukemia cases with EWSR1 rearrangements in the literature

CaseAge/sexPresentationDiagnosis (and immunophenotype)EWSR1-rearrangementTherapy and outcomeReference
141-yr/FPancytopeniaMPAL, B/T/My (CD34+,CD33+,CD19+,CD117+,CD3+, CD7+, MPO subset+, TdT subset+, PAX5 subset+)t(2;22)(q35;q12); EWSR1::FEVN/A35
218-yr/MSkin lesionsB-ALL (CD19+, CD10+,TdT partial+, CD22+, CD79a+, CD20 partial+, Lambda restricted)t(17;22)(q25;q12); EWSR1::TEF, EWSR1::STRADAALL1131 chemotherapy; relapsed and died of disease 6 months later35
32-yr/FSubcutaneous massB-ALL (TdT+, CD19+, CD10+, CD34+, CD99+, FLI1+)EWSR1::FLI1Chemotherapy (ALL IC-BFM 2002 protocol); In remission at 30 months follow-up30
435-yr/FCytopenia, leukocytosis, lymphadenopathy, splenomegalyT-ALL (cytoCD3+, CD7+, TdT+, CD99+, surface CD3-)EWSR1-r+; t(11;22)(q24;q12)Chemotherapy (ALL protocol); unknown outcome31
510-month/FCytopenia, bruising of legMPAL, B/My (CD19+, CD79a+,CD38+, CD34+, MPO+, CD117+); a separate B-lymphoblast populationt(2;22)(q35;q12),add(4)(p15.2)[20]; EWSR1::FEV; STAG2 R529*Chemotherapy (AML-directed induction; then ALL-directed therapy; followed by transplant); In remission at 46 months follow-up24,36
62-yr/MSkin lesionsAML (CD34+, CD33+, CD7+, CD61+, CD99+, CD117+)EWSR1::ELF5AML directed Chemotherapy followed by transplant; Relapsed 1 yr later and died of disease34
764-yr/MAnemia, leukocytosis, hepatosplenomegalyJAK2 V617F positive PMF transformed to AML in 4 months46,XY,ins(6;22)(q23q11q12),del(22)(q11); EWSR1::MYBChemotherapy; unknown outcome33
85-yr/FBilateral neck mass, fever, leukocytosisB-ALL (CD34+, CD19+, CD22+, CD79a+, CD13+, CD33+, CD117+)46,XX; EWSR1::ZNF384Chemotherapy followed by transplant; in remission at 13 months follow-up26
94-yr/MN/AB-ALL (CD34+, TdT+, CD13+, CD33+, CD15+, CD79a+, cCD22+, sCD22+, CD19+, CD10+)EWSR1::ZNF384Chemotherapy, in remission at 32 months follow-up28
1029-yr/FN/AMPAL, B/My (MPO+, CD34+, HLA-DR+, CD45+, CD33+, CD13+,CD19+, CD22+, CD117−, CD10−)EWSR1::ZNF384Relapsed after transplant and died of disease within a month28
11N/AN/AAMKLEWSR1::HOXB8N/A32
12Child (unknown age and gender)N/AB-ALLEWSR1::ZNF384N/A37
13Adult (unknown age and gender)N/AB-ALLEWSR1::ZNF384N/A37
143-yr/FN/AB-ALL (CD10-, CD13+, CD33+)EWSR1::ZNF384Chemotherapy; In remission at 100 months follow-up38
15N/AN/AB-ALLEWSR1::PBX1N/A29
16N/AN/AB-ALLEWSR1::ZNF384N/A27
17N/AN/AB-ALLEWSR1::ZNF384N/A27
1813-yr/FN/AAMLEWSR1::FEVN/A24

AMKL, acute megakaryoblastic leukemia; AML, acute myeloid leukemia; B-ALL, B-lymphoblastic leukemia or acute B-cell lymphoblastic leukemia; EWSR1, Ewing sarcoma breakpoint region 1; F, female; M, male; MPAL, mixed phenotype acute leukemia; N/A, not available; PMF, primary myelofibrosis; T-ALL, T-lymphoblastic leukemia; yr, year.

An EWSR1::PBX1 in-frame fusion, specifically joining exon 14 of EWSR1 (NM_005243.3) with exon 5 of PBX1 (NM_002585.3), has been identified in a B-ALL case with a complex karyotype: 50,XX,+X,t(1;22)(q23;q12),t(2;9)(p13;p22),?inv(13)(q12q34),+14,+18,del(20)(q13.1q13.3),+21[14]/46,XX[6].29 Notably, the recurrent chromosomal translocation t(1;19)(q23;p13) seen in B-ALL generates the TCF3 (formerly known as E2A)::PBX1 fusion gene, which is found in about 6% of B-ALL cases, predominantly affecting children.40 The resulting TCF3::PBX1 chimeric proteins act as transcriptional activators, driving cellular transformation. They persistently activate transcription mediated by PBX1 or related PBX family members in leukemic cells by binding to the ATCAATCAA DNA sequence through the PBX1 homeodomain, thereby contributing to the development of leukemia.41 Historically, this subtype was associated with poor outcomes, but advances in intensive treatment protocols have led to significantly improved prognoses.4 It is assumed that the functional effects of the EWSR1::PBX1 fusion closely resemble those seen with TCF3::PBX1 in B-ALL.29

Several case reports highlight the complexity of distinguishing EWSR1-rearranged leukemia from Ewing sarcoma. Jakovljevic et al. described a 2-year-old girl with a subcutaneous mass who was initially diagnosed with Ewing sarcoma based on a positive EWSR1 rearrangement and detection of the EWSR1::FLI1 transcript. However, subsequent identification of lymphoblasts in the peripheral blood, expression of immature B-cell markers, and immunoglobulin heavy chain gene rearrangement prompted a revised diagnosis of B-ALL. The patient responded to chemotherapy and remained in remission.30 In another example, a 10-year-old patient with a history of B-ALL featuring ETV6::RUNX1 presented with an atypical malignant shoulder mass. This mass was diagnosed as Ewing sarcoma with an EWSR1::FLI1 fusion gene but exhibited variable CD43 positivity. It is important to note that CD43 is a hematopoietic marker; its expression typically suggests a non-Ewing sarcoma origin, further complicating the differential diagnosis.42 In addition, T-cell lymphoblastic leukemia with t(11;22)(q24;q12) and EWSR1 rearrangement has also been reported.31

EWSR1 rearrangements are rarely documented in AML, but an EWSR1::HOXB8 fusion was reported in a patient with AMKL. Notably, fusions involving HOX cluster genes were present in 14% of AMKL cases in this cohort, and these genetic alterations are known to drive upregulation of HOX cluster gene expression.32 Other EWSR1 rearrangements have been identified in AML cases, including EWSR1::ELF5, EWSR1::MYB, and EWSR1::FEV.24,33 Chromosomal and functional assays demonstrate that the EWSR1::ELF5 fusion gene promotes oncogenesis by interfering with the p53/p21-dependent pathway.34 The EWSR1::MYB fusion, detected in adenoid cystic carcinoma and various other tumors, leads to increased expression of MYB target genes through the combination of the strong transcriptional activation domain of EWSR1 with the DNA-binding domain of MYB, thereby driving unchecked cell proliferation, enhanced cell survival, and tumor progression.43 Additionally, a rare case of MPAL with EWSR1::FEV fusion was reported in a 41-year-old woman exhibiting immunophenotypic features of B-cell, T-cell, and myeloid lineages. Conventional chromosomal analysis identified a t(2;22)(q35;q12) translocation, and whole-genome sequencing confirmed that this chromosomal rearrangement resulted in the formation of the EWSR1::FEV fusion gene.35 This case underscored the challenges in accurately identifying the translocation partner without advanced sequencing technologies. A third case of B/myeloid MPAL with EWSR1::FEV rearrangement was reported by Montgomery-Goecker et al.36,44 Nonetheless, it remains unclear whether EWSR1::FEV operates in the same manner as FUS::FEV.

Unresolved controversies and future directions

Rare cases of acute leukemia have been found to harbor either FUS or EWSR1 gene rearrangements and to demonstrate heterogeneous clinical presentations, immunophenotypes, and outcomes. The immunophenotypic profiles linked to these uncommon fusion genes are diverse, spanning B-lymphoblastic, T-lymphoblastic, myeloid, and mixed-lineage presentations. Acute leukemias carrying FUS gene rearrangements are predominantly, but not exclusively, AML, with ERG being the predominant fusion partner. In contrast, acute leukemias with EWSR1 gene rearrangements more commonly present as B-ALL and MPAL, with rare AML and T-ALL cases reported, and with ZNF384 as the most frequent partner (Table 3).

Table 3

Summary of acute leukemia with FET family protein fusions

FET family proteinLineage of acute leukemiaFrequencyFusion partners (ETS like family and other)Age range/median ageMale: femaleNote on immunophenotype (IP)Clinical outcome
FUSAML (predominant M1 FAB subtype)PredominantPredominant: ERG; Rare: ATF1, FEV, FLI1Young adult/30 yrN/AAML IP; Frequent expression of CD34, CD56 and CD123; rare AMKL or Acute basophilic leukemia IPpoor with a high incidence of relapse
B-ALLInfrequentERG8 month ∼6 yr/4 yr7:3B-ALL IP; common expression of CD10, CD19, HLA-DRvariable
T/Myeloid MPALRareFEV46 yrMN/AN/A
EWSR1B-ALLPredominantPredominant: ZNF384; Rare: TEF, STRADA, FLI1, PBX12 yr∼ Adult/4 yr1:1B-ALL IP; common expression of CD13 and CD33variable
AMLInfrequentELF5, MYB, FEV, HOXB82 yr∼64yr/13 yr2:1AML IP with rare AMKL IPvariable
MPALInfrequentFEV, ZNF38410 month∼41yr/29 yrFB/myeloid IP; rare B/T/Myeloid IPvariable
T-ALLRareN/A35 yrFT-ALL IPN/A

Among the fusion partners, ETS-like family fusion partners are highlighted in bold font. AMKL, acute megakaryoblastic leukemia; AML, acute myeloid leukemia; B-ALL, B-lymphoblastic leukemia or acute B-cell lymphoblastic leukemia; F, female; M, male; MPAL, mixed phenotype acute leukemia; N/A, not available; T-ALL, T-lymphoblastic leukemia; yr, year.

A key ongoing question is how to integrate acute leukemia cases with recurring EWSR1 or FUS fusions into future disease classification systems. At present, FUS::ERG-positive AML stands as the only FET::ETS fusion-specific entity formally recognized in the WHO-HEM5 and ICC classifications, given its unique clinical and pathological characteristics. With the emergence of new cases and data, it may be reasonable to include FUS::FLI1- and FUS::FEV-positive AML alongside FUS::ERG-positive AML. However, additional data are required to demonstrate comparable biological behavior and clinical outcomes among cases with different specific fusion partners. Conversely, EWSR1-rearranged AML remains exceedingly rare and demonstrates considerable heterogeneity in immunophenotype, patient age, and clinical outcomes. Although the fusion proteins share common features, in which EWSR1 provides the activation domain while most fusion partners—either ETS or non-ETS proteins—provide the DNA-binding domain, the ultimate biological behavior of acute leukemias is more likely determined by the specific fusion partners and the subsequent downstream molecular events affecting their target genes. Hence, we suggest that B-ALL or B/myeloid MPAL harboring the EWSR1::ZNF384 fusion may be more appropriately classified with other ZNF384-rearranged acute leukemias, similar to acute leukemia with PBX1 rearrangement.

Cytogenetic karyotyping remains a crucial tool for detecting chromosomal translocations in over half of these cases, with confirmation possible via fluorescence in situ hybridization or other molecular assays. However, a subset of patients may exhibit a normal karyotype, particularly those with B-ALL (Table 1), making the detection of fusion genes such as FUS::ERG solely dependent on RNA sequencing or RT-PCR, which presents a significant diagnostic challenge. Therefore, the use of advanced molecular diagnostic methods—especially RNA-based next-generation sequencing (NGS)—holds significant potential for identifying additional cases, enhancing diagnostic precision, improving risk assessment, and facilitating the development of targeted molecular therapies.

Given the reported diagnostic challenges and the clinical significance of distinguishing EWSR1-rearranged leukemia from Ewing sarcoma, particular attention should be paid to tissue masses with detection of EWSR1 and/or EWSR1::FLI1, which should prompt further workup to differentiate EWSR1-rearranged leukemia (mainly B-ALL, with rare T-ALL or myeloid sarcoma cases) from Ewing sarcoma. Additional immunohistochemical staining with hematopoietic markers, such as CD45, CD43, TdT, PAX5, CD19, CD3, CD1a, MPO, and CD117, supports the diagnosis of lymphoblastic leukemia/lymphoma or myeloid sarcoma and argues against Ewing sarcoma. Staining for CD34 and CD99 is not helpful in this setting, given their possible expression in both leukemias and Ewing sarcoma. In addition, CBC data, flow cytometric analysis of peripheral blood, and B-cell clonality testing can be informative.

Limitations

This mini-review has several limitations. The number of reported cases is relatively small because of the rarity of these entities, which may be partially attributable to the limited routine use of advanced RNA-based NGS in clinical laboratories. Furthermore, detailed information was not always available for all reported cases. Therefore, the summarized data, including the male-to-female ratio, median age, blast immunophenotype, and clinical outcomes, may be biased and less accurate.

Conclusions

Acute leukemias with FUS::FLI1 and FUS::FEV may represent groups related to FUS::ERG-positive AML. However, additional data are required to demonstrate shared biological features. EWSR1-rearranged AML remains exceedingly rare and highly heterogeneous. Acute leukemias harboring the EWSR1::ZNF384 fusion may be more appropriately classified with other ZNF384-rearranged acute leukemias. Advanced molecular diagnostic methods—especially RNA-based NGS—are recommended to improve the accurate diagnosis of acute leukemias with FUS or EWSR1 fusions. Additional pathological workup is highly recommended to differentiate EWSR1-rearranged leukemia from Ewing sarcoma.

Declarations

Acknowledgement

None.

Funding

None.

Conflict of interest

The authors declared no conflict of interest.

Authors’ contributions

Data collection, drafting of the manuscript (YD, JC), editing of the manuscript (YD, JC), and finalizing the manuscript (YD, JC). Both authors approved the final version and publication of the manuscript.

References

  1. Blechingberg J, Holm IE, Nielsen AL. Characterization and expression analysis in the developing embryonic brain of the porcine FET family: FUS, EWS, and TAF15. Gene 2012;493(1):27-35 View Article PubMed/NCBI
  2. Feng FY, Brenner JC, Hussain M, Chinnaiyan AM. Molecular pathways: targeting ETS gene fusions in cancer. Clin Cancer Res 2014;20(17):4442-4448 View Article PubMed/NCBI
  3. World Health Organization. Classification of Tumours of Haematopoietic and Lymphoid Tissues (5th ed). Lyon: IARC Publications; 2022
  4. Arber DA, Orazi A, Hasserjian RP, Borowitz MJ, Calvo KR, Kvasnicka HM, et al. International Consensus Classification of Myeloid Neoplasms and Acute Leukemias: integrating morphologic, clinical, and genomic data. Blood 2022;140(11):1200-1228 View Article PubMed/NCBI
  5. Voss RK, Pastor Loyola VB, Cardenas MF, Kumar P, Maciaszek JL, Namwanje M, et al. Clinical experience of using integrated whole genome and transcriptome sequencing as a framework for pediatric and adolescent acute myeloid leukemia diagnosis and risk assessment. Leukemia 2025;39(12):2946-2956 View Article PubMed/NCBI
  6. Panagopoulos I, Aman P, Fioretos T, Höglund M, Johansson B, Mandahl N, et al. Fusion of the FUS gene with ERG in acute myeloid leukemia with t(16;21)(p11;q22). Genes Chromosomes Cancer 1994;11(4):256-262 View Article PubMed/NCBI
  7. Kong XT, Ida K, Ichikawa H, Shimizu K, Ohki M, Maseki N, et al. Consistent detection of TLS/FUS-ERG chimeric transcripts in acute myeloid leukemia with t(16;21)(p11;q22) and identification of a novel transcript. Blood 1997;90(3):1192-1199 PubMed/NCBI
  8. Lai A, Liu W, Wei H, Wang Y, Lin D, Zhou C, et al. The RTK-RAS signaling pathway is enriched in patients with rare acute myeloid leukemia harboring t(16;21)(p11;q22)/FUS::ERG. Blood Sci 2024;6(2):e00188 View Article PubMed/NCBI
  9. Noort S, Zimmermann M, Reinhardt D, Cuccuini W, Pigazzi M, Smith J, et al. Prognostic impact of t(16;21)(p11;q22) and t(16;21)(q24;q22) in pediatric AML: a retrospective study by the I-BFM Study Group. Blood 2018;132(15):1584-1592 View Article PubMed/NCBI
  10. Imashuku S, Hibi S, Sako M, Lin YW, Ikuta K, Nakata Y, et al. Hemophagocytosis by leukemic blasts in 7 acute myeloid leukemia cases with t(16;21)(p11;q22): common morphologic characteristics for this type of leukemia. Cancer 2000;88(8):1970-1975 View Article PubMed/NCBI
  11. Jekarl DW, Kim M, Lim J, Kim Y, Han K, Lee AW, et al. CD56 antigen expression and hemophagocytosis of leukemic cells in acute myeloid leukemia with t(16;21)(p11;q22). Int J Hematol 2010;92(2):306-313 View Article PubMed/NCBI
  12. Khoury JD, Solary E, Abla O, Akkari Y, Alaggio R, Apperley JF, et al. The 5th edition of the World Health Organization Classification of Haematolymphoid Tumours: Myeloid and Histiocytic/Dendritic Neoplasms. Leukemia 2022;36(7):1703-1719 View Article PubMed/NCBI
  13. Zhou Z, Zhuo N, Zhou Y, Sun C, Yao Y, Mao L, et al. Identification of the characteristics and prognostic impact of FUS::ERG and RUNX1::CBFA2T3 fusion genes in adult acute myeloid leukemia patients. Am J Hematol 2024;99(7):1441-1444 View Article PubMed/NCBI
  14. Mitsuyuki S, Shimomura Y, Mizumaki H, Yanada M, Mizuno S, Uchida N, et al. Allogeneic hematopoietic stem cell transplantation in adult acute myeloid leukemia with t(16;21)(p11;q22)/FUS::ERG. Leukemia 2025;39(2):495-498 View Article PubMed/NCBI
  15. Li S, Huang W, Wu Y, Xu X, Liao C, Tang Y. Rare and favorable prognosis of pediatric acute lymphoblastic leukemia with TLS-ERG fusion gene: Case report with long-term follow-up and review of literature. Cancer Genet 2021;256-257:51-56 View Article PubMed/NCBI
  16. Zhang H, Zhan Q, Wang X, Gao F, Yu J, Wang J, et al. TLS/FUS-ERG fusion gene in acute leukemia and myelodysplastic syndrome evolved to acute leukemia: report of six cases and a literature review. Ann Hematol 2022;101(12):2583-2600 View Article PubMed/NCBI
  17. Oh SH, Park TS, Choi JR, Lee S, Cho SY, Kim SY, et al. Two childhood cases of acute leukemia with t(16;21)(p11.2;q22): second case report of infantile acute lymphoblastic leukemia with unusual type of FUS-ERG chimeric transcript. Cancer Genet Cytogenet 2010;200(2):180-183 View Article PubMed/NCBI
  18. Kanazawa T, Ogawa C, Taketani T, Taki T, Hayashi Y, Morikawa A. TLS/FUS-ERG fusion gene in acute lymphoblastic leukemia with t(16;21)(p11;q22) and monitoring of minimal residual disease. Leuk Lymphoma 2005;46(12):1833-1835 View Article PubMed/NCBI
  19. Coccé MC, Alonso CN, Rossi J, Felice MS, Gitter MR, Gallego MS. A case of pediatric ALL with t(16;21)(p11.2;q22) and FUS-ERG rearrangement. Blood Res 2015;50(1):55-58 View Article PubMed/NCBI
  20. Zerkalenkova E, Panfyorova A, Kazakova A, Baryshev P, Shelihova L, Kalinina I, et al. Molecular characteristic of acute leukemias with t(16;21)/FUS-ERG. Ann Hematol 2018;97(6):977-988 View Article PubMed/NCBI
  21. Pan J, Zhang Y, Zhao YL, Yang JF, Zhang JP, Liu HX, et al. Impact of clinical factors on outcome of leukemia patients with TLS-ERG fusion gene. Leuk Lymphoma 2017;58(7):1655-1663 View Article PubMed/NCBI
  22. Othman MAK, Đurišić M, Samardzija G, Vujić D, Lakic N, Zecevic Z, et al. Complex karyotype with cryptic FUS gene rearrangement and deletion of NR3C1 and VPREB1 genes in childhood B-cell acute lymphoblastic leukemia: A case report. Oncol Lett 2020;19(4):2957-2962 View Article PubMed/NCBI
  23. Buteyn NJ, LaMantia SJ, Burke CG, Sartori VJ, Deering-Gardner E, DeBruine ZJ, et al. EZH2-driven immune evasion at disease presentation defines a targetable high-risk subset of acute leukemia exemplified by t(16;21) FUS::ERG AML. bioRxiv 2025 View Article PubMed/NCBI
  24. Nguyen VT, Zahid MF, Han L, Botten GA, Slone T, Goldman S, et al. EWSR1-and FUS-rearranged acute leukemias: Clinicopathological and genomic characterization. Hum Pathol 2025;166:105960 View Article PubMed/NCBI
  25. Zhu GG, Inam Z, Calleroz A, Pillai V, Schore RJ, Cheng J. Pediatric acute erythroid leukemias with monocytic antigen expression and novel chromosomal translocations. Pediatr Blood Cancer 2023;70(8):e30333 View Article PubMed/NCBI
  26. Chen X, Wang F, Cao P, Zhang Y, Ma X, Liu M, et al. Novel three-way fusions among ZNF384, EWSR1 and EHMT1 genes in paediatric B cell precursor acute lymphoblastic leukaemia with translocations resembling Philadelphia chromosomes. Br J Haematol 2019;187(3):e75-e79 View Article PubMed/NCBI
  27. Lee JW, Kim Y, Cho B, Kim S, Jang PS, Lee J, et al. High incidence of RAS pathway mutations among sentinel genetic lesions of Korean pediatric BCR-ABL1-like acute lymphoblastic leukemia. Cancer Med 2020;9(13):4632-4639 View Article PubMed/NCBI
  28. Hirabayashi S, Ohki K, Nakabayashi K, Ichikawa H, Momozawa Y, Okamura K, et al. ZNF384-related fusion genes define a subgroup of childhood B-cell precursor acute lymphoblastic leukemia with a characteristic immunotype. Haematologica 2017;102(1):118-129 View Article PubMed/NCBI
  29. Talman M, Yenamandra AK, Akkari Y, Tsuchiya K, Borinstein SC, Lopez-Hisijos N, et al. EWSR1 Fusion Driven Pediatric B-Acute Lymphoblastic Leukemia: Diagnosis and Review of Literature. Pediatr Dev Pathol 2026;29(3):248-252 View Article PubMed/NCBI
  30. Jakovljević G, Nakić M, Rogosić S, Kardum-Skelin I, Mrsić-Davidović S, Zadro R, et al. Pre-B-cell acute lymphoblastic leukemia with bulk extramedullary disease and chromosome 22 (EWSR1) rearrangement masquerading as Ewing sarcoma. Pediatr Blood Cancer 2010;54(4):606-609 View Article PubMed/NCBI
  31. Łanocha AA, Zdziarska B. T-cell lymphoblastic leukemia with t(11;22)(q24;q12) and EWSR1 rearrangement. Blood 2017;129(3):393 View Article PubMed/NCBI
  32. de Rooij JD, Branstetter C, Ma J, Li Y, Walsh MP, Cheng J, et al. Pediatric non-Down syndrome acute megakaryoblastic leukemia is characterized by distinct genomic subsets with varying outcomes. Nat Genet 2017;49(3):451-456 View Article PubMed/NCBI
  33. Pierini T, Di Giacomo D, Pierini V, Gorello P, Barba G, Lema Fernandez AG, et al. MYB deregulation from a EWSR1-MYB fusion at leukemic evolution of a JAK2 (V617F) positive primary myelofibrosis. Mol Cytogenet 2016;9(1):68 View Article PubMed/NCBI
  34. Endo A, Tomizawa D, Aoki Y, Morio T, Mizutani S, Takagi M. EWSR1/ELF5 induces acute myeloid leukemia by inhibiting p53/p21 pathway. Cancer Sci 2016;107(12):1745-1754 View Article PubMed/NCBI
  35. Gagnon MF, Smadbeck JB, Vasmatzis G, Olteanu H, Wood AJ, Lewis DJ, et al. Identification of EWSR1 rearrangements in patients with immature hematopoietic neoplasms: A case series and review of literature. Ann Diagn Pathol 2022;58:151942 View Article PubMed/NCBI
  36. Montgomery-Goecker C, Koduru P, Botten G, Xu J, Ghisoli M, Goldman SC, et al. Mixed Phenotype Acute Leukemia, B/Myeloid (Bilineal and Biphenotypic), With t(2;22)(q35;q12);EWSR1-FEV. J Pediatr Hematol Oncol 2021;43(3):e388-e394 View Article PubMed/NCBI
  37. Liu YF, Wang BY, Zhang WN, Huang JY, Li BS, Zhang M, et al. Genomic Profiling of Adult and Pediatric B-cell Acute Lymphoblastic Leukemia. EBioMedicine 2016;8:173-183 View Article PubMed/NCBI
  38. Shago M, Abla O, Hitzler J, Weitzman S, Abdelhaleem M. Frequency and outcome of pediatric acute lymphoblastic leukemia with ZNF384 gene rearrangements including a novel translocation resulting in an ARID1B/ZNF384 gene fusion. Pediatr Blood Cancer 2016;63(11):1915-1921 View Article PubMed/NCBI
  39. Martini A, La Starza R, Janssen H, Bilhou-Nabera C, Corveleyn A, Somers R, et al. Recurrent rearrangement of the Ewing’s sarcoma gene, EWSR1, or its homologue, TAF15, with the transcription factor CIZ/NMP4 in acute leukemia. Cancer Res 2002;62(19):5408-5412 PubMed/NCBI
  40. Carroll WL, Bhojwani D, Min DJ, Raetz E, Relling M, Davies S, et al. Pediatric acute lymphoblastic leukemia. Hematology Am Soc Hematol Educ Program 2003;2003(1):102-131 View Article PubMed/NCBI
  41. Aspland SE, Bendall HH, Murre C. The role of E2A-PBX1 in leukemogenesis. Oncogene 2001;20(40):5708-5717 View Article PubMed/NCBI
  42. Ohlsen TJD, Rudzinski ER, Bohling SD, Liu YJ, Maloney EJ, Lindberg AW, et al. CD43-positive, EWSR1::FLI1 -rearranged Soft Tissue Sarcoma in a Pediatric Patient With History of B-Cell Acute Lymphoblastic Leukemia. J Pediatr Hematol Oncol 2023;45(5):e635-e638 View Article PubMed/NCBI
  43. Skálová A, Bradová M, Agaimy A, Laco J, Badual C, Ihrler S, et al. Molecular Profiling of Sinonasal Adenoid Cystic Carcinoma: Canonical and Noncanonical Gene Fusions and Mutation. Am J Surg Pathol 2025;49(3):227-242 View Article PubMed/NCBI
  44. Harris MH, Czuchlewski DR, Arber DA, Czader M. Genetic Testing in the Diagnosis and Biology of Acute Leukemia. Am J Clin Pathol 2019;152(3):322-346 View Article PubMed/NCBI
