Introduction
Pancreatic cystic neoplasms (PCNs) refer to cystic neoplastic lesions originating from pancreatic ductal epithelium and/or stromal tissue.1 The most common PCNs encountered clinically include intraductal papillary mucinous neoplasm (IPMN), mucinous cystic neoplasm (MCN), serous cystic neoplasm (SCN), solid pseudopapillary neoplasm (SPN), and cystic neuroendocrine neoplasm, which collectively account for approximately 90% of all PCNs.1,2 With the advancement of imaging technologies and broader use of imaging examinations, the detection rate of PCNs has increased annually, particularly with MRI detection rates ranging from approximately 2.4% to 49.1%.2 Different PCN subtypes exhibit distinct biological behaviors; for example, IPMN and MCN are considered premalignant lesions with potential progression to pancreatic ductal adenocarcinoma.3 Key imaging parameters such as tumor size, size of enhancing mural nodules, degree of main pancreatic duct dilation, thickness of cyst walls and septa, and tumor growth rate are critical factors in guidelines for assessing malignancy risk and surgical indications. Therefore, objective, accurate, and comprehensive imaging diagnostic reports are essential. However, in clinical practice, radiologists with different levels of experience and different subspecialty backgrounds may have inconsistent understanding of PCN imaging features, resulting in reports that are subjective, use non-standard terminology, lack comprehensive descriptions, and show high linguistic variability. This reduces the clinical value of imaging reports, complicates multidisciplinary communication, and leads to unnecessary repeat examinations and waste of medical resources. To standardize imaging reporting of PCNs, facilitate individualized and precise diagnosis, and enhance the standardization of imaging diagnosis for the disease in China, the National Clinical Research Center for Digestive Diseases (Shanghai), the Professional Committee of Pancreatic Diseases of the Chinese Medical Doctor Association, and the editorial board of the Chinese Journal of Pancreatic Diseases jointly initiated this guideline. Experts from radiology, pathology, surgery, internal medicine, and other fields were convened. Based on published literature and extensive expert consultation employing a modified Delphi method with multiple rounds of voting and group discussions, 21 recommendations were developed addressing imaging modalities, reporting evaluation metrics, and standards. The guideline drafting and revision were undertaken by the Department of Radiology, The First Affiliated Hospital of Naval Medical University. This guideline was formulated following the GRADE (Grading of Recommendations Assessment, Development and Evaluation) methodology,4 with evidence quality classified into four levels: high (A), moderate (B), low (C), and very low (D). Recommendations are categorized as strong or weak, where strong recommendations indicate that most patients should receive the recommended approach and clinicians can be confident that the desirable effects outweigh the undesirable effects, whereas weak recommendations reflect a closer balance between benefits and risks or lower certainty of evidence, and thus may require individualized decision-making based on patient values and clinical context.
Content of the guideline
This guideline was developed in accordance with the World Health Organization (WHO) Handbook for Guideline Development,5 referencing the definition of clinical practice guidelines by the National Academies of Sciences, Engineering, and Medicine,6 the Chinese Medical Association’s “Guiding Principles for Formulating/Revising Clinical Practice Guidelines (2022 edition)”,7 and the WHO’s International Classification of Diseases, 11th Revision (ICD-11).8 Systematic reviews and research on PCN-related issues were conducted, referencing the AGREE II instrument for guideline appraisal and international standards for guideline reporting to formulate recommendations.9 The technical workflow is illustrated in Figure 1.
Guideline sponsoring institutions
The National Clinical Research Center for Digestive Diseases (Shanghai), the Professional Committee of Pancreatic Diseases of the Chinese Medical Doctor Association, and the editorial board of the Chinese Journal of Pancreatic Diseases initiated the guideline; the Department of Radiology, The First Affiliated Hospital of Naval Medical University served as the primary implementing institution. The GRADE China Center provided methodological support. The guideline is registered on the International Practice Guidelines Registry Platform (http://www.guidelinesregistry.cn/ ) under registration number REPAPE-2023CN469.
Intended users and target population
The guideline is intended for Chinese-speaking radiologists, multidisciplinary experts involved in PCN diagnosis and treatment, and other healthcare professionals. The target population comprises patients with PCNs.

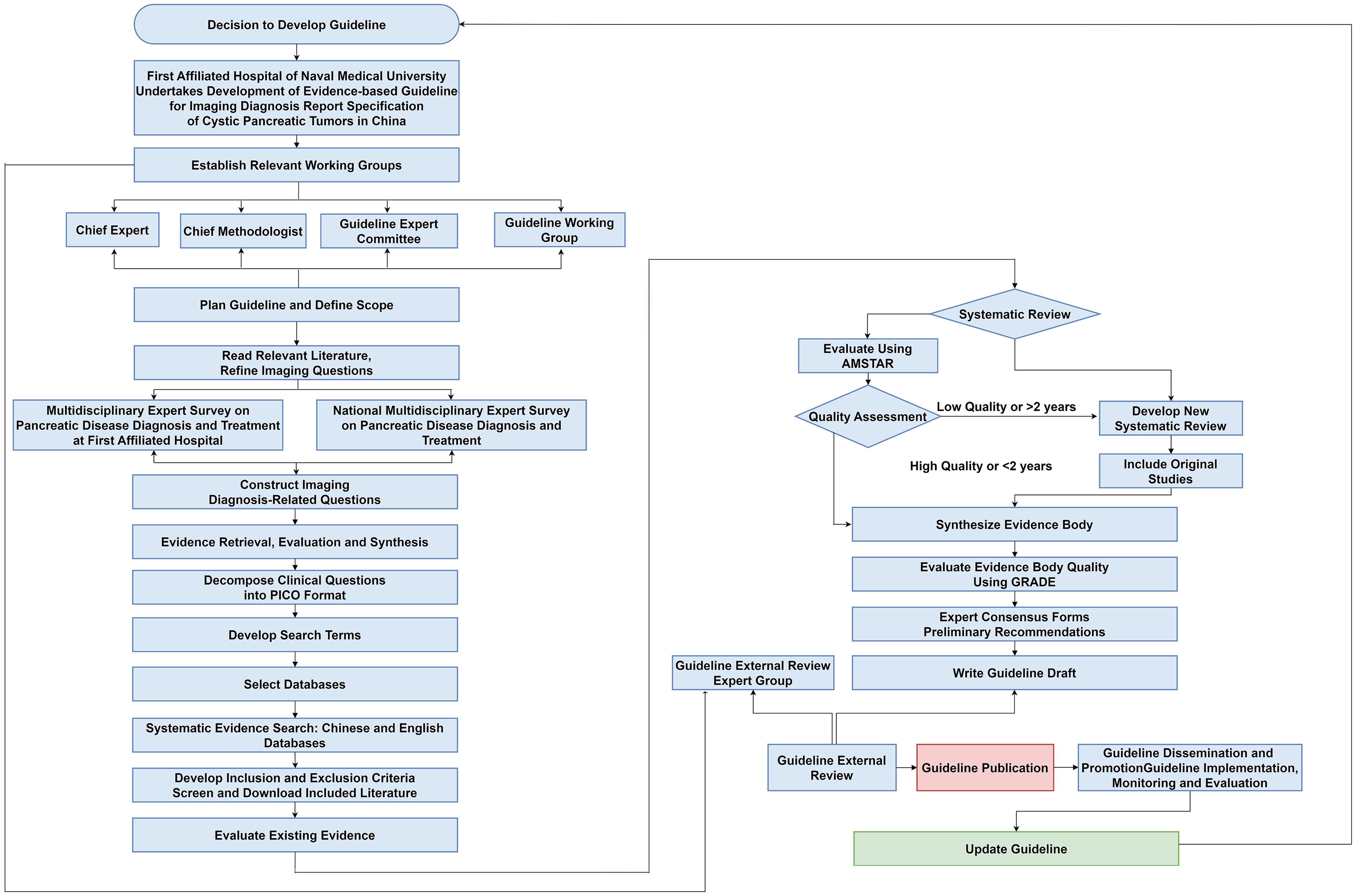

Organizational structure of guideline development
The guideline development involved five main groups: chief experts, chief methodologists, the guideline expert committee, an external review panel, and the guideline working group. Members included experts in radiology, internal medicine, surgery, oncology, pathology, evidence-based medicine, and related evaluation tools.
Conflict of interest declaration
The guideline development strictly adhered to WHO regulations on conflicts of interest and ethical standards for guideline development. All participants, including invited experts and consultants, completed conflict of interest disclosure forms. After evaluation, no conflicts directly related to this guideline were identified.
Selection and determination of PCN imaging reporting evidence-based practice questions
The working group conducted systematic literature searches on PCN, including published guidelines, systematic reviews, and original studies, preliminarily drafting 21 imaging evaluation questions. Two rounds of modified Delphi consultation with internal and national experts were conducted, with in-depth discussions. The finalized imaging evaluation questions are summarized in Table 1.
Table 1Imaging evaluation questions for pancreatic cystic neoplasms
| 1. What is the preferred imaging modality for patients suspected of PCN? |
| 2. At which phase or sequence should PCN size be measured? |
| 3. How should PCN size be measured? |
| 4. What is the clinical significance of PCN size assessment? |
| 5. At which phase or sequence should mural nodules be observed and measured? |
| 6. What is the clinical significance of assessing enhancing mural nodules? |
| 7. How is thickening of cyst walls and intracystic septa defined? |
| 8. Which sequence is optimal for evaluating the relationship between the cystic lesion and the main pancreatic duct? |
| 9. How should the main pancreatic duct diameter be measured? |
| 10. How is main pancreatic duct dilation defined? |
| 11. What is the clinical significance of main pancreatic duct dilation assessment? |
| 12. Is evaluation of the morphology of the main pancreatic duct obstruction point necessary? |
| 13. How should IPMN be classified on imaging? |
| 14. How should SCN be classified and diagnosed on imaging? |
| 15. Is assessment of calcification necessary? |
| 16. Is assessment of hemorrhage necessary? |
| 17. What are the imaging criteria for suspicious lymph nodes? |
| 18. Is evaluation of acute pancreatitis necessary? |
| 19. How should PCN be differentiated from a pancreatic pseudocyst or retention cyst? |
| 20. Which imaging modality is recommended for follow-up of patients with confirmed PCN? |
| 21. What is the optimal follow-up interval for PCN? |
Evidence retrieval
Systematic searches were performed in four English databases: PubMed, Cochrane Library, Embase, and Web of Science; and five Chinese databases: Wanfang Data, China National Knowledge Infrastructure, China Biology Medicine Disc, VIP, and Yimai Tong. International clinical guideline repositories searched included the National Guideline Clearinghouse, Scottish Intercollegiate Guidelines Network, WHO, and Guidelines International Network. Searches were limited to studies published before December 31, 2023, in English or Chinese. Reference lists of included studies were also screened.
Evidence screening and extraction
For the 21 imaging evaluation questions, four relevant guidelines and 72 other studies, including clinical trials, cohort studies, case-control studies, cross-sectional studies, case series, and case reports, were included to provide supporting evidence. After establishing inclusion and exclusion criteria, the working group and methodologists trained all members. Evidence was compiled and reviewed by the expert committee. Literature search and data extraction were independently conducted by two reviewers; discrepancies were resolved by discussion or third-party consultation.
Evidence quality assessment and grading
The GRADE approach was applied to grade the body of evidence and recommendations.4 Evidence quality was classified as high (A), moderate (B), low (C), or very low (D). Recommendations were categorized as strong or weak.
Formation of guideline recommendations
The working group synthesized domestic and international evidence, selected key issues and terminology for imaging reports, and graded evidence and recommendations to develop the first questionnaire. Using the Delphi method, a panel of 56 experts comprising specialists in radiology (n = 28), gastroenterology (n = 12), pancreatic surgery (n = 8), pathology (n = 5), and evidence-based medicine (n = 3) completed a 5-point Likert scale survey (strongly agree, mostly agree, partially agree, mostly disagree, strongly disagree). Items with ≥75% of experts responding “strongly agree” or “mostly agree” were accepted as appropriate clinical practice guideline statements. A total of 21 recommendations with supporting rationales were formulated.
External review
Following consensus on recommendations, a draft guideline was prepared and submitted to an external review panel comprising radiology and clinical experts as well as guideline methodologists for evaluation.
Funding sources and role
Funding was primarily provided by the National Natural Science Foundation of China, Shanghai Science and Technology Commission Innovation Action Plan, and Shanghai Shenkang Clinical Research Project, covering research expenses, materials, and project management.
Recommendations
This guideline focuses primarily on IPMN and MCN, with ICD-11 code D37.703. Following evidence-based methodology, 21 recommendations were finalized.
What is the preferred imaging modality for patients with suspected PCN?
Recommendation 1: MRI is the preferred imaging modality for diagnosing PCN.
Evidence quality: High; Recommendation strength: Strong
MRI T2-weighted imaging (T2WI) is highly sensitive to fluid components, resulting in a PCN detection rate of approximately 20–44% on abdominal MRI,10,11 whereas abdominal CT detects only about 3%.12 A large prospective European study reported MRI detection rates as high as 49.1%.13 Additionally, three-dimensional magnetic resonance cholangiopancreatography (MRCP) is the optimal sequence for assessing the relationship between PCN and the pancreatic duct, aiding differentiation of IPMN from other PCN types. A 2021 meta-analysis found no statistically significant difference in sensitivity or specificity between MRI and CT for distinguishing benign from malignant PCN.14 However, CT remains appropriate as the initial imaging modality in specific clinical scenarios: (1) acute presentations with suspected complications such as hemorrhage, perforation, or pancreatitis, where CT’s speed and availability are advantageous; (2) patients with MRI contraindications, including pacemakers, certain implants, or severe claustrophobia; (3) initial detection of incidental pancreatic lesions during CT performed for other indications; and (4) resource-limited settings where MRI access is restricted.
At which phase or sequence should PCN size be measured?
Recommendation 2: PCN size should be measured on contrast-enhanced CT during the pancreatic parenchymal phase and on MRI T2WI sequences.
Evidence quality: Low; Recommendation strength: Weak
On CT, the pancreatic parenchymal phase demonstrates homogeneous enhancement of normal pancreatic tissue, while PCN cystic fluid remains unenhanced, providing optimal contrast to delineate tumor margins (Fig. 2a).15 On MRI, T2WI is highly sensitive to cystic components, with PCN cyst fluid exhibiting high signal intensity against the background of normal pancreatic parenchyma, allowing clear tumor boundary visualization (Fig. 2b). Furthermore, Dunn et al.16 demonstrated that measuring PCN size on coronal T2WI improves interobserver agreement.17

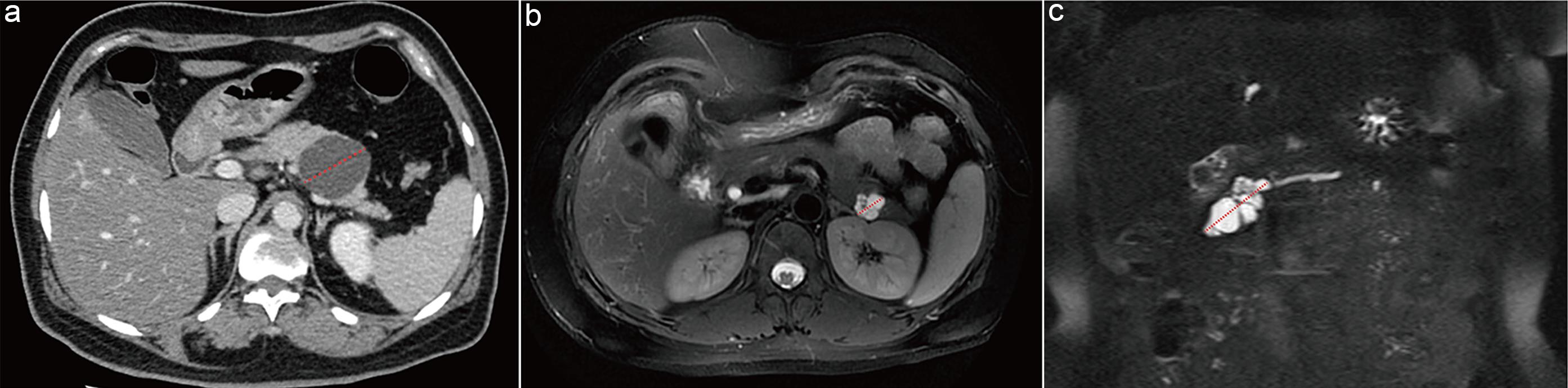

How should PCN size be measured?
Recommendation 3: The maximum tumor diameter should be measured on the image showing the largest cross-sectional area of the lesion.
Evidence quality: Moderate; Recommendation strength: Strong
According to the Response Evaluation Criteria in Solid Tumors (RECIST) and the structured pancreatic cancer reporting template proposed by Al-Hawary et al.,18,19 tumor size measurement is recommended at the largest diameter on the maximal cross-sectional plane of the tumor. However, there is currently no definitive evidence that RECIST accurately measures the size of cystic tumors. Measurement methods for solid tumors per RECIST can be referenced by measuring the maximal diameter of the largest tumor cross-section during the pancreatic parenchymal phase of contrast-enhanced imaging or on T2WI. It should be noted that IPMNs often present as clustered or grape-like cystic lesions, making it difficult to separate individual cysts. In such cases, the clustered lesion should be considered as a single lesion, and the maximal diameter measured from outer wall to outer wall on the largest cross-sectional plane (Fig. 2c).19 If multiple tumor foci are present, the size of each lesion should be reported.
What is the clinical significance of PCN size assessment?
Recommendation 4: Tumor size ≥4 cm is a high-risk feature for MCN malignancy and constitutes an absolute indication for surgery; tumor size ≥3 cm is a worrisome feature for branch duct IPMN malignancy and a relative indication for surgery.
Evidence quality: High; Recommendation strength: Strong
Tumor size is closely related to the benign or malignant nature of PCNs and surgical indication assessment. A systematic retrospective study (2016) indicated that tumors ≥4 cm represent a high-risk sign for MCN malignancy and recommended surgical resection with lymphadenectomy11; the 2018 European evidence-based guidelines on pancreatic cystic neoplasms (hereinafter referred to as the 2018 European Guidelines) define tumor size ≥4 cm as an absolute surgical indication for MCN.3 Another retrospective analysis of 344 MCN cases showed that when tumor size was <4 cm without other worrisome features, the malignancy probability was only 0.03%. The different size thresholds between MCN (≥4 cm) and BD-IPMN (≥3 cm) reflect distinct biological behaviors: MCN is typically a solitary mucinous tumor where larger size strongly correlates with invasive malignancy, whereas BD-IPMN represents a field defect with potential multifocal involvement, where the 3 cm threshold serves as a “worrisome feature” triggering enhanced surveillance or enhanced endoscopic ultrasound (EUS) evaluation rather than immediate surgery.20
The 2017 Revisions of international consensus Fukuoka guidelines for the management of IPMN of the pancreas (hereinafter referred to as 2017 Revised International Fukuoka Consensus Guidelines) and International evidence-based Kyoto guidelines for the management of intraductal papillary mucinous neoplasm of the pancreas define tumor size ≥3 cm as a worrisome feature for IPMN malignancy.21,22 A meta-analysis of 27 studies on branch duct IPMN ≥3 cm predicting malignancy reported an area under the curve (AUC) of 0.63 (95% CI 0.58–0.67), sensitivity 57%, and specificity 62%.23

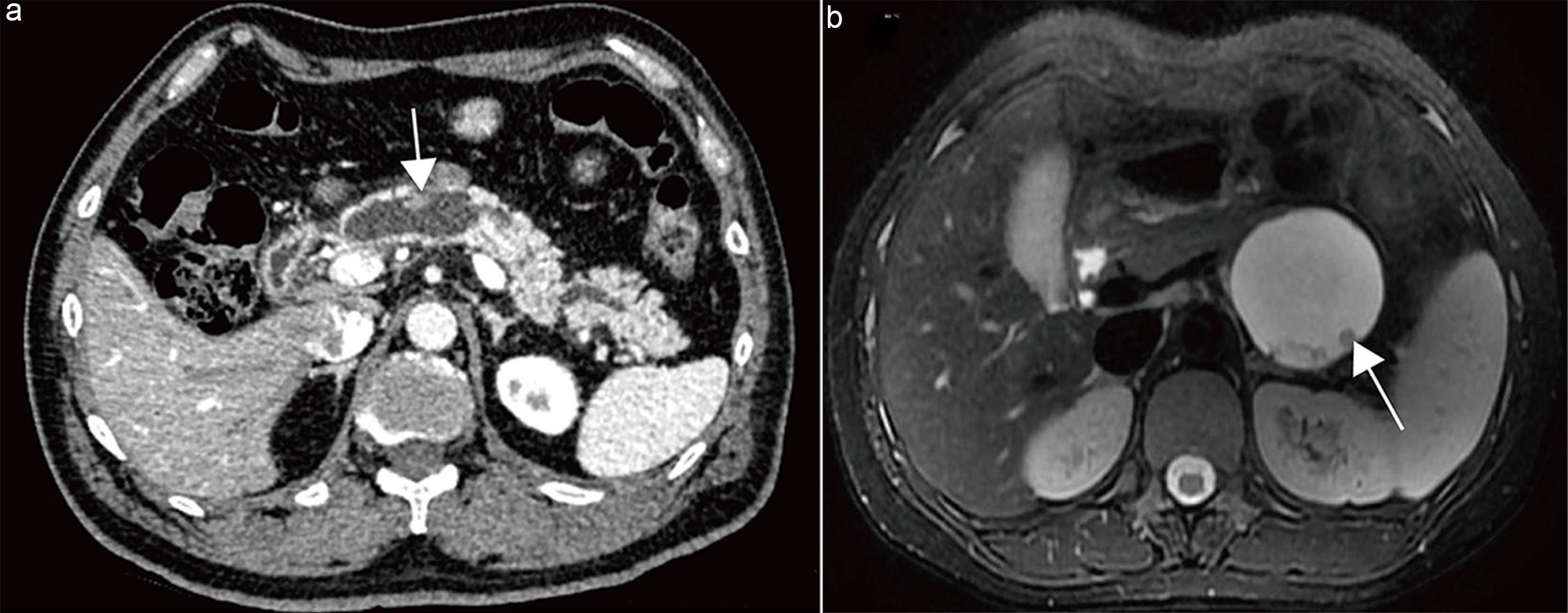

At which phase or sequence should mural nodules be observed and measured?
Recommendation 5: Measurement of enhancing mural nodules is recommended during the pancreatic parenchymal phase of contrast-enhanced CT and MRI; measurement of non-enhancing mural nodules is suggested on T2WI.
Evidence quality: Low; Recommendation strength: Weak
Wall nodules are defined as papillary projections ≥3 mm on the main pancreatic duct wall or cyst wall, associated with malignant tumors (carcinoma in situ or invasive carcinoma).24 For enhancing mural nodules, the pancreatic parenchymal phase of contrast-enhanced imaging provides optimal contrast between normal pancreatic parenchyma and cyst fluid, allowing clear visualization of the cyst wall structure (Fig. 3a). Non-enhancing mural nodules are difficult to visualize on post-contrast images but appear as filling defects on T2WI, where the high signal intensity of cyst fluid provides optimal contrast to delineate the nodule boundaries (Fig. 3b).17
Currently, there is no definitive evidence indicating whether measurement on enhanced images or T2WI is more accurate. In cases of multiple mural nodules, the largest nodule size should be measured. It is important to differentiate mural nodules from mucin balls, which are more common and lack vascular components; mucin balls do not enhance post-contrast and require assessment across multiple sequences to confirm the diagnosis. Fujita et al.25 found that contrast-EUS is superior to CT and MRI in differentiating mucin balls from mural nodules, with detection rates of 100%, 85.7%, and 71.4%, respectively.
What is the clinical significance of assessing enhancing mural nodules?
Recommendation 6: Enhancing mural nodules ≥5 mm should be considered a high-risk feature for malignancy in PCNs, whereas those <5 mm should be considered a worrisome feature.
Evidence Quality: High; Recommendation Strength: Strong
The size of enhancing mural nodules is closely related to PCN malignancy and surgical indication assessment. Both the 2017 Revised International Fukuoka Consensus Guidelines and the 2018 European Guidelines define enhancing mural nodules ≥5 mm as a high-risk feature for IPMN malignancy and enhancing mural nodules <5 mm as a worrisome feature.3,21 Lee et al.26 further confirmed the strong association between enhancing mural nodules ≥5 mm and IPMN malignancy. The 2018 European Guidelines consider any enhancing mural nodule, regardless of size, as an absolute surgical indication for MCN. Multiple studies have demonstrated that enhancing mural nodules are independent risk factors for malignant MCN.27–29

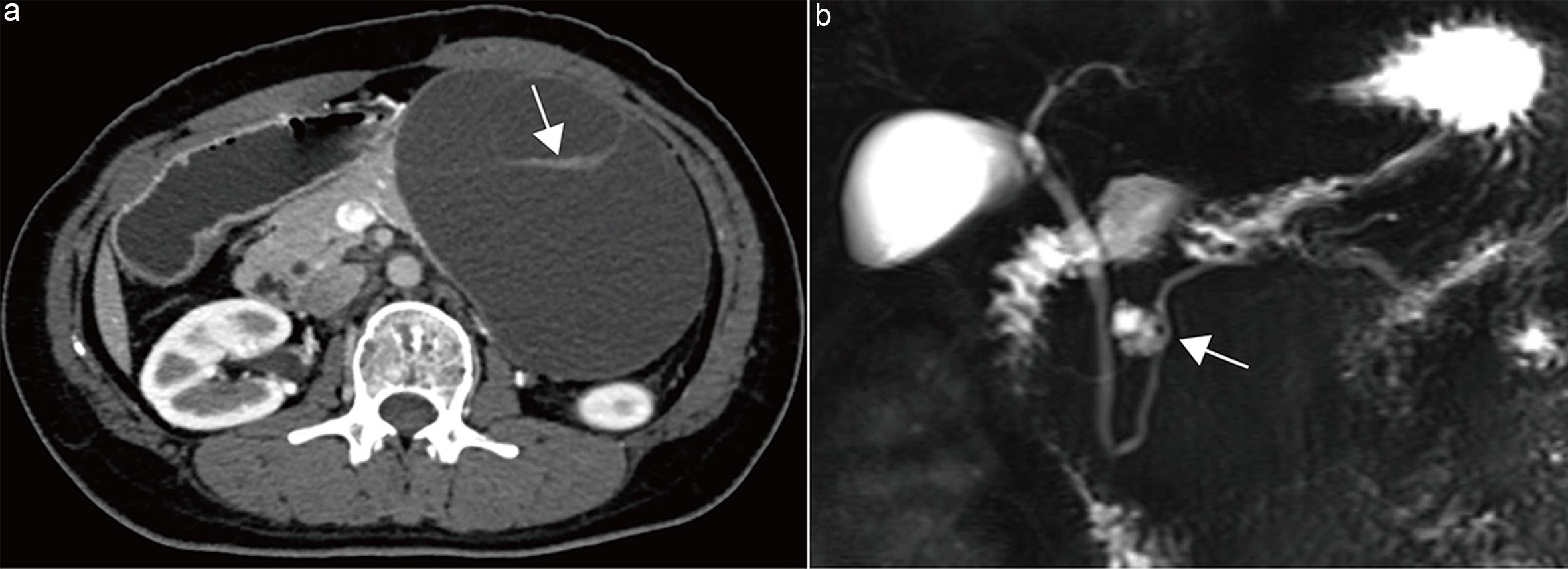

How is thickening of the cyst wall and intracystic septa defined?
Recommendation 7: Cyst wall or intracystic septa thickness >2 mm is defined as thickening.
Evidence quality: High; Recommendation strength: Strong
Cyst wall thickening may be segmental or diffuse, smooth or irregular. Choi et al.30 demonstrated a significant correlation between cyst wall thickening and malignancy. A meta-analysis showed that cyst wall and intracystic septa thickening are worrisome features of branch-duct IPMN, with a pooled sensitivity of 60% (OR = 2.3, 95% CI 0.9–5.5).22
Previous studies have variably defined cyst wall or septal thickening as >2 mm or >3 mm.31,32 Due to inconsistent measurement methods among radiologists, interobserver agreement is poor.33,34 Therefore, this guideline adopts the evaluation standard from renal cystic tumors35: cyst wall or septal thickness >2 mm is considered thickened (Fig. 4a).
Which sequence is optimal for evaluating the relationship between the cystic lesion and the main pancreatic duct?
Recommendation 8: MRI T2WI and MRCP sequences are recommended to evaluate the relationship between cystic tumors and the main pancreatic duct.
Evidence quality: Low; Recommendation strength: Weak
All PCNs require assessment of their relationship with the main pancreatic duct, specifically to determine whether the cystic tumor communicates with the main duct. This is particularly important for differentiating branch duct IPMN from SCN and MCN. Demonstration of communication strongly suggests branch duct IPMN. Kim et al.36 compared MRI and EUS for PCN diagnosis; MRI using T2WI and MRCP showed 100% sensitivity and 90.5% accuracy for detecting communication with the main duct, whereas EUS had 88.9% sensitivity and 85.7% accuracy. Another study found comparable diagnostic performance between MRI and EUS for this purpose (AUC 0.931 vs. 0.930).37
Because cyst fluid and pancreatic juice in the main duct both appear hyperintense on T2WI and MRCP, these sequences facilitate visualization of their relationship (Fig. 4b).

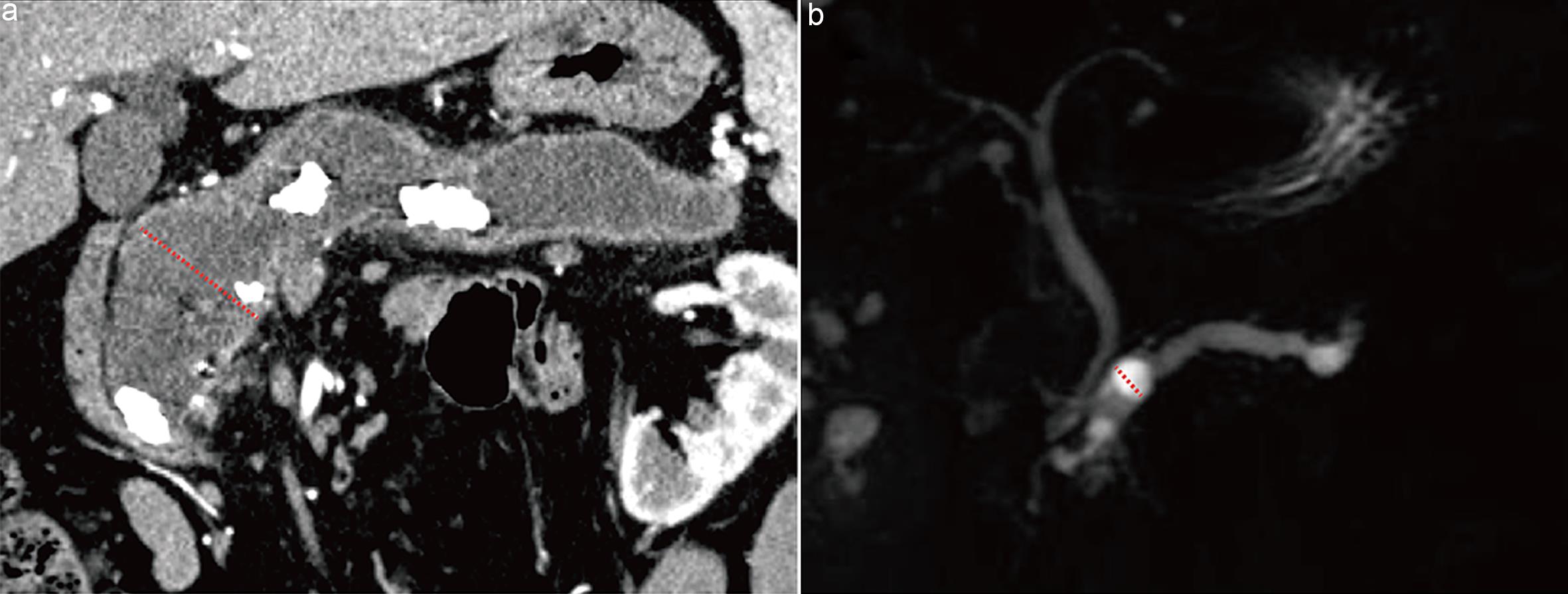

How should the main pancreatic duct diameter be measured?
Recommendation 9: The maximal diameter of the main pancreatic duct should be measured on the optimal plane perpendicular to the long axis of the duct on MRCP, T2WI, or contrast-enhanced CT during the pancreatic parenchymal phase or portal venous phase.
Evidence quality: Low; Recommendation strength: Weak
MRI or MRCP is equivalent or slightly superior to CT in detecting pancreatic ductal changes,38 but CT remains the first-line modality for pancreatic lesions due to its wide availability. Some studies suggest that curved planar reconstruction of the pancreatic duct on CT can rival MRCP in diagnostic performance.39
Currently, there is no consensus on the measurement method for the main pancreatic duct. Based on existing literature,40–42 this guideline recommends measuring the maximal duct diameter on MRCP, T2WI, or contrast-enhanced CT during the pancreatic parenchymal or portal venous phase, selecting the plane perpendicular to the duct’s long axis (Fig. 5).
How is main pancreatic duct dilation defined?
Recommendation 10: Main pancreatic duct dilation is defined as an internal diameter >3 mm.
Evidence quality: Low; Recommendation strength: Weak
A normal main pancreatic duct diameter is ≤3 mm; >3 mm is defined as dilated.17 Some studies define dilation as ≥3 mm in the pancreatic head, ≥2 mm in the body, and ≥1 mm in the tail.43,44 The 2018 Guidelines for the Diagnostic Cross Sectional Imaging and Severity Scoring of Chronic Pancreatitis also recommend >3 mm (MRI and CT) as dilation.45
A recent population-based cross-sectional study published in Gut found that using traditional reference values on MRCP led to up to 18.2% of healthy volunteers being diagnosed with duct dilation,42 resulting in unnecessary further evaluation. The study proposed new age-adjusted upper limits for asymptomatic individuals with normal liver function and lipase levels: 3 mm for those <65 years old, and 4 mm for those ≥65 years old. However, whether to update the conventional reference remains controversial, with no consensus to date. Most CT and MRI studies continue to use >3 mm as the threshold for duct dilation.19,46
What is the clinical significance of main pancreatic duct dilation assessment?
Recommendation 11: Main pancreatic duct diameter ≥10 mm indicates a high-risk feature for IPMN malignancy.
Evidence quality: High; Recommendation strength: Strong
The degree of main pancreatic duct dilation is closely related to PCN malignancy and surgical indication assessment. International guidelines define a duct diameter ≥10 mm as a high-risk feature for IPMN malignancy and an absolute indication for surgery3,22,42; diameters between 5 and 10 mm are considered worrisome features and relative surgical indications.
A 2022 meta-analysis reported that a duct diameter ≥10 mm predicted IPMN malignancy with an AUC of 0.95 (95% CI 0.92–0.96), sensitivity 14%, and specificity 98%; a diameter between 5 and 10 mm had an AUC of 0.67 (95% CI 0.63–0.71), sensitivity 59%, and specificity 75%.23
Is evaluation of the morphology of the main pancreatic duct obstruction point necessary?
Recommendation 12: Morphological assessment of the main pancreatic duct obstruction point is necessary.
Evidence quality: High; Recommendation strength: Strong
Morphologies of main pancreatic duct obstruction include stricture and abrupt cutoff; abrupt cutoff is particularly indicative of malignancy. Lim et al.47 developed a predictive model combining four factors—abrupt cutoff of the pancreatic head/neck duct, contour changes at the cutoff, associated acute pancreatitis, and elevated CA19-9—to differentiate malignant lesions in patients with duct dilation; the model achieved an AUC of 0.84 (95% CI 0.77–0.90).
A 2022 meta-analysis including nine studies found that duct stricture and the “duct-penetrating sign” are important imaging features distinguishing autoimmune pancreatitis from pancreatic ductal adenocarcinoma, while duct cutoff had the highest sensitivity (87%) for pancreatic ductal adenocarcinoma.48
In a meta-analysis of imaging predictors for branch duct IPMN malignancy, including six studies assessing duct cutoff, the AUC was 0.67 (95% CI 0.62–0.71), sensitivity 20%, and specificity 92%.23
The 2017 Revised International Fukuoka Consensus Guidelines list abrupt duct cutoff with upstream pancreatic atrophy as a worrisome feature for IPMN malignancy.21
Therefore, this guideline recommends that imaging reports explicitly state whether main pancreatic duct obstruction is present; if so, the location and morphology (stricture versus cutoff) should be clearly described (Fig. 6).

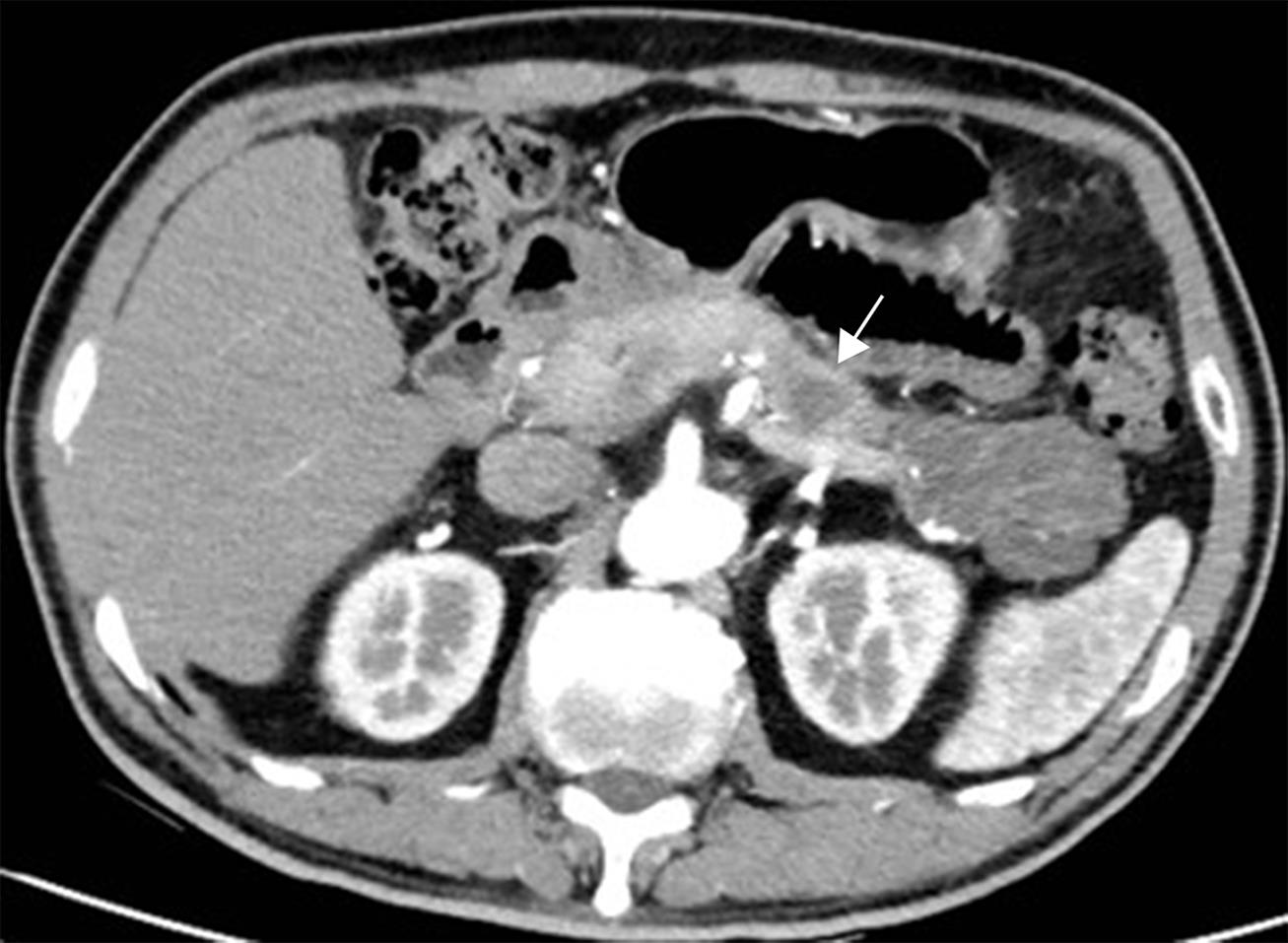

How should IPMN be classified on imaging?
Recommendation 13: IPMN is classified into three types: main duct type, branch duct type, and mixed duct type.
Evidence quality: High; Recommendation strength: Strong
The 2017 Revised International Fukuoka Consensus Guidelines provide clear imaging criteria for IPMN classification21: main duct type is defined by segmental or diffuse dilation of the main pancreatic duct with diameter >5 mm and no branch duct dilation; branch duct type is defined by cystic dilation of branch ducts >5 mm communicating with the main duct, with main duct diameter ≤5 mm; if the main duct diameter exceeds 5 mm, the lesion should be classified as mixed duct type.
How should SCN be classified and diagnosed on imaging?
Recommendation 14: SCN is divided into serous cystadenoma (SCA) and the rare serous cystadenocarcinoma (SCC). SCA is further classified into five subtypes: microcystic, macrocystic, solid, von Hippel–Lindau-associated, and serous–neuroendocrine tumor mixed type.
Evidence quality: High; Recommendation strength: Strong
The 2019 WHO classification of pancreatic tumors categorizes SCN into SCA and SCC.49 The microcystic subtype is the most common SCA type, composed of six or more small cysts arranged in a lobulated honeycomb pattern separated by fibrous septa converging centrally into a fibrous scar with a characteristic radiating pattern; 30–40% of microcystic SCAs show central scar calcification, the most typical imaging feature.2
Macrocystic SCA consists of a single cyst or six or fewer cysts, round or lobulated, with thin walls but lacking the central scar and calcification, making differentiation from MCN challenging. Fang et al.50 developed a diagnostic model combining T2WI radiomics, clinical, and conventional imaging features to differentiate macrocystic SCA from MCN, achieving an AUC of 0.86 (95% CI 0.75–0.96), sensitivity 91.67%, and specificity 78.95% in the validation cohort.
Solid SCA lacks cystic appearance and resembles a water-saturated sponge; due to tightly packed cells and dense fibrous septa, it appears as a solid mass on imaging, often misdiagnosed as pancreatic neuroendocrine tumor (PNET). Park et al.51 reported that markedly high T2WI signal and absence of diffusion restriction on diffusion-weighted imaging are characteristic of solid SCA, aiding differentiation from PNET. Fang et al.52 noted that solid SCA shows low density on non-contrast CT and a “fast-in, fast-out” enhancement pattern, important for distinguishing from PNET.
Approximately 12% of patients with von Hippel–Lindau syndrome develop SCA, mostly microcystic, with imaging features similar to sporadic microcystic SCA and multiple simple pancreatic cysts present.53
Serous–neuroendocrine tumor mixed type SCN is defined by the coexistence of SCA and neuroendocrine tumor within the pancreas; about 33.3% (5/15) of these cases show multifocal SCA.54
SCC is defined by the presence of synchronous or metachronous distant metastases; it is extremely rare, accounting for less than 0.2% of all SCN,52 with fewer than 40 cases reported worldwide.55
A European multicenter study including 2,622 SCN patients found that approximately 11% had main pancreatic duct dilation.56
Notably, SCN with main duct dilation is often misdiagnosed as IPMN because the dilated main duct adjacent to SCN is difficult to distinguish from true communication. One study found that in SCN patients with duct dilation,57 the downstream main duct was not dilated, whereas in IPMN, mucin secretion causes slow pancreatic juice drainage and accumulation, leading to downstream duct dilation, especially in main duct or mixed duct type IPMN located in the pancreatic body and tail. This feature can help differentiate SCN from IPMN.
Is assessment of calcification necessary?
Recommendation 15: Calcification should be assessed.
Evidence quality: Low; Recommendation strength: Weak
Calcification is common in PCNs, with distinct imaging characteristics depending on the lesion type.58
Intestinal-type IPMN malignant transformation to colloid carcinoma often contains extremely viscous gelatinous mucin, prone to sand-like calcifications.59
MCN calcifications are mostly located in the cyst wall and septa, appearing as lamellar or eggshell-like calcifications. Procacci et al.60 identified calcification as an independent predictor of MCN malignancy (OR = 13.62, 95% CI 2.22–83.56).
SCN calcifications mainly occur in microcystic types, presenting as central spherical fibrous scar calcifications with radiating fibrous septa converging centrally, forming a characteristic radiating pattern.61
SPN may show calcifications due to internal hemorrhage and necrosis with poor absorption of calcium salts.58
CT is the optimal imaging modality for calcification assessment. Non-contrast CT is most accurate for differentiating calcifications from vascular or other enhancing structures, with calcifications appearing as high-density areas (CT value ≥ 100 Hounsfield units).
Is assessment of hemorrhage necessary?
Recommendation 16: Hemorrhage should be assessed.
Evidence quality: Low; Recommendation strength: Weak
Hemorrhage is a useful imaging feature for diagnosis and differential diagnosis of PCNs. It is most common in SPN and is a major diagnostic criterion. SPN consists mainly of tumor cells and abundant stromal vessels; tumor cells form pseudopapillary structures around vessels, and when tumor cells detach, vessels rupture due to lack of support, causing hemorrhage.61
SCN cyst fluid is typically clear serous fluid, but hemorrhage can occur rarely62; one case report described SCN hemorrhage post-renal transplantation, possibly related to immunosuppressants, organ congestion, and azathioprine-induced pancreatitis.63
MRI is the best modality for hemorrhage assessment, with characteristic high signal intensity on T1-weighted imaging.
What are the imaging criteria for suspicious lymph nodes?
Recommendation 17: Lymph nodes with short-axis diameter >10 mm, heterogeneous density/signal, heterogeneous enhancement, internal necrosis, confluence, indistinct margins, and diffusion restriction on MRI, especially when multiple features coexist, strongly suggest lymph node metastasis.
Evidence quality: Low; Recommendation strength: Weak
The 2017 Revised International Fukuoka Consensus Guidelines list enlarged lymph nodes as a worrisome feature for IPMN malignancy but do not specify imaging criteria for lymph node assessment.21
Lee et al.26 used a short axis >5 mm as the imaging criterion for enlarged lymph nodes and found an association with IPMN malignancy (CT: OR = 7; MRI: OR = 6.1).
Fang et al.64 used a short axis >10 mm as the criterion and identified enlarged lymph nodes as an independent predictor of IPMN malignancy (OR = 9.69, 95% CI 0.94–99.15).
In pancreatic cancer studies, lymph nodes exhibiting a short axis >10 mm combined with heterogeneous density/signal, heterogeneous enhancement, internal necrosis, confluence, indistinct margins, and MRI diffusion restriction strongly indicate metastasis.65–67
Therefore, this guideline does not recommend relying solely on lymph node size as a worrisome feature for IPMN malignancy.
Is evaluation of acute pancreatitis necessary?
Recommendation 18: Acute pancreatitis should be assessed.
Evidence quality: High; Recommendation strength: Strong
Both the 2017 Revised International Fukuoka Consensus Guidelines and the 2018 European Guidelines consider acute pancreatitis a worrisome feature for IPMN malignancy and a relative surgical indication.3,21
The 2018 European Guidelines also list acute pancreatitis as an absolute surgical indication for MCN; if SCN causes pancreatic duct obstruction leading to secondary acute pancreatitis, surgical resection is recommended.3
The reported incidence of acute pancreatitis in IPMN patients ranges from 13% to 35%, though these data are based on surgically resected cases and may be overestimated.68–70
Secondary acute pancreatitis is mainly attributed to mucin-producing IPMN involving the main duct, where mucin obstructs the duct, impairing pancreatic juice drainage and triggering pancreatitis.
Lee et al.26 found that 42.8% of patients with malignant IPMN had a history of acute pancreatitis, significantly higher than 17.2% in non-malignant cases.
How should PCN be differentiated from a pancreatic pseudocyst or retention cyst?
Recommendation 19: Differentiation between PCN and pancreatic pseudocyst or retention cyst primarily relies on patient history; pseudocysts are secondary to pancreatitis, while retention cysts result from downstream pancreatic duct obstruction.
Evidence quality: Low; Recommendation strength: Weak
Pancreatic pseudocysts and retention cysts are both classified as non-neoplastic cystic pancreatic lesions. Among these, pseudocysts represent the most common non-neoplastic cystic pancreatic lesion, accounting for approximately one-third of all pancreatic cystic lesions.71 Pseudocysts are not true cysts; their walls are formed by inflammatory organization and are lined by fibrous tissue, reactive granulomas rich in macrophages, and necrotic debris.72 However, in clinical practice, except for some lesions with characteristic imaging features, a substantial proportion of pancreatic cystic lesions exhibit overlapping imaging appearances, which is a major cause of misdiagnosis. Pseudocysts often develop secondary to acute or chronic pancreatitis; thus, a history of pancreatitis is a prerequisite for the imaging diagnosis of pseudocysts. The proportion of PCN patients complicated by pancreatitis is relatively small: only about one-third of IPMNs and 10% of MCNs may be accompanied by mild pancreatitis, and a minority of other PCN types may develop pancreatitis when the tumor volume is large enough to compress the pancreatic duct.71 Imaging features characteristic of pseudocysts include thick cyst walls, intraluminal necrotic debris deposition, and hemorrhage. The cyst fluid typically shows high signal intensity on T1-weighted imaging or fluid-fluid levels, resembling the imaging appearance of SPNs. However, pseudocysts occur without gender predilection and can present at any age, whereas SPNs predominantly affect young females, which can serve as a differential point.73 Literature reports that approximately 65% of pseudocysts communicate with the pancreatic duct,71,74 similar to the imaging features of branch duct-type IPMN; however, branch duct-type IPMNs usually demonstrate relatively homogeneous cyst fluid signal or density, rarely showing necrotic debris or hemorrhage. Additionally, the size of pseudocysts may fluctuate in the short term in accordance with the course of pancreatitis, whereas branch duct-type IPMN lesions tend to remain stable in size over short intervals.
Retention cysts are true cysts lined by epithelial cells and can be simply understood as localized dilations of the main or branch pancreatic ducts caused by downstream ductal obstruction, resulting in impaired outflow of pancreatic secretions. Most retention cysts measure 0.5–1.0 cm in diameter75; therefore, downstream ductal obstruction is a prerequisite for the imaging diagnosis of retention cysts. Retention cysts communicate with the pancreatic duct, resembling the imaging features of branch duct-type IPMN; however, retention cysts have smooth cyst walls without mural nodules or solid components.
Which imaging modality is recommended for follow-up of patients with confirmed PCN?
Recommendation 20: MRI combined with MRCP is recommended as the first-line imaging modality for follow-up of PCN patients.
Evidence quality: High; Recommendation strength: Strong
The 2017 Revised International Fukuoka Consensus Guidelines recommend CT or MRI combined with MRCP for follow-up of cysts ≤20 mm; for cysts 20–30 mm, EUS is preferred, alternating with MRI.21 The 2018 European Guidelines recommend EUS or MRI for follow-up of IPMN and MCN ≤40 mm.3 The 2020 ACR Appropriateness Criteria® Pancreatic Cyst recommend CT or MRI combined with MRCP for surveillance.76 Although EUS can clearly depict internal details of PCN such as mural nodules in IPMN and intracystic septations in SCN and MCN, it is more operator-dependent.77 Most studies demonstrate comparable diagnostic performance between MRI and CT in assessing high-risk features of PCN.78–81 MRI, without ionizing radiation, combined with MRCP can clearly visualize the pancreatic duct, enhancing mural nodules, and intracystic septations. Therefore, this guideline recommends MRI combined with MRCP as the preferred imaging modality for PCN follow-up.
What is the optimal follow-up interval for PCN?
Recommendation 21: For PCN patients with cysts ≤10 mm, follow-up is recommended every 2 years; for cysts 10–20 mm, annually; and for cysts 20–30 mm, every 6–12 months.
Evidence quality: Low; Recommendation strength: Weak
Currently, follow-up intervals for PCN without high-risk features vary among guidelines. The 2017 Revised International Fukuoka Consensus Guidelines suggest for IPMN ≤10 mm a first follow-up at 6 months, then every 2 years if stable; for cysts 10–20 mm, every 6 months in the first year, annually for the next 2 years, then every 2 years thereafter; and for cysts 20–30 mm, every 3–6 months.21 The 2018 European Guidelines recommend for IPMN and MCN ≤40 mm follow-up every 6 months in the first year, then annually.3 The Chinese guidelines for the diagnosis and treatment of pancreatic cystic neoplasm (2022) (in Chinese) (hereinafter referred to as 2022 Chinese guidelines) and Optimal Surveillance Interval of Branch Duct Intraductal Papillary Mucinous Neoplasm of the Pancreas recommend follow-up every 2 years for cysts ≤10 mm, annually for cysts 10–20 mm, and every 6–12 months for cysts 20–30 mm.82,83 This guideline endorses the follow-up intervals as per the 2022 Chinese guidelines; however, optimal follow-up intervals require further validation by large prospective studies.
