Introduction
Liver cirrhosis (LC) is a progressive disease caused by long-term exposure to harmful substances, including viral infections, alcohol, and metabolic disorders, leading to extensive liver damage and approximately two million deaths worldwide each year.1–3 Acute-on-chronic liver failure (ACLF) is a critical clinical syndrome that occurs in patients with underlying chronic liver disease. It is characterized by abrupt and severe liver dysfunction, often triggered by various acute factors such as infections and substance abuse.4–6 Due to its high mortality rate, this syndrome is particularly concerning, with approximately 32.8% of patients dying within 28 days and 51.2% within 90 days.7–9 Differences in the definition of ACLF among various academic organizations have contributed to the complexity of effective clinical management,10–12 highlighting the need for a unified framework.13,14
LC remains a significant risk factor for the onset of ACLF, which can occur at any stage of cirrhosis.15–17 The intersection of LC and ACLF is characterized by shared clinical features and common precipitating factors. Viral infections, inflammatory responses, and metabolic disorders play crucial roles in both diseases.18 The pathophysiological mechanisms of LC primarily involve activation of hepatic stellate cells, deposition of extracellular matrix, inflammatory responses, and oxidative stress. The TGF-β/Smad signaling pathway plays a crucial role in the process of liver fibrosis. Recent research has found that cathepsin S, derived from splenic macrophages, is an important molecule in early liver fibrosis. Studies have demonstrated that cathepsin S degrades collagen 18A1 to produce endostatin,19 which directly activates hepatic stellate cells via integrin α5β1, triggering liver fibrosis and exacerbating the hepatic-splenic axis circulation, thereby promoting liver fibrosis progression. Another study explored the genetic architecture of cirrhosis by integrating analyses of both common and rare genetic variations, revealing significant genetic factors that influence the development of cirrhosis. This study identified 12 genomic variations in patients with cirrhosis.20
Apoptosis and necrosis of liver cells are critical to the pathogenesis of ACLF. The dysregulation of inflammatory responses, abnormal immune system activation, disruption of cellular metabolism, imbalance in coagulation and fibrinolysis systems, increased oxidative stress, and abnormal epigenetic regulation—such as DNA methylation, histone modification, and dysregulation of non-coding RNAs—also contribute to the progressive deterioration of liver function in ACLF. A prospective cohort study conducted in Latin America examined the relationship between genetic ancestry and ACLF and found that, after adjusting for sociodemographic factors and clinical characteristics, Native American ancestry increased the incidence of ACLF.20 Liang Peng et al. identified that the Ser267Phe mutation in the NTCP gene significantly reduces the susceptibility of chronic HBV-infected individuals to ACLF (OR = 0.48, p = 0.007).21 MicroRNAs (miRNAs), small endogenous non-coding RNA molecules, regulate gene silencing and translation inhibition by binding to specific sequences in target messenger RNAs (mRNAs). These miRNAs influence cell survival, proliferation, apoptosis, and inflammatory responses, participating in the occurrence and development of diseases.22 Numerous studies indicate that miRNAs are involved in the regulation of immunity and inflammation,23 both of which play important roles in the development of ACLF. Therefore, regulating miRNA expression may provide a promising therapeutic strategy for liver failure treatment.24
The molecular mechanisms underlying LC and ACLF are multifaceted, involving inflammation, cell death, metabolic disorders, fibrosis, epigenetic changes, and microcirculatory disturbances. A comprehensive understanding of these mechanisms is vital for developing new treatment strategies and preventive measures. However, the complex molecular processes driving the progression from LC to ACLF are not fully understood. In-depth research into the co-pathogenesis of LC and ACLF is essential, as it could reveal potential therapeutic targets and strategies to slow disease progression. To identify key genes involved in the development of LC and ACLF, we employed Weighted Gene Co-expression Network Analysis (WGCNA) to analyze transcriptome datasets related to ACLF and LC from the Gene Expression Omnibus Database. We examined the enrichment of these genes in key biological pathways, uncovering molecular interactions between these two liver diseases. Additionally, we revealed the regulatory role of miRNAs on these key genes. Our goal was to identify potential intervention targets by elucidating the common genetic characteristics and molecular mechanisms shared by patients with LC and ACLF.
Materials and methods
Dataset preparation and data processing
We used the keywords “cirrhosis” and “acute-on-chronic liver failure” to search the Gene Expression Omnibus Database (http://ncbi.nlm.nih.gov/geo ) for gene expression datasets related to LC and ACLF. We obtained gene expression profiles from the GSE142256 database (GPL17586), which includes 14 LC, 17 ACLF, and seven control samples. Similarly, we retrieved data from GSE139602 (GPL13667), comprising 20 LC, eight ACLF, and six healthy samples. Based on a phylogenetic tree analysis, we identified three samples with abnormal clustering results, exhibiting low similarity to similar data points and appearing to be mixed into other disease categories. This situation could affect the accuracy of subsequent research findings. Therefore, we decided to exclude the abnormal sample GSM4223798 from the ACLF group, while GSM4144550 and GSM4144566 were excluded from the control and LC groups, respectively. The screening process and its results are detailed in Figure S1a–d. The PERL programming language (version 5.32.1) was used to map probes to gene symbols based on the annotation files provided for the respective platforms.
Gene co-expression network analysis
To identify modules specifically associated with ACLF and LC, we employed WGCNA analysis (“WGCNA” package version: 1.70-3). First, about 5,000 genes were selected by picking those with the top 25% of variance values. To minimize outliers, we used robust median absolute deviation to capture genes in the first 75% of median absolute deviation values. Next, to eliminate abnormal samples, we applied the “hclust” function. Soft thresholding powers were determined using the “pickSoftThreshold” function, and values of 9 for ACLF and 8 for LC were chosen to satisfy the scale-free topology criterion. The component-wise minimum of the consensus topological overlap matrices was computed, and the topological overlap matrices were used to generate a hierarchical clustering dendrogram, which allowed for the identification of various modules (parameter settings: merge threshold = 0.25, network type = “unsigned”, min module size = 30, deep split = 2). In the final step, the module eigengene was applied to summarize the expression profiles of each module. Correlation analysis between the module eigengene and ACLF or LC was conducted, and modules with high correlation coefficients (Pearson correlation coefficient > 0.4 and p < 0.05) were selected. The “ggvenn” package was used to visualize overlaps between modules associated with ACLF and LC.
Selection and analysis of shared gene set and unique genes in ACLF and LC
Subsequently, we performed functional enrichment analysis using g: Profiler analysis (https://biit.cs.ut.ee/gprofiler/gost ), a conductor for functional enrichment analysis carrying pathways including KEGG, WikiPathways, and Reactome. The enrichment analysis was performed with the following options: organism as Homo sapiens, statistical domain scope covering all known genes, and a significance threshold based on the Benjamini-Hochberg FDR method with a threshold of 0.05. The “ClueGO” app in Cytoscape software (version 3.8.2) was used to visualize the relationship between functional enrichment pathways above, and the most significantly enriched functional regions were obtained by pie charts. To explore potential biological mechanisms, we constructed a protein-protein interaction (PPI) network using STRING, the functional protein association network (https://www.string-db.org ). To identify unique genes in ACLF and LC, the “MCODE” algorithm in Cytoscape software (node score cutoff = 0.2, haircut = true, fluff = false, K-core = 2, and max depth from seed = 100) was applied. Additionally, we used Gene Set Enrichment Analysis (GSEA, http://www.gsea-msigdb.org/gsea/index.jsp ) to gain further insight into biological pathways.
Verification using differentially expressed genes method for ACLF and LC
To verify the results, we used the “limma” package (version 3.54.2) to identify differentially expressed genes (DEGs) between the ACLF or LC groups and the healthy group in the validation cohort (cutoff values: |log2(fold change)| > 0.5, p < 0.05). To confirm whether the results from the validation group were consistent with those in the training group, functional enrichment analysis was performed for both overlapping DEGs and DEGs specific to ACLF and LC.
Common miRNAs in ACLF and LC
miRNAs are small non-coding RNAs approximately 22 bp in length, which play a critical regulatory role in cells. By binding to mRNA, miRNAs induce mRNA degradation or inhibit its translation. After searching the Human MicroRNA Disease Database (HMDD)(http://www.cuilab.cn/hmdd ), we identified literature-supported associations between miRNAs and ACLF as well as LC. We obtained the intersection of miRNAs related to ACLF and LC, which commonly regulate risk mRNAs in both conditions. Additionally, we performed functional enrichment analysis of the selected miRNAs using TAM 2.0.
Establishing the common miRNAs-target genes network
We obtained miRNA-target mRNAs from several databases: the HMDD database, miRTarbase database (https://mirtarbase.cuhk.edu.cn/ ), and ENCORI database (https://starbase.sysu.edu.cn/ ). We then took the intersection of target mRNAs of shared miRNAs and common genes in ACLF and LC to establish the miRNA-mRNA regulatory network using Cytoscape software.
Statistical analyses
All statistical analyses were performed using R software (version 4.1.1). A p-value < 0.05 was considered statistically significant, and all p-values were two-tailed.
Results
Dataset information
We paired 17 ACLF samples and seven controls from GSE142256 with 20 LC samples and six controls from GSE139602 to create the discovery set for the following WGCNA analysis. Additionally, we paired eight ACLF samples and six controls from GSE139602 with 14 LC samples and seven controls from GSE142256 to form the validation cohort for the subsequent DEG analysis. The flowchart of the data analysis is shown in Figure 1. Specific information about the research samples is presented in Table 1, and clinical data are provided in the supplementary materials.
Table 1Summary of sample information for ACLF and LC
| ID | GSE number | Platform | Samples | Disease | Group |
|---|
| 1 | GSE142256 | GPL17586 | 17 patients and 7 controls | ACLF | Discovery cohort |
| 2 | GSE139602 | GPL13667 | 20 patients and 6 controls | LC | Discovery cohort |
| 3 | GSE139602 | GPL13667 | 8 patients and 6 controls | ACLF | Validation cohort |
| 4 | GSE142256 | GPL17586 | 14 patients and 7 controls | LC | Validation cohort |
The co-expression modules in ACLF and LC from the training set

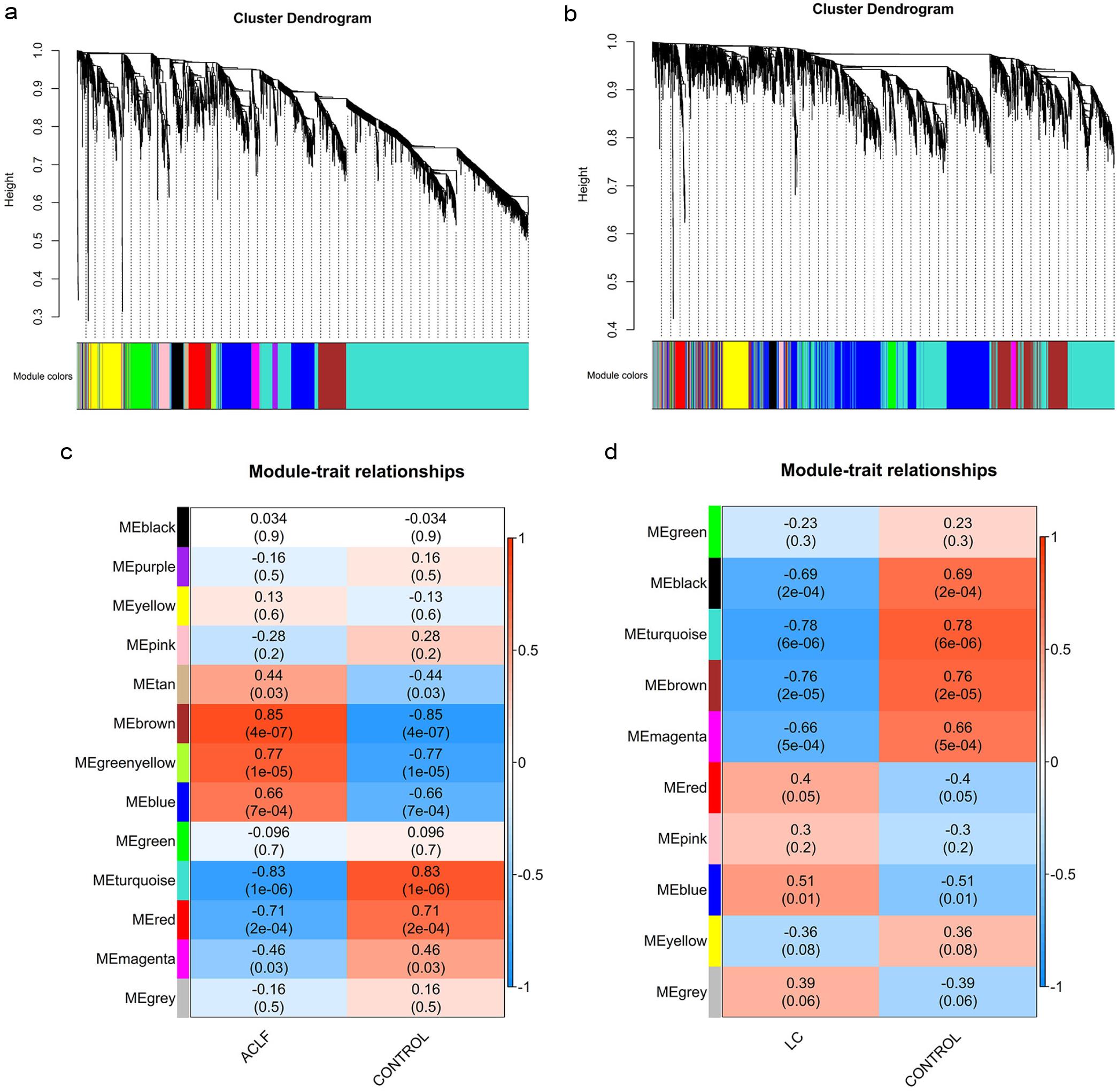

In the WGCNA analysis, the soft threshold β was set to 9 for ACLF and 8 for LC. A total of 13 modules were identified in ACLF, each represented by a different color (Fig. 2a). Similarly, consensus WGCNA identified 10 modules in LC (Fig. 2b). The “brown” (r = 0.85, p = 4e-07), “greenyellow” (r = 0.77, p = 1e-05), and “blue” (r = 0.66, p = 7e-04) modules were highly positively correlated with ACLF (Fig. 2c) and were selected as ACLF-related modules, including 274, 49, and 436 genes, respectively (Table S1). The “blue” module (r = 0.51, p = 0.01) (Fig. 2d) was the only module positively correlated with LC, including 1,084 genes (Table S1).
Shared gene signatures in ACLF and LC

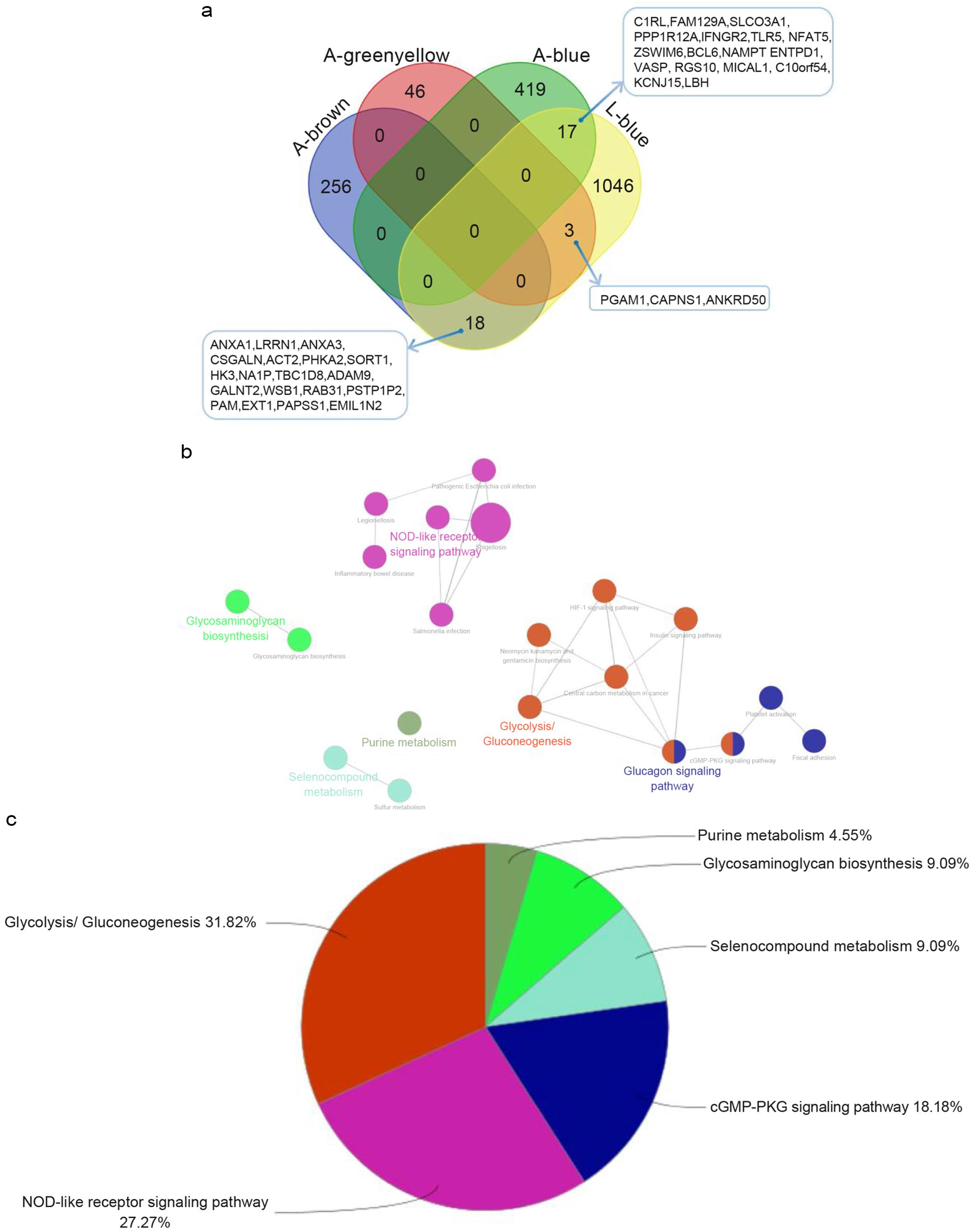

We identified the overlapping genes from the modules positively correlated with ACLF and LC, which were termed shared set 1 (SS1) (Fig. 3a). These positively correlated modules are associated with the pathogenesis of both ACLF and LC. By g: Profiler analysis, the main enriched terms of these genes are shown in Table S2. Using the preselected functions of the “ClueGO” app in Cytoscape software, we visualized the enrichment results in Figure 3b. The pie chart in Figure 3c shows that the top enriched functional region was glycolysis/gluconeogenesis, accounting for 31.82% of all functions. This suggests that glycolysis/gluconeogenesis-related pathways are essential in both ACLF and LC. Other enriched terms included the cGMP-PKG signaling pathway, glucagon signaling pathway, selenocompound metabolism, and NOD-like receptor signaling pathway.
Unique genes in ACLF and LC

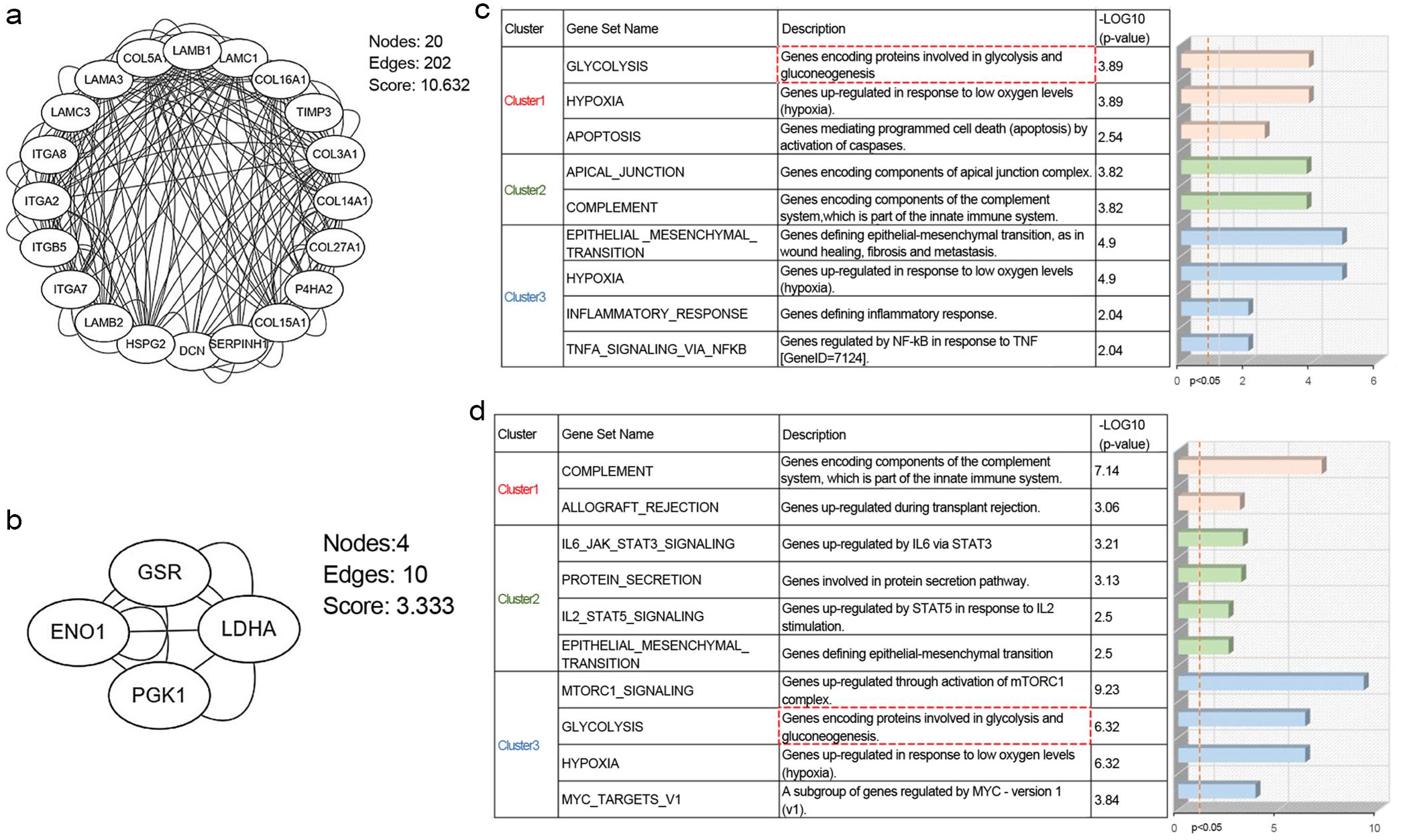

The blue module was the only module strongly positively correlated with LC. We constructed a PPI network using STRING and performed “MCODE” analysis. We selected the top three clusters with the highest clustering scores. Cluster 1 included 20 nodes and 202 edges (score = 10.632) (Fig. 4a). GSEA functional enrichment analysis using Molecular Signatures Database v7.4 (hallmark gene sets) indicated that cluster 1 was associated with genes encoding proteins involved in glycolysis and gluconeogenesis (FDR q-value < 0.005), further emphasizing the importance of carbohydrate metabolism in ACLF and LC. Cluster 1 was considered the common gene set for both ACLF and LC. The two other clusters, considered unique to LC, were associated with the following biological processes: genes encoding components of the complement system, genes mediating programmed cell death (apoptosis) through caspase activation, genes involved in epithelial-mesenchymal transition, and genes upregulated in response to hypoxia (FDR q-value < 0.05) (Fig. 4b and Table S3).
For ACLF, the brown module had the most shared genes. GSEA analysis of all brown module genes revealed that it mainly concentrated on genes encoding proteins involved in glycolysis and gluconeogenesis (FDR q-value < 0.001). To explore potential functional genes, we performed PPI network analysis and “MCODE” analysis on the brown module. Cluster 3, with four nodes and 10 edges (score = 3.333), was enriched in genes encoding proteins involved in glycolysis and gluconeogenesis (FDR q-value < 0.001) (Fig. 4c, d and Table S4). Therefore, the cluster 3 of brown module was deemed the common gene set for both ACLF and LC. Additionally, the blue and green-yellow modules were primarily associated with genes upregulated by interleukin (IL)-6 via STAT3, genes involved in the protein secretion pathway, and genes involved in p53 pathways and networks (FDR q-value < 0.05).
Validation by DEG analysis in ACLF and LC

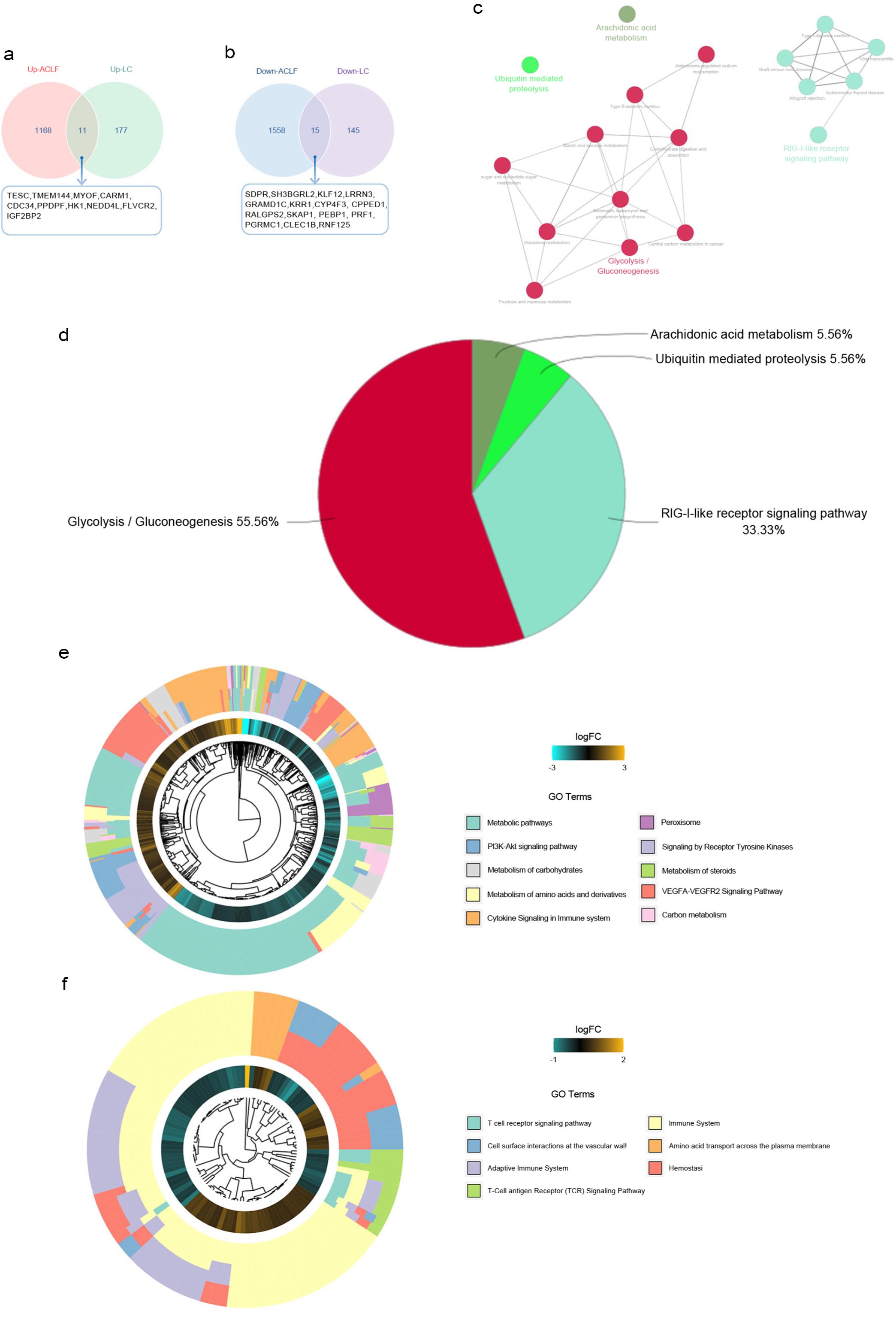

For GSE139602 of ACLF, we identified 2,751 DEGs, including 1,178 upregulated genes and 1,573 downregulated genes. For GSE142256 of LC, we extracted 346 DEGs, consisting of 187 upregulated genes and 159 downregulated genes. By selecting the overlapping DEGs, we found a total of 10 upregulated and 15 downregulated genes present in both GSE139602 and GSE142256, which we termed shared set 2 (SS2) (Fig. 5a, b). Gene Ontology Profiler analysis revealed that SS2 was mainly enriched in glycolysis/gluconeogenesis (55.56%) (Fig. 5c, d and Table S5). In addition, the DEGs unique to ACLF were significantly concentrated in metabolic pathways, carbohydrate metabolism, cytokine signaling in the immune system, and the PI3K-Akt signaling pathway. For the DEGs in LC, the T cell receptor signaling pathway and immunoregulatory interactions between lymphoid and non-lymphoid cells were enriched (Fig. 5e, f). These results demonstrated that the results from the verification group were consistent with those from the training group.
The joint miRNAs in ACLF and LC

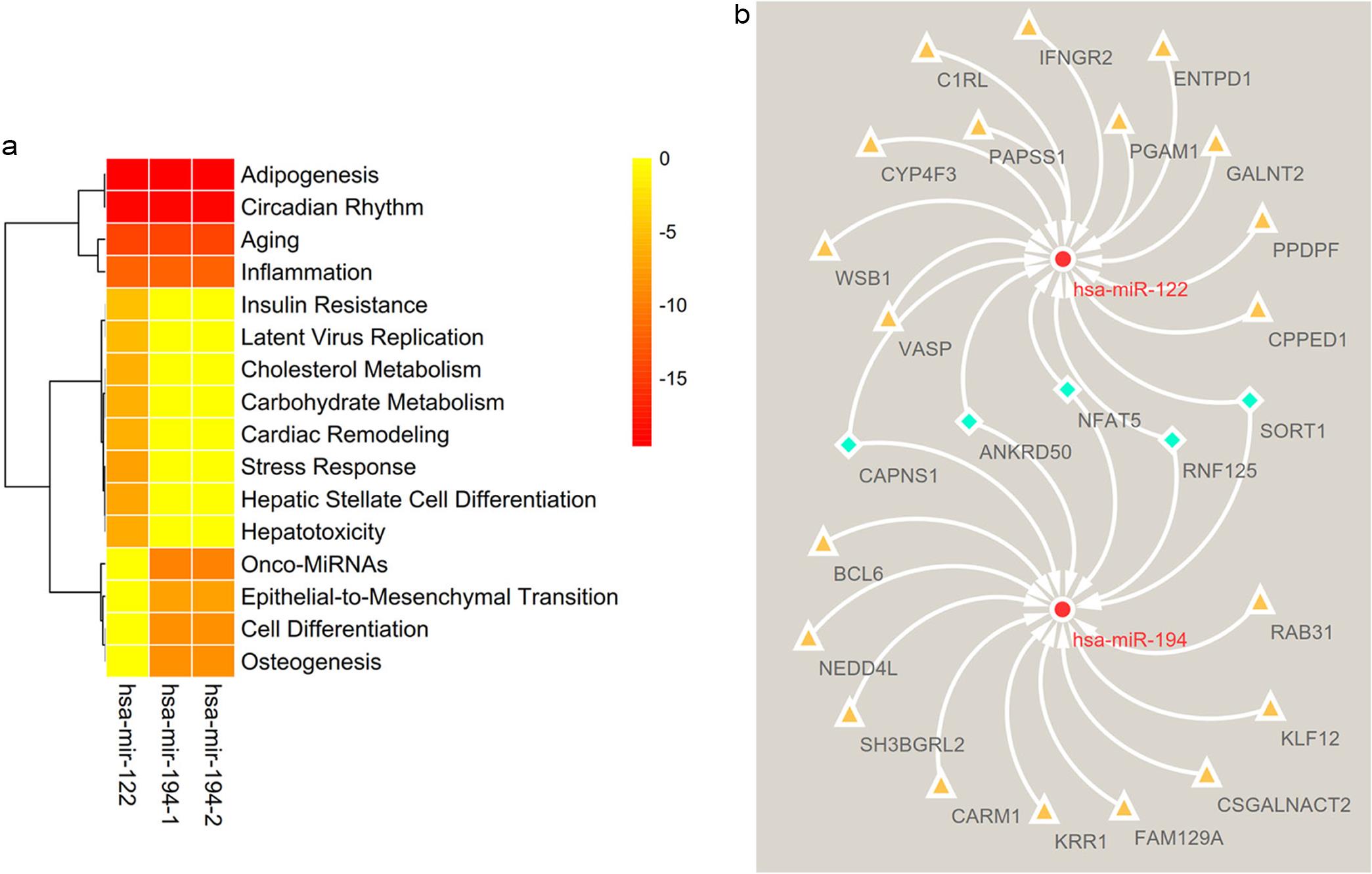

A total of 56 miRNAs were reported to be associated with LC (Table S6), while three miRNAs were linked to ACLF (Table S7) according to the HMDD database. By taking the intersection, we identified three miRNAs (hsa-miR-122, hsa-miR-194-1, and hsa-miR-194-2) as common to both conditions. Functional enrichment analysis using TAM 2.0 indicated that these three miRNAs regulate inflammation, adipogenesis, aging, and circadian rhythm (p < 0.001) (Fig. 6a). Interestingly, unique miRNA analysis showed that hsa-miR-122 is involved in carbohydrate metabolism (p < 0.05), further validating our previous findings and indicating that miRNAs related to the pathogenesis of ACLF and LC can also influence carbohydrate metabolism. Additionally, hsa-miR-122 was enriched in stress response, cholesterol metabolism, and latent virus replication. Meanwhile, miR-194-1 and miR-194-2 were primarily enriched in epithelial-to-mesenchymal transition and cell differentiation (Table S8).
The common miRNAs-share genes network
Through the HMDD, miRTarbase, and ENCORI databases, we predicted a total of 6,236 shared miRNA-targeted mRNAs. Among these, 25 mRNAs from SS1 and SS2 were identified as target mRNAs in the 6,236 miRNA-target interactions. Furthermore, five mRNAs (NFAT5, CAPNS1, ANKRD50, SORT1, RNF125) were found to overlap in SS1 and SS2. Using Cytoscape software, we constructed the miRNA-mRNA network, which included two miRNAs, 25 mRNAs (including five overlapping mRNAs), totaling 27 nodes and 30 edges (Fig. 6b). Since hsa-miR-122 was associated with carbohydrate metabolism, we hypothesized that regulating hsa-miR-122 could alter carbohydrate metabolism in ACLF and LC. The proposed disease association hypothesis is depicted in Figure 7. Carbohydrate metabolism plays a critical role in the pathological transition from liver cirrhosis to ACLF, with specific genes playing key roles in this process. In the context of ACLF, genes encoding components of the complement system are linked to inflammation and liver damage, potentially worsening the disease. Additionally, the imbalance of apoptosis, mediated by caspase-related genes, may accelerate disease progression through programmed cell death. Genes involved in epithelial-mesenchymal transition contribute to liver fibrosis by altering epithelial cell characteristics, while genes upregulated under hypoxic conditions are integral to cellular adaptation and metabolic regulation in response to hypoxia. For liver cirrhosis, genes involved in protein secretion pathways affect liver protein synthesis, and those upregulated by IL-6 via STAT3 are crucial for liver cell proliferation and injury repair. Furthermore, genes in the P53 pathway and network are implicated in liver cell damage, regeneration, and carcinogenesis, highlighting their role in LC development. This intricate network of genetic factors in carbohydrate metabolism underscores the molecular mechanisms underlying the progression of liver diseases and offers potential therapeutic targets.
Discussion

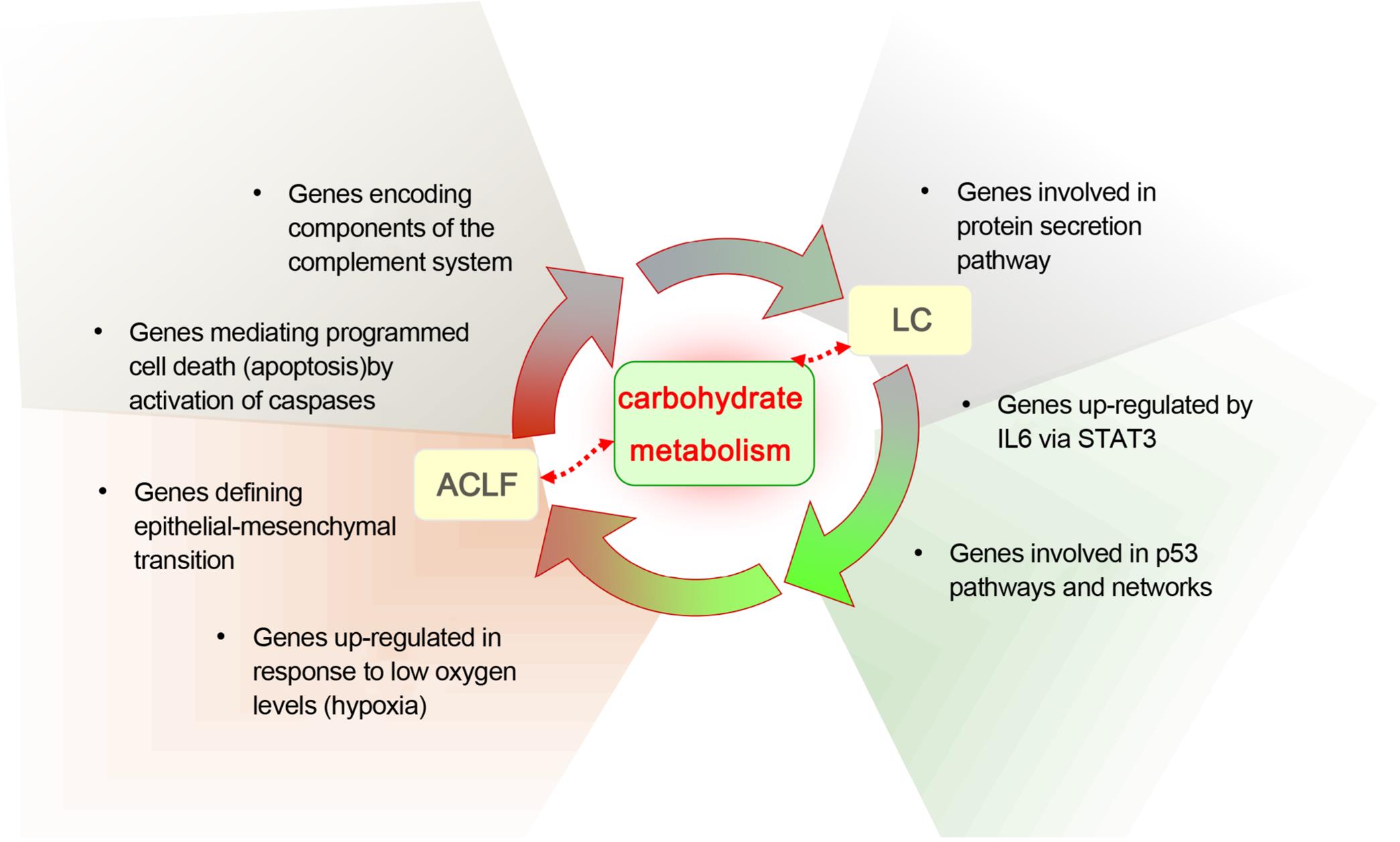

This study elucidated the shared gene signatures and molecular mechanisms between LC and ACLF through an integrative analysis of transcriptomic data. We found that the common gene set in LC and ACLF involves liver cell damage repair, oxidative stress response, and fibrosis processes. The shared expression of these gene sets suggests that, although the clinical courses and outcomes of the two diseases may differ, they share similarities in the fundamental mechanisms of liver injury and repair. The gene set involved in the oxidative stress response may contribute to liver cell damage in both diseases, while the activation of fibrosis-related gene sets may reflect the common pathological basis of liver fibrosis. The unique gene set in cirrhosis is mainly associated with extracellular matrix remodeling and hepatocyte apoptosis. Activation of these gene sets may promote structural changes and functional loss of liver tissue in cirrhosis, leading to liver cirrhosis and functional failure. The abnormal expression of the extracellular matrix remodeling gene set may exacerbate the fibrosis process, while the activation of the hepatocyte apoptosis gene set may accelerate hepatocyte loss. In ACLF, the unique gene set is primarily associated with acute inflammatory response, immune cell activation, and liver cell regeneration failure. The abnormal expression of these gene sets may trigger acute injury events in ACLF, such as severe inflammatory responses and immune-mediated liver cell damage, ultimately leading to a sharp decline in liver function. In particular, the abnormal activation of immune cell gene sets may indicate the immune system’s damaging effect on liver cells in ACLF.
Using WGCNA, we identified key modules significantly associated with both conditions, with a particular focus on metabolic pathways such as glycolysis and gluconeogenesis. Additionally, we identified three miRNAs—hsa-miR-122, hsa-miR-194-1, and hsa-miR-194-2—that regulate genes involved in inflammation and carbohydrate metabolism, suggesting their potential as therapeutic targets.
The identification of hsa-miR-122 and hsa-miR-194 is a crucial aspect of our findings. These miRNAs are central regulators of liver metabolism and inflammation, both of which are significantly disrupted in LC and ACLF. Previous studies have shown that miR-122, one of the most abundant miRNAs in the liver, plays a pivotal role in lipid and amino acid metabolism, and its expression is inversely correlated with liver fibrosis severity.25–27 miR-194 is also a recognized marker for liver diseases, including hepatocellular carcinoma.28 Moreover, the expression levels of miR-122 and miR-194 inversely correlate with age in patients with chronic hepatitis B and HBV-associated ACLF, suggesting their potential involvement in age-related liver dysfunction. These miRNAs emerge as potential therapeutic targets given their central role in regulating both metabolic and inflammatory pathways in the liver.
Metabolic dysregulation is a key driver of disease progression in LC and ACLF,29,30 and our analysis indicates that miR-122 and miR-194 are closely involved in these processes. Glucose metabolism disorders, particularly gluconeogenesis, play a critical role in ACLF disease progression.31 Liver diseases severely impair glucose metabolism, inducing a state similar to accelerated starvation. During fasting, gluconeogenesis accounts for approximately half of hepatic glucose production, while glycolysis converts glucose into pyruvate. This pyruvate then feeds into the tricarboxylic acid cycle for ATP generation. In the early stages of cirrhosis, a compensatory shift from oxidative phosphorylation to glycolysis occurs to meet energy demands, but this adaptive mechanism becomes progressively ineffective as cirrhosis advances.32 Dysregulation of miR-122 and miR-194 likely disrupts these metabolic pathways, exacerbating energy deficits and contributing to disease progression. Furthermore, evidence suggests that shifting from fatty acid oxidation to glycolysis may improve aberrant energy metabolism in patients with ACLF.33 Therefore, these miRNAs play an integral role in regulating the metabolic pathways crucial to the progression from LC to ACLF.
Immune response dysfunction, including excessive activation or inhibition of immune responses, is another critical factor. This imbalance may impair the immune system’s ability to recognize and eliminate pathogens, making it difficult for the body to combat infections, which can lead to disease worsening. It can also cause the immune system to mistakenly attack the body’s normal tissues, resulting in chronic inflammation. In ACLF patients, immune exhaustion and excessive inflammatory responses are prominent, highlighting the importance of immune dysregulation and inflammation in the progression from LC to ACLF.34,35 miR-122 and miR-194 play a significant role in modulating immune function. Consistent with our findings, immune biomarkers such as IL-9, IL-10, and MIP-3α have been shown to predict short-term mortality in ACLF with high accuracy.36–39 Additionally, the involvement of T cells in hepatic necrosis and the altered proportions of regulatory and effector T cells in ACLF, compared to healthy individuals, further emphasize the role of immune dysregulation.40 Notably, CXCR5+ CD4+ T cell subsets have been linked to immune dysfunction in chronic hepatitis B-associated LC.41 Continuous and distinct perturbations in innate immune cells also contribute to disease pathogenesis.25–27
Systemic inflammation is a pivotal factor driving the transition from compensated to decompensated cirrhosis, ultimately culminating in ACLF, which represents the extreme state of systemic inflammation.42,43 In the context of LC and ACLF, a persistent inflammatory state can result in heightened liver cell damage, apoptosis, and fibrosis. miR-122 and miR-194 play roles in inflammatory responses by targeting inflammation-related genes such as tumor necrosis factor alpha and IL-6. Abnormal expression of these miRNAs may lead to the overproduction of inflammatory mediators, which, in turn, activate hepatic stellate cells and immune cells, fueling a vicious cycle of liver inflammation and fibrosis. Inflammation is energetically demanding. Under conditions of persistent severe inflammation, a substantial amount of ATP is required for the synthesis of both pro- and anti-inflammatory mediators as well as acute-phase proteins.44 Activated immune cells predominantly rely on glycolysis to meet these elevated energy demands. Moreover, glycolytic metabolites are crucial for nucleotide and RNA synthesis, which are essential for mounting an effective inflammatory response.45 It is highly likely that dysregulated expression of miR-122 and miR-194 disrupts these processes, leading to impaired immune function and exacerbating systemic inflammation.
Our randomized controlled trial, which investigated the effects of carbohydrate-containing late-evening snacks on patients with ACLF, revealed a significant increase in carbohydrate oxidation and concomitant reductions in fat oxidation.46 Dysregulated lipid metabolism was also apparent during the progression of ACLF.47 Additionally, in a previous bioinformatics analysis study, researchers identified significant alterations in 10 hub genes and two miRNAs in ACLF.48 These clinical findings align with our mechanistic insights, suggesting that altered metabolic and immune pathways, potentially regulated by miR-122 and miR-194, have a substantial impact on patient outcomes. Dysregulation of lipid and carbohydrate metabolism, driven by these miRNAs and other factors, likely contributes to the severity and progression of ACLF.
The key roles of miR-122 and miR-194 in regulating liver metabolism and immune pathways suggest that they may become new targets for treating ACLF. Further exploration of the regulatory mechanisms of these miRNAs in ACLF will contribute to the development of therapeutic strategies aimed at restoring glucose metabolism and reducing inflammatory responses, thereby providing new ideas and methods for improving patient prognosis. Future research should focus on the clinical validation of these miRNAs as potential biomarkers and therapeutic approaches, as well as the development and testing of related drugs.
Despite these valuable insights, our research has certain limitations. Firstly, the small sample size used in this study may have affected the generalizability of our results, meaning the observed associations may not represent a wider population. Secondly, we did not further analyze the clinical data, and clinical variables such as patient age, gender, comorbidities, and treatment history can all affect the gene expression profile. Therefore, we cannot rule out these factors as confounding variables, which may impact the reliability and effectiveness of our gene expression results. To address these limitations, future research should include larger and more diverse patient cohorts to improve the statistical power and external validity of the results. Additionally, thorough analysis of clinical data should be conducted to control for potential confounding factors and better understand the background of gene expression changes. Finally, in vivo and in vitro experiments are crucial for elucidating the exact role of key miRNAs in glucose metabolism and confirming their potential as therapeutic targets or biomarkers.
