Introduction
Hepatocellular carcinoma (HCC) is the most prevalent liver cancer globally, ranking as the sixth most common cancer and the third deadliest.1 Some patients with early-stage HCC can receive curative treatments, including liver resection, liver transplantation, and radiofrequency ablation, among others. However, most patients are diagnosed with advanced HCC, resulting in a five-year survival rate of approximately 12%. This low rate is largely due to limited treatment options and the poor effectiveness of first-line therapies.2
UFMylation is a ubiquitin-like posttranslational modification in which ubiquitin-fold modifier 1 (UFM1) is conjugated to target proteins. Since its initial discovery in 2004, UFMylation has been found to be closely associated with a wide range of diseases, including diabetes, ischemic heart disease, heart failure, hematologic disorders, atherosclerosis, and tumors.3 Like other modifications, UFMylation requires a three-step enzyme system consisting of E1, E2, and E3 enzymes.4 However, to date, only one E1 enzyme: ubiquitin like modifier activating enzyme 5 (UBA5), one E2 enzyme: ubiquitin-fold modifier conjugating enzyme 1 (UFC1), and one E3 enzyme (UFL1) have been identified in the UFMylation system. Mature UFM1 is activated by UBA5 in an ATP-dependent manner and then transferred to UFC1. Finally, UFM1 is covalently conjugated to target proteins via UFL1.5 DDRGK1 (UFBP1), the first identified target of the UFM1 system, plays an essential role as a substrate for UFL1 as well as in the UFMylation of other proteins.6–9 In addition, DDRGK1 can enhance the anchoring of UFL1 to the endoplasmic reticulum, thereby facilitating its function.10 Several studies have demonstrated that the UFM1 system plays a critical role in maintaining endoplasmic reticulum homeostasis and in embryonic development.11–15 Emerging evidence extends the functional scope of UFMylation to fatty acid metabolism, with recent studies demonstrating that DDRGK1 UFMylation exerts suppressive effects on hepatic lipogenesis.3 Recently, an increasing number of UFMylation substrates, including programmed cell death protein 1, programmed cell death 1 ligand 1, and tumor protein 53, have been identified.6,7,9 To date, the biological significance of the UFM1 system, particularly in tumor development, remains poorly understood.
Metabolic abnormalities are key characteristics of tumor development. To acquire more nutrients, tumors often generate an abundance of blood vessels and compete with surrounding cells for these essential resources. The metabolic pathways that change mainly include glucose, amino acid, and lipid metabolism.16–18 In recent years, increasing attention has been given to the role of metabolism, particularly lipid metabolism, in tumor development.19,20 The liver plays a crucial role in lipid metabolism, and abnormalities in lipid metabolism are often present throughout the entire process of HCC development.21 However, the effects of UFMylation on tumor metabolism are not yet fully understood.
Enhanced lipid metabolism is one of the most significant characteristics of cancer.22 SREBP1, a well-known master regulator of lipogenesis, plays a crucial role in the progression of various tumors.23–25 SREBP1 is synthesized and resides in the endoplasmic reticulum as an inactive precursor. When sterol levels are deficient, the SREBP1 precursor undergoes two proteolytic cleavages, allowing it to enter the nucleus as the mature protein. This active form promotes the transcription of target genes, thereby activating lipid synthesis and uptake. Interestingly, tumors often exhibit high expression levels of SREBP1, leading to enhanced lipid metabolism.
Here, we report that SREBP1 is a substrate of UFMylation. Reduced expression of UFL1 or DDRGK1 decreases the UFMylation of SREBP1, which enhances its stability by counteracting its ubiquitination. This process activates lipid synthesis and promotes the progression of HCC. Furthermore, SREBP1 may serve as a potential therapeutic target for HCC patients with low UFMylation levels.
Methods
Patients and specimens
For the construction of the tissue microarray, 98 tumor tissues and adjacent nontumor tissues certified by pathologists were obtained from patients with HCC who underwent treatment at Zhongshan Hospital between January 1, 2009, and January 1, 2010 (cohort 1). The inclusion criteria and follow-up procedures were performed as previously described.26 The clinicopathologic characteristics of these patients are summarized in Supplementary Tables 1 and 2. We randomly selected 30 paired frozen samples from cohort 1 to detect messenger RNA (mRNA) expression of UFL1 and DDRGK1, and 30 paired samples to detect protein expression of UFL1, DDRGK1, and SREBP1. Overall survival was calculated as the time interval between the date of hepatectomy and death or last follow-up. Recurrence-free survival was determined from the date of hepatectomy to tumor recurrence or last follow-up.27 The prognosis of HCC patients in tissue microarray (TMA) is summarized in Supplementary Table 3. The study protocol was thoroughly reviewed and approved by the Research Ethics Committee of Zhongshan Hospital, Fudan University, and adhered strictly to the ethical principles outlined in the Declaration of Helsinki. All patients provided written informed consent prior to therapy and inclusion in the study.
Cell lines and cell culture
HEK293T cells and HCC cell lines MHCC97H, SNU-449, PLC/PRF/5, HCCLM3, Huh7, and HepG2 were obtained from the Liver Cancer Institute, Fudan University, Shanghai, China. The Hep3B cell line was purchased from the Cell Bank of the Chinese Academy of Sciences (Shanghai, China). All of these cells were cultured in high-glucose Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin and 100 µg/mL streptomycin in a humidified incubator containing 5% CO2 at 37°C.28
Plasmids and establishment of stable cell lines
The short hairpin RNAs (shRNAs) targeting UFL1 and DDRGK1 were inserted into the LV3 (H1/GFP-Puro) plasmid by GenePharma (Shanghai, China). The shRNAs targeting SREBP1 were inserted into the LV3 (H1/GFP-Hyg) plasmid by GenePharma (Shanghai, China). HA-UFC1, HA-UBA5, HA-UFL1, MYC-DDRGK1, and Flag-SREBP1c plasmids were purchased from Youbio Company (Hunan, China). To construct stable cell lines with downregulation of UFL1, DDRGK1, and SREBP1, lentiviral vectors were constructed based on the above plasmids and transfected accordingly. The plasmid was transfected into cells and selected with 2 µg/mL puromycin or puromycin (2 µg/mL) + hygromycin B (50 µg/mL).29 The sequences of the shRNAs used were as follows:
UFL1-1, 5′-CCAGTAAGCATAAGTCATATT-3′
UFL1-2, 5′-GTGGTCGAGTAAACATTGT-3′
UFL1-3, 5′-GCAGCCATTACAAGTGATA-3′
DDRGK1-1, 5′- GGCTCTGCTAGTCGGCTTTAT-3′
DDRGK1-2, 5′- GCCTACGCACTCAGGACACCA-3′
DDRGK1-3, 5′- GGACTATAACAGGTGTGATTG-3′
SREBP1, 5′-GCUCUGCGAGUGGAUGCUATT-3′
Antibodies and reagents
The following antibodies were used in the present study: anti-UFL1 (Proteintech, 26087-1-AP, China), anti-DDRGK1 (Proteintech, 21445-1-AP), anti-UFM1 (Proteintech, 15883-1-AP), anti-SREBP1 (HUABIO, HA500210 and HA722160, China), anti-β-ACTIN (Abmart, P60035S, China), anti-ubiquitin (Abmart, T55965), anti-HA (Beyotime, AF2861, China), anti-MYC (Beyotime, AF2867), and anti-Flag (Beyotime, AF2855). The following reagents were used in the experiments: Fatostatin (HY-14452), Cycloheximide (CHX; HY-12320), MG-132 (HY-13259), Chloroquine (HY-17589A), and Lenvatinib (HY-10981), all purchased from MedChemExpress (USA).
Western blot analysis and immunoprecipitation
Proteins were extracted by lysing cultured cells in RIPA buffer containing protease inhibitors and quantified using a BCA assay kit. Heat-denatured proteins mixed with 5x loading buffer were separated by SDS–PAGE and then transferred onto PVDF or NC membranes (Millipore, USA). The membrane was blocked with 5% skim milk. Bands were exposed with enhanced chemiluminescence reagents using ImageQuant™ LAS 4000 after incubation with the indicated primary antibodies followed by HRP-conjugated secondary antibody.30 Western blot analysis of target proteins was performed using ImageJ. Band intensities were quantified in ImageJ using the Gel Analyzer. For each lane, regions of interest were defined with identical dimensions, and local background was subtracted. Target protein signals were normalized to the corresponding loading control (β-ACTIN). Data were further referenced to the mean of the control group, which was set to 1.0.
For immunoprecipitation, cell lysates were incubated with the indicated antibodies at 4°C overnight on a vertical rotator and then rotated for 2 h at 4°C in the presence of protein A/G beads. The beads were washed five times with lysis buffer and mixed with SDS-PAGE loading buffer for immunoblotting.31
RNA isolation and quantitative real-time polymerase chain reaction (PCR)
Total mRNA was isolated with a total RNA isolation kit (BioTeke Corporation, Beijing, China) and reverse transcribed into cDNA using a HiScript Q RT SuperMix for quantitative PCR kit (Vazyme Biotech, Nanjing, China) according to the manufacturer’s instructions. PCR amplification products were quantified with SYBR Green PCR Master Mix (Vazyme Biotech) following a standard procedure. The expression of the target gene was normalized to that of the housekeeping gene β-ACTIN and quantified using the ΔΔCt method.32 The sequences of the primers used for quantitative real-time PCR were shown in Supplementary Table 4.
Immunohistochemistry
After deparaffinization, rehydration, and antigen retrieval, slides were incubated with the indicated primary antibodies, followed by staining with an HRP-conjugated secondary antibody.33 Then, slides were scanned and viewed in the KF-Viewer software. The staining results were assessed independently by two pathologists who were unaware of the patients’ clinical characteristics, using the H-score method.34
Colony formation and 5-bromo-2’-deoxyuridine (EdU) incorporation assays
For colony formation assays, cells were seeded in six-well plates (1 × 103 cells per well) and maintained in complete medium containing 10% FBS for 14 days. Colonies were fixed with 4% paraformaldehyde solution and stained with 0.1% crystal violet.35
EdU incorporation assays were performed using an EdU kit (Beyotime, C0078) to validate the cell proliferation ability. Cells were plated in 24-well plates (1 × 105 cells per well), and the experimental procedures were conducted in accordance with the manufacturer’s instructions.36
Wound healing assays
HCC cells were seeded in six-well plates. When the cells formed a compact monolayer, a 200-µL tip was used to create a scratch. The wells were then washed three times with phosphate-buffered saline (PBS). Afterward, DMEM containing 1% FBS was added to each well.37 The progression of wound closure was evaluated by imaging at specified intervals using an IX71 inverted microscope (Olympus Corporation, Japan). Finally, images were analyzed using ImageJ software.
Transwell-migration and invasion assays
Transwell assays were performed to evaluate migration and invasion activities. For migration assays, 5 × 104 cells were seeded in the upper chamber with a non-coated membrane (24-well insert, pore size 8 µm; Corning, USA) in DMEM containing 1% FBS. For invasion assays, 5 × 104 cells were seeded in the upper chamber with a Matrigel-coated (Beyotime, C037) membrane. In both assays, the lower chambers contained DMEM with 10% FBS as a chemoattractant. Cells were incubated at 37°C for 48 h. Cotton swabs were carefully used to remove the cells remaining in the upper chambers, while the cells that had migrated to the bottom surface of the membrane were fixed using 4% paraformaldehyde solution, stained with 0.1% crystal violet, and then counted under a microscope.38
Multiplex immunofluorescence (mIF) assay
Cells were plated on glass coverslips and fixed with 4% paraformaldehyde for 15 m. After permeabilization using 0.5% Triton X-100 for 15 m, 5% BSA was used to block nonspecific binding sites. The cells were incubated with specific primary antibodies at 4°C overnight in a humidified box. After washing five times with TBST, the corresponding secondary horseradish peroxidase-conjugated antibody was used to incubate the cells. The coverslips were then washed with PBS in the dark and stained with 4′,6-diamidino-2-phenylindole (Beyotime, C1005).33 Images were captured using a laser confocal microscope (Olympus LV3000, Tokyo, Japan).
Oil Red staining
Cells were counted and plated into a six-well plate (1 × 105 cells per well). Twenty-four hours later, Oil Red O (Beyotime, C0158) staining was performed according to the manufacturer’s instructions. Briefly, cells were gently aspirated to remove the culture medium and washed once with PBS, then fixed with 4% paraformaldehyde for 10 m at room temperature. After fixation, samples were rinsed twice with PBS. A staining rinse solution was added to cover the cells for 20 s, followed by its removal. Cells were subsequently incubated with freshly prepared Oil Red O working solution for 15 m at room temperature. After staining, the Oil Red O solution was discarded, and cells were briefly washed with the staining rinse solution for 30 s. Residual dye was removed by washing with PBS for 20 s. For nuclear counterstaining, cells were incubated with hematoxylin (Beyotime, C0107) for 8 m, followed by rinsing with distilled water to remove excess stain. Finally, PBS was added to cover the cells evenly.39 Images were acquired using a light microscope.
Nile Red staining
Cells were counted and plated into a six-well plate (1 × 105 cells per well). Twenty-four hours later, Nile Red (Applygen Technologies Inc, C0009, China) staining was performed according to the manufacturer’s instructions. Briefly, cells were gently aspirated to remove the culture medium and washed once with PBS, then fixed with 4% paraformaldehyde for 10 m at room temperature. Cells were incubated with Nile Red working solution for 10 m at room temperature. After staining, samples were rinsed once with distilled water.40 Fluorescence was observed immediately under a fluorescence microscope.
Triglyceride (TG), cholesterol (CHOL), and free fatty acid (FFA) measurement
Intracellular and intratumoral TG, CHOL, and FFA contents were assayed using kits purchased from Nanjing Jiancheng Bioengineering Institute and Applygen Technologies Inc.41–43 According to the manufacturer’s recommended protocols. The values were normalized to cellular protein, and the protein concentration was determined using the BCA Protein Assay Kit (Beyotime, P0010).
Liquid chromatography-tandem mass spectrometry (LC-MS/MS) analysis
LC-MS/MS analysis was used to detect the potentially interacting proteins of the target protein. To identify the UFL1-interacting proteins, HA-UFL1 and vector controls were transfected into Huh-7 cells. Immunoprecipitates of UFL1 in Huh-7 cells were separated by SDS–PAGE and observed using Coomassie Blue staining. The gels were cut into slices and enzymatically digested according to a pre-stained protein marker. Next, LC-MS/MS was performed on an Orbitrap Elite mass spectrometer (Thermo Fisher Scientific) according to the manufacturer’s instructions.44 The peptides were then evaluated using a fragment spectra search against the UniProt protein database (https://www.uniprot.org/ ) employing the Mascot search engine (version 2.3.0, Matrix Science).
In vivo tumor growth and metastasis assays
All procedures using four- to six-week-old male BALB/c nude mice were approved by the Institutional Animal Care and Use Committee of Zhongshan Hospital, Fudan University (2024-034). All mice were purchased from the Charles River Laboratory (Beijing, China) and housed in a temperature-controlled, specific-pathogen-free animal laboratory. For the establishment of subcutaneous xenograft models, 1 × 107 cells were injected into the right inguinal fold regions of BALB/c nude mice. Subsequently, tumors were resected and cut into 1 mm3 pieces. Sections of these subcutaneous tumors were orthotopically implanted into the livers of nude mice to establish orthotopic xenograft models.45 Finally, the mice were euthanized four weeks after the experiments.
To establish pulmonary metastasis models, approximately 5 × 106 cells were injected into the tail vein of the mice. After four weeks, the mice were euthanized, and their lungs were excised and prepared for H&E staining.45 Microscopic counting was conducted to accurately determine the average number of metastatic foci in each group.
In vivo drug studies
One week after implantation, the mice were treated with Lenvatinib (30 mg/kg/day, intragastric administration) or Fatostatin (25 mg/kg, three times per week, intraperitoneal injection),46,47 all purchased from MedChemExpress. After three weeks, the mice were sacrificed, and the tumors were collected for further study (photography, weighing, measuring).
Statistical analysis
Statistical analyses were conducted using SPSS version 27.0 software. Graphical representations were generated with GraphPad Prism 9 and R Studio 4.4.0 software. The chi-square test or Fisher’s exact test was used to compare qualitative variables, and Student’s t-test was used to compare continuous variables. Kaplan–Meier analysis was applied to assess survival, and the log-rank test was utilized to compare patient survival between subgroups. Multivariate analyses were conducted using a multivariate Cox proportional hazards regression model. The data are presented as means ± standard deviations, and a difference was considered significant when the P-value was less than 0.05.
Results
Low expression of UFL1 or DDRGK1 is associated with poor prognosis in HCC patients
To clarify the role of UFMylation in HCC, we conducted TMA analysis and found that the expression levels of UFL1 and DDRGK1 in cancer tissues were lower than those in adjacent normal tissues (Fig. 1A and B), and low expression of UFL1 and DDRGK1 was associated with poor prognosis (Fig. 1C). In addition, the results of quantitative real-time PCR and Western blot analyses of HCC tissue and adjacent normal tissue also revealed that the expression of UFL1 and DDRGK1 in cancer tissue was lower than that in adjacent normal tissue (Fig. 1D and E). We also measured UFMylation levels in tumor tissues and adjacent non-tumor tissues. The results demonstrated that UFMylation levels were significantly lower in tumor tissues compared to matched adjacent tissues (Fig. 1F). Therefore, UFMylation levels are reduced in HCC, and this decrease is associated with the prognosis of HCC patients.

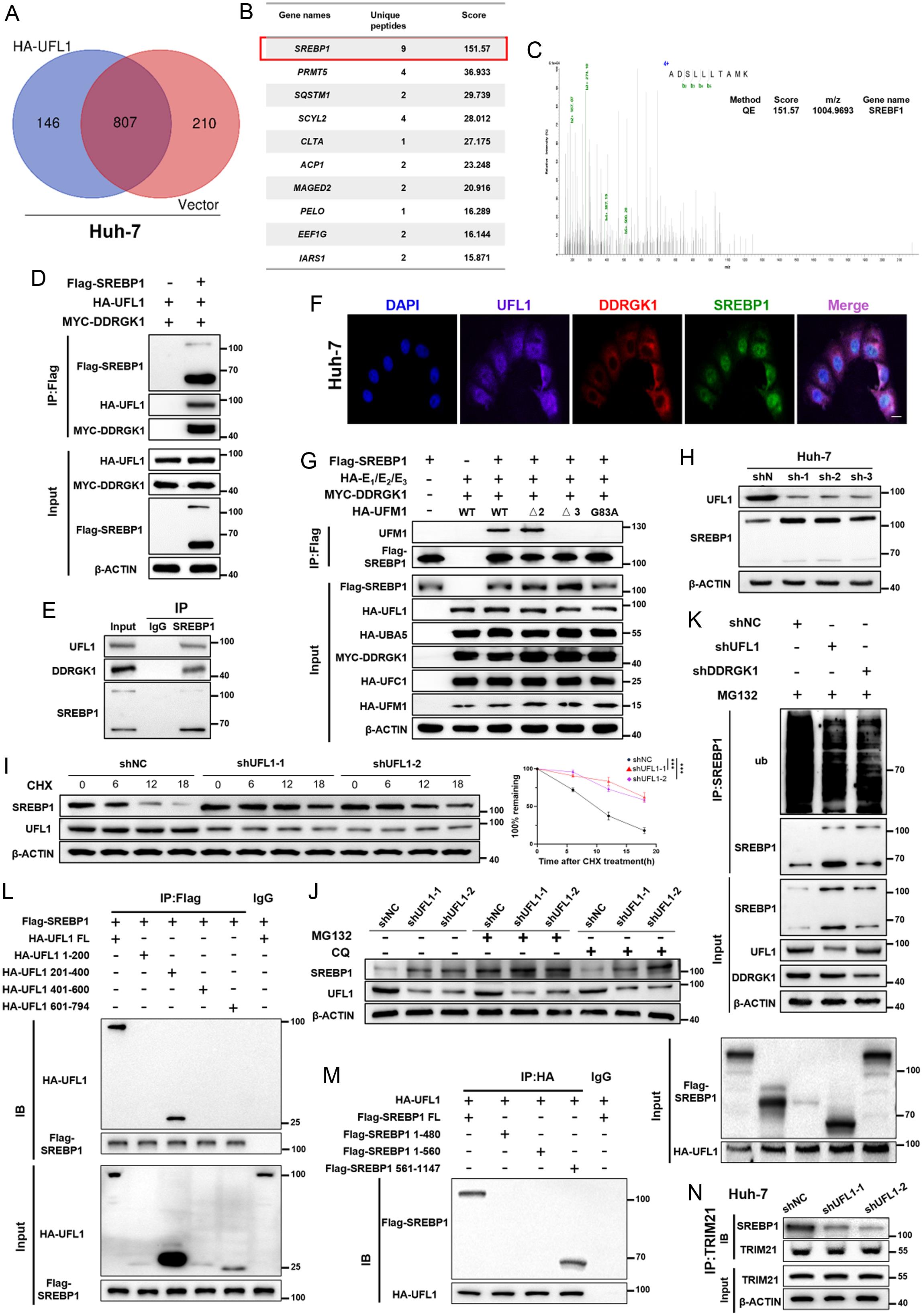

Dysregulation of UFMylation in SREBP1 antagonizes its proteasome-mediated degradation
Here, we aimed to determine how UFL1 influences the development of HCC. Given that UFL1 is an E3 enzyme, we performed mass spectrometry to identify the proteins modified by UFL1. Notably, SREBP1, a well-known transcriptional regulator involved in lipid metabolism, was detected in the immunoprecipitates by mass spectrometry and received the highest scores (Fig. 2A–C). We then validated the mass spectrometry results in 293T cells, confirming that SREBP1, UFL1, and DDRGK1 can bind each other (Fig. 2D and Supplementary Fig. 1A). Our coimmunoprecipitation results in Huh-7 cells further revealed that SREBP1, UFL1, and DDRGK1 can bind each other (Fig. 2E and Supplementary Fig. 1B). Additionally, our multiplex immunofluorescence results demonstrated that SREBP1, UFL1, and DDRGK1 are co-expressed and have the potential to interact (Fig. 2F). These data suggest that SREBP1 may serve as a substrate for UFMylation.
To determine whether SREBP1 undergoes UFMylation, we co-expressed SREBP1 with UFMylation components, including UBA5, UFC1, UFL1, DDRGK1, and UFM1, in 293T cells. Previous studies revealed that the UFM1 precursor is an 85-amino acid protein. In humans, UFM1 specific peptidase 1/ UFM1 specific peptidase 2 cleaves off the two C-terminal residues (Ser84 and Cys85) to expose Gly83 as the new C-terminus, forming mature UFM1 (83 amino acids).4 Since Gly83 is essential for UFM1 functionality, we generated three mutants: ΔC2 (deletion of residues 84–85), ΔC3 (deletion of residues 83–85), and G83A (substitution of Gly83 with Ala). We found that SREBP1 can be UFMylated by wild-type UFM1 (UFM1WT) and UFM1 with an exposed carboxy (C)-terminal glycine 83 residue (UFM1ΔC2), but that UFMylation does not occur when UFM1 lacking the C-terminal glycine 83 residue (UFM1ΔC3) or Gly83 of UFM1 is mutated to Ala (UFM1G83A) (Fig. 2G).4 Moreover, we confirmed that UFMylation of SREBP1 can also occur in Huh-7 cells (Supplementary Fig. 1C). In summary, SREBP1 can bind to UFL1 and DDRGK1, leading to UFMylation.
To determine the effect of UFMylation on SREBP1, we first investigated the expression of UFL1 and DDRGK1 in HCC cell lines (Supplementary Fig. 1D). Next, we knocked down UFL1 and DDRGK1 in Huh-7 and HepG2 cells via shRNA. We found that knockdown of UFL1 or DDRGK1 significantly increased SREBP1 protein levels but did not affect SREBP1 messenger RNA levels (Fig. 2H and Supplementary Fig. 1E–G). Then, we examined the expression levels of SREBP1 in eight paired cancer tissues and adjacent normal tissues from patients with HCC (related to Fig. 1E). The results revealed that SREBP1 was more highly expressed in tumor tissue than in adjacent normal tissue (Supplementary Fig. 1H). These findings suggest that UFMylation may affect the protein stability of SREBP1. To further confirm this, we assessed the effect of UFMylation on SREBP1 stability in cells treated with cycloheximide and found that SREBP1 stability increased following the knockdown of UFL1 or DDRGK1 (Fig. 2I and Supplementary Fig. 1I). We subsequently inhibited the ubiquitin-proteasome pathway and the lysosomal pathway via MG132 and chloroquine, respectively. The results indicated that dysregulation of UFMylation may antagonize the proteasome-mediated degradation of SREBP1 (Fig. 2J and Supplementary Fig. 1J). Indeed, the ubiquitination of SREBP1 was significantly reduced following the knockdown of UFL1 or DDRGK1 in Huh-7 cells (Fig. 2K). Here, we further characterized the domains required for the interaction between UFL1 and SREBP1 and revealed that residues 200–400 of UFL1 and residues 561–1147 of SREBP1 are critical for their interaction (Fig. 2L and M). Moreover, prior studies have reported that Tripartite motif-containing protein 21 (TRIM21) promotes the ubiquitin-mediated degradation of SREBP1.48 Therefore, we investigated whether UFL1 regulates the ubiquitination of SREBP1 in a TRIM21-dependent manner. Our results demonstrate that knockdown of UFL1 significantly reduces the binding of SREBP1 to TRIM21, indicating that UFL1-mediated UFMylation is essential for TRIM21-dependent ubiquitination of SREBP1 (Fig. 2N and Supplementary Fig. 1K). Collectively, these data suggest that dysregulation of UFMylation promotes SREBP1 stability by antagonizing TRIM21-mediated ubiquitination.

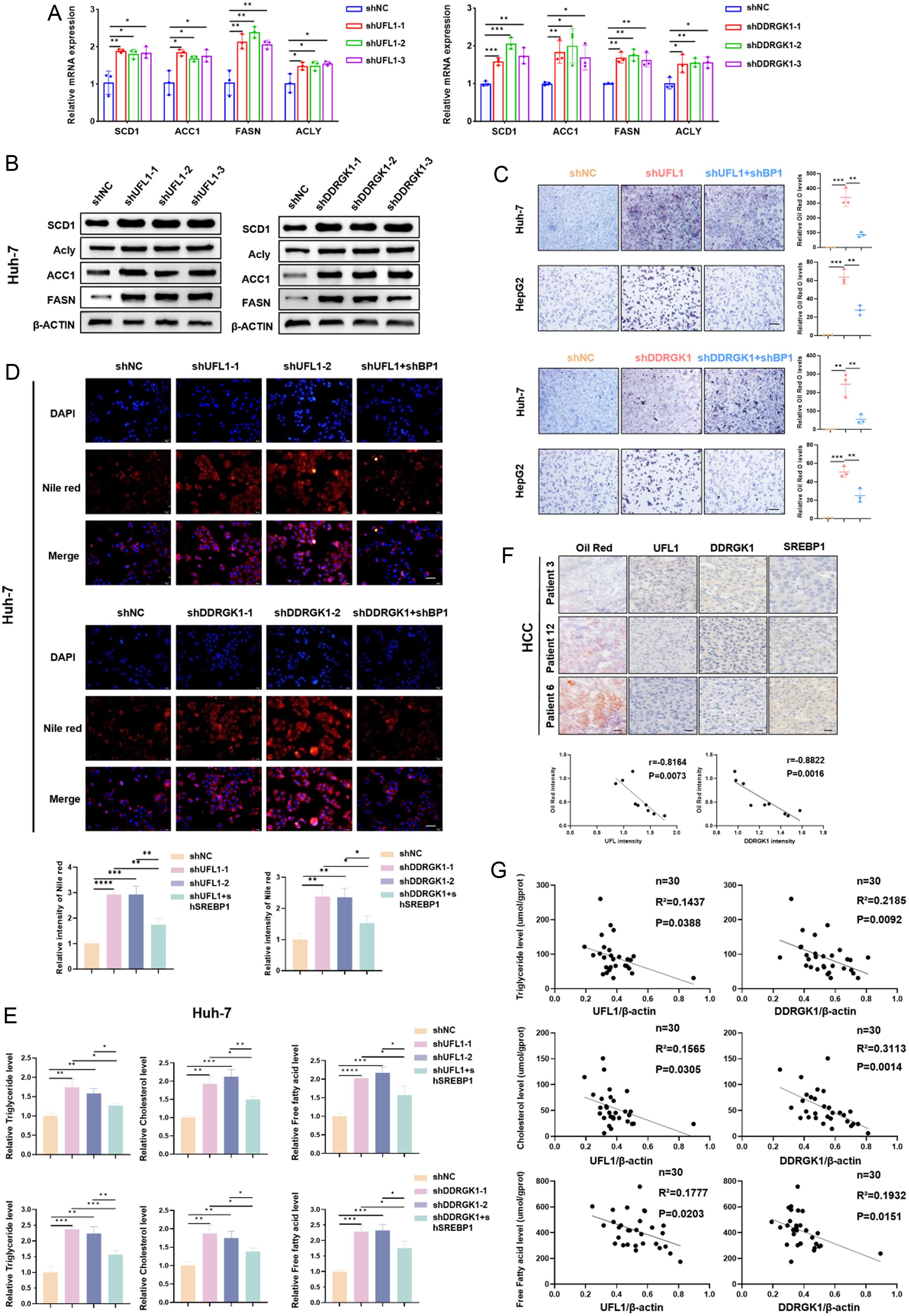

Dysregulation of UFMylation in SREBP1 enhances its downstream lipid metabolism
SREBP1 is a critical transcription factor involved in lipid metabolism.49 Therefore, we sought to identify the downstream changes associated with SREBP1. First, we observed that the levels of enzymes downstream of SREBP1, including Stearoyl-Coenzyme A Desaturase 1 (SCD1), ATP-citrate lyase (ACLY), Acetyl-CoA Carboxylase 1 (ACC1), and Fatty Acid Synthase (FASN), increased following the knockdown of UFL1 or DDRGK1 (Fig. 3A and B; Supplementary Fig. 2A and B). We subsequently performed Oil Red O and Nile Red staining to observe changes in lipid levels within the cells. We found that the knockdown of UFL1 or DDRGK1 increased the lipid content in both Huh-7 and HepG2 cells, and this effect was partially offset by the knockdown of SREBP1 (Fig. 3C and D; Supplementary Fig. 2C). Furthermore, we used assay kits to measure the intracellular levels of TG, CHOL, and FFA, all of which were significantly increased, and this increase was attenuated by SREBP1 knockdown (Fig. 3E and Supplementary Fig. 2D). To investigate whether this phenomenon occurs within tissue, we conducted immunohistochemistry and Oil Red O staining on HCC tissue samples. The results indicated that patients with low expression of UFL1 and DDRGK1 had higher levels of SREBP1 and lipids, and vice versa (Fig. 3F). In addition, we measured the levels of TG, CHOL, and FFA in 30 HCC tissues, and our Western blot results revealed that UFL1 and DDRGK1 in HCC tissues were negatively correlated with SREBP1 and lipid contents (Fig. 3G and Supplementary Fig. 2E). Moreover, our TMA results further confirmed that UFL1 and DDRGK1 are negatively correlated with SREBP1 in HCC (Supplementary Fig. 2F). Taken together, our findings suggest that following the knockdown of UFL1 or DDRGK1, SREBP1 becomes more stable, thereby enhancing downstream lipid metabolism.

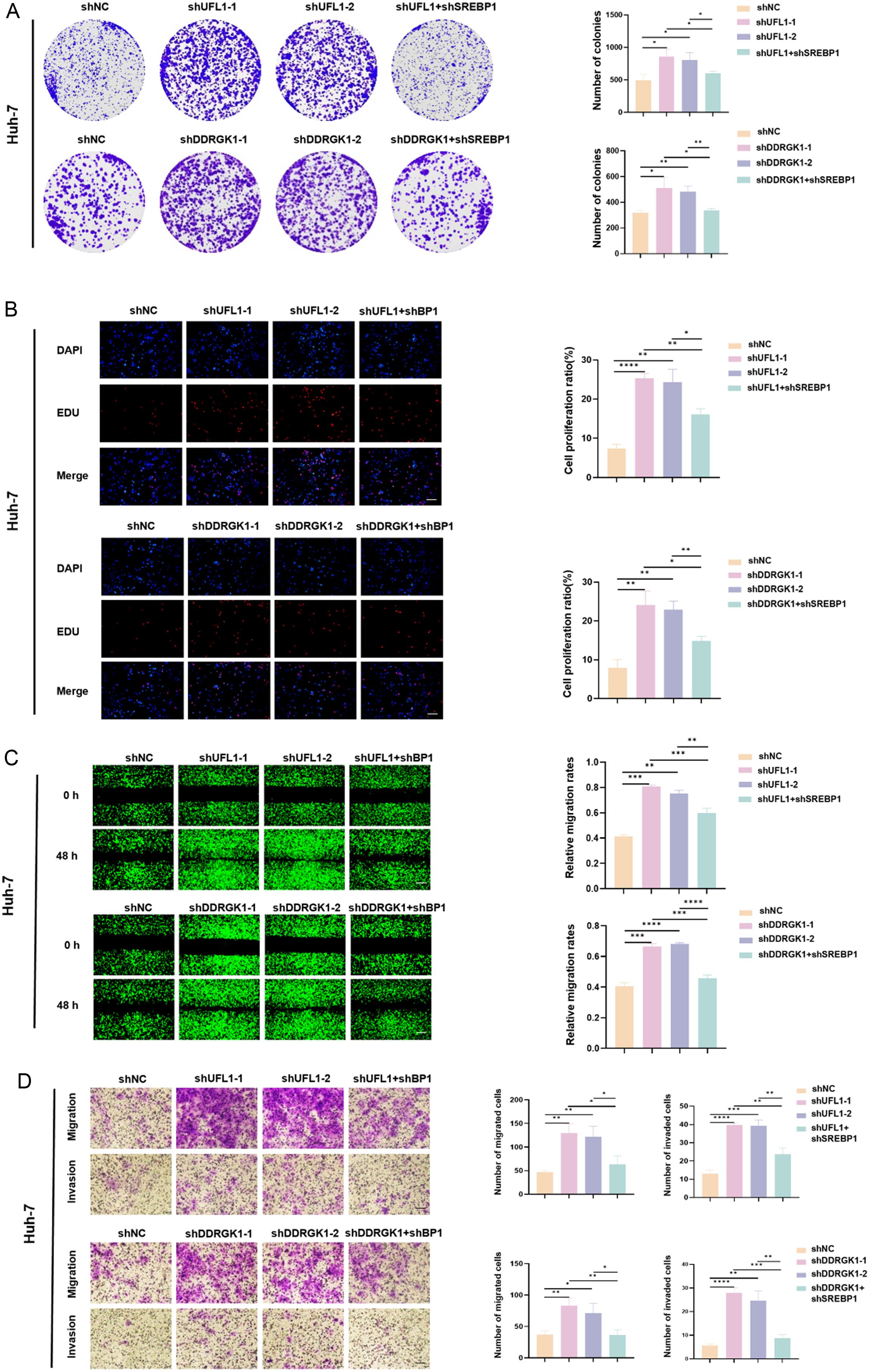

The decrease in UFMylation levels to promote HCC progression is SREBP1-dependent in vitro
According to previous reports, accumulated lipids can promote tumor growth and metastasis.23,50,51 Therefore, we aimed to determine whether the knockdown of UFL1 or DDRGK1 could promote tumor cell progression. Our colony formation assays demonstrated that the knockdown of UFL1 or DDRGK1 promoted the proliferation of Huh-7 and HepG2 cells. Moreover, this proliferation-promoting effect was counteracted by SREBP1 knockdown (Fig. 4A and Supplementary Fig. 3A). The results of the EdU assay were similar (Fig. 4B and Supplementary Fig. 3B). The knockdown efficiency of SREBP1 was verified by Western blotting (Supplementary Fig. 3C). To assess cell migration and invasion abilities, we conducted wound healing and Transwell assays. The results showed that after UFL1 or DDRGK1 was knocked down, cell migration and invasion abilities were enhanced, but these effects were counteracted by SREBP1 knockdown (Fig. 4C and D; Supplementary Fig. 3D and E). These data suggest that SREBP1 is critical for HCC cell growth and metastasis in vitro after UFL1 or DDRGK1 knockdown.

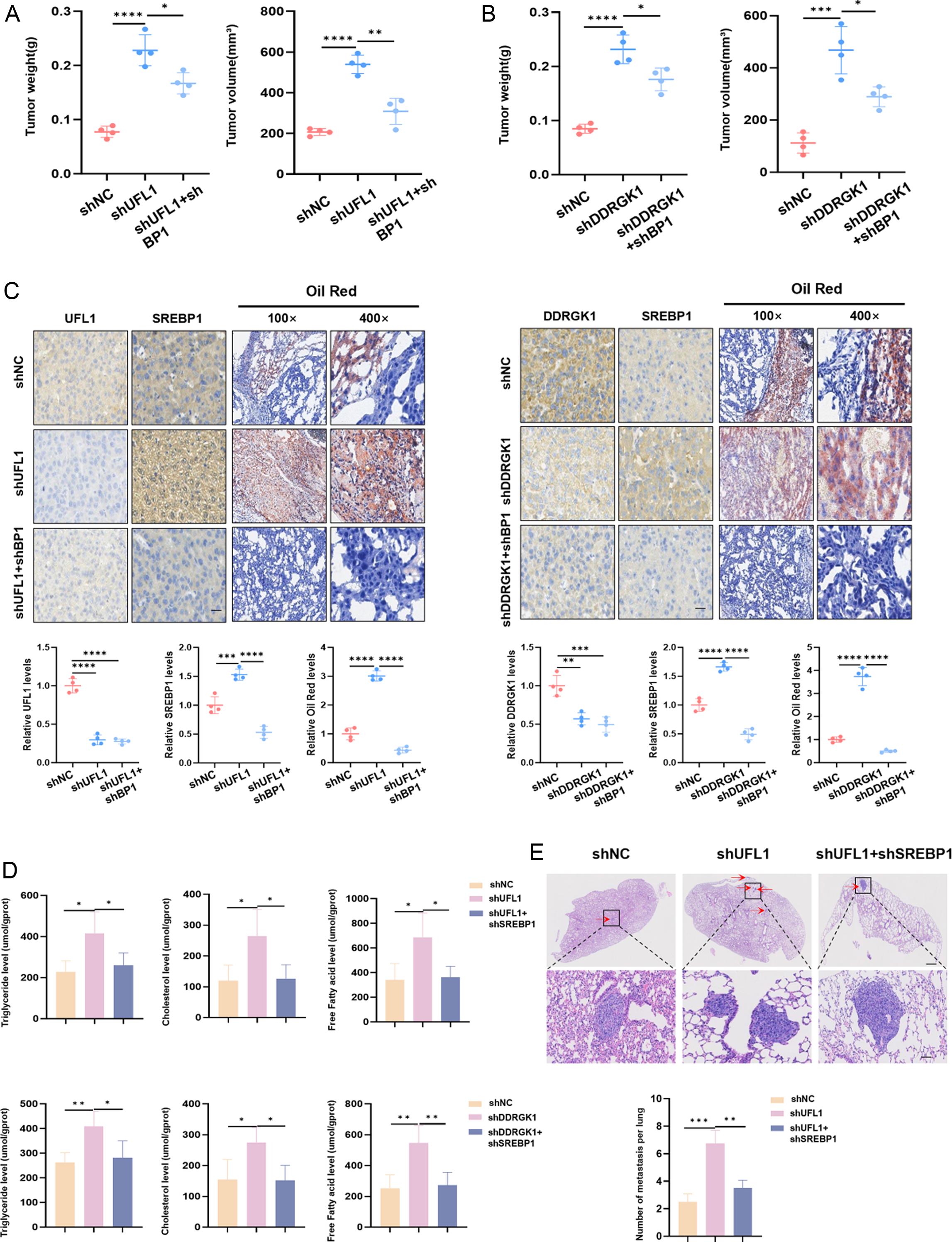

Knockdown of UFL1 or DDRGK1 promotes HCC cell growth and metastasis through SREBP1-related lipid metabolism in vivo
To further investigate the impact of UFL1 or DDRGK1 knockdown on HCC development, we established an orthotopic tumor model in nude mice. Similar to the results of the cell experiments, the knockdown of UFL1 or DDRGK1 significantly promoted HCC growth, and this effect was at least partially neutralized by the knockdown of SREBP1 (Fig. 5A and B; Supplementary Fig. 4A and B). Accordingly, immunohistochemical staining of tumor tissues revealed that, when UFL1 or DDRGK1 was knocked down, the expression of SREBP1 increased (Fig. 5C). Oil Red O staining further corroborated these findings (Fig. 5C). Further studies revealed that the levels of TG, CHOL, and FFA in tumors increased after UFL1 or DDRGK1 was knocked down, and this increase was partially blocked by SREBP1 knockdown (Fig. 5D). To determine the effect of dysUFMylation on HCC metastasis in vivo, we constructed a lung metastasis model in nude mice. The results indicated that dysUFMylation promoted lung metastasis in HCC, and knockdown of SREBP1 partially reversed this pro-metastatic effect (Fig. 5E).
Taken together, these data suggest that dysUFMylation promotes the growth and metastasis of HCC in an SREBP1-dependent manner.

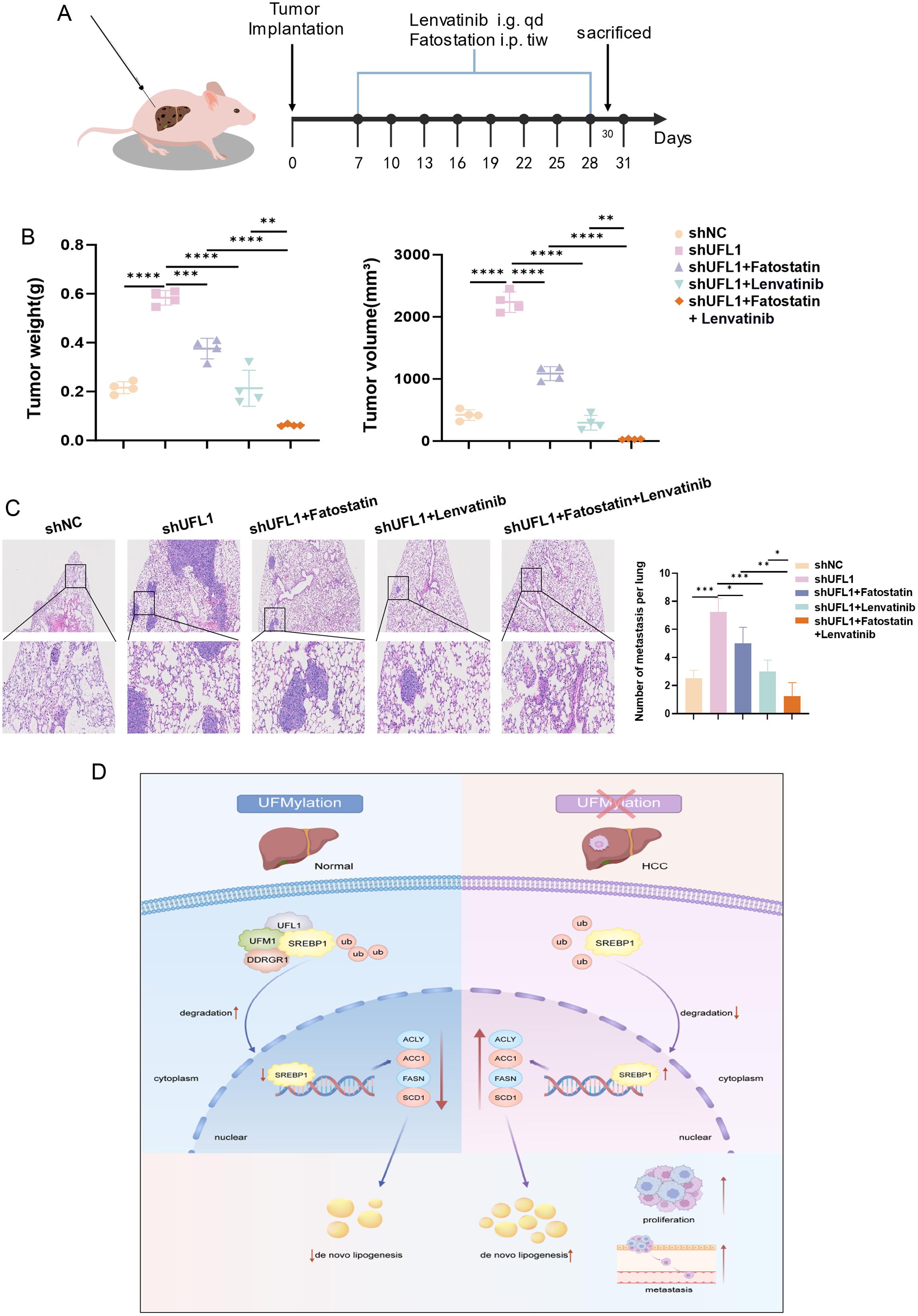

Targeting SREBP1 can enhance the efficacy of lenvatinib in HCC patients with low UFL1 expression
Research suggests that lenvatinib, as a first-line treatment, may be noninferior to combination therapy with immune checkpoint inhibitors.52 However, many patients develop drug resistance, and the mechanisms involved are multifaceted. Reports indicate that CHOL biosynthesis supports the expansion of cancer stem cell populations to drive resistance to tyrosine kinase inhibitor therapy in hepatocellular carcinoma, and the combined use of Fatostatin and lenvatinib has a higher treatment efficacy when SLP2 is highly expressed.53,54 Therefore, we aimed to investigate whether targeting SREBP1 and inhibiting lipogenesis could increase the efficacy of lenvatinib in the context of UFL1 knockdown. Fatostatin is an SREBP1 inhibitor that prevents the translocation of SREBP1 to the nucleus, thereby blocking its activation process and inhibiting lipogenesis. Dosing begins one week after the establishment of orthotopic xenografts, with a strategy that includes fatostatin monotherapy, lenvatinib monotherapy, and a combination of fatostatin and lenvatinib (Fig. 6A). Our orthotopic xenograft results indicated that fatostatin mitigated the protumor effects associated with UFL1 knockdown. Moreover, when combined with lenvatinib, tumor growth was effectively controlled (Fig. 6B and Supplementary Fig. 4C). In addition, fatostatin weakened lung metastasis caused by UFL1 knockdown, and the combination of fatostatin and lenvatinib further reduced lung metastasis in this context (Fig. 6C). In summary, dysUFMylation of SREBP1 enhances its protein stability, thereby promoting downstream fatty acid synthesis and ultimately driving tumor progression (Fig. 6D). Additionally, fatostatin can synergize with lenvatinib in HCC patients with low UFL1 expression.

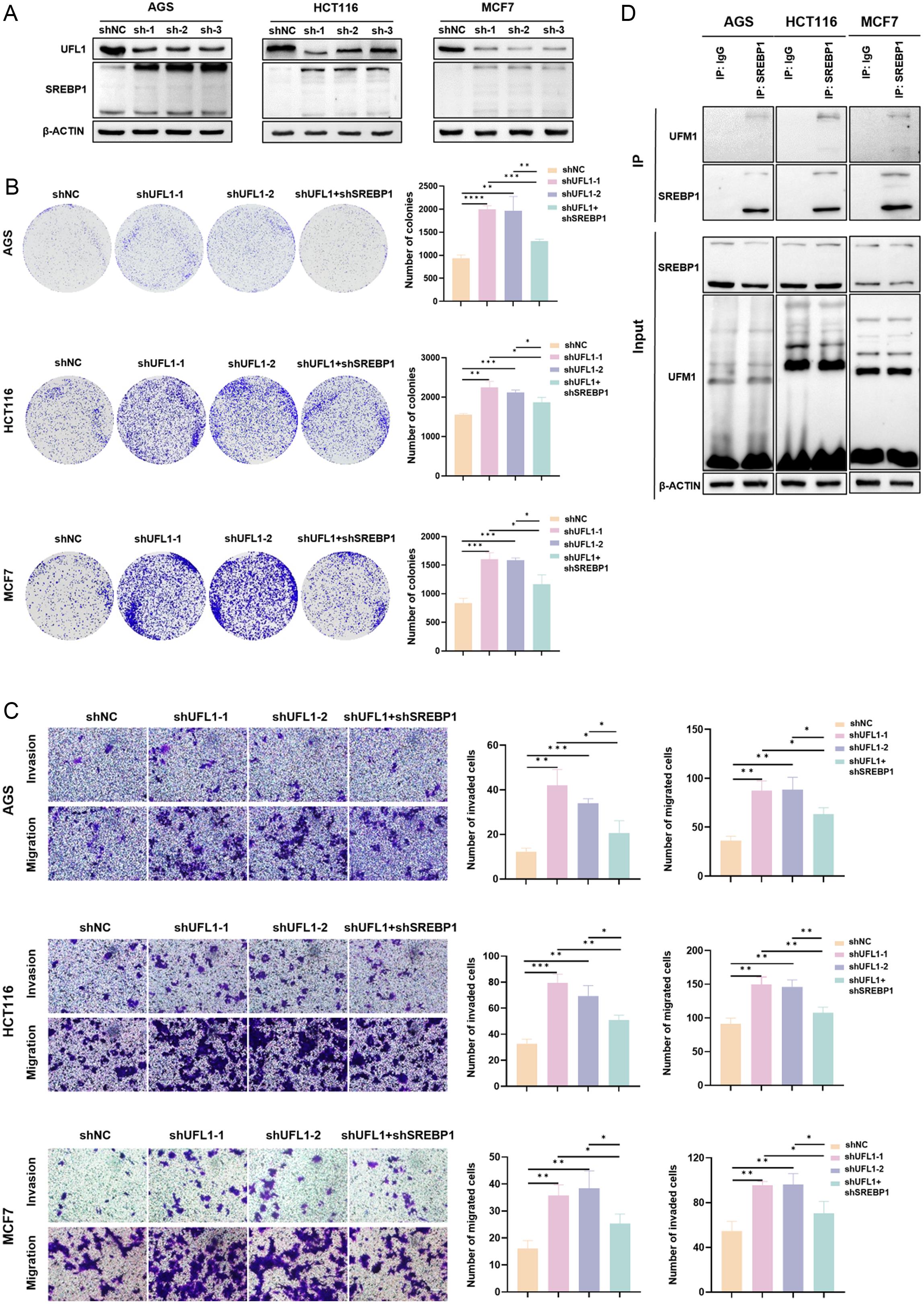

DysUFMylation promotes AGS, HCT116, and MCF7 cell proliferation, migration, and invasion via SREBP1
We have demonstrated that dysUFMylation can promote tumor progression through SREBP1 in HCC. Thus, we aimed to explore whether this phenomenon also occurs in other tumor types. AGS, HCT116, and MCF7 cells were selected for this investigation. The results indicated that UFL1 knockdown induces the accumulation of SREBP1 (Fig. 7A). In addition, phenotypic experiments confirmed that UFL1 knockdown promotes the proliferation, migration, and invasion abilities of these cells, and this promotion can be attenuated by SREBP1 knockdown (Fig. 7B and C). To further investigate whether SREBP1 is subject to UFMylation, similar to what we observed in HCC, we conducted coimmunoprecipitation and obtained consistent results (Fig. 7D).
Collectively, these findings suggest that dysUFMylation promotes cancer progression via SREBP1 in various tumor types, including but not limited to hepatocellular carcinoma, gastric adenocarcinoma, colorectal carcinoma, and breast cancer.
Discussion
The present study establishes a direct mechanistic link between UFMylation and lipid metabolism in cancer. Although UFMylation has been implicated in diverse physiological processes such as endoplasmic reticulum homeostasis, hematopoiesis, and embryonic development, its contribution to tumor biology has remained insufficiently characterized. Here, we propose that UFMylation acts as a critical regulator of lipid metabolism by controlling the stability of SREBP1, a master transcriptional factor of lipogenesis. This is consistent with the previously reported role of UFMylation.6 The functional significance of this regulation is highlighted by the central role of lipid metabolism in tumor development. Accumulated evidence suggests that aberrant lipogenesis contributes to immune evasion and therapeutic resistance.20,55 This finding integrates two essential aspects of tumorigenesis, post-translational modification and metabolic reprogramming, into a unifying model. The mechanism illustrates how ubiquitin-like modifiers may serve not simply as independent signals but as regulatory layers that interface with ubiquitination to fine-tune protein stability. Moreover, the identification of SREBP1 as a UFMylation substrate expands the catalog of known targets, which already includes immune checkpoint molecules such as programmed cell death protein 1 and programmed cell death 1 ligand 1, as well as tumor suppressors like tumor protein 53.6,7,9 This suggests that UFMylation may intersect with diverse oncogenic and immunologic pathways, with implications extending beyond metabolism. Understanding how UFMylation selects its substrates and whether distinct cofactors direct its specificity are important questions for future research.
Importantly, single-cell transcriptomic and multi-omic approaches could refine our understanding of how the SREBP1–UFMylation axis operates within heterogeneous HCC. scRNA-seq may identify hepatocyte subpopulations with differential UFMylation activity and distinct SREBP1-driven metabolic programs, while spatial transcriptomics could reveal how these cells interact with immune or stromal compartments. Integration with single-cell ATAC-seq may further uncover cell type–specific chromatin changes downstream of UFMylation. Together, these approaches would validate our model at single-cell resolution and highlight therapeutic vulnerabilities masked in bulk analyses.
Our findings also offer translational implications. Therapeutic strategies targeting the UFMylation-SREBP1 axis may enhance the efficacy of existing therapies and provide an avenue to overcome drug resistance. In addition, recent evidence suggests that panaxatriol may function as an agonist of UFL156; therefore, we speculate that pharmacological activation of UFL1 by panaxatriol could potentially suppress tumor progression, and its combination with lenvatinib warrants further exploration as an intriguing therapeutic strategy.
Nevertheless, our study has certain limitations. Although we demonstrated the role of UFMylation in regulating SREBP1 stability, the precise molecular mechanism by which UFMylation facilitates TRIM21 binding warrants further structural and biochemical investigation. In addition, while fatostatin served as a proof-of-concept inhibitor, more specific and clinically applicable SREBP1 inhibitors are needed to validate the therapeutic potential of targeting this pathway. Furthermore, our study primarily focused on the UFL1–DDRGK1 complex, but whether other UFMylation components or substrates contribute to HCC progression remains to be explored. Finally, clinical validation in larger patient cohorts is required to establish UFMylation as a prognostic marker and therapeutic target.
Supporting information
Supplementary Table 1
Association between UFL1 expression and clinicopathologic characteristics of HCC patients in TMA cohort of Zhongshan.
(DOCX)
Supplementary Table 2
Association between DDRGK1 expression and clinicopathologic characteristics of HCC patients in TMA cohort of Zhongshan.
(DOCX)
Supplementary Table 3
Univariate and multivariate analyses of factors associated with prognosis of HCC patients in TMA cohort of Zhongshan.
(DOCX)
Supplementary Table 4
The sequences of the primers.
(DOCX)
Supplementary Figure 1
The impact of DysUFMylation on SREBP1.
(A) Western blot analysis of the interactions between SREBP1 and UFL1 or DDRGK1 in HEK293T cells expressing HA-UFL1, MYC-DDRGK1, or Flag-SREBP1, was conducted via coimmunoprecipitation with HA or MYC antibodies. (B) Western blot analysis of the interactions between UFL1, DDRGK1 and SREBP1 in Huh-7 cells was conducted via coimmunoprecipitation with UFL1 or DDRGK1 antibodies. IgG was used as a control. (C) UFMylation of endogenous SREBP1 in Huh-7 cells was analysed by immunoprecipitation with an anti-SREBP1 antibody followed by Western blotting with an anti-UFM1 antibody. (D) The expression levels of UFL1 or DDRGK1 in 7 HCC cell lines. (E) After DDRGK1 was knocked down, the protein levels of SREBP1 were assessed in Huh-7 cells. (F) After UFL1 or DDRGK1 was knocked down, the mRNA levels of UFL1, DDRGK1, and SREBP1 were measured in Huh-7 and HepG2 cells. (G) After UFL1 or DDRGK1 was knocked down, the protein levels of SREBP1 were assessed in HepG2 cells. (H) The expression levels of SREBP1 in 8 pairs of human HCC tissues and adjacent normal tissues. (I) Compared with that in control cells, SREBP1 stability in DDRGK1-knockdown Huh-7 cells was assessed by Western blotting. The cells were treated with 100 µg/mL cycloheximide (CHX) for the specified durations. (J) DDRGK1 knockdown cells were treated with MG132 (20 µM) or CQ (100 µM) for the indicated times followed by Western blotting with an anti-SREBP1 antibody. (K) After knockdown of UFL1 in HepG2 cells, the level of TRIM21-bound SREBP1was measured by western blot. Abbreviations: IP, Immunoprecipitation; IB, immunoblotting; mRNA, messenger RNA; T, tumor; P, para-tumor; CHX, cycloheximide; CQ, Chloroquine. +, with; -,without.
(TIF)
Supplementary Figure 2
The effects of SREBP1 DysUFMylation on downstream lipid metabolism.
(A) The mRNA levels of SCD1, ACC1, FASN, and ACLY were measured after knockdown of UFL1 or DDRGK1 in HepG2 cells. (B) The protein levels of SCD1, ACC1, FASN, and ACLY were assessed after knockdown of UFL1 or DDRGK1 in HepG2 cells. (C) Nile Red staining of HepG2 cells for the indicated group. Scale bar, 10 µm. Data are representative of 3 independent experiments. (D) The levels of TG, CHOL, FFA in HepG2 cells for the indicated group. n = 3. Data are representative of 3 independent experiments. (E) Expression levels of UFL1, DDRGK1, and SREBP1 in 30 HCC tissues, and their correlations. (F) Correlation analysis of UFL1, DDRGK1, and SREBP1 in 98 HCC tissues from TMA. Abbreviations: mRNA, messenger RNA.
(TIF)
Supplementary Figure 3
The effects of UFL1 or DDRGK1 knockdown on the in vitro growth and metastasis of HCC.
(A) Colony formation assay of HepG2 cells following the knockdown of UFL1 or DDRGK1. A rescue assay was conducted by subsequently knocking down SREBP1. Data are representative of 3 independent experiments. (B) EdU assay of HepG2 cells following the knockdown of UFL1 or DDRGK1. Scale bar, 20 µm. Data are representative of 3 independent experiments. (C) Western blot analysis about the efficiency of SREBP1 knockdown. (D) Wound-healing assay of HepG2 cells following UFL1 or DDRGK1 knockdown. Scale bar, 50 µm. Data are representative of 3 independent experiments. (E) Transwell migration and invasion assays of HepG2 cells following the knockdown of UFL1 or DDRGK1. Scale bar, 10 µm. Data are representative of 3 independent experiments. Abbreviations: EDU, 5-Ethynyl-2′-deoxyuridine.
(TIF)
Supplementary Figure 4
The images of orthotopic HCC tumors.
(A, B) Representative images of orthotopic HCC tumors from the indicated Huh-7 cell-injected groups of nude mice. (n = 4). (C) Representative images of orthotopic HCC tumors from the indicated Huh-7 cells under different treatment conditions in nude mice (n = 4).
(TIF)
