Introduction
Rheumatoid arthritis (RA) is a chronic inflammatory disease that is characterized by synovial hyperplasia, high levels of T cells, B cells, and monocytes, and the subsequent destruction of articular cartilage.1 The pannus tissue formed by the lining of a synovial membrane is enriched with fibroblast-like synoviocytes (FLSs), which can secrete large amounts of proinflammatory cytokines to cause local and systemic inflammation.2
Disease-modifying anti-rheumatic drugs (DMARDs), one of the main treatment drugs for rheumatoid arthritis at present, can be divided into conventional synthetic DMARDs (csDMARDs), biological agents DMARDs (bDMARDs), and targeted synthetic DMARDs (tsDMARDs). However, clinical studies have shown that almost 30% of patients have adverse reactions or poor responses to csDMARDs and bDMARDs. Therefore, identifying a novel method to inactivate the pathological activity of FLSs in RA may provide novel treatment strategies.3
Previous studies have identified lots of inflammatory signaling pathways, including PI3K-AKT in RA, and inhibition of these pathways has been confirmed to effectively improve the symptoms of RA.4 Bartok et al. reported that PI3Kδ was highly expressed in RA-FLS. Except for phosphatidylinositol-4,5-bisphosphate 3-kinase gama (PI3Kγ), PI3K alpha (PI3Kα) and PI3K beta (PI3Kβ) were also expressed in RA-FLS.5 Human interleukin 1beta (IL1β) and tumor necrosis factor-alpha (TNF-α) selectively induced PI3Kδ expression, while platelet-derived growth factor (PDGF) and transforming growth factor-beta (TGF-β) did not.6 Dactolisib (Dac) is a dual ATP-competitive PI3K inhibitor that inhibits P110 α/γ/δ/β. PI3K is an intracellular phosphatidylinositol kinase with serine/threonine kinase activity.7 Activated PI3K converts PIP2 to phosphatidylinositol 3,4,5-trisphosphate (PIP3), the latter of which acts as an anchor to promote pyruvate dehydrogenase kinase 1 (PDK1) phosphorylation and protein kinase B (AKT) activation.8 AKT is the main downstream effector of PI3K, and the activation of AKT further induces the NF-κB or mTOR signaling pathways, which are closely related to inflammation.9 In addition to the pro-inflammatory role of PI3K-AKT in RA, it also serves as the target to validate the therapeutic effects of promising treatment drugs in RA.
The Tab is an indole alkaloid mainly isolated from the medicinal plant Catharanthus roseus.10 Previous studies have shown that Tab can inactivate the NF-κB signaling pathway and inhibit the production of proinflammatory mediators. However, its exact role in RA remains unclear. In this study, we evaluated whether Tab can protect against RA progression by inhibiting the pathogenic behavior of RA-FLS.
Materials and methods
Network pharmacology
The ingredients were input into the PubChem database to search chemical structure formula, Smiles files, molecular weight, PubChem CID, etc., to prepare parameters and files required for target prediction. Using the InDraw web version (http://indrawforweb.integle.com/ ) draw Tab chemical structure. Through TCMSP (http://lsp.nwu.edu.cn/tcmsp.php ), STITCH (http://stitch.embl.de/ ), Swiss Target Prediction (http://www.swisstargetprediction.ch/ ), PubChem (https://pubchem.ncbi.nlm.nih.gov/ ), DTPS (http://demo.dtps.iprexmed.com/ ) forecast composition of targets database. The repeated values were deleted after the action targets of each component were combined. Rheumatoid arthritis-related targets are searched by keyword “Rheumatoid”, and all are summarized and sorted according to gene names through GeneCards (https://www.genecards.org/ ), the NCBI-Gene (https://www.ncbi.nlm.nih.gov/gene ), DrugBank (https://www.drugbank.ca/ ), OMIM (https://www.omim.org/ ). The predicted targets were compared with those related to rheumatoid arthritis, and the repeated targets were identified by the Venn diagram. These overlapping targets were the targets of Tab on the potential treatment of RA. Using OmicShare (http://www.omicshare.com/ ) online tools for these targets for dynamic GO and KEGG enrichment analysis. PPI networks of target genes were obtained by interactive gene/protein retrieval tools from STRING (https://cn.string-db.org// ).11
Cell culture and arthritis models
The synovial tissues were collected during knee joint replacement surgery (n = 16; 6 males, 10 females, age 33–75, average age 55). All patients met the diagnostic criteria for RA as revised at the American College of Rheumatology in 1987. Written informed consent was obtained from each patient, and all samples were processed anonymously. Synovial tissue was treated with collagenase II and III (Solarbio, China, 6 h later after harvest), for RA-FLS extraction.12
Stimulation assays
As previously described, primary RA-FLS was isolated and cultured, and cells between passages 3 and 7 were used in experiments.11 Our experiments showed that many inflammatory factors can effectively stimulate RA-FLS to simulate the inflammatory microenvironment, including IL1β, TNF-α, and lipopolysaccharide (LPS), which exhibit the greatest effects. RA-FLS were grown at a suitable density on 24-well plates and stimulated with inflammatory factors for 24 h. Activation of PI3K/AKT pathways was blocked using dactolisib (Dac, BEZ235, Selleck).13
Cytotoxicity test and cell viability
RA-FLS was seeded into 96-well plates with a density of 3 × 103 cells per well and was exposed to DMSO or Tab in different concentrations of 0–50 µM. Each well was incubated with 10 µl of Cell count Kit -8 (CCK-8) reagent for more than 1 hour, and the OD value in each well was measured at 450 nm with a microplate reader to detect cell proliferation rate for 24–72 h. The concentration of Tab was determined by cell growth rate. For cell viability measurement by CCK-8, RA-FLS with similar density above were challenged by IL1β (10 µg/mL) and TNF-α (10 µg/mL) before Tab (20 µM) treatment.
In addition, RA-FLS, treated as described above, in 96-well plates were subjected to a 5-ethyl-2-deoxyuridine (EDU) assay (C10310-1, RiboBio), and the proliferation efficiency of RA-FLS was detected by a high-intensity screening (HCS) system.14
Migration, invasion, and angiogenesis experiment
RA-FLS was divided into the normal control group, inflammatory stimulation group (IL1β, 10 µg/mL), and Tab (20 µM) treatment group with IL1β stimulation. Trypsin cells were inoculated in chambers, and cell density was adjusted to 3 × 104 cells/well. After adherence to the chamber wall, 200 µl serum-free medium was replaced. 10–12 hours later, the cells were fixed with 4% paraformaldehyde for 30 minutes, stained with crystal violet for 40 minutes, and observed under a microscope to observe the number of cell migration. The matrix glue was diluted with medium 1:8 and evenly spread in chambers for invasion analysis.
Then, HUVEC-1730 cells were plated in 6-well plates with a density of 4 × 104 cells per well and were treated and grouped as described above for 24 h.15 The matrix gel was prepared at a 1:1 volume ratio with medium, and 180–200 µl was added to each well in a 48-well plate, and the plate was placed in an incubator for 4 hours until the matrix gel completely solidified. Then, the treated cells were placed on the matrix gel at a density of 1 × 104 cells per well. After 2 hours, tube formation in the HUVEC-1730 cells was observed by microscopy.
Quantitative real-time polymerase chain reaction (qRT-PCR)
RNA was extracted with TRIZOL and RNA concentration and purity were detected. The purity of RNA was best when A260/A280 was between 1.8 and 2.0. cDNA was synthesized with 1 µg RNA by HiScript® III RT SuperMix for qPCR (Vazyme, R323-01), which the procedure was 50°C, 15min; 85°C, 5 sec. And PCR (Basel Roche 480, Switzerland) was performed using an SYBR Green Mastermix kit (Cwbio, China) as a template.16 The primers used are listed in Table 1.
Table 1The primers used are listed in qRT-PCR
| Gene Name | Sense (5′-3′) | Antisense (5′-3′) |
|---|
| GAPDH | GCACCGTCAAGGCTGAGAAC | TGGTGAAGACGCCAGTGGA |
| IL6 | ACTCACCTCTTCAGAACGAA TTG | CCATCTTTGGAAGGTTCAGGTTG |
| IL8 | CCAGGAAGAAACCACCG | GGTGGAAAGGTTTGGAGTAT |
| MMP3 | CTGGACTCCGACACTCTGGA | CAGGAAAGGTTCTGAAGTGACC |
| PIP3 | TCCGCTGCTTTATCAGGTCG | CACGAACTCGATGGGGATGA |
| MIP-2 | CAGCCAGA TGCAA TCAA TGCC | TGGAA TCCTGAACCCACTTCT |
| PDK1 | AGGACAAAAGTGCTGAGGATG | CCATGTTCTTCTAGGCCTTTCATA |
| CREB | CCAAGTTGTTGTTCAAGGTACTCA | TTCAAATTCACTGACATCCTGCT |
Western blot analysis
The total cell lysates were separated by sodium dodecyl. After protein quantification by the BCA protein quantification method, samples were loaded and separated by SDS-PAGE gel (12% separated gel and 10% concentrated gel) at 66 V for 10 min, 76 V for 20 min, 126 V for 1 h. Then, the protein samples were electrophoretically transferred onto 0.45 µm polyvinylidene fluoride (PVDF) membranes (Millipore, Bedford, MA, USA). Then, the PVDF membranes were blocked and incubated at 4°C overnight with primary antibodies and secondary antibodies for 1 h. The blots were visualized using an enhanced chemiluminescent substrate (ECL) kit (Vazyme, Nanjing, China). The protein bands were quantified using ImageJ software 2.0 (National Institutes of Health, Bethesda, Maryland, USA) and were normalized to the density of the respective GAPDH band.
The following antibodies were used: anti-PI3K (1:500, 27921-1-AP, Proteintech), anti-PIP3 (1:1,000, 17552-1-AP, Proteintech), anti-PDK1 (1:500, 10026-1-AP, Proteintech), phospho- PDK1 (1:200, 29241-1-AP, Proteintech), anti-AKT (1:500, MA5-14916, Invitrogen, Thermo Fisher), and phospho-AKT (1:200, 44-621G, Invitrogen, Thermo Fisher). and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) (1:1,000, Proteintech, Wuhan, China).
Collagen-induced arthritis (CIA) model
CIA is a well-established mouse model of human RA.17 Arthritic mice develop swollen joints, chronic inflammation, and joint destruction. CIA was induced by injecting type II collagen at 2 mg/mL (Chondrex, Washington, USA) and complete Freud’s adjuvant (Sigma-Aldrich, Mannheim, Germany) in a 1:1 emulsion (200 µl) was injected at the base of the tail of 10-week-old male DBA mice. A type II collagen and incomplete Freud’s adjuvant (Sigma-Aldrich) 1:1 emulsion was injected (200 µl) at the base of the tail in 14-week-old mice. The mice were monitored once per day to detect the signs of arthritis.
Animal subjects
The animal study was carried out in accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. The protocol was approved by the Committee on the Ethics of Animal Experiments of the University of Shandong first Medical and Shandong Medicinal Biotechnology Centre (Protocol Number: SMBC21LL012). All surgery was performed under sodium pentobarbital anesthesia, and all efforts were made to minimize suffering.
Hematoxylin-Eosin (H&E) staining
The elbow and knee joints of mice were fixed with a tissue fixator for 24 h and decalcified in 10% EDTA solution for 30 days. During this period, the decalcification solution was replaced. The sample was dehydrated and paraffin-embedded. After dewaxing, the slices were stained with hematoxylin at 37°C for 5 min, washed with tap water for 10 min, immersed in alcohol containing 1% hydrochloric acid for 5 s, then rinsed with tap water for 10 min, and washed with distilled water for 1–2 s. Stain 120 s with 5% eosin. Dehydrate with 70%, 80%, 90%, and 95% diluted alcohol for 5 minutes, followed by 100% alcohol for 10 minutes. The slices were cleaned with xylene for 10 minutes to dewax and then coated with neutral balm. After drying, the tissues of each group were observed under a light microscope.3
Enzyme-linked immunosorbent assay (ELISA)
The supernatant of the above cells cultured for 24 hours was collected and evaluated by ELISA kits (Dakewe). Supernatants were obtained from the eyeballs of mice 50 days after the second collagen injection, and the inflammatory factor content in the supernatant was detected by ELISA.
Immunofluorescence microscopy
RA-FLS was plated in 48 wells at a density of 1 × 104 cells per well. After treatment of 24 hours, the cells were immobilized, perforated with Triton X-100, and incubated with a secondary antibody (1:500, Invitrogen, Thermo Fisher) at 37°C for 1 hour. Finally, DAPI staining was performed. The nuclear translocation of AKT was observed under a fluorescence microscope.
Statistical analysis
Data were expressed as the mean ± standard deviation (SD). All data were analyzed by SPSS 25.0. Statistical differences between the two groups were firstly selected by t-test and multiple groups were assessed by ANOVA. P-value ≤ 0.05 was considered to be significant.
Results
Network prediction of Tab and RA-related pathways
We obtained the molecular formula of Tab from PubChem and used InDraw online version (http://indrawforweb.integle.com/ ) to map the Tab 2D chemical structure (Fig. 1a). Through Tab sequencing data, we performed KEGG analysis on differentially expressed genes in RA-FLS and found that the IL17 signaling pathway, MAPK signaling Pathway, and PI3K signaling Pathway were enriched (Fig. 1b). 70 potential targets of Tab were predicted by TCMSP, STITCH, Swiss Target Prediction, PubChem, and DTPS databases. Furthermore, 1,222 genes related to RA were predicted by NCBI-Gene, DrugBank, and OMIM database. The Venn diagram (Fig. 1c) shows that a total of 35 genes have been predicted as the potential therapeutic targets of Tab in RA. We also applied STRING to construct a PPI network that showed that these potential targets, such as Hsp90, GSK3β, etc., were related to PI3K or involved in the PI3K-AKT signaling pathway (Fig. 1d). KEGG (Fig. 1e) analysis of overlapping genes was performed by OmicShare, and these genes were associated with a variety of human diseases and metabolism, such as metabolic diseases, and degenerative diseases. In addition, consistent with the KEGG analysis of sequencing data, the network predicted KEGG enrichment and also identified THE PI3K signaling pathway as a potential therapeutic target for Tab.
Tabersonine influenced the biological activity of RA-FLS
In order to determine the therapeutic effect of Tab on RA-FLS, a cytotoxicity test was firstly carried out, and 20 μM was finally selected for subsequent experiments (Fig. 2a). CCK-8 (Fig. 2b) and EDU (Fig. 2c) were used to determine cell viability and proliferation. The results showed that the cell viability and proliferation with the activation of IL1β were significantly decreased when RA-FLS were treated by Tab compared with its parental control. In addition, the expression of interleukin 6 (IL6), interleukin 8 (IL8), and matrix metalloproteinase 3 (MMP3) in RA-FLS were all decreased upon Tab treatment (Fig. 2d). The tube formation assay of HUVEC-1730 showed that Tab could also inhibit the pro-angiogenesis properties of RA-FLS (Fig. 2e). The results of cell migration and invasion experiments (Fig. 2f)showed that the number of cell migration and invasion increased significantly after the addition of inflammatory factors. However, such increases were attenuated by the Tab treatment.
Tabersonine ameliorates the CIA inflammatory phenotype
To further determine the therapeutic effect of Tab on RA, CIA model mice were established, and Tab was added for the intervention. The results showed that Tab inhibited the arthritic parameters of the RA-like phenotype, as evidenced by the decreased degree of ankle swelling, paw thickness, and arthritis score (Fig. 3b), compared to the control group with DMSO treatment.
HE staining showed that synovial hyperplasia, inflammatory cell infiltration, and cartilage destruction were all ameliorated in Tab-inoculated mice (Fig. 3c). Serum of the CIA models with or without Tab treatment was collected for ELISA analysis. The data showed that the expression of inflammatory factors, such as IL1β and TNF-α was decreased in Tab treated group compared to the CIA model group (Fig. 3d). In addition, the three-dimensional spiral structure of the tibia edge was analyzed by the micro-CT method. Compared to the control group, the relative bone volume (BV/TV), and trabecular separation (Tb.Sp) in the CIA model group increased significantly and trabecular bone mineral density (Tb.BMD) reduced. But the addition of the Tab could rescue these changes.
Tab protects against RA progression through PI3K signaling

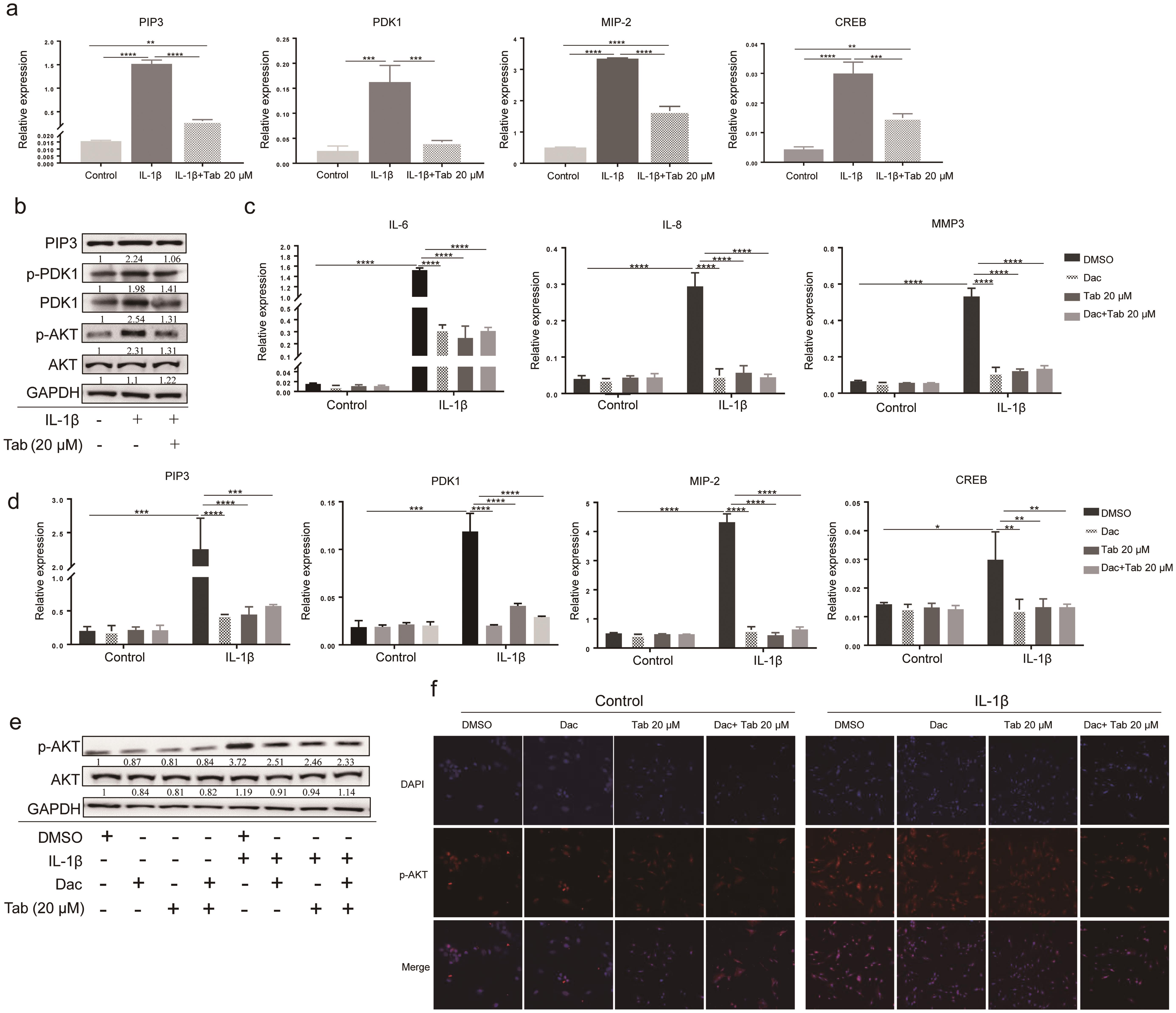

To detect the effects of Tab on the PI3K pathway, we detected the expression levels of inflammatory factors downstream of PI3K. The results showed that the mRNA expression levels of PIP3, PDK1, C-X-C Motif Chemokine Ligand 2 (MIP-2), and CAMP Responsive Element Binding Protein (CREB) were significantly increased after the addition of IL1β, whereas the above increases were all suppressed following the exposure of Tab (Fig. 4a).
Secondly, protein levels were detected. The expression levels of PIP3, PDK1, and p-PDK1 increased after the addition of IL1β. However, such increases were suppressed when RA-FLS were challenged by Tab simultaneously, while the change of AKT was not significant. We also detected changes in phosphorylation levels of this molecule and found that the phosphorylation levels of AKT were consistent with the above trend (Fig. 4b). This indicates that Tab can indeed regulate the expression level of PI3K related molecules in RA-FLS.
To detect whether Tab inactivated RA-FLS via the PI3K pathway, Dac, an inhibitor of PI3K, was introduced to block the PI3K pathway in the absence or presence of Tab. The data showed that Dac could inactivate the PI3K pathway as efficiently as Tab, However, no additive suppression was observed. With the stimulation of IL1β, the expression level of IL6, IL8, and MMP3 decreased significantly in Tab-treated RA-FLS when compared to its parental control. However, no further decreases were found when RA-FLS were treated by both of them (Fig. 4c). Similar effects on the expression of parameters downstream of the PI3K pathway, including PIP3, PDK1, MIP-2, and CREB were also observed (Fig. 4d).
Western results showed that the expression level of p-AKT was increased under the stimulation of IL1β, but decreased with the addition of an inhibitor or Tab. However, no further changes were observed when RA-FLS were treated by both of them. In addition, the total protein level of AKT did not change significantly after treatment (Fig. 4e).
Furthermore, immunofluorescence was used to detect the nuclear translocation of AKT (Fig. 4f). The data showed that the nuclear staining of AKT increased obviously when RA-FLS were exposed to IL1β, but the addition of Dac or Tab can inhibit the nuclear translocation of AKT. However, no further decrease of nuclear translocation of AKT was observed when Tab-exposed RA-FLS were challenged by Dac further.
Conclusions
Rheumatoid arthritis is an autoimmune disease characterized by synovial hyperplasia and an inflammatory phenotype. It often manifests as symmetric polyarthritis, accompanied by synovial joint swelling and pain,18 especially in hand and foot joints, but other tissues and organs, such as blood vessels and peripheral nerves, can also be involved. Currently, the treatment of RA mainly includes drug therapy, including nonsteroidal anti-inflammatory drugs, DMARDs, glucocorticoids, and biological agents.19,20 However, traditionally used drugs induce side effects that are harmful to the kidney, stomach, and liver.12,21 In recent years, the treatment of RA by Chinese herbal medicine has been increasingly favored by the majority of patients with rheumatism because traditional Chinese herbal medicine has curative effects, safety, and nontoxic side effects.22 Our study found that Tab inhibits the inflammatory response and arthritis progression by inhibiting the pathogenic activity of RA-FLS, suggesting that Tab is a potential drug for the treatment of RA.
The Tab is a terpenoid indole alkaloid found in a variety of plants, including C. roseus (Apocynaceae). Previous studies have shown that Tab has strong anti-inflammatory properties and protects the lung from injury by inactivating the NF-κB and P38/MK2 pathways.23 Our data showed that Tab exerts its anti-inflammatory effect by inhibiting the activity of the PI3K-AKT signaling pathway and that the PI3K-Akt signaling pathway is required for Tab conferred protection against acquiring the inflammatory phenotype of RA-FLS, further confirming its likelihood as a treatment drug for RA.
In summary, Tab has proven to be a promising candidate for developing novel therapies for RA because it can ameliorate the inflammatory phenotype of RA-FLS.
